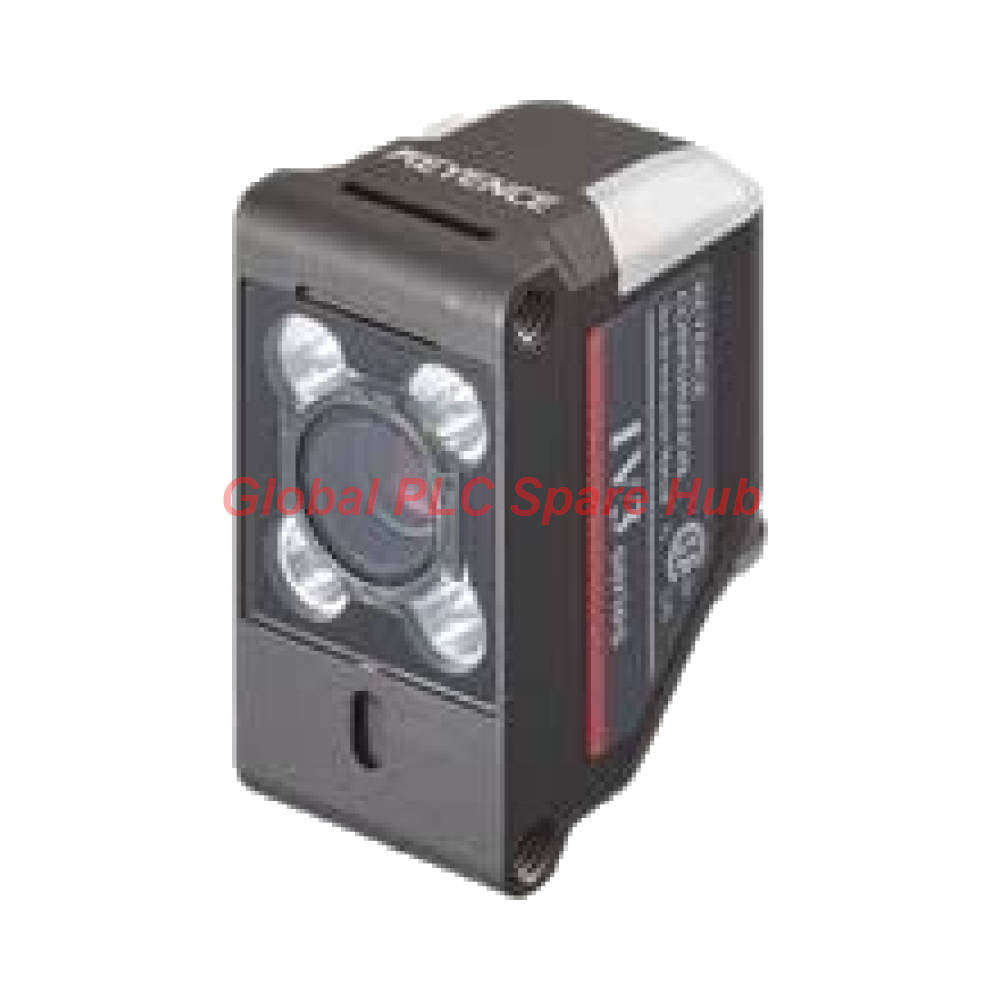

IV3-G600CA Keyence IV3 Series Wide-View Color Vision Sensor

IV3-G600CA Keyence IV3 Series Wide-View Color Vision Sensor

Manufacturer: Keyence
Product No.: IV3-G600CA
Condition： In stock
Product Type: Vision Sensor
Product Origin: USA
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Engineering Architecture & Optical Overview

The IV3-G600CA vision sensor head by Keyence combines automated optical focusing with high-resolution color imaging. Engineered within the IV3 Series, this wide-view sensor utilizes an advanced 1/2.9-inch color CMOS architecture to deliver reliable inspection across diverse industrial manufacturing setups.

Technical Parameters & Performance Metrics

Parameter Category	Technical Specification
Brand & Model	Brand: Keyence \| Model: IV3-G600CA
Product Series	IV3 Series Wide-View Color AF Vision Sensor
Imaging Resolution	1280 (H) $\times$ 960 (V) pixels via 1/2.9-inch color CMOS sensor.
Field of View (FOV)	$51 \times 38\text{ mm}$ at $50\text{ mm}$ distance; expanding up to $2730 \times 2044\text{ mm}$ at $3000\text{ mm}$.
Optics & Illumination	Automatic focus adjustment; Built-in white LED illumination (pulse or continuous selectable).
Electrical & Environmental	Exposure time: $12\text{ }\mu\text{s}$ to $9\text{ ms}$; IP67 zinc die-cast housing; Operating temp: $0\text{ }^\circ\text{C}$ to $+50\text{ }^\circ\text{C}$.

Mechanical Installation & Physical Layout

Housing Material: Rugged zinc die-cast case with an acrylic front cover and TPU indicator cover.
Weight Profile: Lightweight 75 g body without lighting unit; 225 g total weight equipped with lighting.
Shock & Vibration: Withstands mechanical vibration (10–55 Hz, 1.5 mm amplitude) and heavy shock loads up to $500\text{ m/s}^2$ ($50\text{ G}$).
Visual Feedback: Dual-indicator LEDs integrated into the housing for immediate operational status checks.

Global Logistics & Service Terms

Service Parameter	Fulfillment Details
Warranty Protection	Backed by a standard 12-month comprehensive warranty.
Dispatch Timeline	Rapid processing and shipping within 24 to 48 hours.
Global Carriers	Express international shipping via FedEx, UPS, and DHL.
Package Contents	1 x IV3-G600CA sensor head and factory calibration papers.

Target Equipment & Industrial Applications

High-speed automated packaging verification and date-code inspection lines.
Automotive component assembly confirmation and missing-part detection cells.
Electronics circuit board positioning and automated assembly verification.
Pharmaceutical blister pack integrity and seal inspection systems.

Diagnostic & Quality Control Capabilities

Real-time color pattern matching and multi-point presence verification.
Continuous exposure optimization under variable ambient factory lighting.
Instant fault triggering linked to PLC controllers via digital error outputs.

Global PLC Spare HUB's Insight

Vision integration engineers often struggle with manual focus adjustments and lighting glare when deploying inspection cameras on fast-moving conveyor lines. Our field experience shows that leveraging the autofocus mechanism and built-in white LED illumination of the IV3-G600CA Keyence sensor eliminates setup errors caused by product height variations. For example, a packaging plant inspecting mixed-size cartons maintained stable target recognition across varying distances without requiring manual lens refocusing during product changeovers.

Frequently Asked Questions

Question: How does the autofocus mechanism adapt when inspecting objects at varying focal distances?

Answer: The internal autofocus motor adjusts lens positioning dynamically between a 50 mm minimum range up to 3,000 mm to maintain crisp 1280 $\times$ 960 image clarity.

Question: What factors should guide my selection between pulse and continuous white LED illumination modes?

Answer: Use pulse mode to freeze fast-moving targets and prevent motion blur on high-speed lines, and continuous mode for static or slow-moving inspection tasks.

Question: Can the zinc die-cast housing withstand direct exposure to industrial washdown fluids?

Answer: Yes, the IP67 rating ensures complete protection against dust ingress and temporary water immersion during routine factory washdowns.

Question: Why does the unit weight differ significantly between configurations with and without the lighting unit?

Answer: The bare sensor head weighs 75 g, while attaching the integrated lighting module brings the total assembly weight to 225 g for enhanced optical output.

Question: What are your shipping timeframes and express courier options for replacement automation parts?

Answer: We process and dispatch all available inventory within 24 to 48 hours using trusted global couriers including FedEx, UPS, and DHL.

12-Month Comprehensive Warranty

Every part supplied by Global PLC Spare Hub is covered by a 12-month warranty from the date of invoice.

Coverage: Functional defects and hardware failures under normal operating conditions.
Commitment: We provide immediate repair, replacement, or a full refund for any verified defective components to minimize your operational downtime.

Returns & Exchange Policy

We offer a 30-day return policy to ensure you receive the exact part your system requires.

Eligibility: Returns are accepted for uninstalled items in their original, factory-sealed packaging.
RMA Process: Please contact our support team to obtain a Return Merchandise Authorization (RMA) number before shipping.
Fast Processing: Refunds or exchanges are processed within 3–5 business days after the returned item passes our technical inspection.

Need Technical Assistance?Not sure if this part is compatible with your system? [Consult our Engineers] before purchasing to ensure 100% compatibility.
