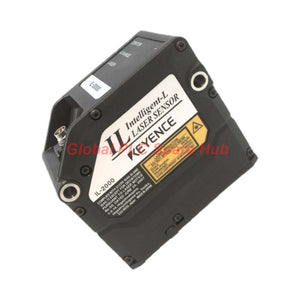

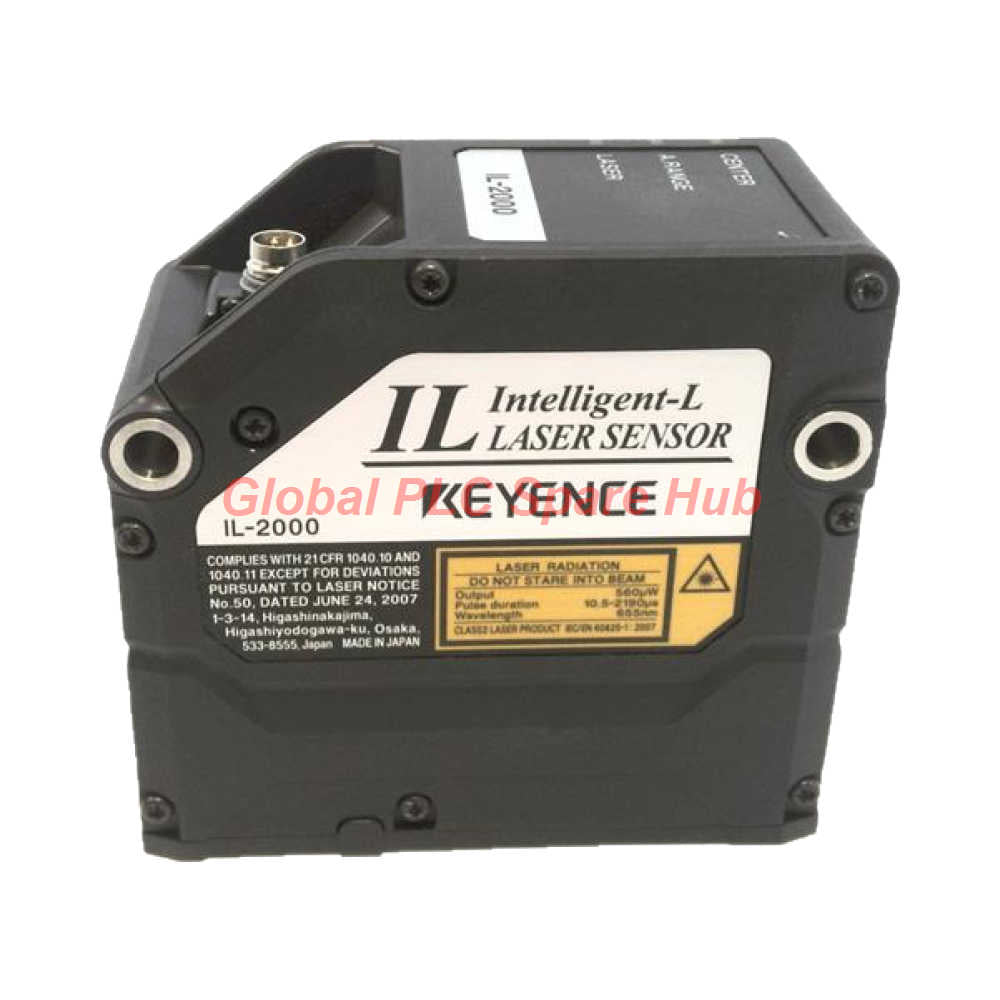

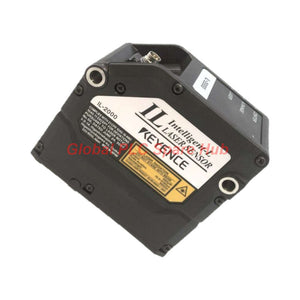

IL-2000 KEYENCE IL Series CMOS Analog Laser Sensor Head 1000-3500mm

Executive Summary & Optical Metrology Core

The IL-2000 sensor head from the IL Series by Keyence delivers high-precision distance measurement across extended industrial ranges. Powered by a visible red semiconductor laser diode, this CMOS multi-function analog device targets long-standoff positioning tasks. Plant automation engineers rely on its robust optical architecture to capture micron-level displacement metrics without surface color interference.

Comprehensive Technical Parameters Matrix

Advanced Operational Features & Functional Highlights

• Multi-Level Sampling Speeds: Configure response times down to 0.33 ms to track fast-moving transit profiles accurately.
• High Ambient Light Resilience: Engineered to withstand up to 10,000 lux from incandescent factory lighting sources without saturation.
• Rugged Environmental Sealing: IP67 housing rating protects internal optics against heavy moisture, washdown routines, and airborne particulate.
• Multi-Status Visual Feedback: Integrated green laser emission, orange analog range, and bi-color reference indicators simplify on-site debugging.

Target Industrial Equipment & Application Scenarios

• Automotive Body Assembly: Measures large-gap panel alignments and structural chassis offsets from a safe standoff distance.
• Paper & Steel Coil Windings: Monitors outer diameter roll thickness progression inside high-speed tensioning machines.
• Robotic Transfer Arms: Verifies correct part seating and vertical displacement limits prior to multi-axis welding operations.

Built-In Diagnostic & Fault Monitoring Capacities

• Target Out-of-Range Triggers: Orange analog indicators flag when target surfaces drift outside the valid 1000 mm to 3500 mm window.
• Thermal Drift Compensation: Built-in hardware design maintains high thermal stability rated at 0.016% of F.S./°C.
• Vibration Dampening Design: Withstands dual-amplitude mechanical oscillations up to 1.5 mm across 10 to 55 Hz spectrums.

Global Logistics & Warranty Assurance

• Fulfillment Window: Guaranteed rapid dispatch within 24 to 48 hours of order confirmation.
• Courier Partners: Secure international air freight routing via FedEx, UPS, and DHL.
• Warranty Protection: Fully covered by a comprehensive 12-month operational replacement warranty.

Global PLC Spare HUB's Insight & Field Experience

Mounting long-range displacement sensors across wide conveyor gaps often introduces optical jitter if structural brackets experience thermal flexing. During a recent high-temperature web-handling line integration, securing the IL-2000 onto a heavy-gauge SUS304 mounting bracket eliminated baseline wandering entirely. Field engineers should verify that the optical glass cover remains free of oil mists or dust accumulation to maintain the rated ±0.16% full-scale linearity over prolonged running cycles.

Frequently Asked Questions

Can older Keyence sensor amplifiers connect directly to the IL-2000 head variant?
No, amplifiers purchased prior to August 8th, 2012, lack the firmware architecture required to support this specific head model.

How does targeting dark or low-reflectivity rubber affect the measurement linearity?
While white diffuse targets yield optimal performance, dark materials reduce returning light intensity; adjusting the sampling rate to a slower 5 ms setting helps recover stable analog output values.

What selection guidelines apply when installing this sensor in high-vibration stamping areas?
Ensure the cable harness is secured with strain-relief clamps close to the connector block to prevent repetitive 55 Hz stress fatigue on the PVC cable jacket.

How can technicians verify correct alignment without looking at the controller screen?
Observe the bi-color reference distance LED indicator directly on the sensor head; a steady green light confirms the target sits precisely within the optimal mid-range window.

What preventive maintenance prevents false warning errors in humid washdown zones?
Regularly inspect the IP67 NBR packing seals and wipe the glass lens cover with an anti-static optical cleaner to prevent water droplet lensing effects.
