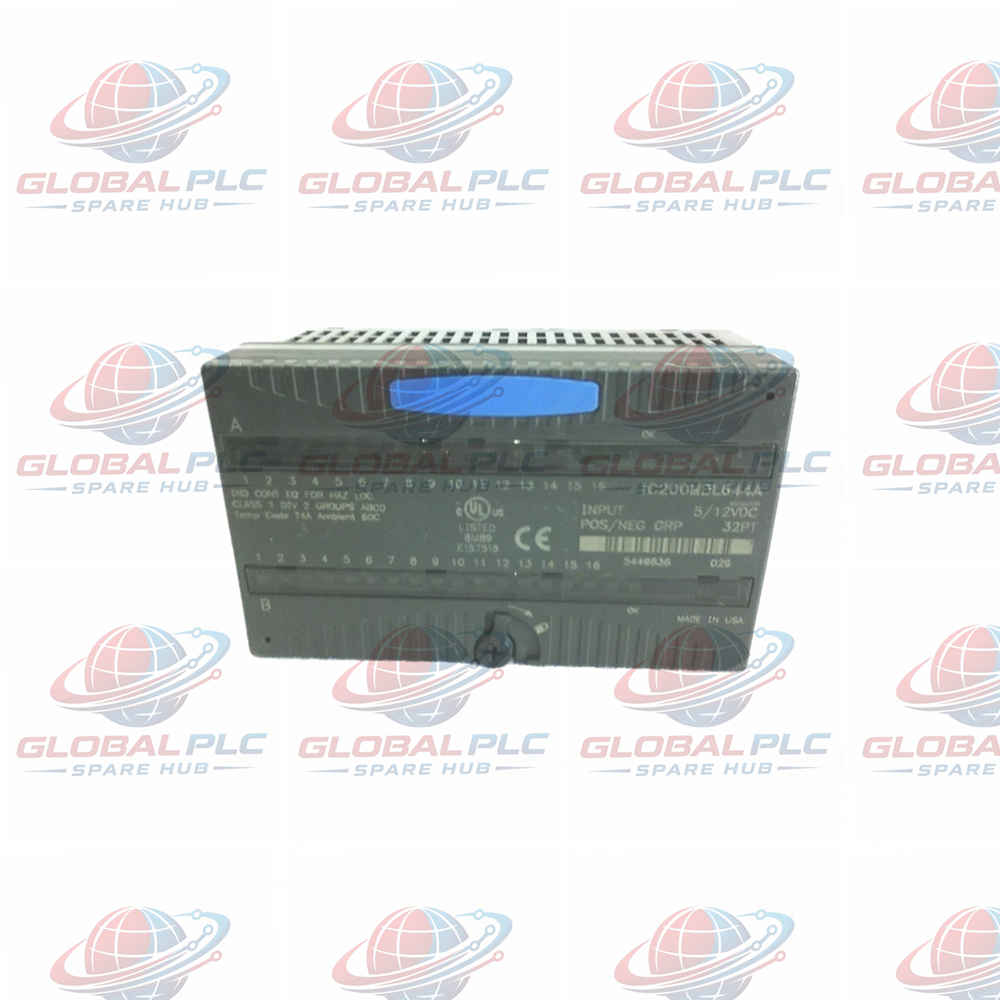

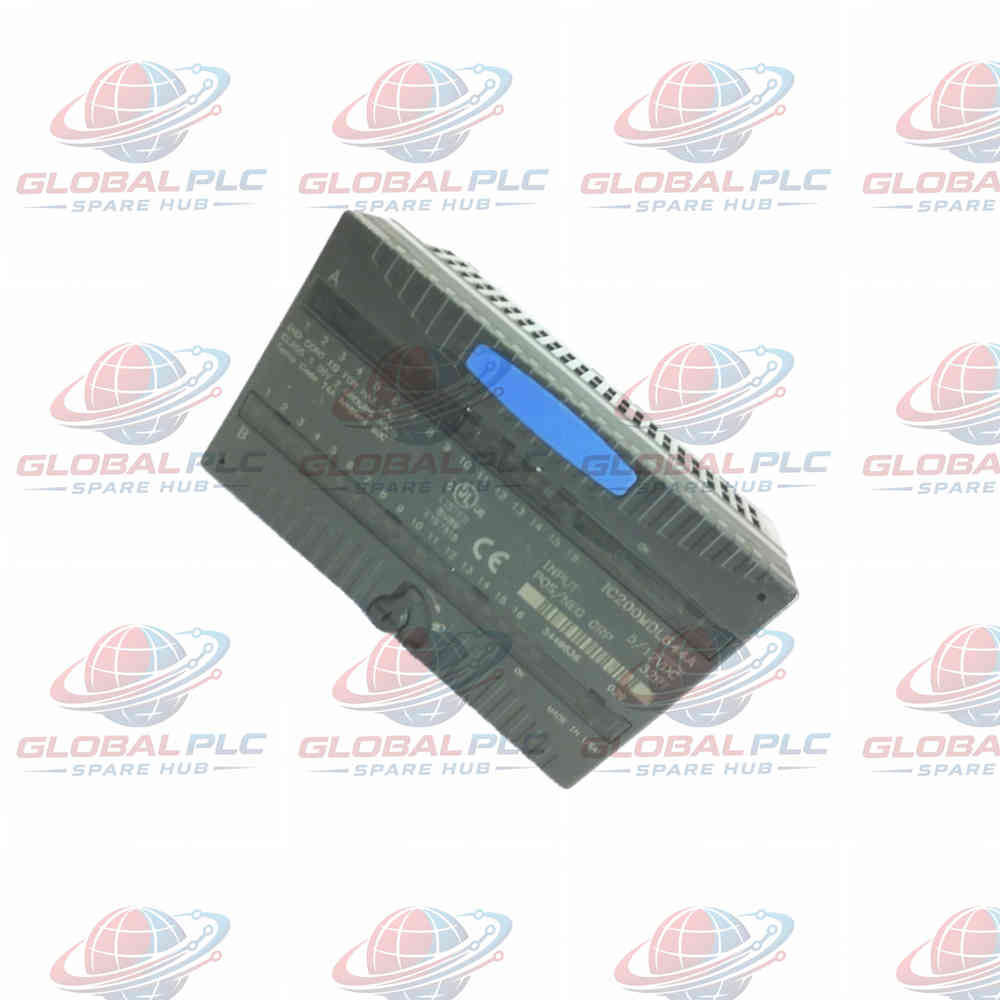

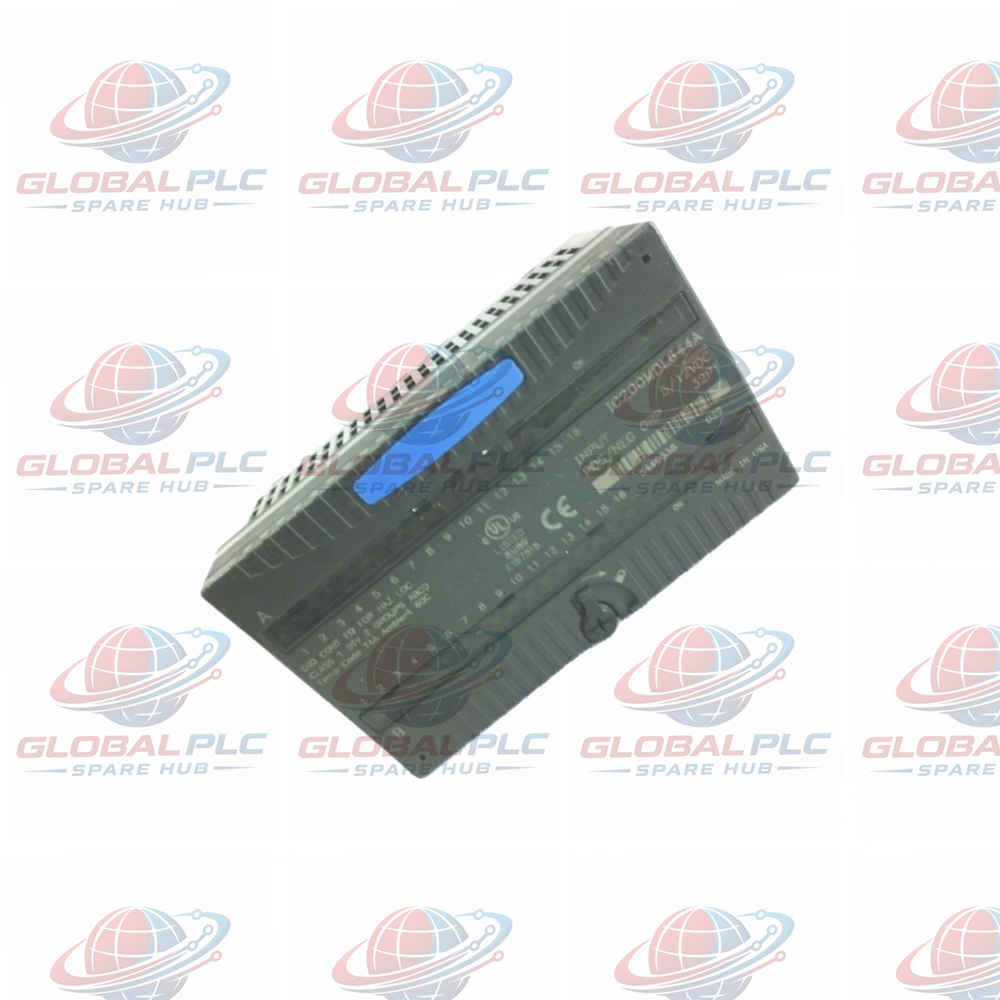

IC200MDL644 VersaMax GE Fanuc 32-Channel Discrete Input Module

IC200MDL644 GE Fanuc VersaMax Discrete Input Module Architectural Overview

The IC200MDL644 delivers high-density signal acquisition within the GE Fanuc VersaMax control system platform.

This discrete input module processes 32 digital signals operating on 5 VDC or 12 VDC nominal logic levels.

Engineers deploy this module to bridge field switches, sensors, and TTL circuits directly to central processing units.

Its bi-directional design supports positive and negative logic wiring configurations per isolated channel group.

Software-configurable input filtering suppresses electrical contact bounce and line noise across industrial networks.

Engineering & Technical Specification Hierarchy

1. Module Identification & System Parameters

Brand: GE Fanuc

Series: VersaMax

Part Number: IC200MDL644

Module ID Code: 80088008

Module Type: Discrete Input Module

Backplane Current Consumption: 140 mA maximum @ 5 VDC

2. Input Signal & Channel Capacity

Channel Density: 32 discrete inputs arranged in 4 isolated groups (8 points per group)

Logic Compatibility: Sink/Source (Positive or Negative logic configurable per group)

Nominal Operating Voltage: 5 VDC / 12 VDC

Voltage Range: 0 to 15 VDC continuous

On-State Voltage Threshold: 4.2 to 15 VDC

Off-State Voltage Threshold: 0 to 2.6 VDC

User Input Current: 1.8 mA @ 5 VDC; 4.9 mA @ 12 VDC

Input Impedance: 2.4k Ohms

Software Filter Response: 0 ms, 1.0 ms, or 7.0 ms selectable

3. Electrical Isolation & Environmental Tolerances

Group-to-Group Isolation: 250 VAC continuous; 1500 VAC for 1 minute

Point-to-Point Isolation: None (Shared common per 8-point group)

External Power Requirement: None (Field power drawn from input loop; logic powered by backplane)

System Compatibility & Industrial Application Scenarios

The IC200MDL644 connects seamlessly to VersaMax PLC CPUs and Network Interface Units (NIUs).

It processes status feedback from optical encoders, limit switches, and proximity sensors.

Engineers utilize negative logic mode to interface directly with 5V TTL semiconductor equipment.

High-density packaging suits compact OEM control panels in automated packaging machinery.

Fast filter settings enable sub-millisecond event capture on automated assembly lines.

Installation, Diagnostics, & Commissioning

Mount the unit onto a standard VersaMax snap-on I/O carrier base.

Disconnect all field power sources prior to wiring terminals to protect sensitivity circuits.

Connect the group common reference terminal securely to field power ground.

One green "OK" LED monitors backplane power and internal controller health status.

32 individual green point LEDs display active high/low field channel status in real time.

Commercial Logistics & Warranty Policy

Global PLC Spare HUB's Insight & Field Experience

In electronics manufacturing facilities, TTL logic integration often introduces signal ground loops.

Our field technicians recommend configuring the IC200MDL644 in negative logic mode for TTL devices.

This configuration maintains solid noise margins and prevents floating input states on open collector outputs.

During a high-speed counting retrofit, a customer observed missed input pulses on long cable runs.

Adjusting the module's software filter time from 7.0 ms down to 0 ms immediately restored full pulse capture.

Always verify signal wire lengths when running 5 VDC circuits to prevent voltage drops below 4.2 VDC.

Selection & Buyer Guidance

Select this module when your design requires 32 low-voltage digital inputs in a single footprint.

Confirm that your field instruments operate within the 4.2 VDC to 15 VDC on-state voltage window.

If your field instrumentation relies on 24 VDC industrial power, select a 24 VDC rated VersaMax card instead.

Ensure your 5 VDC backplane power supply capacity covers the 140 mA current consumption requirement.

Frequently Asked Questions (FAQ)

Question: What is the primary advantage of having 4 isolated groups on this 32-point card?

Answer: Grouping allows engineers to mix positive logic (sinking) and negative logic (sourcing) inputs on the same physical module by supplying different common voltage references to each isolated bank.

Question: Does this discrete module require an external DC power supply to operate?

Answer: No external supply powers the module logic; internal operating power is drawn directly from the backplane 5 VDC bus.

Question: How do I change the software filter time on the channels?

Answer: Software filter times (0 ms, 1.0 ms, or 7.0 ms) are set using the PLC hardware configuration software during system programming.

Question: Field Experience: Why are input LEDs flickering erratically when connected to optical sensors?

Answer: Check field wiring distances and line capacitance. Long wire runs on 5 VDC loops experience voltage attenuation. Increasing the software filter to 1.0 ms usually dampens electrical noise induced from adjacent power wiring.

Question: Field Experience: Can I wire 24 VDC sensors directly into this module's input channels?

Answer: No, applying 24 VDC exceeds the maximum 15 VDC input limit and will permanently damage the internal optical isolators and 2.4k Ohm input resistors.
