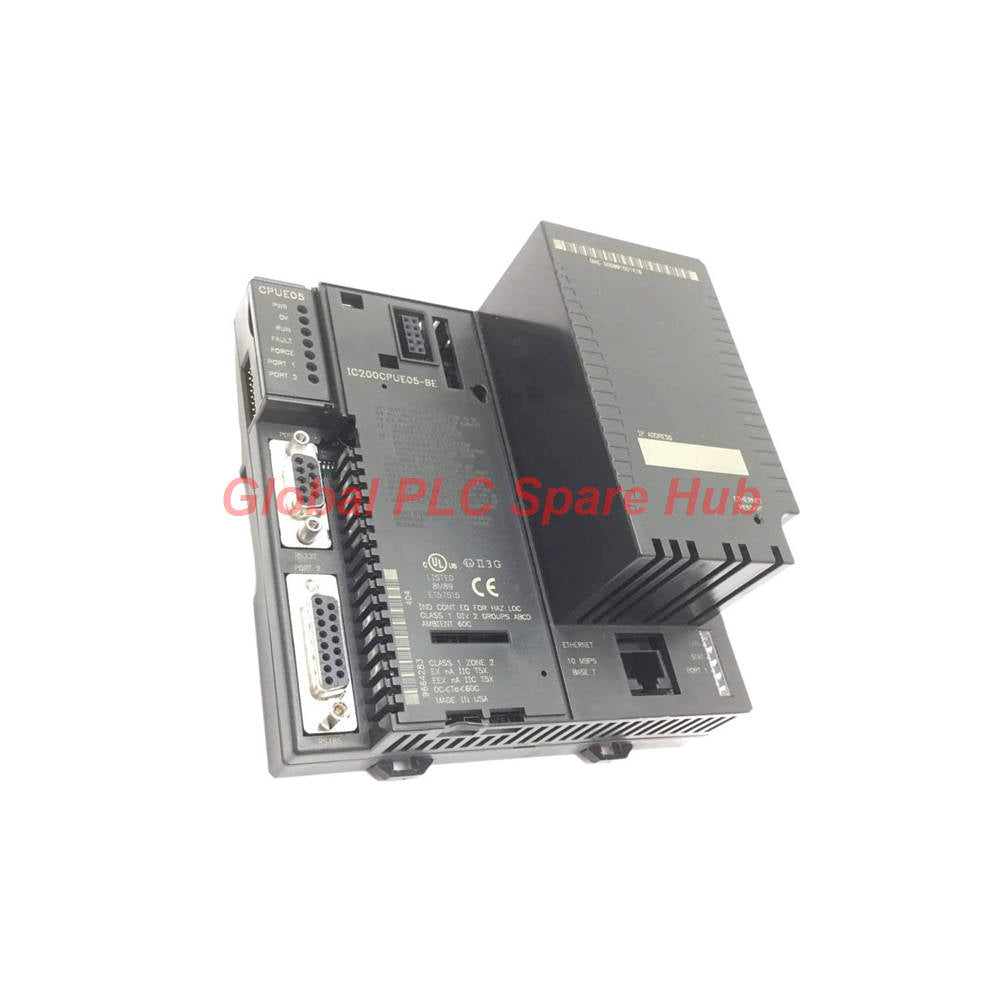

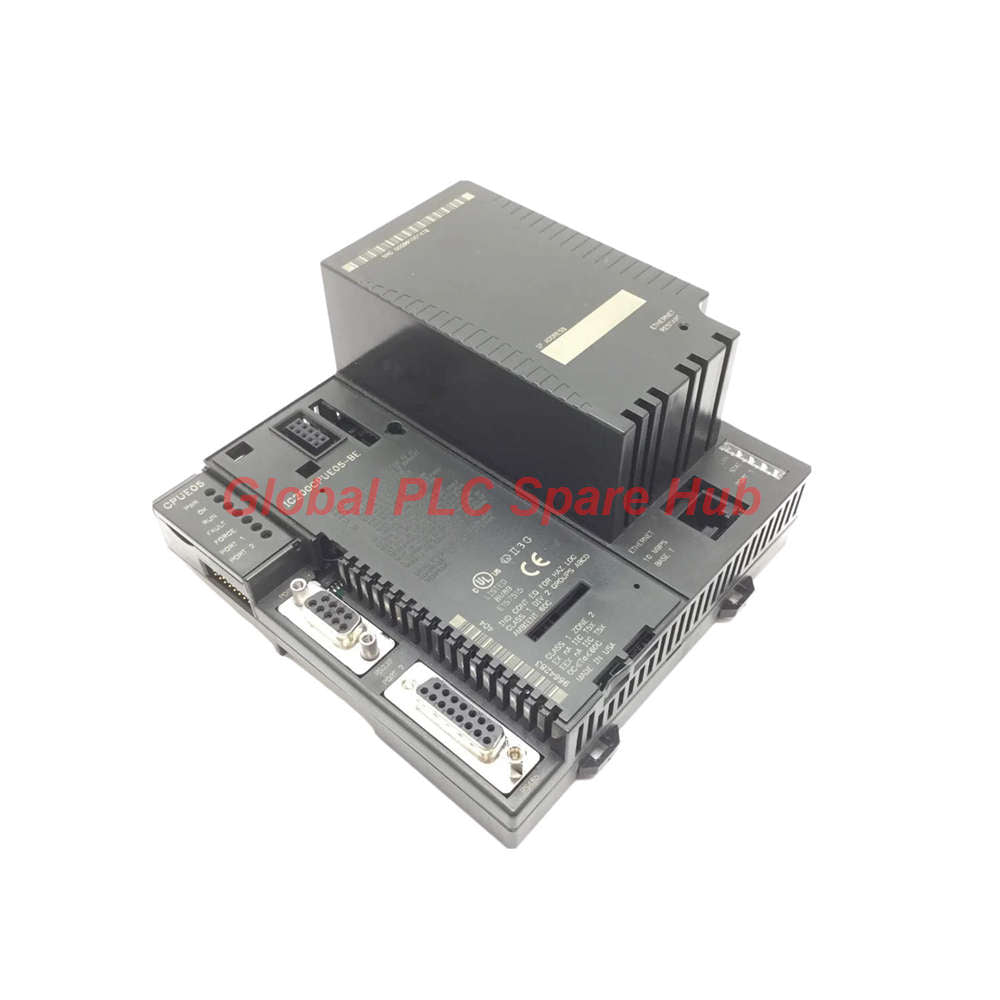

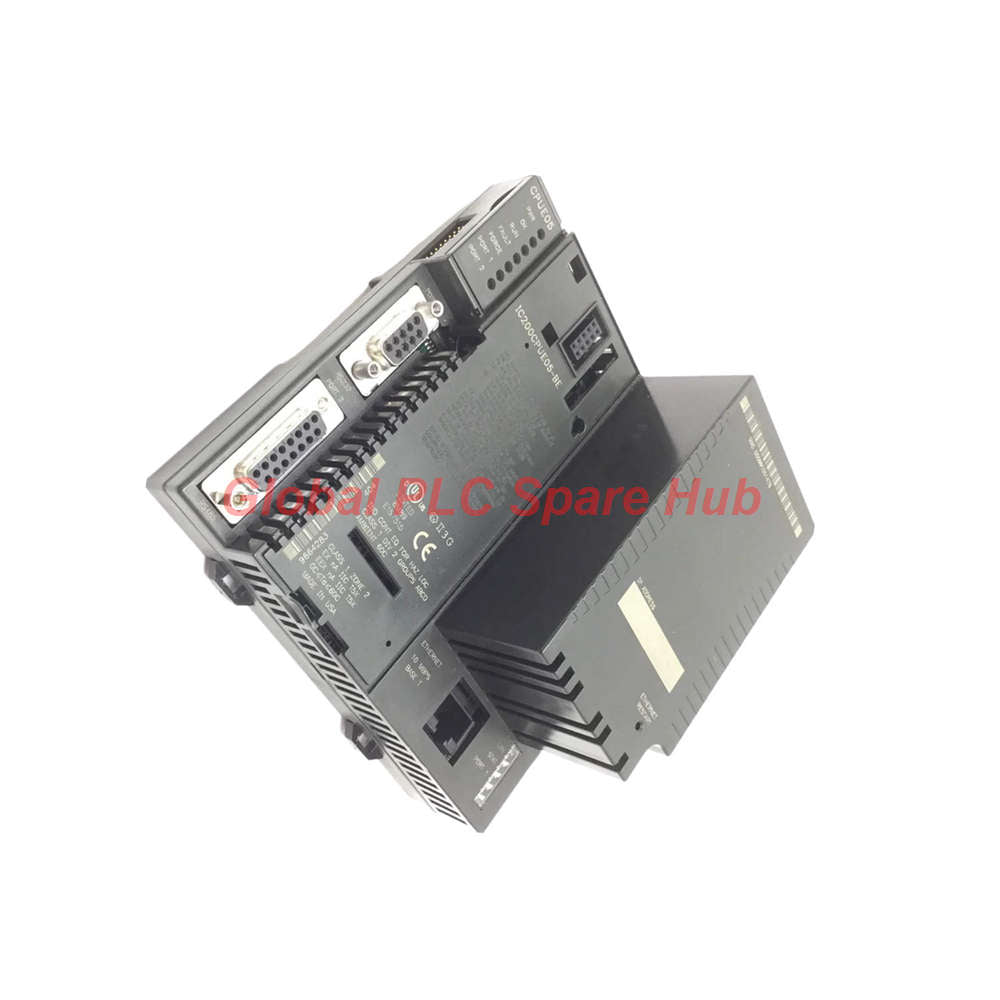

IC200CPUE05 Ethernet Central Processing Unit GE Fanuc

Product Overview

The IC200CPUE05 is a compact, high-performance Central Processing Unit (CPU) module belonging to the GE Fanuc / Emerson VersaMax Programmable Automation Controller family. Engineered for modular process logic and real-time industrial networking, the controller features 64 KB of user-configurable logic/data memory and executes Boolean ladder logic at a rate of 0.8 ms per 1K instructions. The IC200CPUE05 supports scaling up to 64 expansion I/O modules or 2048 discrete/analog I/O points across horizontal or vertical DIN rail mounting configurations.

Designed for embedded field communications, the module integrates three physical communication interfaces: one 9-pin Sub-D RS-232 serial port, one 15-pin Sub-D RS-485 serial port, and an RJ-45 10 Mbps Ethernet port (supporting full/half duplex, 8 concurrent SRTP server connections, and 32 Ethernet Global Data exchanges). Onboard power protection includes an internal supercapacitor providing up to 1 hour of memory backup during brief outages, supplemented by battery backup for extended offline retention up to 6 months.

Key Features and Benefits

• Triple Integrated Communication Interfaces: Onboard RS-232, RS-485, and 10 Mbps Ethernet ports eliminate the need for separate network adapter cards.
• Advanced Industrial Ethernet Protocols: Native support for up to 8 SRTP server connections and 32 Ethernet Global Data (EGD) exchange configurations.
• Dual Layer Memory Backup Architecture: Integrated supercapacitor provides 1-hour short-term power loss bridge; battery maintains data for up to 6 months.
• Flexible Ladder & Instruction Execution: Fast 0.8 ms/K Boolean speed supporting floating-point math, 32-bit register manipulation, and Modbus RTU master logic.
• Flexible Mechanical Mounting: Direct DIN rail latching allows vertical or horizontal cabinet orientation without thermal derating.
• Comprehensive Status LED Diagnostics: Bezel indicators display PWR, OK, RUN, FAULT, FORCE, PORT 1, and PORT 2 operational states.

Technical Specifications

Detailed electrical, communications, and functional specifications for the IC200CPUE05 are structured below:

Target Equipment and Application Scenarios

• Distributed packaging line machinery requiring local Ethernet supervision and Modbus RTU serial device aggregation.
• Small-to-medium municipal water treatment skids utilizing EGD network time synchronization across peer controllers.
• Standalone OEM equipment control integrating variable frequency drives over RS-485 and HMI operator panels over RS-232.
• Retrofitting legacy GE VersaMax rack assemblies with modern SRTP Ethernet server communication capabilities.

Diagnostic Capabilities and Firmware Revisions

The IC200CPUE05 incorporates dual diagnostic LED arrays positioned at the upper and lower corners of the front bezel. Real-time visual feedback covers power rail health (PWR), CPU boot integrity (OK), logic execution state (RUN), internal hardware/I/O faults (FAULT), active point overrides (FORCE), and serial link activity (PORT 1 / PORT 2). Firmware revisions deliver evolving protocol features: FW 2.10 (initial release), FW 2.20 (expanded serial baud rates), FW 2.30/2.31 (enhanced Modbus Master capabilities), and FW 2.2 BE (32-bit register mapping for Modbus RTU Master communications).

Global PLC Spare HUB's Insight & Field Experience

When selecting or replacing an IC200CPUE05, pay careful attention to the firmware version suffix installed on the CPU label. If your system relies on 32-bit Modbus RTU register polling for smart field instruments, ensure the unit runs firmware version 2.20 or later (such as revision CPUE05-BE or CPUE05-AD), as older hardware revisions do not natively support 32-bit register data mapping.

During plant shutdown maintenance, take advantage of the dual memory retention system. The internal supercapacitor holds logic intact for up to 60 minutes without any battery connected, allowing technicians ample time to swap out the backup coin cell battery without losing PLC registers or forcing a fresh program download from Machine Edition.

Compliance, Shipping, and Warranty Terms

• Package Contents: 1 x Original IC200CPUE05 VersaMax CPU controller module in anti-static protective box.
• Warranty Terms: Covered by a full 12-month replacement warranty effective from invoice issuance.
• Express Global Courier: Fast international dispatch within 24–48 hours via premium FedEx, UPS, and DHL couriers.

Frequently Asked Questions (FAQ)

Question: How long can this CPU hold user program logic when complete cabinet power is disconnected without a battery?

Answer: The built-in supercapacitor retains user memory for up to 1 hour without auxiliary power, bridging battery swap windows.

Question: What is the maximum number of SRTP client sessions that can connect simultaneously to the Ethernet port?

Answer: The embedded 10 Mbps RJ-45 Ethernet port supports up to 8 concurrent SRTP server connections for HMIs and engineering workstations.

Question: Can this VersaMax controller be mounted vertically inside a shallow control enclosure?

Answer: Yes, the physical chassis is rated for both vertical and horizontal DIN rail mounting orientations without operational derating.

Question: What hardware ports are available for direct serial communication with field devices?

Answer: The unit features one 9-pin Sub-D RS-232 serial interface and one 15-pin Sub-D RS-485 serial interface directly on the housing.

Question: Which firmware revision is required if my network architecture relies heavily on Modbus RTU Master protocols?

Answer: Select hardware revisions CPUE05-AD (FW 2.31) or CPUE05-BE (FW 2.2), which provide expanded Modbus Master command functions and 32-bit register handling.
