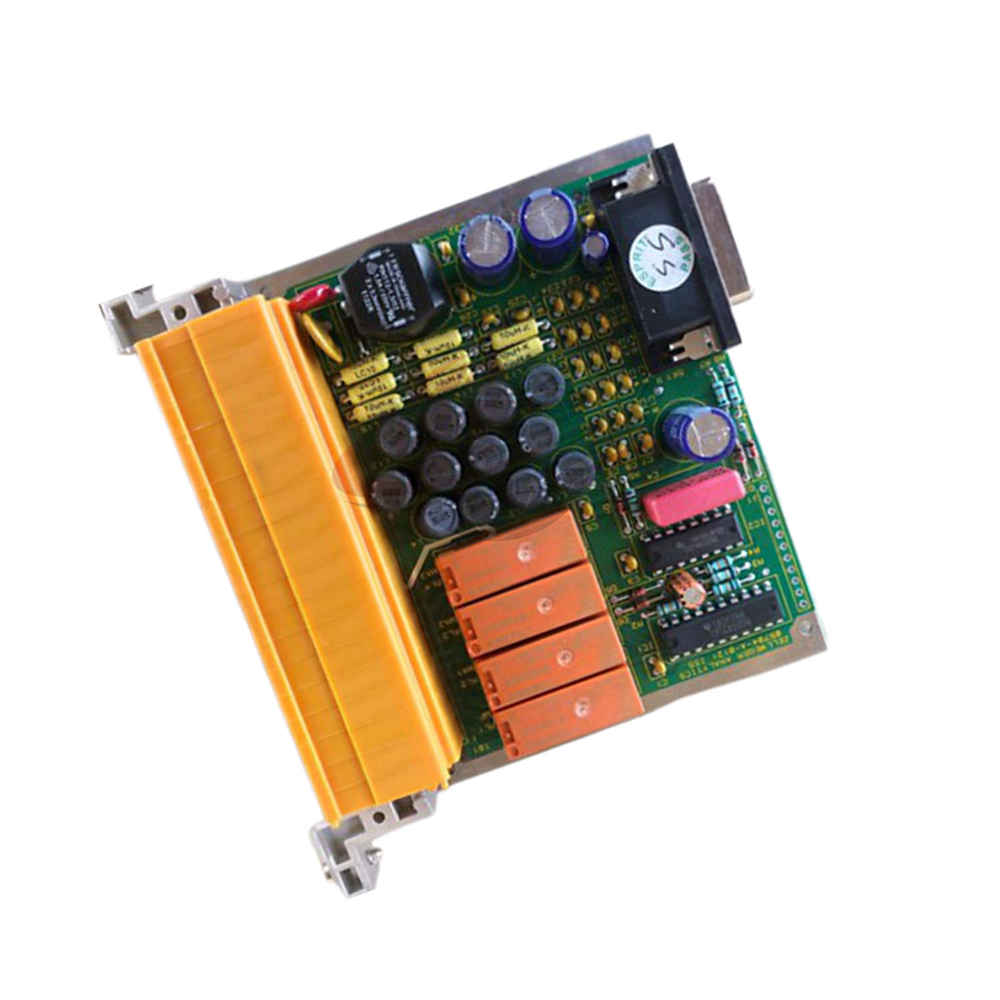

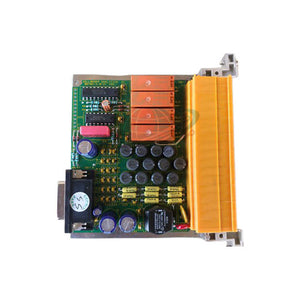

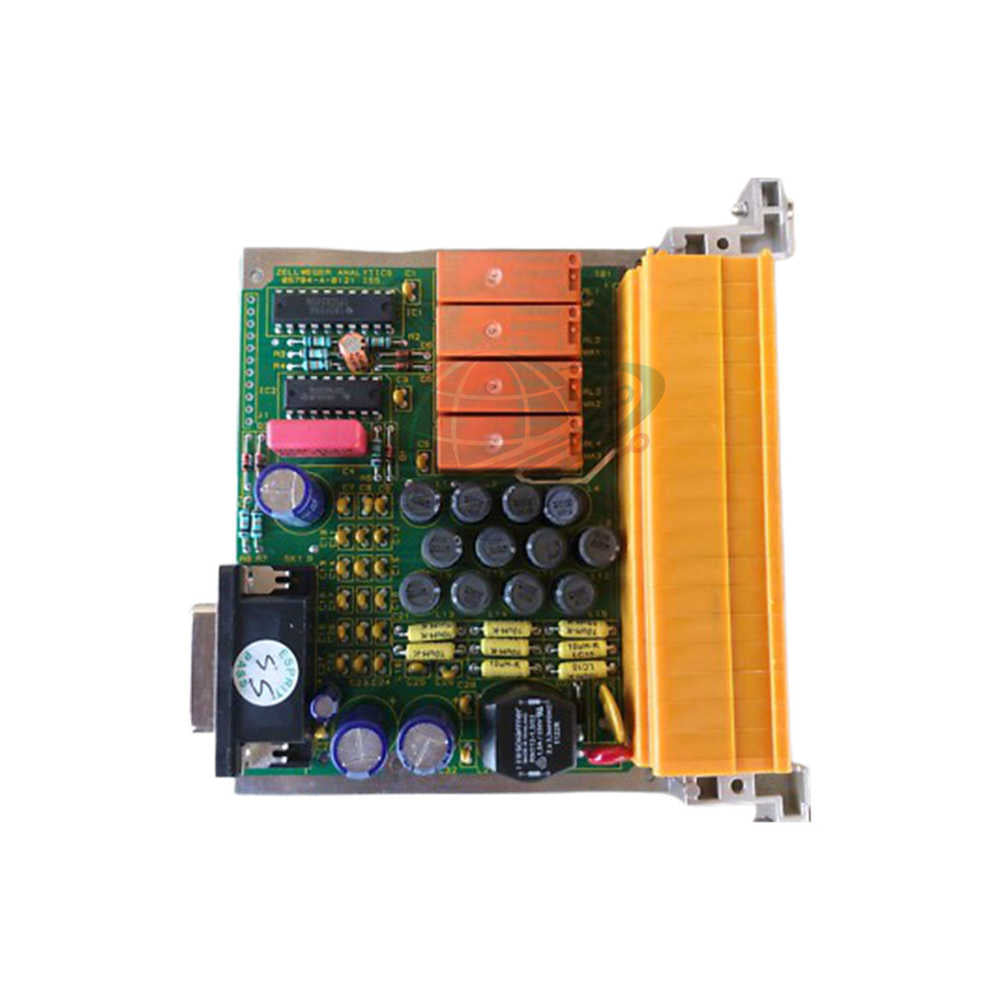

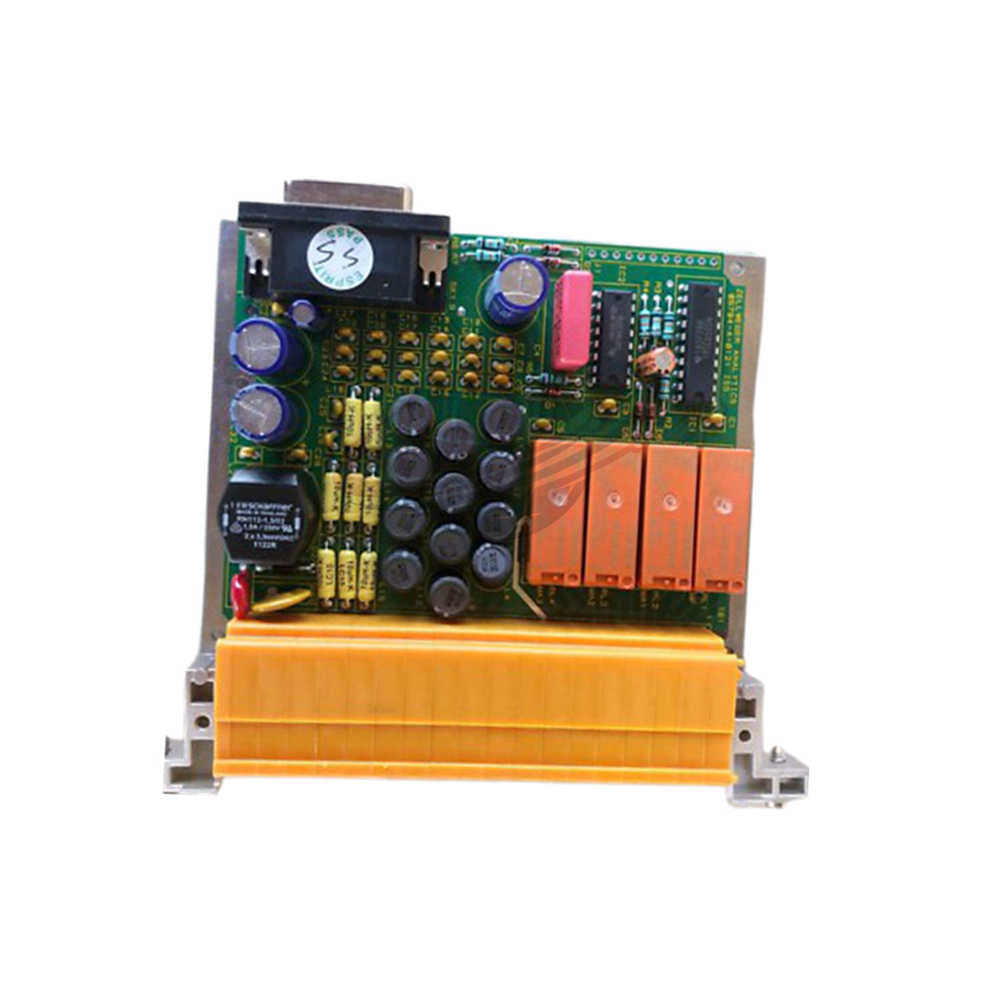

Honeywell 05704-A-0121 Relay Output Module Quad Channel

Product Introduction

The 05704-A-0121 is a high-integrity Quad Relay Interface Card engineered for the Honeywell Sieger System 57. This module provides four independent relay outputs to drive external executive actions, such as activating audible alarms, visual beacons, or emergency shutdown (ESD) valves. Its ruggedized design ensures deterministic switching performance even in high-interference industrial environments.

Engineering Specification Matrix

• Brand: Honeywell Sieger
• Part Number: 05704-A-0121
• Module Type: Quad Relay Output Interface
• Output Configuration: 4 Independent Channels
• Contact Geometry: SPDT (Single Pole Double Throw)
• Contact Rating (Resistive): 5 Amps at 30VDC or 250VAC
• Switching Capacity: 1250 VA (AC) / 150 W (DC)
• Dielectric Isolation: >100 MΩ at 500 VDC
• Thermal Range: -40°C to +70°C (-40°F to 158°F)
• Mechanical Endurance: >10 Million cycles
• Installation: Rack/Chassis Plug-in

Global PLC Spare HUB's Insight

The 05704-A-0121 is the backbone of secondary safety logic in gas detection and process control. Engineers prefer this specific interface card because of its SPDT flexibility, allowing for both "Normally Open" and "Normally Closed" logic on the same module.

• Suitable Equipment: Seamlessly integrates with Honeywell System 57 control racks and signal conditioners.
• Diagnostic Capability: Enables real-time feedback of relay state transitions for loop testing and system verification.
• Primary Application: Fire and Gas (F&G) systems, HVAC dampener control, and remote solenoid actuation.

Shipping and Warranty Terms

• Condition: Brand New in original factory packing.
• Warranty: 12-Month warranty period from the date of purchase.
• Shipping Carriers: Rapid global logistics via FedEx, UPS, and DHL.
• Dispatch Schedule: Standard processing time of 24-48 hours.

Professional FAQ

• What is the advantage of the 05704-A-0121 using SPDT contacts over SPST?
• The SPDT (Single Pole Double Throw) configuration allows you to wire for both fail-safe and non-fail-safe logic simultaneously. This versatility is critical for integrating with different types of annunciators.


• How does the module handle high-vibration industrial environments?
• The 05704-A-0121 is rated for up to 2G operational vibration resistance. Its plug-in terminal block design includes secure mechanical seating to prevent contact chatter.


• Is there a minimum load requirement for the relay contacts?
• While the maximum is 5A, it is a best practice to ensure a small "wetting current" when using these relays for low-level signal switching to prevent oxide buildup on the contacts.


• Can this card be hot-swapped within a System 57 rack?
• While the System 57 architecture is robust, we recommend de-energizing the specific slot or ensuring the control logic is in "Inhibit" mode before replacing the module.


• Buying Guide: What should I check before ordering this module?
• Verify your coil control voltage and terminal block spacing. This module is the standard 4-channel version; ensure your rack has sufficient power budget for the 24VDC coil consumption.
