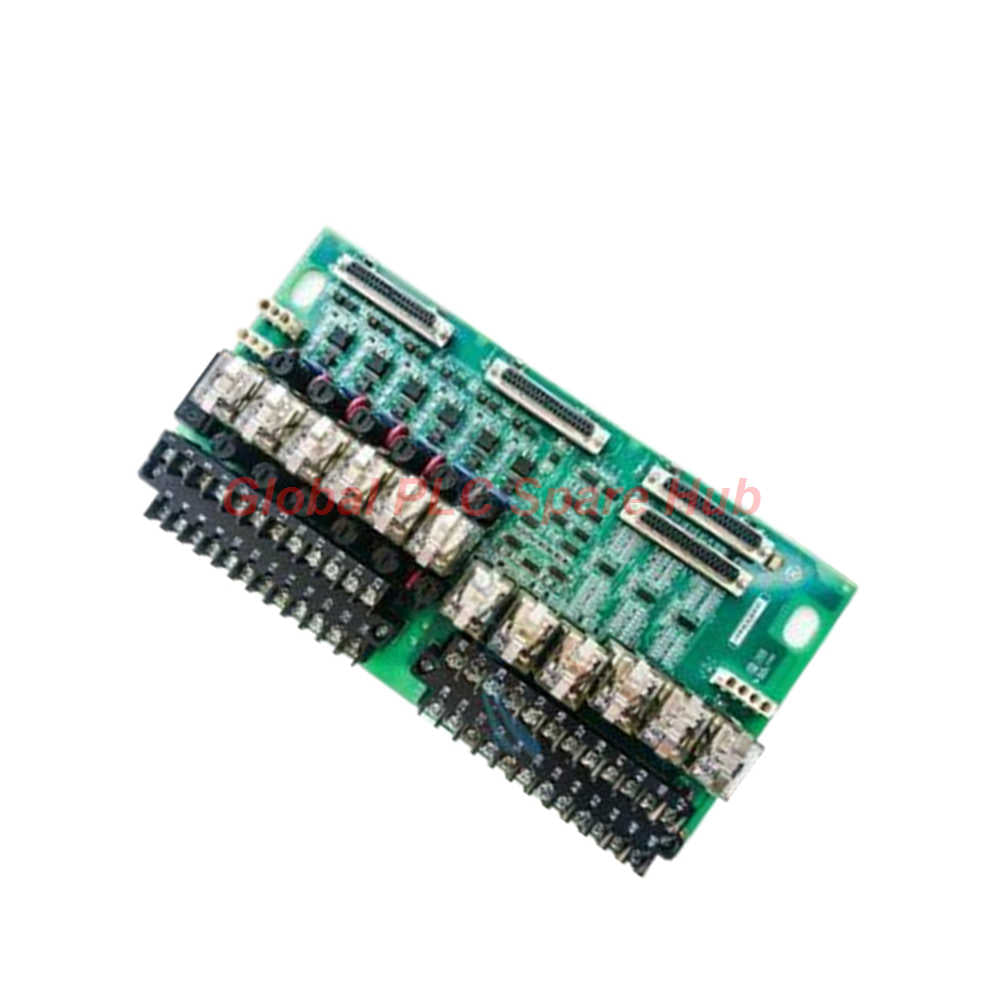

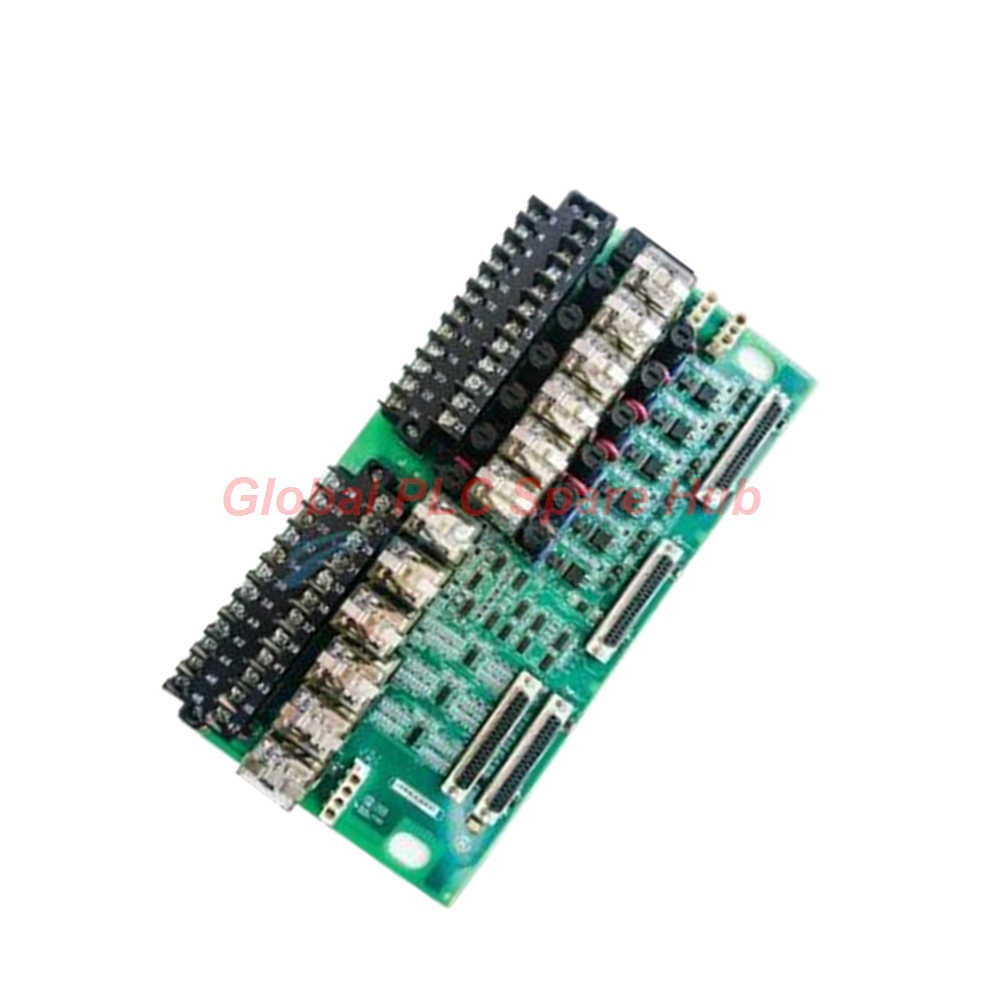

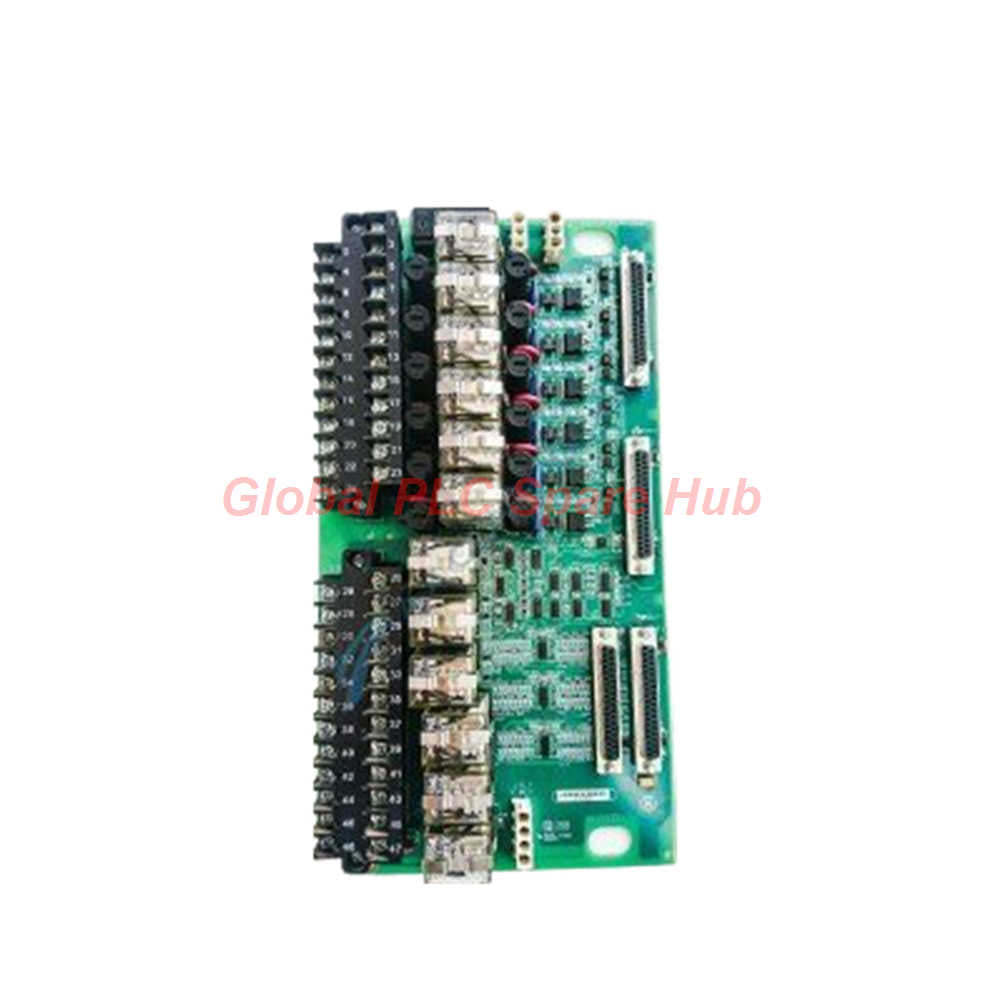

GE Mark VIe IS200TRLYH1B Output Terminal Board | Voted Coil Drive Relay

Engineered for Precision: IS200TRLYH1B Relay Terminal Board

The IS200TRLYH1B is a mission-critical Relay Output Terminal Board developed by GE Energy for the Mark VIe distributed turbine control ecosystem. Built specifically for high-availability TMR (Triple Modular Redundant) architectures, this module ensures reliable switching for solenoids and field devices in demanding power generation environments.

Technical Specifications & Performance Metrics

• Model: IS200TRLYH1B
• System Compatibility: Mark VIe Series
• Redundancy: Triple Module Redundant (TMR) support
• Relay Configuration: 12 Form C mechanical relays (Total of 36 relays in TMR setups)
• Contact Ratings: 24V DC @ 3A, 125V DC @ 0.6A, 115V AC @ 3A
• Field Wiring: Dual 24-terminal blocks; accepts up to #12 AWG
• Signal Interface: JR1, JS1, JT1 processor connectors
• Operational Temp: -30°C to +65°C
• Mounting: Industrial DIN rail-based footprint

Diagnostic & Operational Capabilities

The IS200TRLYH1B integrates advanced diagnostic features to minimize downtime. Each relay channel is equipped with MOV (Metal Oxide Varistor) suppression to mitigate surge voltages. The board features a fail-safe mechanism: if logic communication is severed or cabling is disconnected, relays automatically de-energize to protect downstream assets. Real-time voting logic combines signals from R, S, and T processors to ensure command integrity.

Application Scenarios

This terminal board is ideally suited for:

• Large-scale gas and steam turbine solenoid control.
• Class 1, Division 2 hazardous area processes.
• Critical fail-safe shutdown loops.
• High-precision power distribution management when paired with the IS200WPDFH series.

Global PLC Spare HUB's Insight

From an engineering perspective, the IS200TRLYH1B is best utilized when system uptime is the absolute priority. The move to TMR-specific contact voting significantly lowers the risk of nuisance trips. When integrating, ensure the I/O processor power is independently managed per section to maximize the benefits of the board's redundant architecture.

Logistics and Quality Commitment

• Dispatch: Orders processed and shipped within 24-48 hours.
• Logistics: Secure global shipping via FedEx, UPS, or DHL.
• Warranty: Every IS200TRLYH1B comes with a robust 12-month performance warranty.

Professional Frequently Asked Questions

Q: What is the primary advantage of the TMR voting logic on this board?
A: It prevents a single processor failure from triggering an output, significantly increasing the reliability of critical turbine shutdown sequences compared to simplex systems.

Q: Can I use this board for 115V AC applications without a daughterboard?
A: While the board supports 115V AC switching, we strongly recommend adding the IS200WPDFH2A if you require fused neutral return protection for your specific field environment.

Q: How does the failsafe logic interact with the I/O processors?
A: The board monitors the health of the connection to the I/O processor. If the signal pulse is lost, the mechanical relay physically reverts to a de-energized state, ensuring the system remains in a safe condition.

Q: What is the typical failure mode for these mechanical relays?
A: Over extended cycles, contact welding is the primary concern. We recommend periodic diagnostic checks of the contact resistance to preemptively identify relays nearing their life-cycle limit.

Q: Are there specific wiring precautions for the #12 AWG connections?
A: Always ensure the shield termination strips are properly secured to the chassis ground. This is vital for maintaining signal integrity against EMI in high-noise turbine hall environments.
