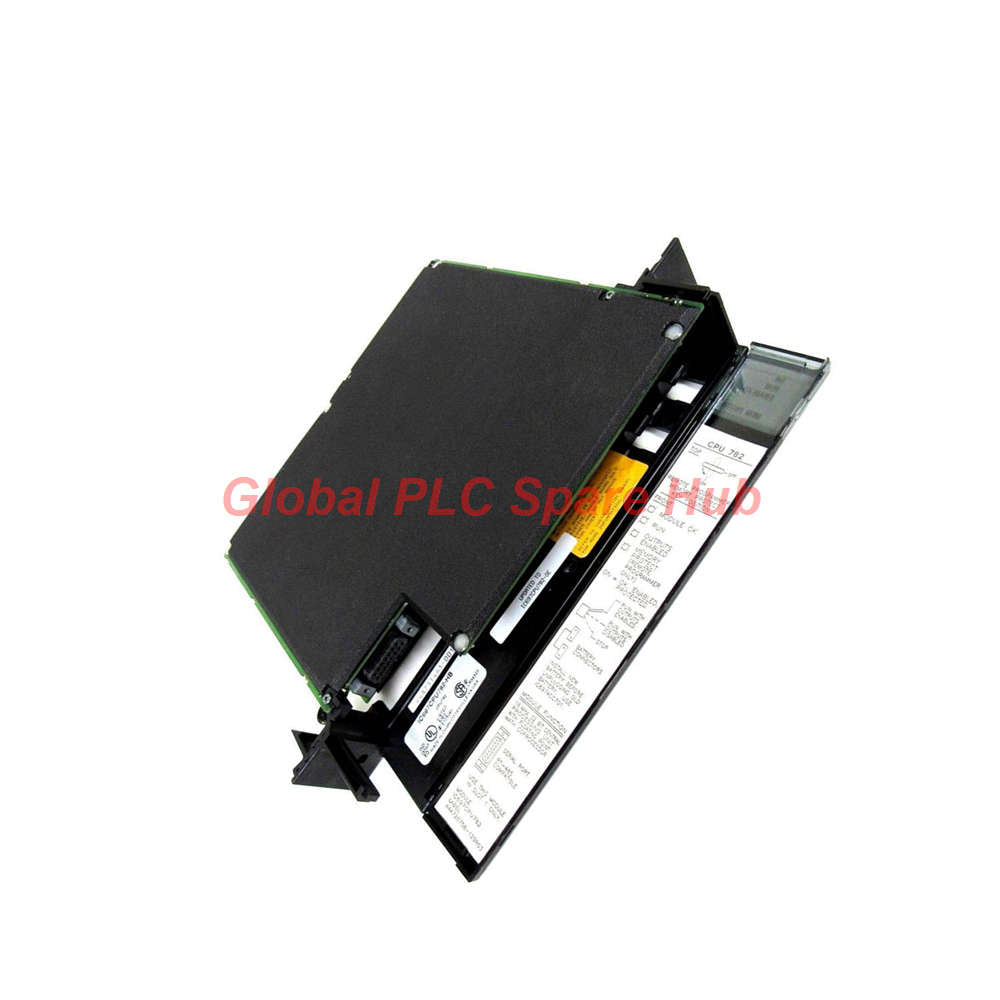

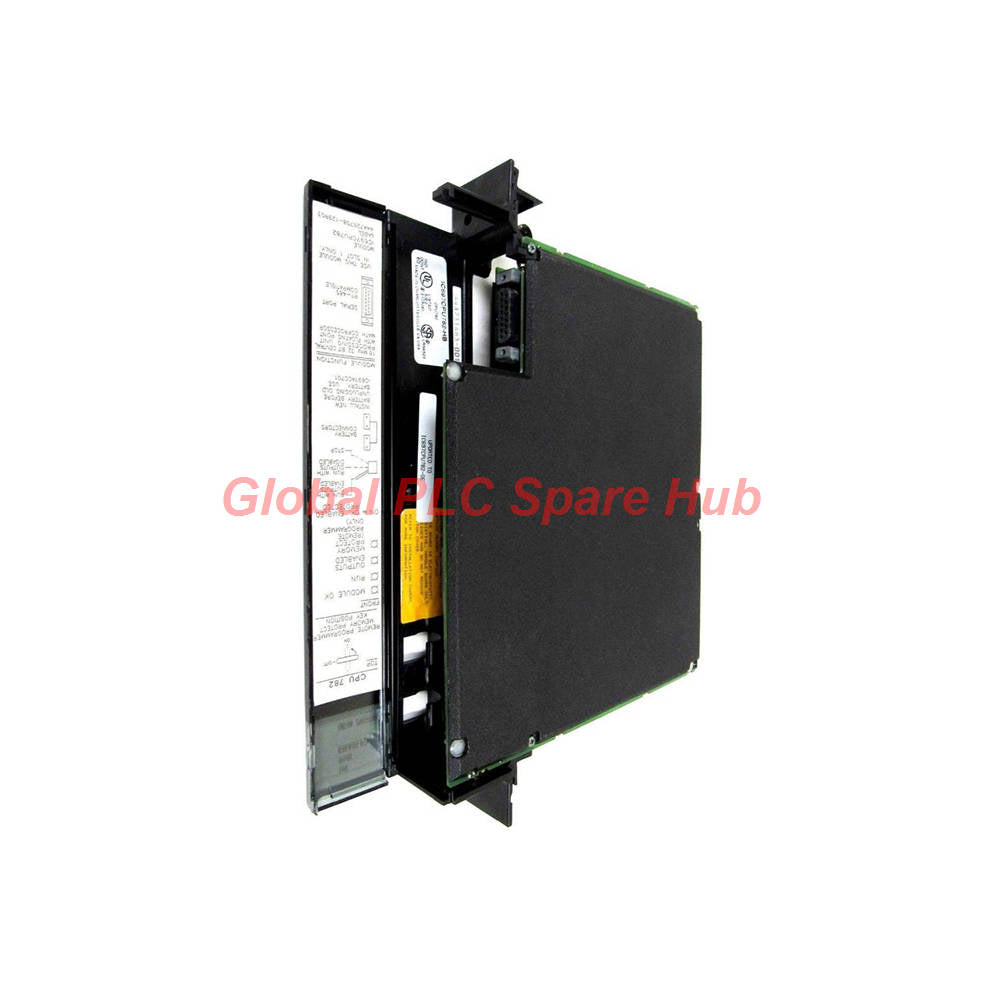

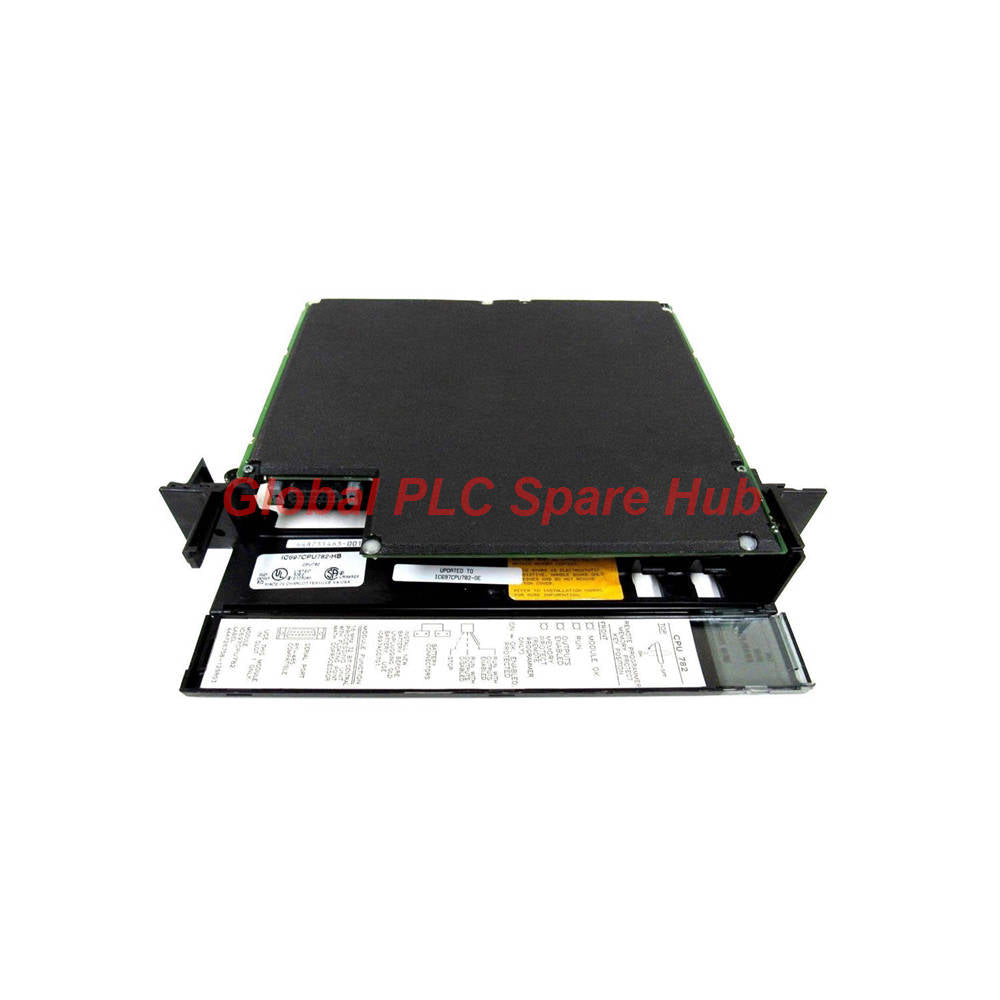

GE Fanuc IC697CPU782 80386DX CPU Series 90-70 Module

Engineering Architecture: IC697CPU782

The IC697CPU782 is a cornerstone processing module within the GE Fanuc Series 90-70 PLC platform. Engineered around the 16 MHz 80386DX microprocessor, this CPU provides high-speed Boolean execution (0.4 μs/function) and supports advanced 32-bit instruction sets. It is designed for demanding industrial logic, featuring floating-point math support and sophisticated PID control capabilities.

Technical Performance Matrix

• Manufacturer: GE Fanuc / Emerson Automation
• Model: IC697CPU782
• Series: Series 90-70
• Processor: 80386DX @ 16 MHz
• Memory: 512 KB RAM expansion; 12K Discrete I/O; 8K Analog I/O
• Execution Speed: 0.4 microseconds/Boolean function
• Backplane Standard: VME C.1
• Power Consumption: 1.6 Amps @ 5V DC
• Operating Conditions: 0°C to 60°C; 5–95% non-condensing humidity
• Diagnostics: LED indicators for Module OK, RUN, and Outputs Enabled

Diagnostic Capabilities & System Integration

The IC697CPU782 facilitates proactive system health checks via its integrated LED diagnostic suite. The module utilizes battery-backed RAM (IC697ACC701) to ensure program retention for up to 6 months without power. For maintenance, the key-switch memory protection prevents unauthorized logic modifications, while the VME backplane compatibility allows for seamless integration with IC697 LAN interfaces, coprocessors, and fieldbus modules.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we recognize the IC697CPU782 as a vital component for legacy plant infrastructure. It is ideally suited for medium-to-large-scale process control applications, including chemical mixing plants, water treatment facilities, and assembly-line motion control. Its compatibility with Logicmaster, VersaPro, and Proficy Machine Edition provides extensive flexibility for legacy system migrations and maintenance upgrades.

Logistics & Quality Assurance

• Global Logistics: Secure shipping via FedEx, UPS, or DHL.
• Dispatch: Orders for this module are processed within 24 to 48 hours.
• Warranty: Every IC697CPU782 is supplied with a comprehensive 12-month professional warranty.

Expert Frequently Asked Questions

Q: What is the benefit of the VME C.1 compatibility for this CPU?

A: It allows the module to communicate efficiently with a wide range of smart option modules and high-speed I/O cards on the rack-mounted backplane.

Q: How do I ensure data retention during a power failure?

A: Ensure a functional IC697ACC701 lithium battery is installed, which maintains RAM contents for up to 6 months under optimal conditions.

Q: Can I use this CPU in high-vibration industrial environments?

A: Yes, it is rated for 1 G vibration (57–150 Hz) and 15 G shock, provided it is housed in an IP54-rated steel cabinet.

Q: Which software should I use for initial programming?

A: You can use Logicmaster 90-70 for classic environments, while Proficy Machine Edition is recommended for modern, Windows-based programming workflows.

Q: Is it necessary to install a LAN module for basic serial programming?

A: No, you can program the module directly via the integrated RS-485 serial port; LAN modules are only required for network-wide Ethernet communication.

Professional Selection Guidance

• Slot Allocation: The IC697CPU782 must occupy Slot 1 of the rack. Verify backplane power availability (1.6A @ 5V DC) before adding multiple coprocessor modules.
• Environment: Keep ambient temperatures below 60°C and maintain low humidity levels to prevent backplane corrosion and component fatigue.
• Memory Management: Regularly backup your configurations using Proficy Machine Edition to mitigate the risk of data loss should the battery exceed its 10-year shelf life.
