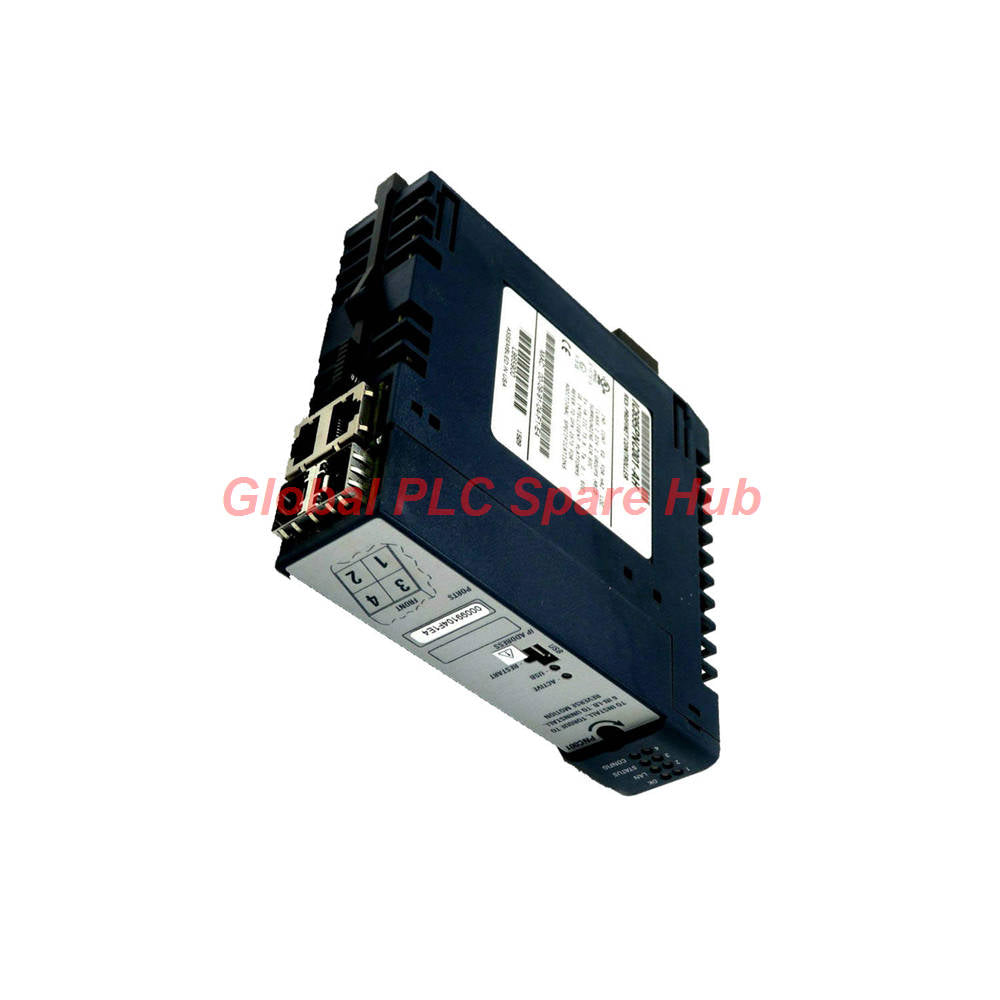

GE Fanuc IC695PNC001 PACSystems RX3i PROFINET Controller Module

Engineering Overview & Network Architecture

The IC695PNC001 is an advanced PROFINET controller module engineered by GE Intelligent Platforms / GE Fanuc (now supported by Emerson Automation) for the PACSystems RX3i Series. This communication module bridges RX3i control systems to high-speed industrial PROFINET networks, delivering deterministic data exchange, robust ring/star/daisy-chain topologies, and time-stamped system diagnostics.

Core Technical Specifications Matrix

System Constraints & Structural Hierarchy

• Slot Limitations: Maximum of four (4) IC695PNC001 modules can operate along a single CPU backplane.
• Rack Restriction: Must be installed exclusively in the main RX3i CPU rack; remote racks are not supported for controller hosting.
• Hot-Swap Capability: Fully supports Removal and Insertion Under Power (RIUP) without disrupting un-associated backplane communications.
• Memory Allocation: Allocates 128 Kbytes of combined input/output memory per PROFINET controller instance.

Target Equipment Compatibility

• RX3i CPU Controllers: Directly pairs with PACSystems CPU315 and CPU320 executing firmware 7.0 or newer.
• Distributed I/O Drops: Interfaces with modular VersaMax and RX3i distributed I/O blocks across PROFINET lines.
• Industrial Ethernet Switches: Connects via standard copper RJ-45 or optical fiber SFP transceivers (SFP units sold separately).
• Engineering Workstations: Links via Micro USB for command-line interface configuration and diagnostics.

Industrial Control Applications & Diagnostic Capabilities

The IC695PNC001 coordinates high-performance automation networks across continuous process and high-speed discrete manufacturing:

• Distributed Motion & Drive Networks: Manages synchronous data exchange with multi-axis servo drives and variable frequency drives over industrial Ethernet.
• Redundant Ring Topologies: Implements fault-tolerant ring architectures to ensure zero packet loss during media breaks.
• Command-Line Interface (CLI) Diagnostics: Built-in Telnet and micro-USB toolsets provide direct monitoring, parameter tweaking, and firmware updates via WinLoader.
• Synchronized Event Logging: Features an internal hardware clock matched to the RX3i CPU for precise time-stamped error logging.

Global PLC Spare HUB's Insight

When deploying the IC695PNC001 in high-density engineering environments, power budgeting requires careful attention. While the base module draws 0.5A at 3.3V DC, inserting two high-performance SFP optical transceivers adds 0.35A per module, pushing total backplane power draw higher. Furthermore, always verify that your RX3i CPU firmware is flashed to version 7.0 or higher before installation to prevent backplane handshaking faults during initial rack power-up.

Logistics, Fulfillment & Quality Guarantee

• Condition Status: 100% Brand New and Original Factory Sealed Inventory.
• Fulfillment Lead Time: Guaranteed order processing and dispatch within 24 to 48 hours.
• Global Express Logistics: Secure worldwide air transit delivered via FedEx, UPS, or DHL with end-to-end tracking.
• Warranty Assurance: Fully protected by a comprehensive 12-Month Factory Defect Warranty.

Frequently Asked Questions (FAQ)

Q1: Why must the IC695PNC001 module be installed exclusively in the main CPU rack?

A: The module relies on high-speed backplane data exchanges and direct CPU clock synchronization that can only be achieved when placed directly on the main universal backplane alongside the CPU.

Q2: How do I update the firmware on this PROFINET controller if standard PAC Machine Edition tools fail?

A: Technicians can utilize the dedicated WinLoader software utility connecting directly through the front panel micro-USB interface or Ethernet network port.

Q3: What precautions should I take when installing SFP transceivers into the SFP cages?

A: Ensure you account for the additional 0.35A power draw per SFP device against your rack power supply budget, and always use factory-approved optical transceivers to maintain link integrity.

Q4: What is the purpose of the manual restart pushbutton on the faceplate?

A: The physical restart pushbutton allows field engineers to manually reboot the PROFINET controller processor for troubleshooting without needing to power-cycle the entire RX3i chassis.

Q5: How should I choose between star, ring, and daisy-chain topologies when planning my network layout?

A: Choose a ring topology (such as MRP) for high-availability applications requiring redundant path recovery, and use daisy-chaining or star configurations for straightforward linear machine cells or cabinet drops.
