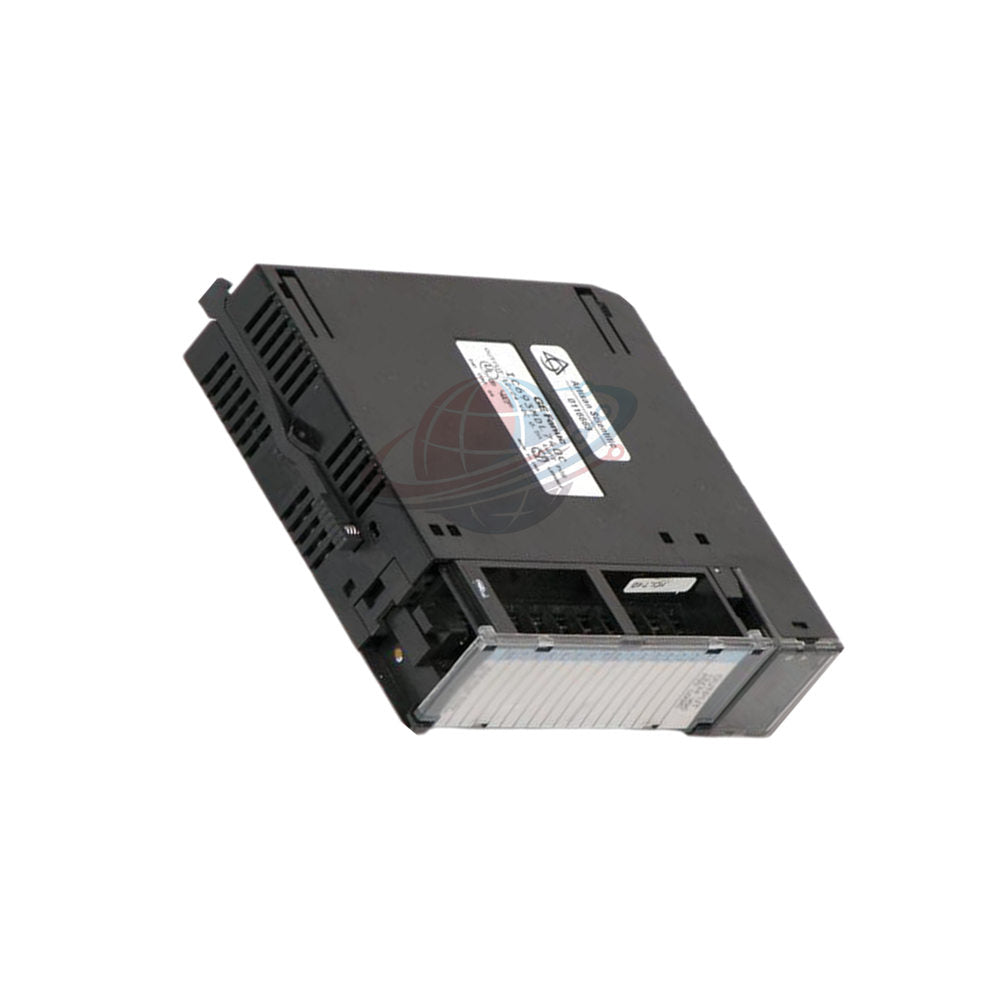

GE Fanuc IC693MDL740 Series 90-30 16-Point Sourcing Output Module

Product Overview

• The GE Fanuc IC693MDL740 is a high-density 16-point output solution.
• It belongs to the versatile Series 90-30 PLC family for industrial control.
• This Positive Logic Output Module sources current to connected field devices.
• The design ensures reliable switching for solenoids, relays, and indicators.

Global PLC Spare HUB Review

• The IC693MDL740 offers exceptional response times for safety-critical applications.
• Engineers prefer this Series 90-30 module for its easy integration.
• The dual-group isolation improves system reliability during localized electrical faults.
• It is ideal for GE Fanuc migration projects and system expansions.

Technical Specifications

• Brand: GE Fanuc
• Model: IC693MDL740
• Series: Series 90-30
• Output Type: Positive Logic (Sourcing)
• Channel Count: 16 Points (2 groups of 8)
• Voltage Range: 12 to 24 Volts DC (+20%, -15%)
• Current Capacity: 0.5 Amperes per channel
• Maximum Common Current: 2 Amperes per group
• Inrush Current: 4.78 Amperes for 10ms
• Response Time: 2ms maximum (ON and OFF states)
• Power Consumption: 110mA from 5V DC backplane bus
• Operating Temperature: 0 to 60 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Humidity Range: 5% to 95% non-condensing

Installation and Compatibility

• This module installs in any standard Series 90-30 baseplate slot.
• It works with 5-slot and 10-slot GE Fanuc chassis systems.
• Field wiring utilizes a removable terminal block for convenience.
• The IC693MDL740 requires external fusing for circuit protection.
• It is compatible with PACSystems RX3i via specific expansion bridges.

Diagnostics and Maintenance

• Top-mounted LED indicators show the status of all 16 points.
• Visual cues assist in rapid troubleshooting of field wiring issues.
• The module monitors backplane communication health automatically.
• Routine maintenance involves verifying terminal screw tightness and cleaning dust.

Typical Application Scenarios

• Control of hydraulic and pneumatic solenoid valves.
• Activation of motor starter coils and interposing relays.
• Operation of stack lights, buzzers, and industrial horns.
• Interface for DC-powered material handling and conveyor systems.

Shipping and Warranty

• Packaging List: One (1) IC693MDL740 module with terminal block.
• Warranty: Comprehensive 12-month quality guarantee included.
• Shipping Methods: Global delivery via FedEx, UPS, or DHL.
• Dispatch Time: Guaranteed shipment within 24-48 hours of order.

Selection and FAQ

• Selection Advice: Verify your total group current does not exceed 2 Amps.
• Selection Advice: Ensure your load requires "Sourcing" (Positive) logic.

• Question: Does the IC693MDL740 have internal short-circuit protection?
• Answer: No, users must install external fuses to protect the output circuits.

• Question: Can this module handle 24V DC inductive loads?
• Answer: Yes, it is designed to drive solenoids and relay coils efficiently.

• Question: What is the meaning of "Positive Logic" in this context?
• Answer: It means the module supplies voltage to the load from the positive bus.
