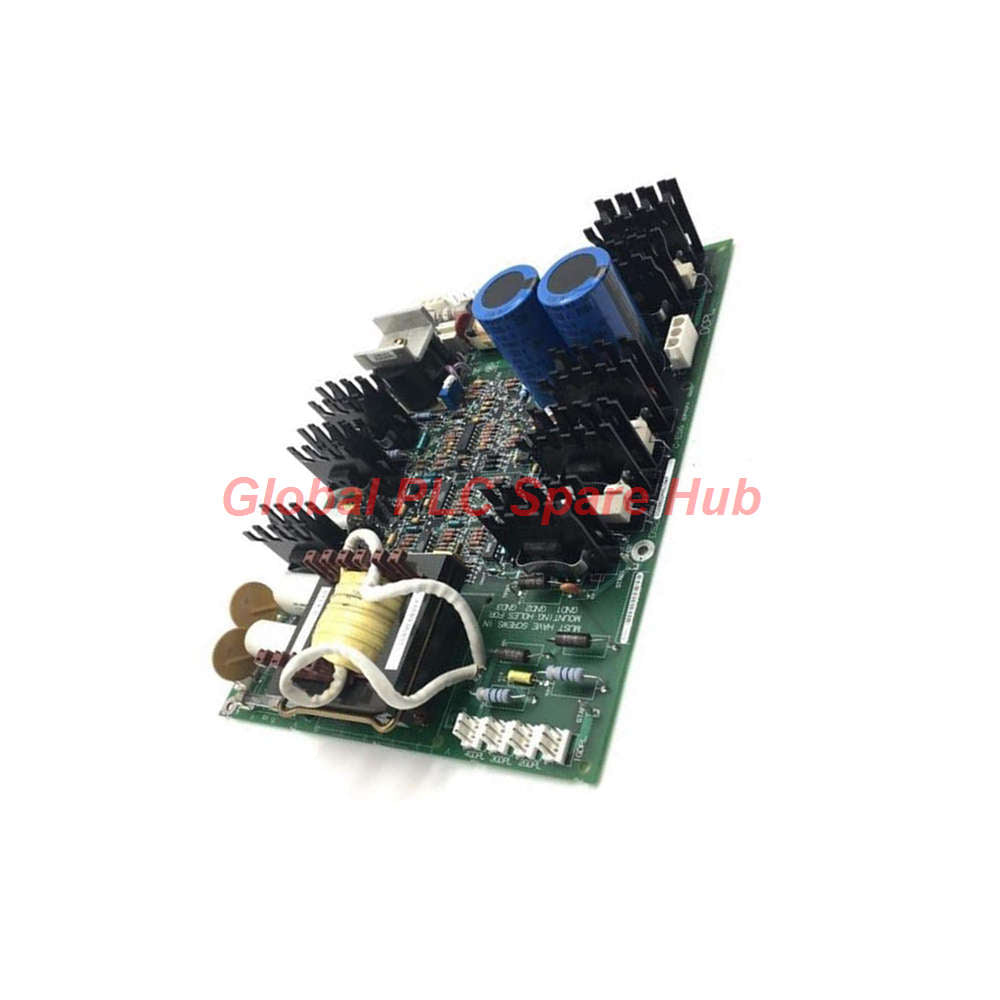

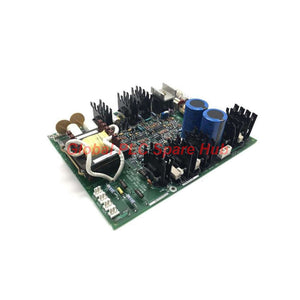

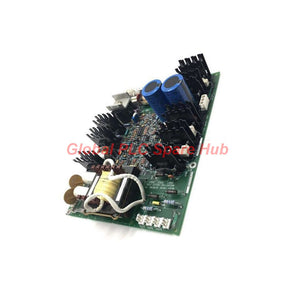

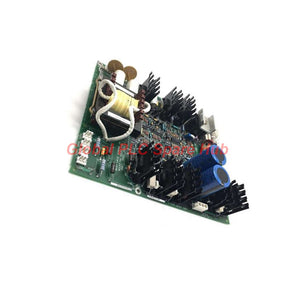

GE DS200GDPAG1ALF Mark V EX2000 Power Supply Board

Product Overview

• The GE DS200GDPAG1ALF is a high-performance High-Frequency Power Supply board.
• General Electric engineered this advanced printed circuit board for critical industrial control applications.
• The DS200GDPAG1ALF serves as a premium technological evolution from the legacy DS200GDPAG1 parent board.
• This modern GDPA module integrates three distinct factory product revisions to maximize operational reliability.
• It delivers clean, regulated power within complex automation environments.
• The unit provides robust power distribution for heavy-duty control systems.

Global PLC Spare HUB's Insight

• Engineering teams utilize the GE DS200GDPAG1ALF as a dependable power regulation hub.
• The Mark V Speedtronic and EX2000 systems rely heavily on stable internal voltages.
• This board prevents costly system downtime through its multi-tiered voltage regulation infrastructure.
• The high-frequency 27 kHz inverter design minimizes thermal dissipation while optimizing energy efficiency.
• It represents an essential spare part for maintaining continuous operation in critical infrastructure.

Equipment Compatibility

• The GE DS200GDPAG1ALF seamlessly integrates with the following industrial control platforms:
• General Electric Speedtronic Mark V Turbine Control Systems Group 1
• GE EX2000 Excitation Systems
• High-capacity gas turbine control enclosures
• Utility-scale steam turbine management panels
• Heavy-duty wind turbine control assemblies

Technical Specifications

• Brand: General Electric (GE)
• Model Number: DS200GDPAG1ALF
• Control Series: Mark V Speedtronic / EX2000
• Functional Acronym: GDPA
• Assembly Classification: Normal Assembly Type Group 1
• Revision Level: Incorporates 3 significant product revisions
• Power Output Range: 600 Watts to 700 Watts continuous
• AC Input Range: 80 VAC to 132 VAC nominal
• DC Input Range: 105 VDC to 140 VDC nominal
• Full-Load AC Threshold: Minimum 102 VAC required to prevent thermal stress
• Inverter Frequency: 27 kHz high-frequency switching performance
• Integrated Bus Voltage: 120 VDC isolated power supply circuit
• Transformer Output Rating: 50 VAC secondary power outputs
• Operating Temperature Range: 0 to 60 degrees Celsius (32 to 149 degrees Fahrenheit)
• Environmental Tolerance: Heavy-industrial atmospheric compliance
• Interference Resistance: High electromagnetic interference (EMI) shielding layout
• Signal Interface: Twelve plug connectors and four GXPL ports
• Hardware Grounding: Two stab-on connectors plus three dedicated chassis grounding screws
• Country of Origin: United States (USA)

Installation Guide

• Disconnect all primary AC and DC power sources before handling the hardware.
• Employ standard electrostatic discharge (ESD) wrist straps during the entire installation process.
• Select either the dedicated drive mounting plate or the main drive cabinet matrix.
• Align the DS200GDPAG1ALF board with the structural mounting holes precisely.
• Secure the chassis using the three grounding screws labeled GND1, GND2, and GND3.
• Ensure the grounding screws achieve direct metal-to-metal contact with the cabinet frame.
• Attach the shield ground wiring to the designated stab-on connectors securely.
• Connect the twelve plug interfaces and four GXPL terminal cables to their respective sockets.
• Verify all backplane control connections are tight before closing the cabinet door.

Troubleshooting and Diagnostic Capabilities

• PWR IN LEDs (CR1 and CR2) confirm active incoming external power status.
• READY LEDs (CR37 and CR39) illuminate when the initialization sequence completes successfully.
• The 120 V DC FUSE neon indicator (N2) provides instant visual confirmation of fuse integrity.
• The HI VOLT SHORT neon indicator (N1) flashes immediately during high-voltage short-circuit faults.
• Dedicated Inverter Overcurrent Circuits intercept excessive current spikes to protect internal components.
• Built-in Regulator Overcurrent Protection prevents damage from downstream load faults.
• The P80 Overvoltage Circuit automatically monitors and clamps excessive voltage surges.
• Control Voltage Undervoltage Circuits safeguard logic processing during sudden input power drops.
• The CVOK Running Signal Circuit continuously communicates hardware health status to the central processor.
• Accessible TP test points allow field engineers to measure live operating voltages easily.

Procurement and Selection Guide

• Check your existing board revision level prior to purchasing a replacement unit.
• The DS200GDPAG1ALF replaces older DS200GDPAG1 variants seamlessly.
• Ensure your turbine control system utilizes Group 1 backplane configurations.
• Calculate total system load if your environment operates near the 80 VAC lower limit.
• Order genuine General Electric assemblies to preserve E-E-A-T system validation standards.

Shipping, Logistics, and Warranty Terms

• Package Contents: One factory-packed GE DS200GDPAG1ALF High Frequency Power Supply Board.
• Warranty Protection: Includes a comprehensive 12-month warranty covering operational performance.
• Dispatch Timeline: Orders ship within 24 to 48 hours following payment confirmation.
• Express Courier Options: Global delivery via FedEx, UPS, and DHL express networks.

Frequently Asked Questions

Can the board handle simultaneous AC and DC inputs?

No, the board accepts either AC or DC input sources based on your specific system wiring configuration.

What happens if the input voltage drops below 102 VAC?

Operating at full load below 102 VAC may cause thermal damage to the internal components. You must reduce the system load under low-voltage conditions.

What is the specific function of the stab-on connectors on this module?

The stab-on connectors function as the primary shield ground and control the assembly backplane routing.

How do field engineers perform manual voltage verification on this board?

Engineers can utilize the integrated TP test points with a standard multimeter to safely measure live voltages.

Why does the HI VOLT SHORT neon indicator illuminate during operation?

This indicator activates when the system detects a high-voltage short circuit, requiring immediate troubleshooting.
