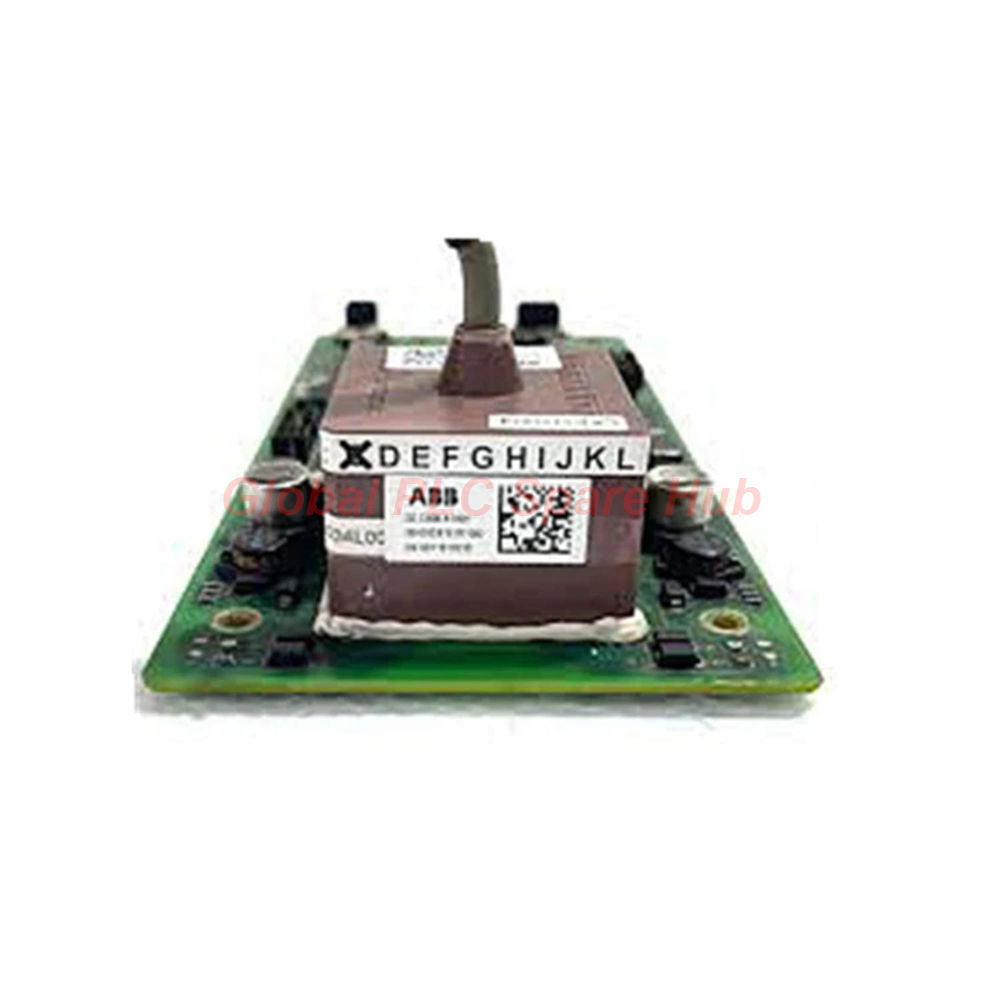

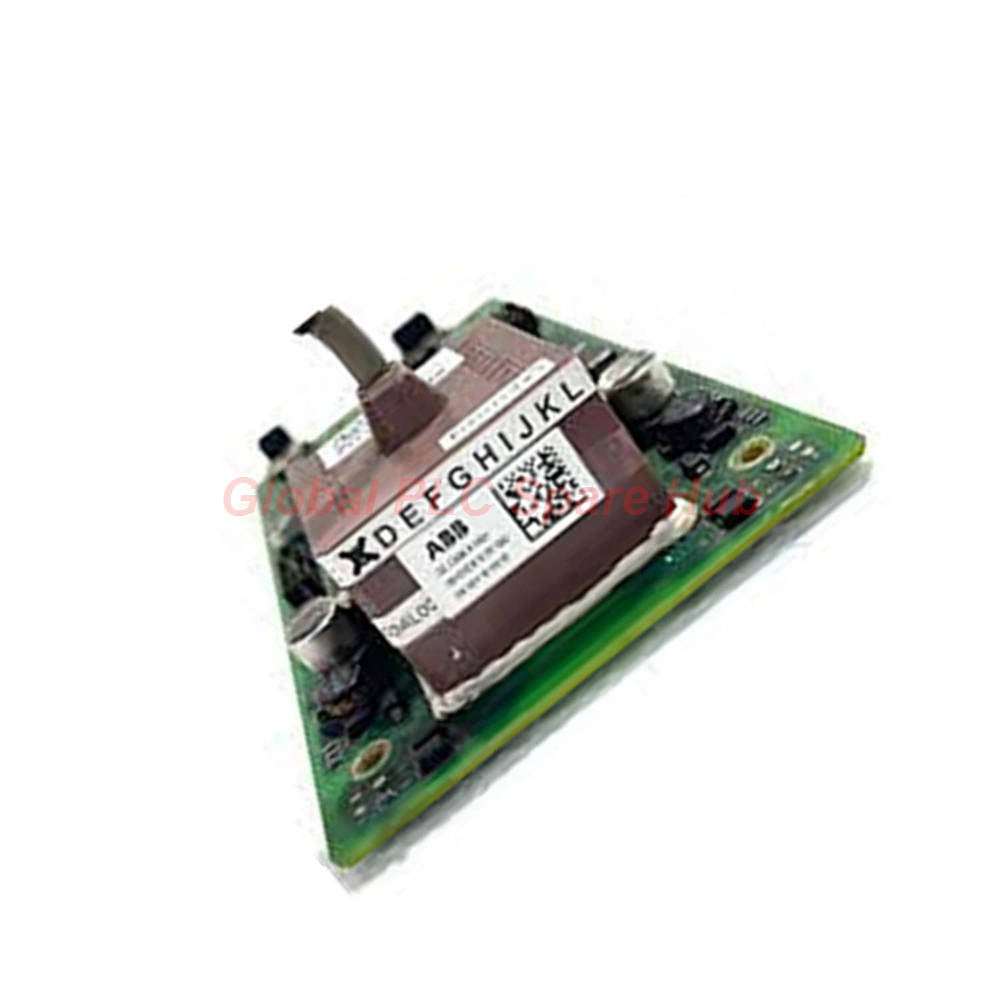

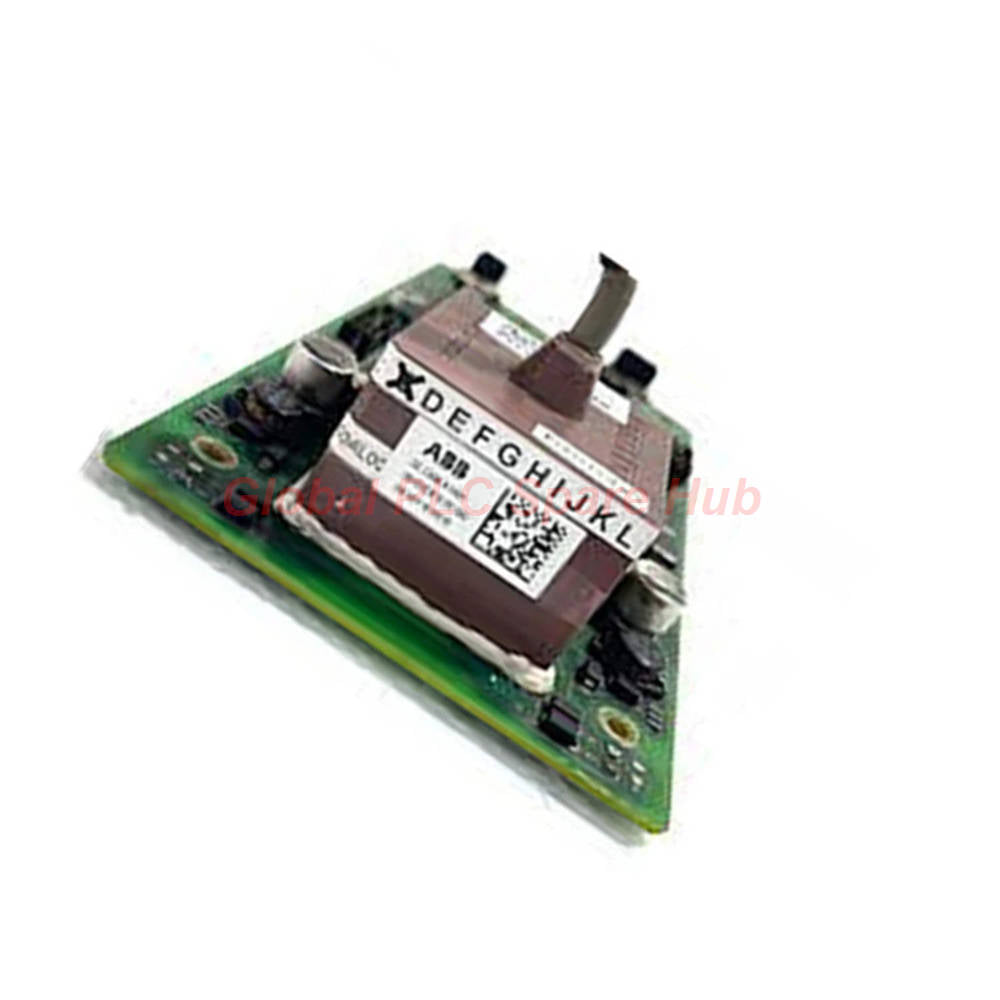

GD C806A 3BHE028761R1001 ABB Gate Driver for ACS 2000

Product Overview

• The GD C806A (Part Number: 3BHE028761R1001) is a specialized gate drive interface engineered for high-voltage power electronics.
• It provides the critical bridge between control logic and power semiconductors for the GD C806A series.
• This module ensures rapid switching and precise pulse width modulation (PWM) execution in 3BHE028761R1001 systems.


Technical Performance Matrix

• Brand: ABB
• Model: GD C806A
• Part Number: 3BHE028761R1001
• Nominal Supply: 24 V DC regulated input
• Peak Output Current: 5 A drive capability per channel
• Isolation Rating: 2500 V DC galvanic isolation
• Signal Logic: 5 V DC CMOS/TTL compatible input
• Thermal Range: -40°C to +85°C industrial-grade operation
• Origin: Switzerland (CH)
• Mass: 0.25 kg net weight

Global PLC Spare HUB's Insight

• Our field tests confirm that the GD C806A excels in reducing switching losses within the 3BHE028761R1001 circuit.
• The robust 2500V isolation prevents high-voltage transients from damaging upstream control hardware.
• This specific version is essential for maintaining the dv/dt immunity required in medium-voltage drive applications.
• It is a critical spare for facilities utilizing the ACS 2000 platform to ensure zero-latency gate triggering.

Targeted Equipment & Application Scenarios

• Primary System Compatibility: ABB ACS 2000 Medium Voltage Drives.
• Power Conversion: Large-scale Grid Inverters and industrial Converters.
• Industrial Sectors: Mining Hoists, Metal Rolling Mills, and Water Pumping Stations.
• Motion Control: High-torque synchronous motor excitation systems using 3BHE028761R1001.

Diagnostic & Monitoring Capabilities

• The GD C806A features built-in active monitoring for gate-emitter voltage stability.
• It detects short-circuit conditions at the power semiconductor level almost instantaneously.
• Technicians can verify pulse integrity using an oscilloscope at the designated test points.
• Local fault feedback loops integrate directly with the 3BHE028761R1001 control bus.

Logistics & Quality Assurance

• Warranty: 12-month comprehensive industrial warranty.
• Dispatch Window: Orders processed and shipped within 24 to 48 hours.
• Shipping Partners: Worldwide express delivery via FedEx, UPS, and DHL.
• Condition: Brand new industrial components meeting all original technical specifications.

Professional FAQ

• Does the GD C806A require external desaturation protection components?
• The module integrates primary protection, but you must align it with the IGBT's specific collector-emitter monitoring thresholds.
• Can this driver be used with non-ABB power stacks?
• While designed for the 3BHE028761R1001 architecture, it fits other systems if voltage levels match.
• How does the 2500V isolation benefit long-term reliability?
• It prevents catastrophic failure of the PLC or MCU by containing semiconductor breakdowns within the power stage.
• What causes premature failure in gate driver modules like the GD C806A?
• Excessive ambient humidity and unregulated 24V supply ripples are the most common causes of signal degradation.
• Is calibration required after replacing a 3BHE028761R1001 unit?
• No manual calibration is needed, but we recommend checking the gate waveform timing during commissioning.

Procurement & Selection Guide

• Verify your existing part number matches 3BHE028761R1001 exactly for connector orientation compatibility.
• For multi-drive lineups, source units from the same manufacturing batch to ensure matched switching characteristics.
• Confirm your 24V power supply meets the peak current demand of 5A during high-frequency switching operations.
• Ensure the mounting standoffs are torqued correctly to prevent intermittent signal loss in high-vibration environments.
