FR-D0016N Flexem Digital Output Module 6-Point PNP 24VDC

Product Overview

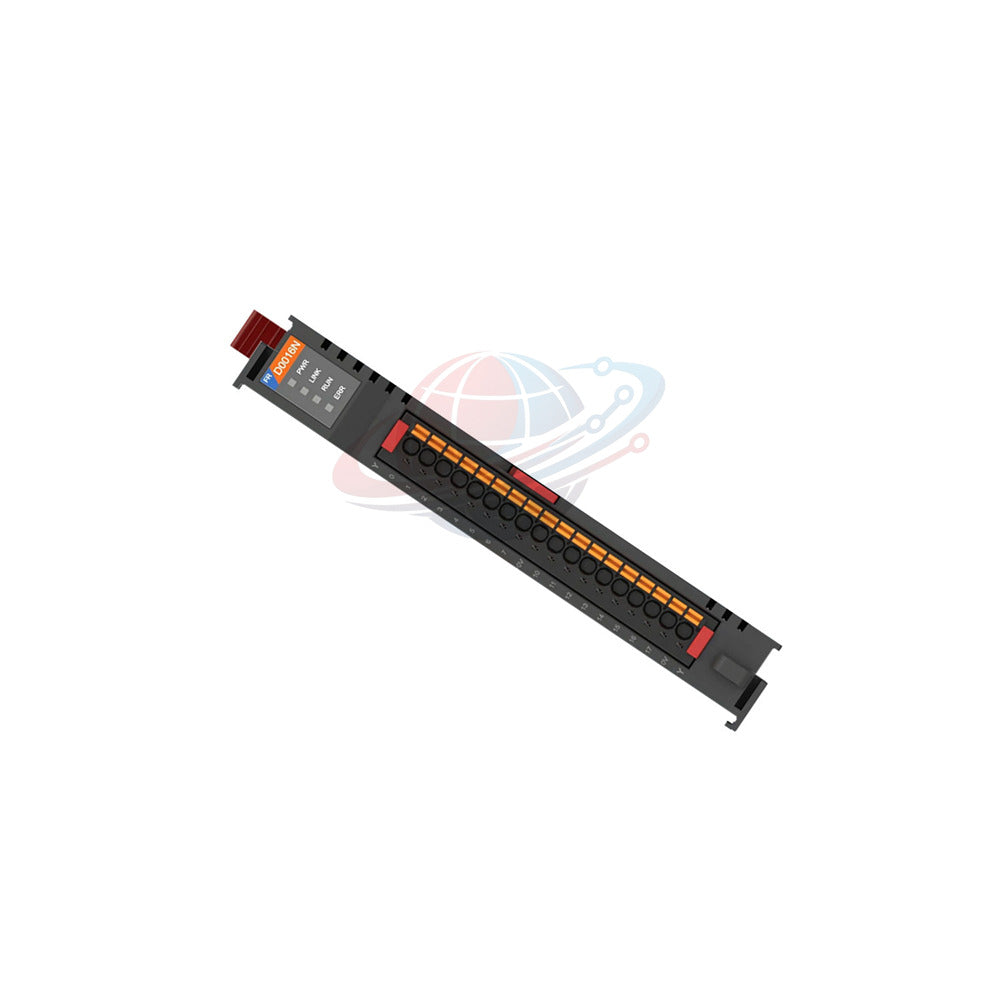

The Flexem FR-D0016N is a high-density Digital Output Module designed for precision switching. This specific variant provides 16 PNP source output channels, ideal for driving industrial actuators and solenoid valves. Each channel supports a robust 1000mA peak current, with a high-capacity 500mA simultaneous load rating. Its ultra-compact 18mm width design maximizes I/O density on standard 35mm DIN rails.

Technical Specifications

• Brand: Flexem
• Model: FR-D0016N
• Output Type: 16-Channel Digital Output (PNP Source)
• Peak Current: 1000 mA per channel
• Continuous Load: 500 mA (Simultaneous)
• Status Indicators: 16 Individual Red LEDs
• Mounting: 35mm DIN-Rail
• Isolation: Integrated Optocoupler Field-to-Logic protection
• Dimensions: 111mm × 18mm × 76 mm
• Weight: 65g

Configuration Logic Path

FR-Series (Flexem High-Speed Remote I/O)
  └── D (Module Type: Digital)
        └── 00 (Input Count: 0)
              └── 16 (Output Count: 16 Channels)
                    └── N (Hardware Spec: Source PNP Output)

Global PLC Spare HUB's Insight

The FR-D0016N is an impressive power-dense module. In our evaluation, the thermal management stands out; it handles 500mA continuously across all channels. This allows engineers to drive larger hydraulic solenoids directly without the need for interposing relays, significantly reducing cabinet complexity and hardware costs.

Target Equipment and Applications

• Pneumatic Control: Direct switching of solenoid valve manifolds.
• Conveyor Systems: Driving high-speed diverters and sorting gates.
• Indication: Managing multi-segment signal towers and alarms.
• Diagnostics: Front-panel LEDs provide instant visual verification of output states and potential wiring issues.

Logistics and Protection

• Warranty: 12-Month Quality Replacement included.
• Express Delivery: Global priority shipping via FedEx, UPS, and DHL.
• Packaging: Original factory-sealed anti-static protective packaging.

Professional FAQ

Why does the part number end in "N" if it is a PNP module?
In Flexem's FR nomenclature, the "N" identifies the specific transistor hardware used for Source (PNP) switching on this 16-point card.

What is the maximum simultaneous current?
The module supports up to 500mA per channel when all 16 channels are active at once.

Can it drive inductive loads?
Yes, it can drive solenoids up to 1000mA, though we recommend flyback diodes for very high-cycle inductive loads.

Is the module DIN-rail compatible?
Yes, it fits any standard 35mm DIN-Rail and features a secure locking clip.

How do I troubleshoot a dead channel?
Verify the front-panel LED; if it is lit but the load is inactive, check the field-side power supply and common wiring.
