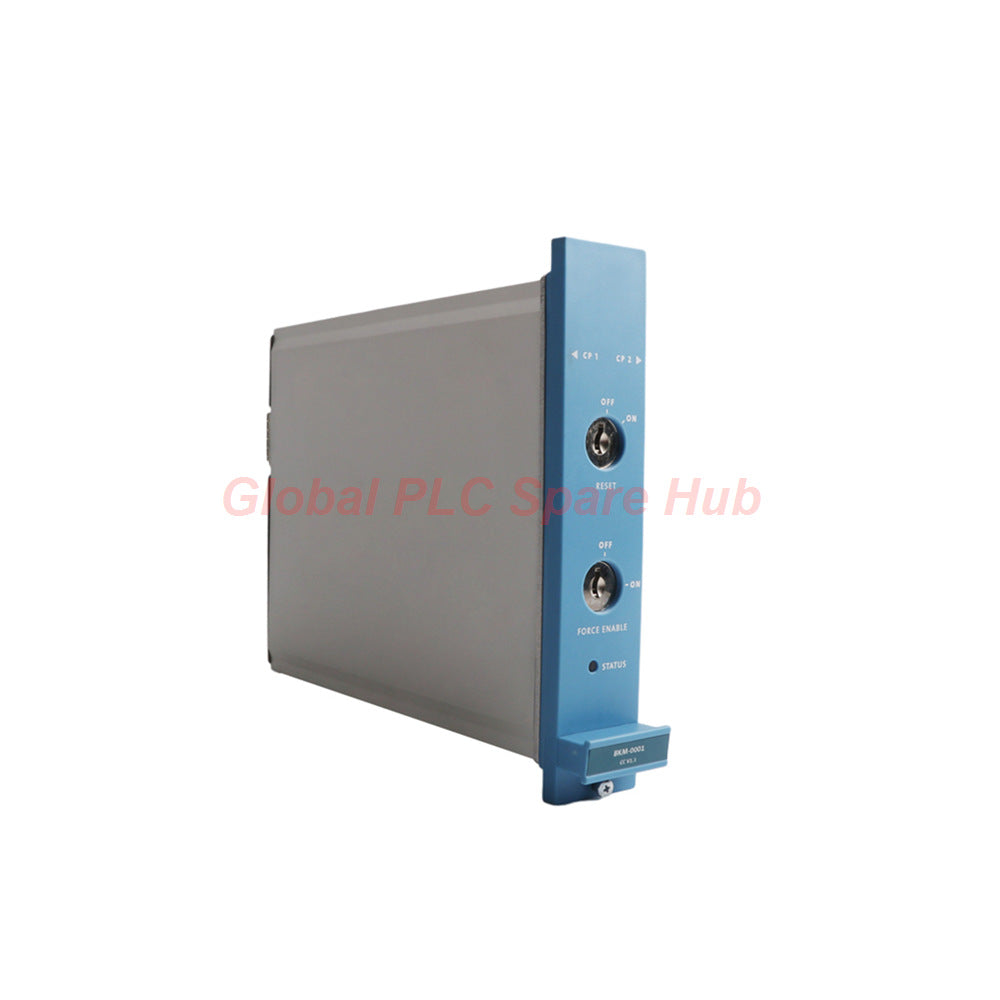

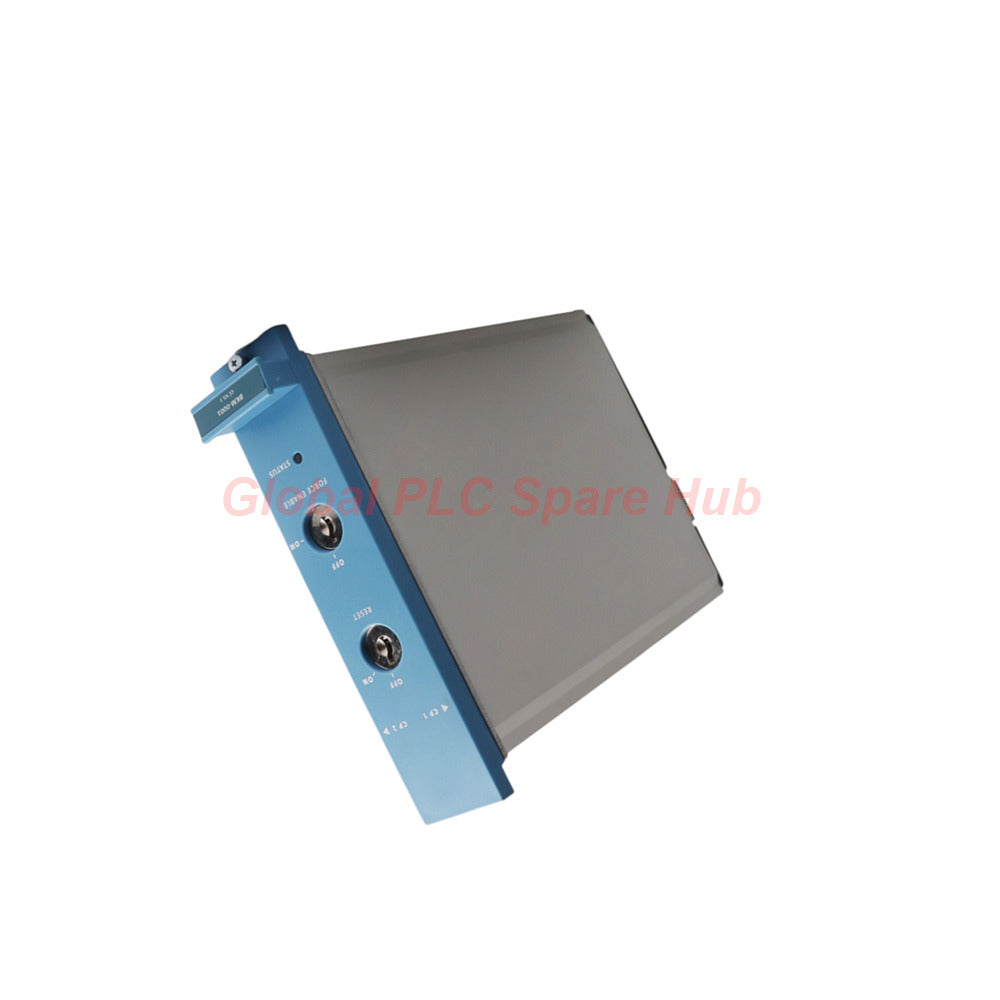

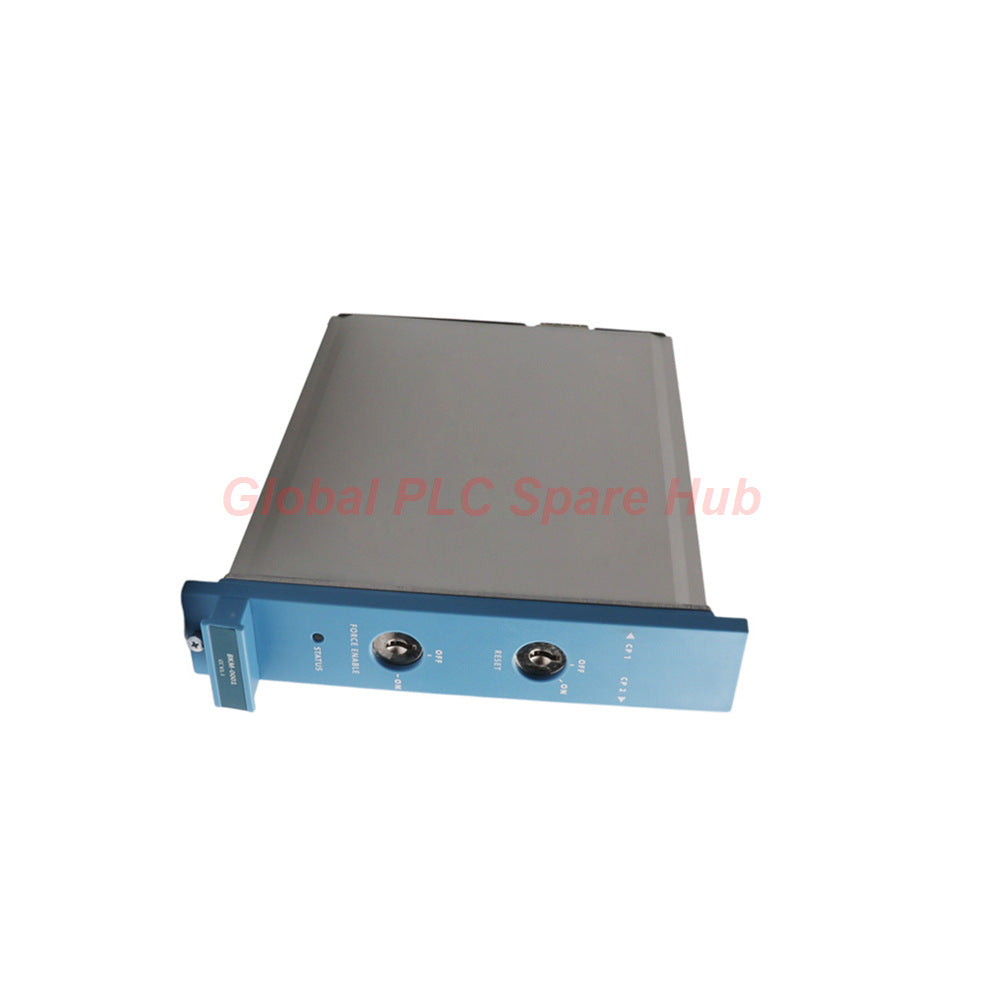

FC-BKM-0001 Honeywell FC Series Battery Key Switch Module In Stock

Manufacturer: Honeywell
Product No.: FC-BKM-0001
Condition： In stock
Product Type: Key Switch Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Safety Control Interface Overview

FC-BKM-0001 from Honeywell provides secure battery management and key switch control for industrial safety systems.

The module supports stable low-current operation in demanding automation environments.

This compact interface module combines power monitoring with protected switching functions.

FC-BKM-0001 integrates efficiently into Honeywell safety and control architectures.

The design supports long-term operational reliability with continuous short-circuit protection.

Functional Structure Layout

Item	Specification
Manufacturer	Honeywell
Product Model	FC-BKM-0001
Module Category	Battery and Key Switch Module
Recommended Battery	SAFT LS14500CGFG
Alternative Battery	SAFT LS14500W
Battery Chemistry	Lithium Thionyl Chloride
Battery Voltage	3.6 V Nominal
Battery Capacity	Greater than 2 Ah
Battery Size	AA

Electrical System Topology

24 Vdc Supply Circuit
- Operating range: 24 Vdc –15% to +30%
- Maximum current: 20 mA
- Typical shared load: 7 mA
5 VR Power Section
- Supply voltage: 5 Vdc ±10%
- Maximum current: 10 mA
Output Interface
- Output voltage: 14 to 31 Vdc
- Parallel resistance: 2 × 1.1 kΩ
- Continuous short-circuit protection
Input Signal Processing
- High-state voltage: 14 to 35 Vdc
- Low-state voltage: Below 7 Vdc
- Reverse polarity protection included
- Input current: 2.3 mA at 24 Vdc

Signal Filtering Characteristics

Input Channel	Typical Filter Response
IN1	0.1 ms
IN2	10 ms
IN3	10 ms

Environmental Reliability Profile

Operating Temperature: –5°C to +70°C
Storage Temperature: –40°C to +85°C
Humidity Range: 10% to 95% non-condensing
Reverse Polarity Protection: Integrated
Industrial Stability: Continuous short-circuit proof design

Mechanical Integration Data

Physical Attribute	Specification
Dimensions	176 × 35.2 × 212 mm
Imperial Dimensions	6.93 × 1.4 × 8.35 in
Weight	0.5 kg

Certification & Compliance Matrix

CE Certified
TUV Approved
UL Certified
CSA Approved
FM Certified

Diagnostic Capability

Supports stable power monitoring for safety circuits
Improves system state verification during maintenance
Detects abnormal input voltage conditions
Supports protected operation under electrical faults
Improves reliability in safety shutdown architectures
Maintains operational stability during continuous duty cycles

Recommended Equipment Applications

Honeywell Safety Manager systems
Industrial emergency shutdown systems
Process safety control cabinets
Distributed automation systems
Plant-wide monitoring infrastructure
Oil and gas process safety applications
Critical industrial control environments

Global PLC Spare HUB's Insight

FC-BKM-0001 delivers dependable switching and battery support for industrial safety architectures.

The compact structure simplifies installation inside high-density control cabinets.

Engineers value the stable low-current operation and certified industrial reliability.

The integrated protection design improves operational safety during continuous system operation.

This module performs effectively in process industries requiring dependable safety control infrastructure.

Installation Recommendations

Install the module inside approved industrial control enclosures
Verify battery polarity before energizing the system
Maintain proper grounding during installation procedures
Inspect terminal wiring for secure electrical connections
Replace batteries according to preventive maintenance schedules

Included Package Contents

1 × FC-BKM-0001 Battery and Key Switch Module
1 × Protective industrial packaging
1 × Inspection documentation

Warranty & Worldwide Shipping

12-month warranty support included
Technical support available during warranty coverage
Fast order dispatch within 24-48 hours
Worldwide delivery through FedEx, UPS, and DHL
Industrial export packaging for transportation protection

Professional FAQ

Why is lithium thionyl chloride battery technology commonly used?

This chemistry provides long operational life and stable voltage performance.

What installation issue causes unstable module operation most often?

Improper grounding and loose wiring connections commonly affect system stability.

Why does this module include reverse polarity protection?

Reverse polarity protection prevents accidental wiring damage during maintenance procedures.

Which systems benefit most from FC-BKM-0001?

Safety-critical process systems requiring reliable switching infrastructure benefit most.

What should engineers verify before selecting this module?

Confirm voltage compatibility, cabinet space, certification requirements, and system integration needs.
