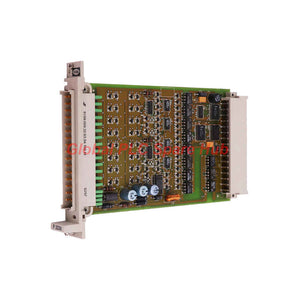

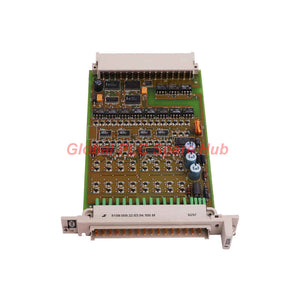

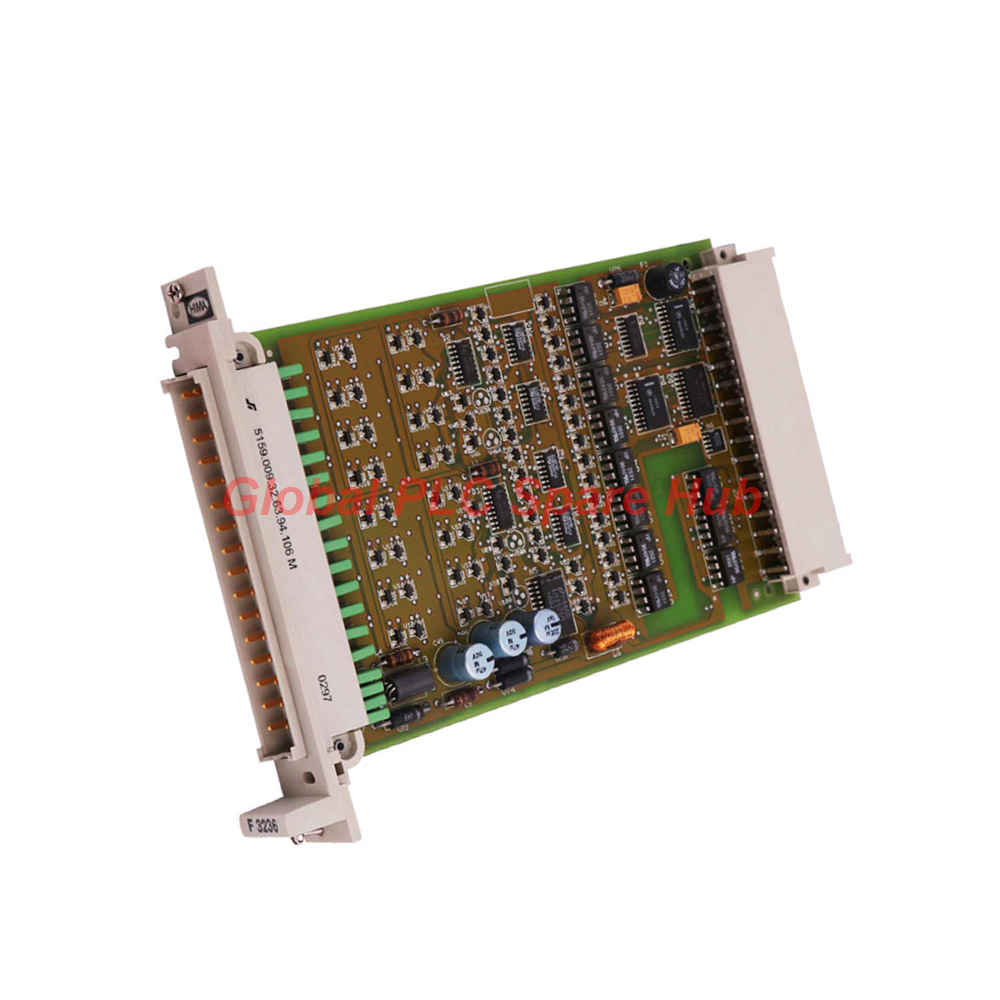

F3236 HIMA F 3236 16-Channel Safety Input Module | SIL Module

HIMA F 3236: High-Integrity Safety Input Architecture

The HIMA F 3236 serves as a robust 16-fold input module engineered specifically for safety-related signal acquisition. This unit provides certified safety isolation for sensors and mechanical contacts, meeting stringent requirement classes from AK 1 through AK 6. By ensuring rigorous signal integrity, the HIMA F 3236 remains a foundational component in critical safety-instrumented systems (SIS).

Technical Specifications

• Brand: HIMA
• Model: F 3236
• Module Type: 16-Channel Safety Input
• Safety Requirement Class: AK 1 to AK 6
• Input Signal: 6 mA (1-signal) or 24 V mechanical contact
• Switching Time: Typical 8 ms
• Current Consumption: 120 mA (5 V DC), 200 mA (24 V DC)
• Space Requirement: 4 TE

Global PLC Spare HUB's Insight

Our engineering audit confirms that the F 3236 stands out due to its comprehensive, real-time internal testing suite. Unlike standard I/O modules, this unit performs continuous "walking-zero" cross-talk analysis and verifies filtering capacitor health during active operation. This proactive diagnostic capability is essential for environments where passive monitoring is insufficient for strict safety compliance.

Built-in Diagnostic Protocols

• Walking-Zero Cross-talk Analysis: Continuously monitors input signal interference.
• Capacitive Filter Validation: Automatically checks internal filter integrity.
• Operational Logic Verification: Performs ongoing background health checks on core module functions.
• Isolated Signal Conditioning: Provides galvanic safety isolation to protect against field-side electrical transients.

Industrial Application Areas

• Emergency Shutdown (ESD) Systems: Critical monitoring of safety interlocks.
• Burner Management Systems: High-reliability signal validation for combustion safety.
• Process Industry Automation: Ideal for oil, gas, and chemical facility safety loops.
• Railway & Transport Signaling: Certified for applications requiring high-requirement class isolation.

Logistics and Warranty

• Guaranteed 24-48 hour order processing.
• Expedited global delivery via FedEx, UPS, and DHL.
• Includes a comprehensive 12-month quality assurance warranty.

Expert FAQ and Selection Guide

How does the "walking-zero" test function improve my system safety?
This function allows the module to detect latent faults or cross-talk between input channels by injecting a low-level test pulse that does not interrupt the actual signal state, ensuring failures are detected before they impact the process.

Can the F 3236 interface with standard 24V field switches?
Yes, the module is specifically designed to monitor both 6mA signal sources and standard 24V DC mechanical contacts, making it highly versatile for mixed-signal safety environments.

What does the "4 TE" space requirement mean for my cabinet planning?
The module follows the standard Eurocard 4-unit width (4 TE), which allows for efficient rack density in modular HIMA safety controller cabinets.

How should I troubleshoot a module reporting a fault?
First, verify the 24V/5V supply levels. If the fault persists, use the internal diagnostic registers to determine if the error is localized to a specific channel (e.g., input short/open) or a global module failure.

Selection Guide: When do I need this specific safety module?
Use the F 3236 when your safety integrity assessment requires AK 1–6 certification. It is not intended for standard PLC logic, but strictly for safety-related loops that demand automatic, continuous hardware self-testing.
