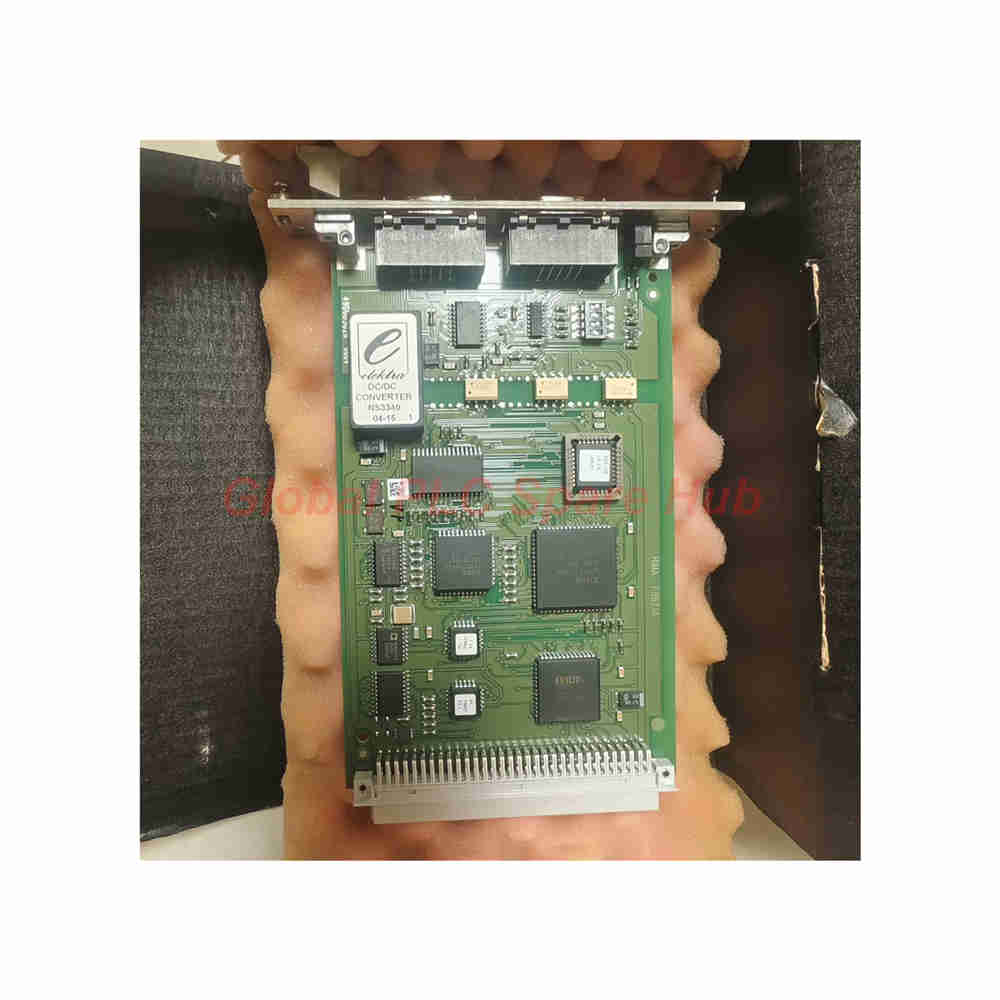

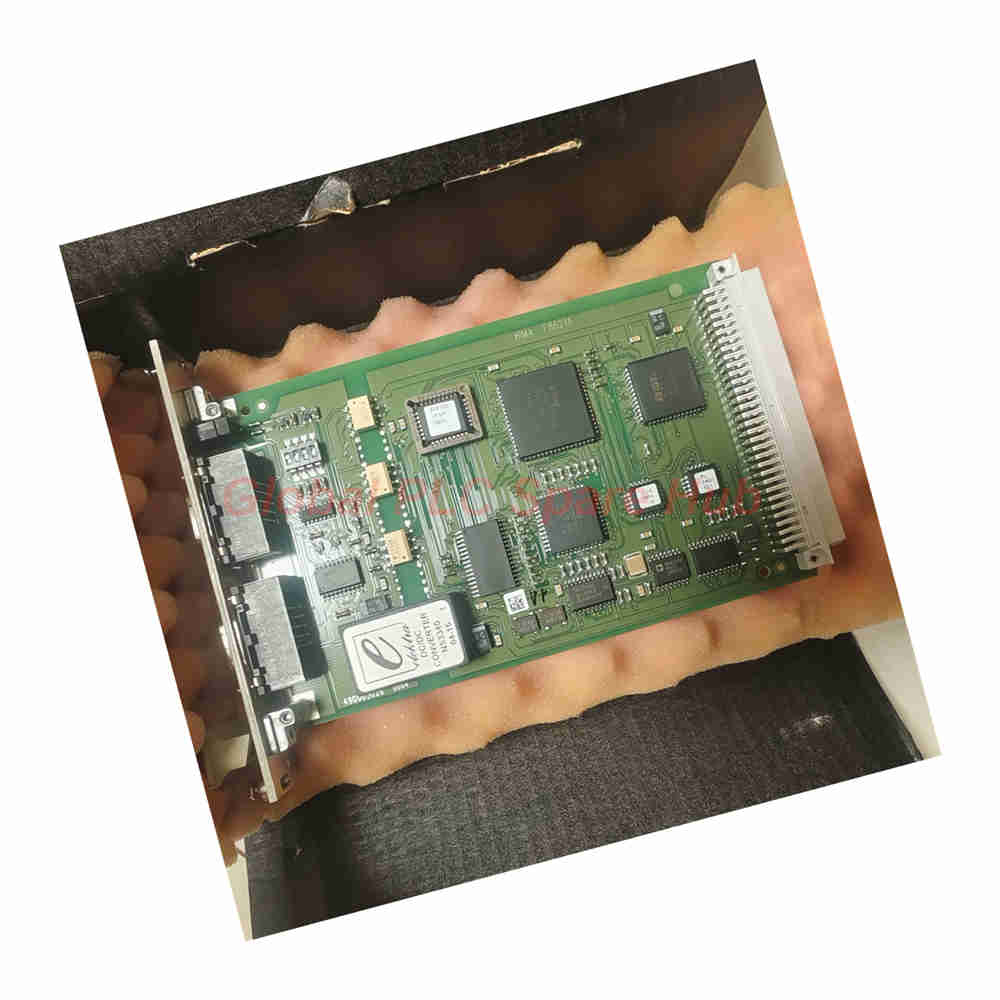

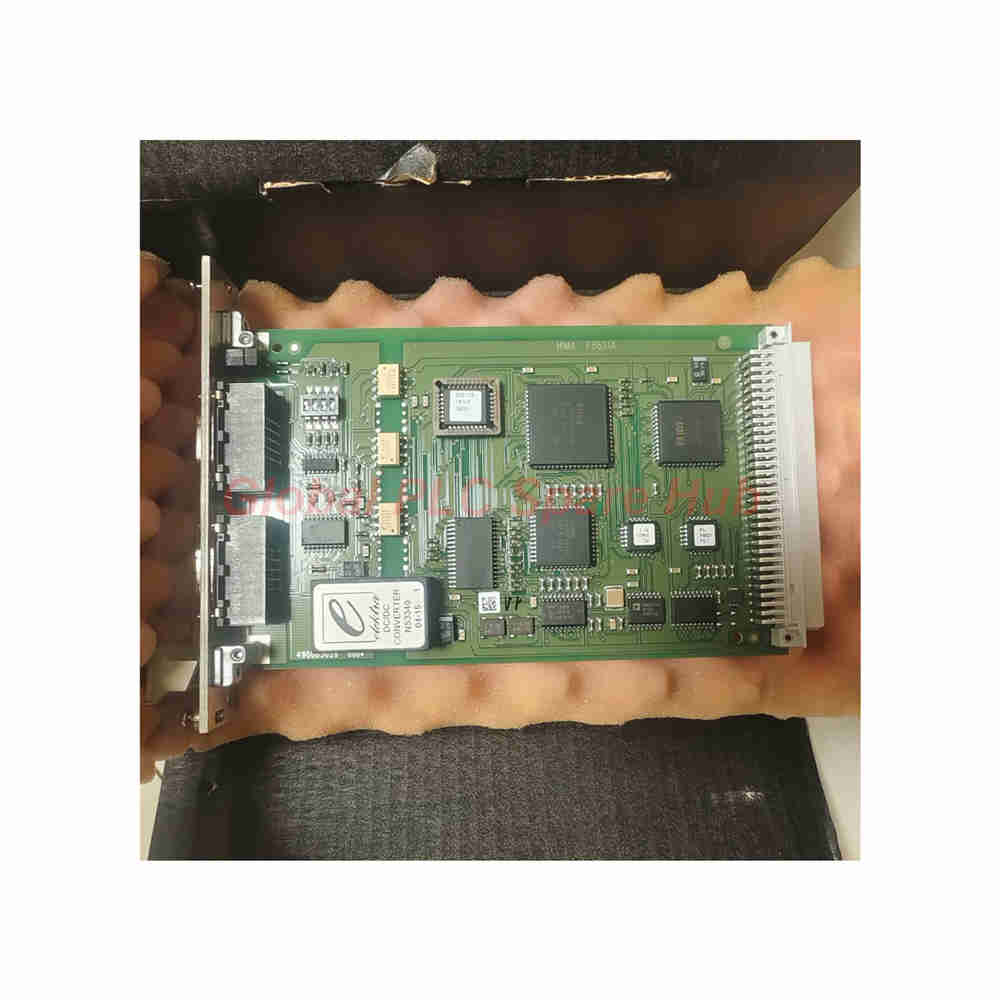

F 8621A Coprocessor HIMA Module RS 485 Dual Port RAM Fast Ship

Product Introduction

The HIMA F 8621A is a dedicated coprocessor module engineered specifically for the PES H51q safety system architecture. Driven by an onboard HD 64180 microprocessor, this unit offloads complex communication and data processing tasks from the main CPU to maintain system integrity. It facilitates high-speed data exchange via integrated Dual Port RAM and provides robust serial connectivity. We recommend that system integrators refer to the H51q hardware manual for specific DIP switch configurations and memory mapping.

Technical Specifications

• Brand: HIMA
• Model: F 8621A
• Core Processor: HD 64180 Microprocessor (10 MHz Clock Frequency)
• Memory Capacity: 384 kbyte Static Memory (CMOS-RAM and EPROM)
• Interface Type: 2 x RS 485 (Half-Duplex) with galvanic isolation
• Transmission Rates: Software-selectable from 300 bps to 57,600 bps
• Internal Access: Dual Port RAM (DPR) for rapid Bus 1 communication
• Power Requirements: 5 V DC at 360 mA
• Space Requirement: 4 TE (Standard Rack Slot)
• Data Buffering: RAM battery-buffered via F 7131 monitoring module

Configuration Breakdown

• F 8621 (Coprocessor Platform)
  • A (Hardware Revision / Specific Logic Version)
    • HD 64180 (Microprocessor Control Layer)
      • RS 485 (Isolated Dual Interface Path)

RS 485 Pin Assignment (Interface Channels)

• Pin 2: RP (5 V decoupled by diodes)
• Pin 3: RxD/TxD-A (Receive/Transmit-Data-A)
• Pin 5: DGND (Data Ground)
• Pin 8: RxD/TxD-B (Receive/Transmit-Data-B)
• Pins 4 & 9: Control Signals (CNTR-A / CNTR-B)

Global PLC Spare HUB's Insight

The F 8621A is critical for HIMA systems managing large-scale PLC master projects. Its unique strength lies in its autonomous communication processor, which prevents "bottlenecking" during heavy data traffic. A key field observation: the reliance on the F 7131 module for battery buffering means that if your F 8621A loses project data, you should inspect the centralized battery health rather than the module itself. The dual-port RAM design ensures that the second central module has near-instantaneous access to processed variables, which is vital for fail-safe synchronization.

Shipping & Service Terms

• Warranty Coverage: 12-month standard industrial warranty.
• Dispatch Window: Standard 24-48 hour shipping upon order verification.
• Logistics Partners: Express worldwide delivery via FedEx, UPS, and DHL.
• Quality Assurance: Every module undergoes rigorous physical and electrical inspection.

Typical Applications & Compatibility

• System Compatibility: Exclusively for HIMA PES H51q safety-related systems.
• Application Scenarios: Distributed control communication, master project data hosting, and multi-node RS 485 networking.
• Peripheral Support: Interfacing with CUs where transmission values are set via DIP switches.

Diagnostics & Monitoring

• Power Monitoring: Integrated with the F 7131 for voltage threshold supervision.
• Data Integrity: Software-controlled baud rate takeover ensures synchronization with hardware switch settings.
• Galvanic Isolation: Protects the internal HD 64180 logic from field-side electrical surges.

FAQ (Engineering Experience)

How do I determine if the module uses software baud rates or DIP switch settings?

The module defaults to DIP switch values unless the communication software building block explicitly overrides them via software commands.

Can the F 8621A operate without the F 7131 monitoring module?

It will function, but your RAM-resident PLC master project will be lost immediately upon power-down without the F 7131 battery buffer.

What is the significance of the 4 TE space requirement?

This indicates a slim-profile module, allowing for high-density configurations in the H51q rack without exhausting cabinet space.

Does this module support full-duplex RS 422 communication?

No, the hardware is specifically designed for RS 485 half-duplex (2-wire) operation as per the documented pin allocation.

What should I check if RS 485 communication fails?

Check Pin 5 (DGND) for proper grounding and ensure the control signals on Pins 4 and 9 are being toggled correctly by your software block.

Selection & Purchasing Guide

• Ensure your system rack has 4 TE of available space and a compatible Bus 1 connection.
• Verify that your PLC master project size does not exceed the 384 kbyte static memory limit.
• Match the hardware revision F 8621A with your existing system documentation to avoid firmware mismatches.
• Always verify the state of your centralized battery monitoring module before installing a replacement coprocessor.
