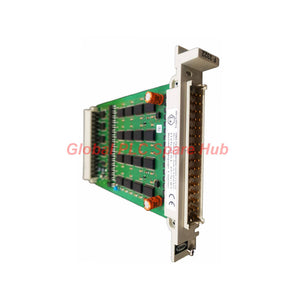

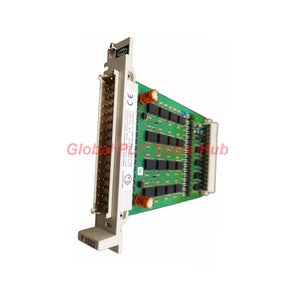

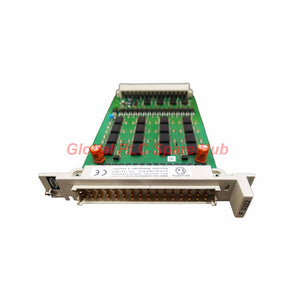

F 3322 HIMA F3322 Safety Output Module 16-Channel Controller

Engineering Profile: HIMA F3322 16-Fold Output Module

The HIMA F3322 is a high-density, 16-channel digital output module engineered for safety-critical control environments. This unit provides reliable switching for both resistive and inductive loads, incorporating advanced safety isolation to protect your primary control logic from field-side faults.

Technical Specification Matrix

• Brand: HIMA
• Model: HIMA F3322
• Functionality: 16-Fold Safety Output Module
• Load Compatibility: Resistive or inductive loads up to 500mA (12W).
• Lamp Driver Capacity: Supports lamp connections up to 12W.
• Short Circuit Protection: Current limiter response value > 550mA.
• Safety Feature: No output signal generated upon L- supply interruption (Fail-safe).
• Operating Power: 5V DC (110mA) / 24V DC (150mA + load).
• Form Factor: 4 TE rack space requirement.

Operational Planning & Load Management

To maintain system integrity and prevent thermal overload in the IO subrack, follow these guidelines:

• Limit usage to a maximum of 10 fully loaded output modules per subrack.
• Do not exceed 50% of the total output capacity (8A limit) during simultaneous switching.
• Default rack fusing is set at 4A slow-blow to protect against catastrophic module failure.

Diagnostic Capabilities & Maintenance

The HIMA F3322 incorporates active current monitoring per channel. If a short circuit occurs, the integrated current limiter triggers at > 550mA, shielding the internal circuitry. Engineers can monitor module health via the system's fault-reporting bus, ensuring immediate visibility into channel-specific interruptions or supply failures.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we categorize the HIMA F3322 as a critical safety component for high-stakes industrial processes. It is ideal for emergency shutdown (ESD) systems, turbine control, and chemical process interlocks where isolation is paramount. Its ability to remain inactive during L- supply drops ensures that your safety loops default to a known, secure state.

Logistics & Quality Assurance

• Global Shipping: Expedited dispatch via FedEx, UPS, or DHL.
• Processing Time: Rapid order fulfillment within 24 to 48 hours.
• Quality Guarantee: Every HIMA F3322 comes with a 12-month professional warranty.

Expert Frequently Asked Questions

Q: How does the module react to a loss of the L- supply?

A: The module is designed to provide no output signals upon the break of the L- supply line, inherently ensuring a fail-safe condition.

Q: Can I drive 24W loads if I parallel two channels?

A: We strongly advise against paralleling channels for load aggregation, as timing skews during switching can trigger the internal short-circuit protection.

Q: Why is there an 8A limit on total subrack switching?

A: This limitation prevents localized heat buildup and ensures that the subrack backplane and power supply distribution remain within thermal design margins.

Q: Is this module suitable for direct valve actuation?

A: Yes, provided the inductive load does not exceed 500mA and appropriate flyback protection is considered for high-cycle applications.

Q: How should I handle the 4 TE space requirement during cabinet planning?

A: When planning your rack, ensure adequate vertical air circulation, as high-density I/O configurations generate cumulative heat that can accelerate component aging if stagnant.

Professional Selection Guidance

• System Compatibility: Verify your existing IO subrack supports the 4 TE mechanical standard.
• Load Analysis: Before deployment, calculate the cumulative inrush current of your connected devices to avoid false trips of the > 550mA current limiter.
• Fusing: Ensure your external fusing matches the 4A slow-blow standard to align with HIMA's factory safety ratings.
