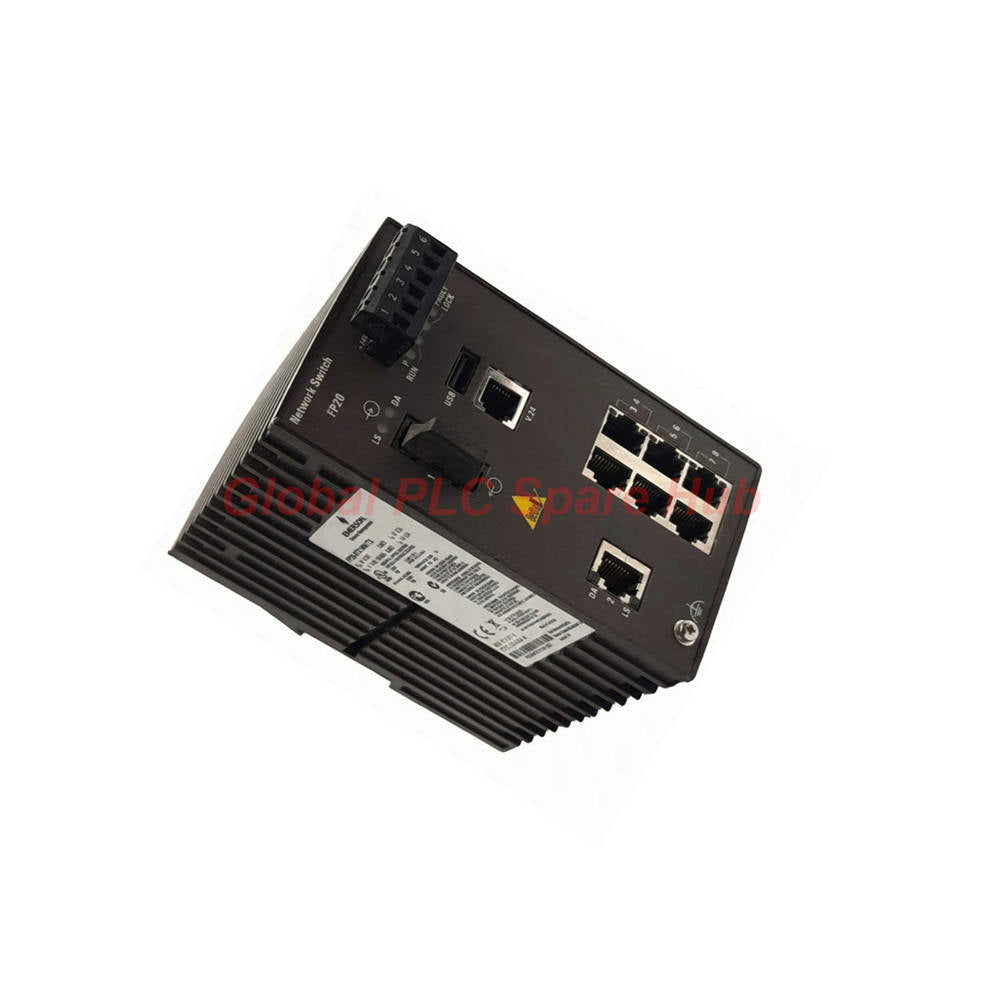

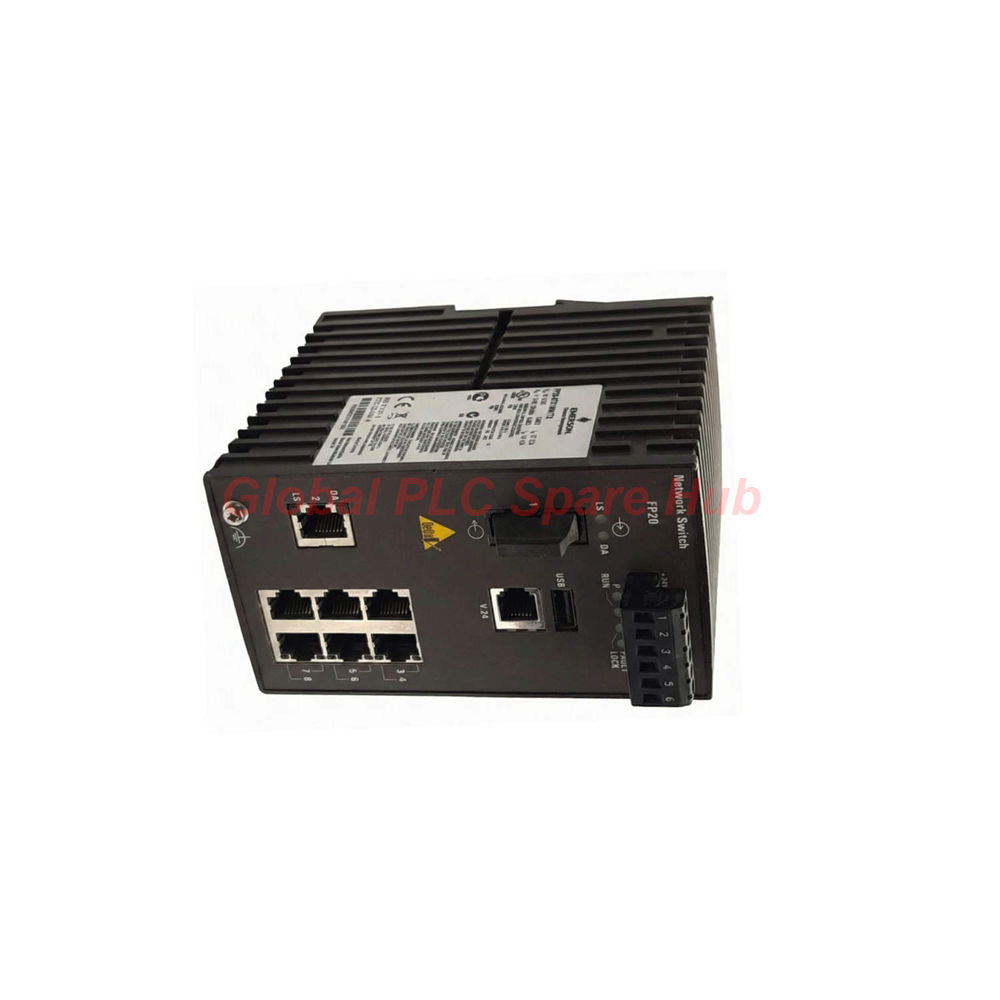

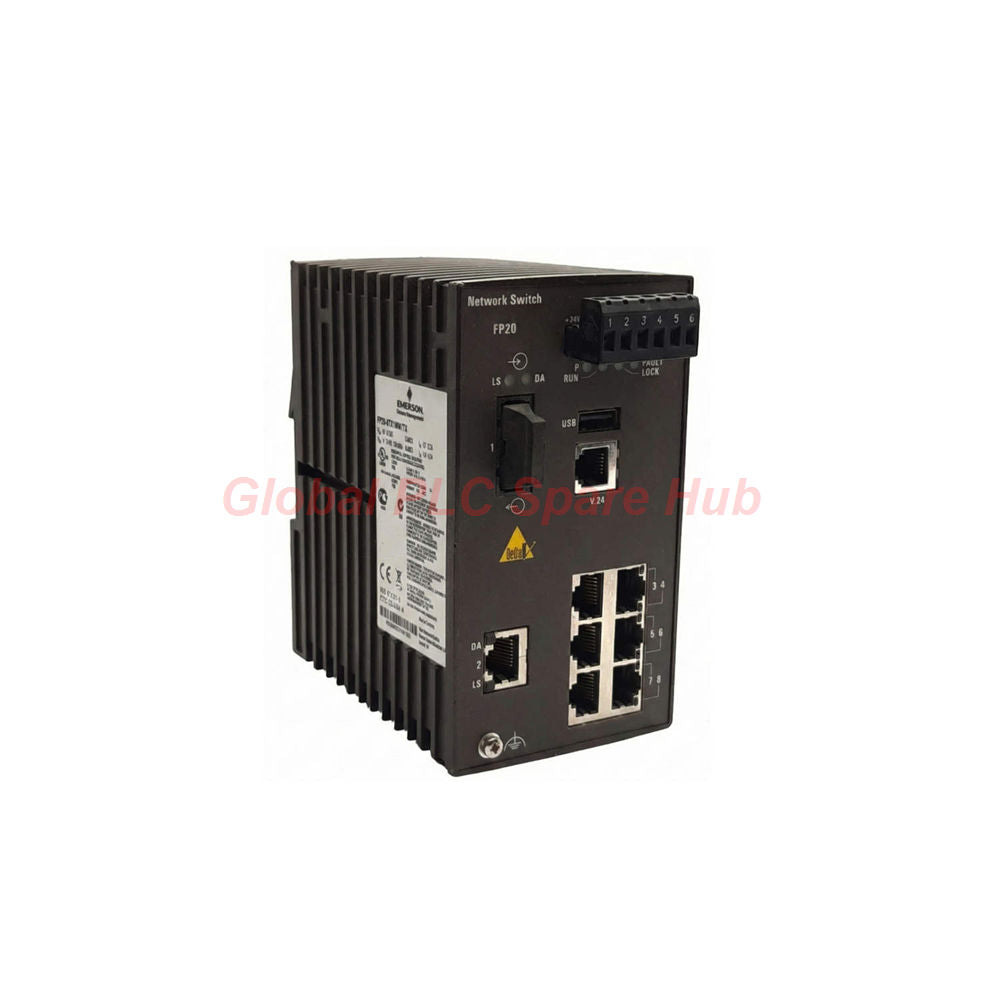

Emerson VE6041 DeltaV Smart Switch 8-Port 10/100MB Managed

Product Overview

• The Emerson VE6041 is a high-performance DeltaV Smart Switch.
• This DeltaV series module provides eight versatile 10/100 MB ports.
• It supports both copper wire and fiber optic uplink connections.
• The fan-less design ensures long-term reliability in industrial plant environments.
• Engineers benefit from automatic security lockdown and real-time diagnostic reporting.
• The VE6041 integrates seamlessly with DeltaV workstations and firewalls.

Global PLC Spare HUB's Insight

• The VE6041 is essential for modern DeltaV 2.5 network architectures.
• Our team recommends this switch for DeltaV controllers and CIOC/WIOC nodes.
• The fiber uplink capability provides superior electrical isolation for long-distance networking.
• It excels at reducing network jitter during high-traffic industrial logic execution.
• This hardware ensures 100 MB auto-negotiation across all Emerson automation components.

Technical Specifications

• Brand: Emerson
• Model: VE6041
• Series: DeltaV Smart Switch
• Port Count: 8-port 10/100 MB (Copper and Fiber Uplinks)
• Operating Voltage: 24 V DC (Range 18-30 V DC)
• Temperature Range: Available in Standard and Extended/Conformal Coated versions
• Environmental Tolerance: IP20 Protection Class
• Mechanical Dimensions: 74 x 131 x 111 mm (2.9 x 5.16 x 4.37 in)
• Unit Weight: 410 g (14.48 oz)
• Interference Immunity: Industrial rated for high electromagnetic noise environments
• Auto-Negotiation: Full support for 10/100 MB speed detection

Installation and Maintenance

• Mount the VE6041 vertically on a standard 35mm DIN rail.
• Connect 24V DC power to the provided terminal block carefully.
• Plug-and-play functionality requires no manual software configuration for initial setup.
• The DeltaV system manages all network alerts and diagnostics automatically.
• Check diagnostic LEDs for instant visual verification of link status.
• Clean external surfaces with a dry cloth; no internal maintenance is required.

Compatibility and Certified Applications

• Fully compatible with DeltaV Controller hardware and Emerson Smart Firewalls.
• Supports VE6042 Smart Switches for expanded network topologies.
• Ideal for DCS nodes requiring high-speed data exchange and security.
• Compatible with industrial workstations using standard Ethernet protocols.
• Certified for use in critical process control and safety-related networks.

Logistics and Warranty

• Package List: One (1) VE6041 switch and one (1) terminal block.
• Warranty: 12-month comprehensive technical warranty included.
• Shipping Carriers: Worldwide express delivery via FedEx, UPS, or DHL.
• Processing Time: Order dispatch occurs within 24 to 48 hours.

Buying Guide & FAQ

• How do I select the right version for my plant?
  Choose the conformal coated VE6041 for areas with humidity or corrosive gases.
• Can I use uplink ports for local devices?
  Yes, any port designated as an uplink can serve as a local port.
• What happens if the power supply fluctuates?
  The switch operates reliably within a wide range of 18V to 30V DC.
• Is the security configuration manual?
  No, the VE6041 features auto security lockdown upon connection to DeltaV.
• Does it support third-party controllers?
  While it follows Ethernet standards, full diagnostic features require a DeltaV system.
