Emerson KJ3222X1-BK1 Analog Input Module | DeltaV HART

Product Overview

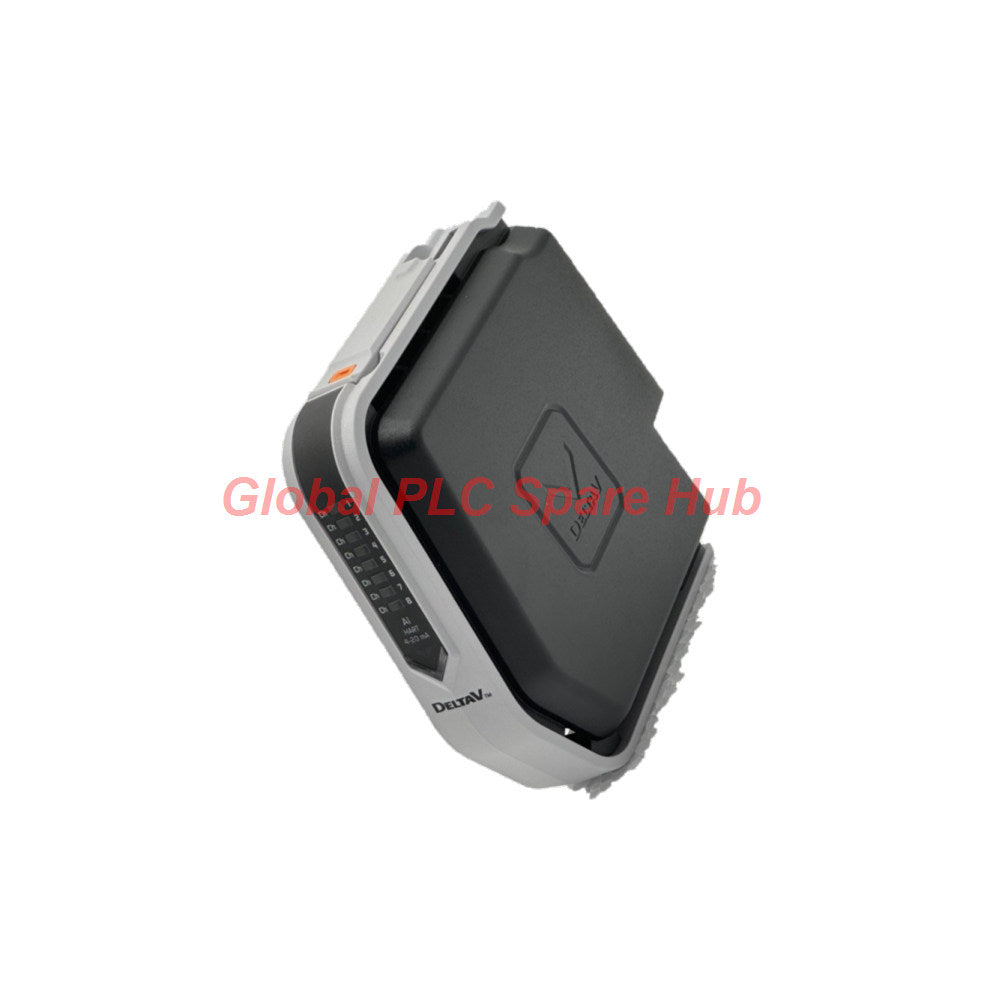

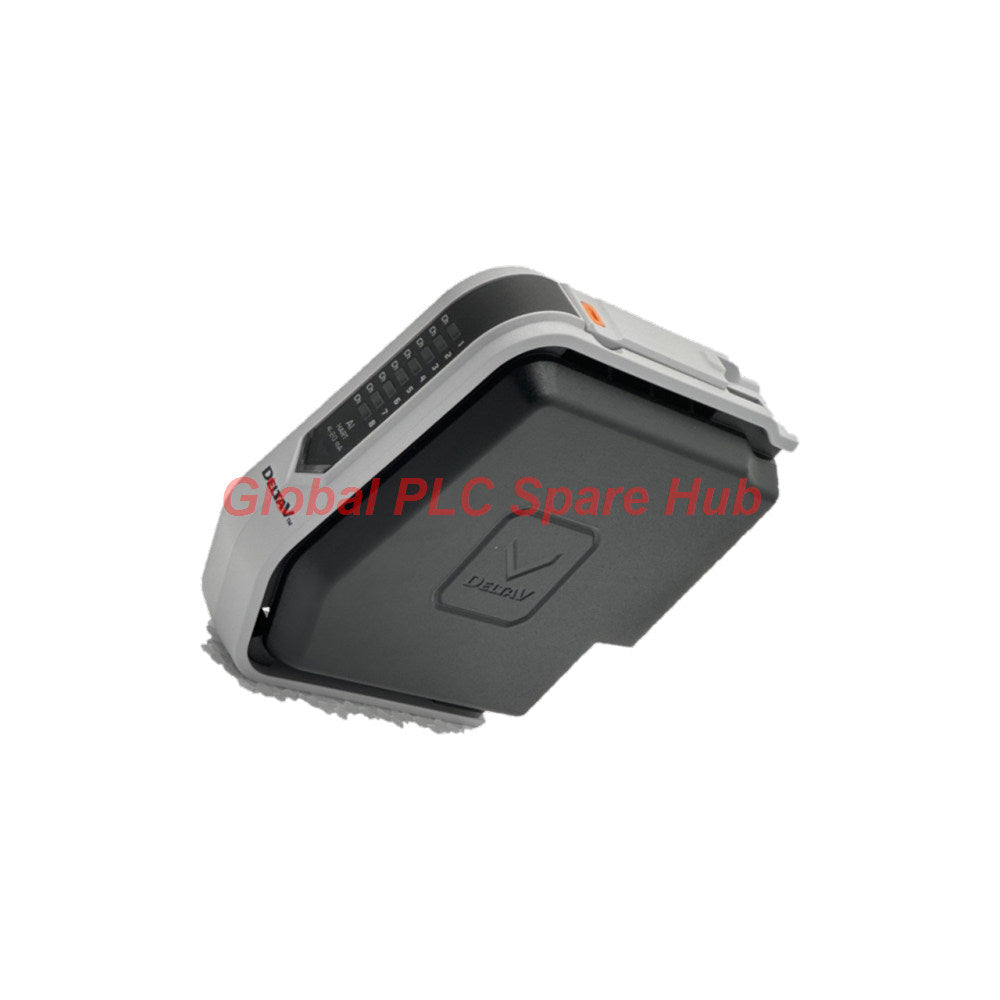

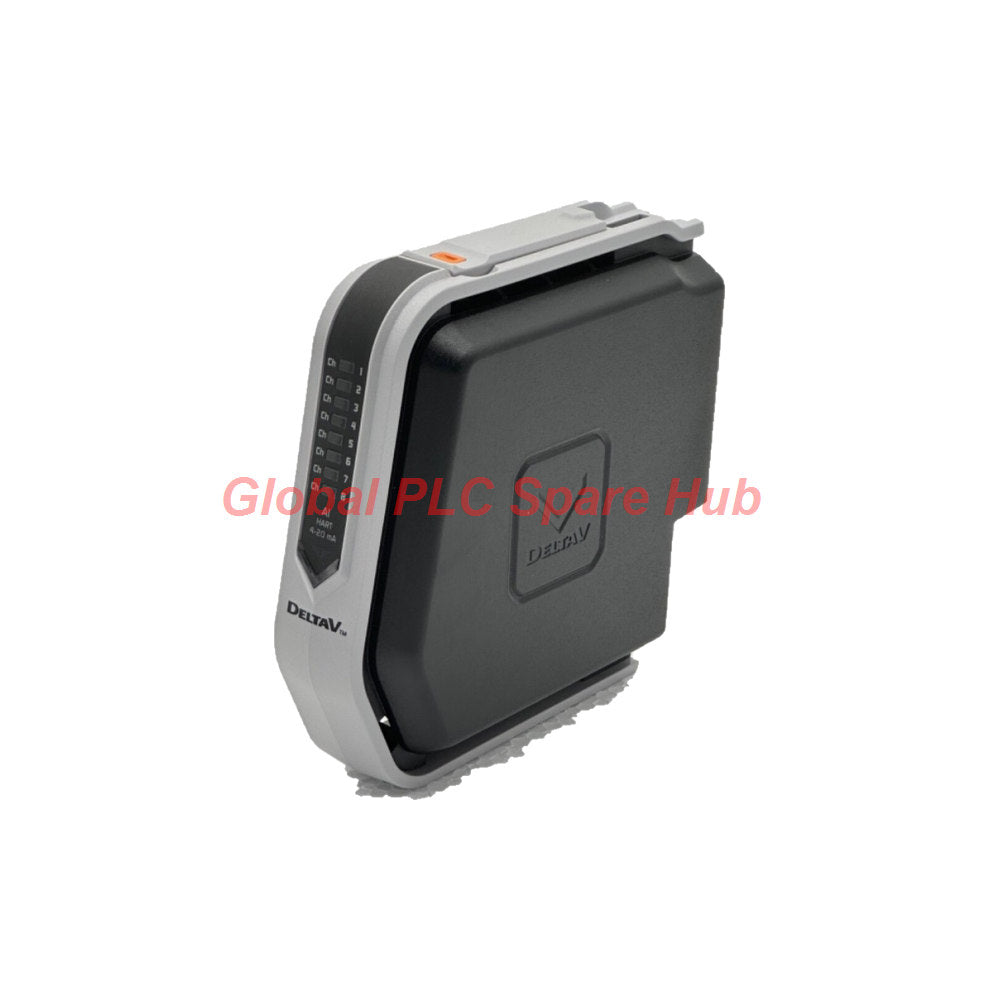

The Emerson KJ3222X1-BK1 is an 8-channel analog input card designed for 4–20 mA current signals with HART communication support. It serves as an interface between field transmitters and the distributed control system (DCS).

This module supports industrial process monitoring and instrument signal acquisition. It helps control systems collect analog measurements while supporting HART-enabled field device communication.

The module uses LocalBus power and supports field power distribution through the carrier. Its environmental ratings support demanding industrial installation conditions.

Technical Specifications

• Brand: Emerson
• Model: KJ3222X1-BK1
• Module Type: Analog Input (AI) Card
• Input Configuration: 8-channel analog input
• Signal Type: 4–20 mA current input
• Communication: HART support
• LocalBus Power Rating: 12 VDC at 150 mA
• Bussed Field Power Rating: 24 VDC at 300 mA
• Field Circuit Rating: 24 VDC at 30 mA per channel
• Operating Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95%, non-condensing
• Ingress Protection: IP20
• Shock Resistance: 10 g, half-sine wave, 11 ms
• Vibration Resistance: 1 mm peak-to-peak from 5 to 16 Hz; 0.5 g from 16 to 150 Hz
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• Terminal Block Key Position: A1

Measurement and Performance Notes: The supplied specifications do not state accuracy, linearity, resolution, frequency response, or input impedance. Confirm these values against the applicable Emerson product documentation before detailed engineering or replacement selection.

Core Functional Features

• Eight-channel signal acquisition: Connect multiple compatible field transmitters through one I/O card.
• 4–20 mA input support: Acquire standard industrial current signals from compatible instruments.
• HART communication: Support communication with compatible HART-enabled field devices, subject to system configuration.
• Carrier-based power distribution: Use the specified LocalBus and field power arrangements.
• Industrial environmental tolerance: Operate within the specified temperature, humidity, shock, and vibration limits.
• Keyed terminal block compatibility: Use the correct terminal block configuration to prevent mismatched installation.

Typical Applications

• Oil and gas: Acquire pressure, flow, and level transmitter signals in process facilities.
• Chemical processing: Monitor process variables through compatible 4–20 mA instruments.
• Power generation: Collect analog measurements for plant monitoring and operational control.
• Water treatment: Interface compatible flow, pressure, and level instruments with the DCS.
• Pharmaceutical manufacturing: Monitor process measurements within validated control architectures.
• Industrial utilities: Collect transmitter signals from pumps, compressors, tanks, and auxiliary systems.

Installation Guide

1. Verify the model: Confirm the module label reads KJ3222X1-BK1.
2. Check system compatibility: Confirm the controller, carrier, terminal block, firmware, and I/O configuration.
3. Inspect the terminal block: Verify the rotary key position matches the card requirements. The specified key position is A1.
4. Check power requirements: Verify LocalBus power and field power ratings before connecting instruments.
5. Review field wiring: Confirm current-loop polarity, grounding arrangements, and transmitter wiring against the approved drawings.
6. Confirm channel configuration: Match each channel to its assigned transmitter and engineering range.
7. Check HART settings: Verify communication requirements and device compatibility before commissioning.
8. Validate operation: Compare the control system readings with a calibrated current source or known field measurement.

Important: Follow the approved site procedures and Emerson installation instructions. Do not assume that every hot-swap condition applies to every power arrangement.

Removal and Insertion Under Power

The manufacturer specifies particular conditions for removing or inserting this card while system power remains energized.

• The approved power arrangement must use a KJ1501X1-BK1 System DC/DC Power Supply operating from 24 VDC input. Primary circuit wiring inductance must remain below 23 µH.
• Alternatively, use a certified bulk power supply with an open-circuit voltage (Uo) of 12.6 VDC. Its total inductance, including wire inductance, must remain below 23 µH.
• Remove or insert only one unit at a time while system power remains energized.
• In four-wire mode, additional field-power and non-sparking circuit conditions apply. De-energize the relevant field circuits before removal or insertion.
• Complete the required loop assessment for all energy-limited nodes.
• Never remove a terminal block fuse while field power remains energized on non-sparking circuits.

These requirements depend on the installation and protection concept. Verify the complete system configuration and applicable hazardous-area procedures before performing live work.

Commissioning and Diagnostic Capabilities

The KJ3222X1-BK1 supports analog signal acquisition and HART-enabled instrument integration. Effective diagnostics depend on the transmitter, controller configuration, and engineering software.

• Signal verification: Apply a known current input and compare the displayed process value with the expected reading.
• Loop fault isolation: Check transmitter power, wiring polarity, loop continuity, and terminal connections when a channel reads incorrectly.
• Channel comparison: Compare similar process measurements to identify abnormal readings or wiring inconsistencies.
• HART communication checks: Verify device addressing, wiring, communication configuration, and instrument compatibility when communication fails.
• Power checks: Confirm LocalBus and field power remain within the specified ratings.
• Configuration review: Check channel assignments, scaling, engineering units, and alarm limits in the control system.

Field example: A pressure transmitter produces 12 mA, but the operator sees an unexpectedly high process value. First, verify the configured measurement range and scaling. Then measure the loop current and inspect the channel wiring. If the current is correct, review the controller configuration before suspecting hardware failure.

Diagnostic limitation: The specifications supplied here do not confirm onboard channel-level diagnostics, diagnostic status codes, or automatic fault detection functions. Verify these capabilities in the applicable Emerson documentation.

Maintenance and Service

• No routine calibration: The supplied manufacturer information states that calibration is not required.
• No user-serviceable parts: Do not disassemble the module.
• Periodic inspection: Check terminal connections, carrier condition, ventilation, and visible contamination during scheduled maintenance.
• Signal validation: Investigate persistent deviations by checking the field instrument, loop wiring, channel scaling, and system configuration.
• Replacement checks: Verify model compatibility, terminal block keying, and system configuration before installing a replacement.

Compatibility Information

Confirm compatibility with the installed Emerson control system before ordering. Model identification alone does not establish compatibility with every carrier, terminal block, controller, or firmware revision.

• Verify the exact KJ3222X1-BK1 part number and any applicable hardware revision.
• Confirm the supported I/O carrier and terminal block arrangement.
• Check the required power supply and field power distribution configuration.
• Verify the system software supports the module and required HART functions.
• For hazardous-area installations, check the complete system certification, wiring method, and protection concept.

Hazardous-Area Certifications

• Four-wire mode: Ex nA IIC Gc
• Two-wire mode: Ex nA [nL] IIC Gc
• Two-wire mode: Ex nA [ic] IIC Gc
• ATEX Certificate: FM13ATEX0034U
• IECEx Certificate: IECEx FMG 13.0015U

Confirm the certificate scope and installation conditions before using the module in a hazardous location. The protection marking and permitted wiring arrangement must match the intended application.

Packaging and Warranty

• Product: Emerson KJ3222X1-BK1 analog input card
• Packaging: Protective packaging suitable for transportation
• Accessories: Included only when explicitly stated in the quotation or order confirmation
• Warranty: 12 months, subject to the agreed sales terms
• Pre-shipment checks: Product identification and applicable inspection checks before dispatch

Please confirm the exact package contents before ordering. A terminal block, carrier, power supply, and field wiring accessories are not included unless the quotation specifically lists them.

Shipping and Order Support

• Dispatch time: Typically 24–48 hours after order confirmation, subject to stock availability and payment clearance.
• Express shipping: FedEx, UPS, and DHL.
• International delivery: Shipping arrangements depend on the destination and selected carrier.
• Quotation support: Contact our team to confirm availability, lead time, shipping cost, and order details.

Global PLC Spare HUB's Insight

Field experience shows that incorrect scaling can resemble an analog input hardware fault. Engineers should verify the complete measurement loop before replacing the card.

For example, a 4–20 mA transmitter may deliver a stable current while the operator station displays an incorrect engineering value. Check the configured zero, span, and engineering units first. Next, compare the measured current with the control system reading. This sequence helps distinguish configuration problems from field wiring or module faults.

When HART communication fails, verify the field device, loop wiring, communication settings, and system support before concluding that the input card has failed. Always follow the approved commissioning procedure and the applicable manufacturer documentation.

Frequently Asked Questions

1. What is the Emerson KJ3222X1-BK1 used for?

The KJ3222X1-BK1 acquires eight channels of 4–20 mA analog signals and supports HART-enabled field instrument integration.

2. Does this module support HART communication?

Yes. The supplied product description identifies HART support. Confirm the required HART functions and software compatibility within your installed control system.

3. Can I replace the module while the system remains powered?

Only when the complete installation meets the manufacturer's specified power, inductance, field-circuit, and hazardous-area requirements. Do not assume that all energized installations support hot swapping.

4. What should I check when a channel displays an incorrect value?

Measure the actual loop current first. Then inspect polarity, wiring, channel scaling, engineering units, transmitter condition, and system configuration.

5. Does the KJ3222X1-BK1 require routine calibration?

The supplied manufacturer information states that calibration is not required. However, field transmitters and complete measurement loops may still require scheduled verification under site procedures.

6. How can I confirm that this module fits my existing system?

Check the full part number, carrier, terminal block key position, power supply, firmware, and required HART functionality. Provide the existing module and system details when requesting a replacement quotation.

7. What should buyers verify before placing an order?

Confirm the exact model, required quantity, system compatibility, package contents, delivery destination, and expected dispatch date. Request a quotation when any hardware revision or accessory requirement remains unclear.

8. What warranty and shipping options are available?

The standard sales offer includes a 12-month warranty under the agreed terms. FedEx, UPS, and DHL shipping options are available, with typical dispatch within 24–48 hours when stock and order conditions permit.

Request a Quote

Looking for the Emerson KJ3222X1-BK1 8-channel 4–20 mA HART analog input card? Contact Global PLC Spare HUB for pricing, availability, compatibility checks, and international shipping arrangements.
