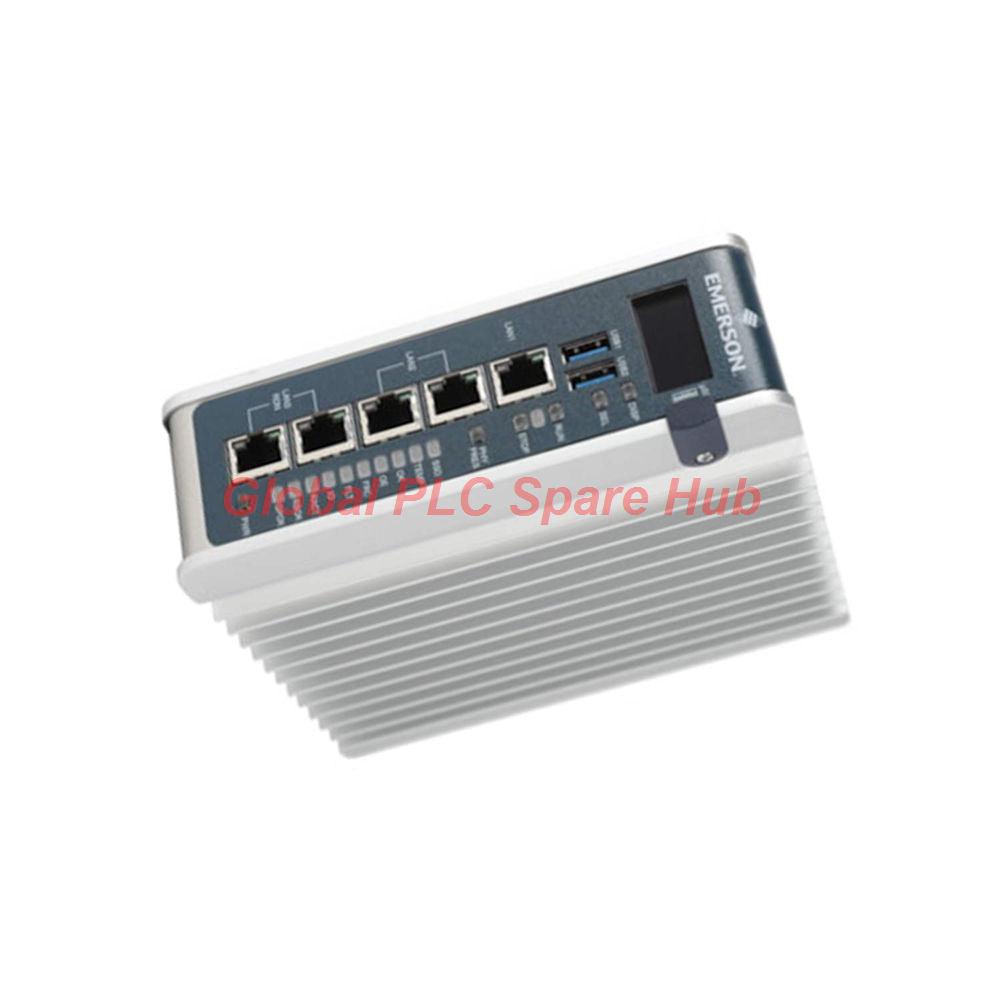

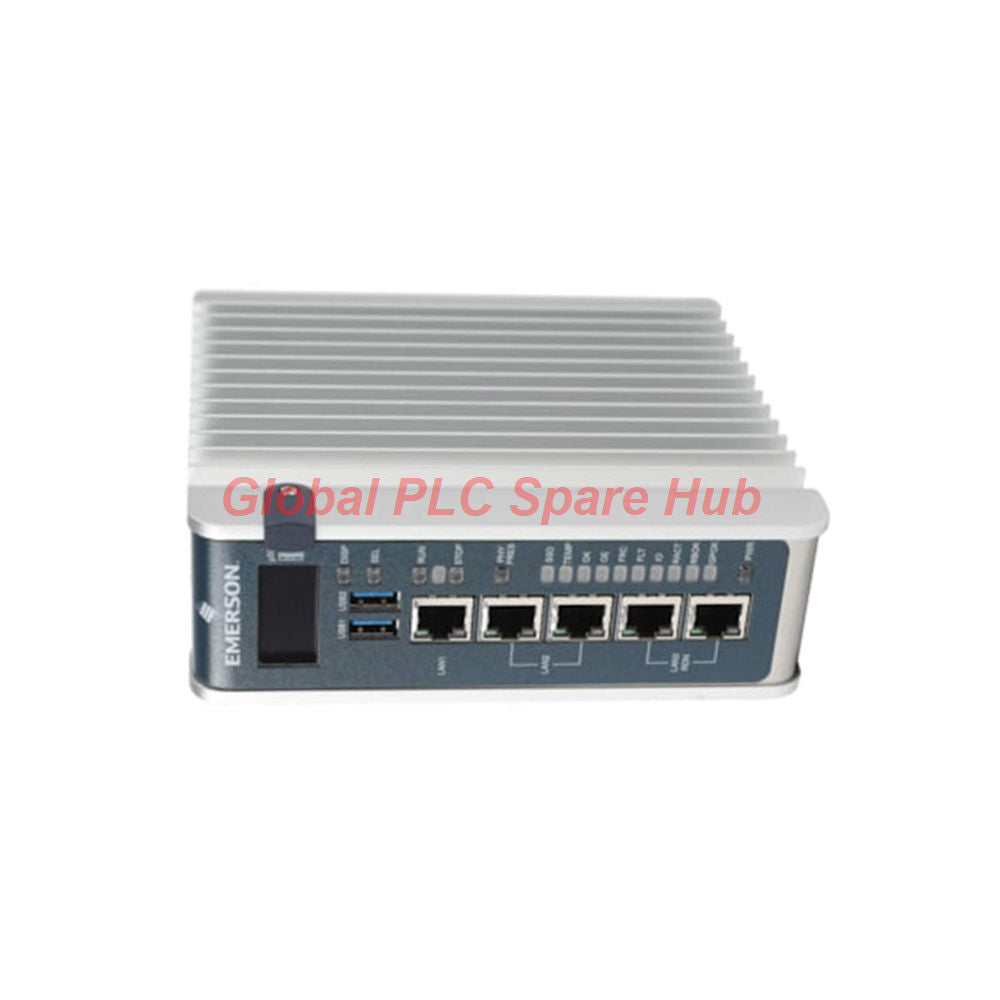

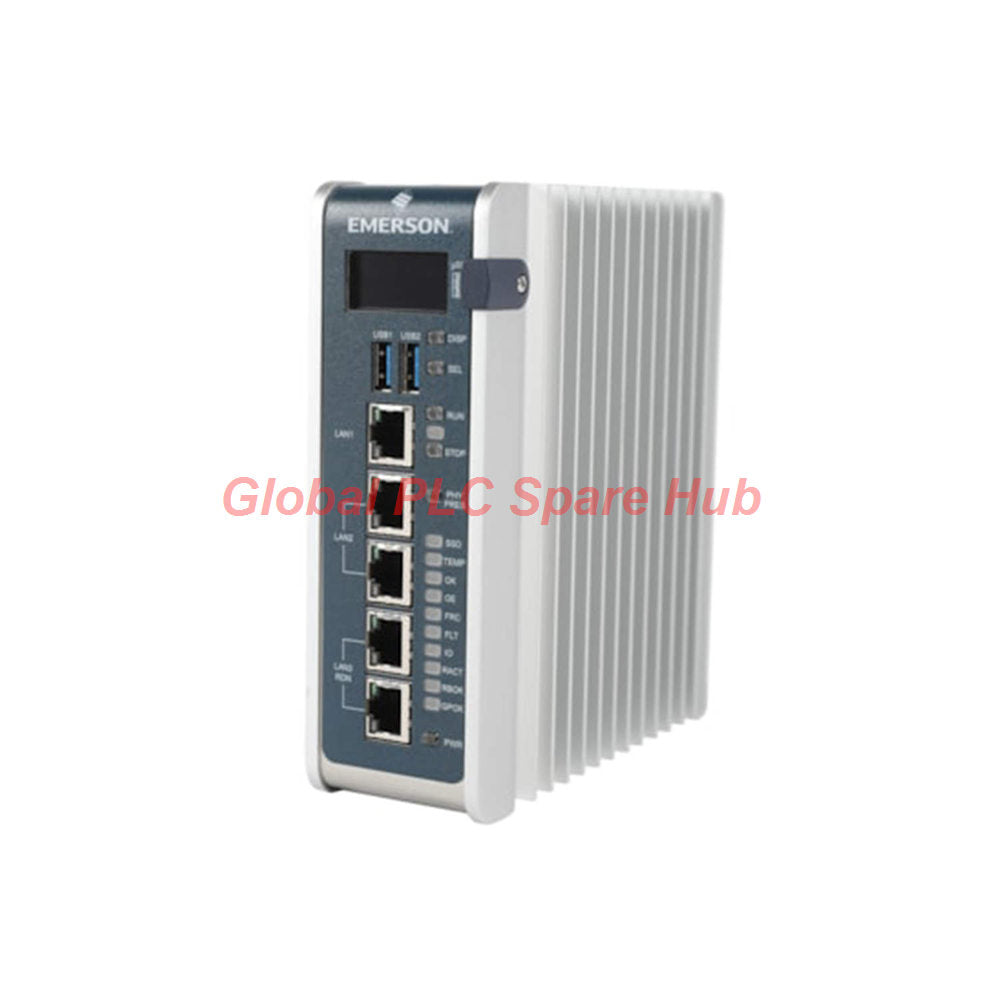

Emerson IC695CPE400 PACSystems RX3i Quad-Core Processor

Computing Power: The Emerson IC695CPE400 Rackless CPU

The IC695CPE400 stands as the pinnacle of the PACSystems RX3i controller platform. Engineered with a 1.2 GHz AMD G-Series Quad-Core processor, this rackless CPU provides unparalleled execution speed for complex logic and motion control. Designed for modern Industrial Internet of Things (IIoT) architectures, the IC695CPE400 bridges traditional automation with cloud-ready data management.

Technical Architecture Specifications

• Processor Core: 1.2 GHz AMD G-Series Quad-Core.
• Memory Suite: 64 MB configurable User Memory; 64 MB Flash storage.
• I/O Addressing: Supports 32 Kbits (Discrete) and 32 KWords (Analog) data depth.
• Connectivity Hub: 5 LAN ports (incl. high-speed sync/PROFINET), 2 USBs, Video Port, and IICS Cloud Port.
• Programming: Full support for Ladder, Structured Text, Function Block, and C.
• Hardware Security: Includes Trusted Platform Module (TPM) and Secure Boot.
• Power & Mounting: 24 VDC input; flexible DIN-rail or panel-mount configuration.

Global PLC Spare HUB's Insight

Our technical team classifies the IC695CPE400 as the premier choice for mission-critical redundancy and high-speed data acquisition. Its integrated PROFINET support with 8ms update rates makes it indispensable for synchronized motion tasks in automotive assembly and pharmaceutical packaging lines. We view its multi-port LAN architecture as a game-changer for segmenting machine-level control from supervisory (MES) networks.

Diagnostics and Operational Visibility

The integrated OLED display offers an intuitive interface for live diagnostics, fault alerts, and IP address management. With 6 user-accessible pushbuttons, operators can cycle through diagnostics without external consoles. The device’s advanced diagnostic logging provides granular visibility into system cycles, reducing Mean Time to Repair (MTTR) for complex process failures.

Logistics and Warranty Excellence

• Global Transit: Express shipping via FedEx, UPS, and DHL.
• Fulfillment: Guaranteed 24–48 hour dispatch window.
• Quality Guarantee: All units are supported by a full 12-month performance warranty.

Expert FAQ and Configuration Guide

What is the purpose of LAN3 in a redundant setup?

LAN3 acts as the high-speed synchronization port, ensuring seamless failover between two CPU modules in redundant controller configurations.

Can I use the IC695CPE400 for cloud data logging?

Yes, the dedicated IICS Cloud Port (EFA) on the rear panel allows for secure, direct data transfer to industrial cloud platforms without compromising the control network integrity.

How do I ensure memory integrity during power loss?

The system is designed to use the IC695ACC403 Energy Pack; this accessory is mandatory to preserve SRAM data during unexpected power events.

Is the panel-mounting adapter included?

Yes, every unit ships with the necessary hardware for both DIN-rail mounting and panel-mount conversion, ensuring flexibility for your cabinet layout.

Buying Guide: What is the benefit of the AMD Quad-Core architecture?

The multi-core architecture allows you to offload non-critical tasks like PROFINET communications and cloud data transfer to specific cores, leaving the primary execution core free for ultra-fast scan cycles.
