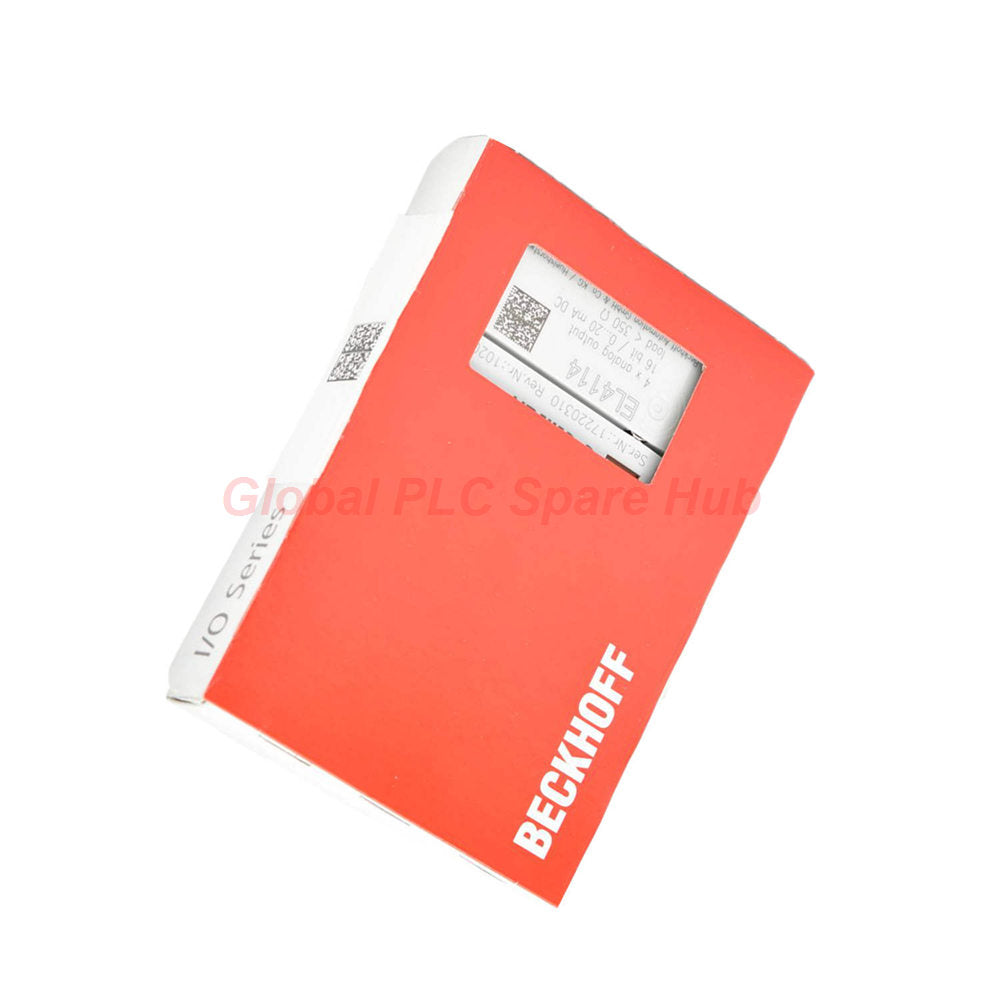

EL4114 Beckhoff 4-Channel Analog Output: 16-Bit Precision Module

Operational Excellence

The EL4114 is a high-density, 4-channel analog output terminal designed for high-speed industrial control loops. Delivering a 0…20 mA output with 16-bit resolution, this module ensures extreme signal accuracy for actuators and process control elements. Each channel is fully electrically isolated (500 V) from the E-bus, providing robust protection against common-mode noise and ground loops in complex machine architectures.

Technical Performance Metrics

• Brand/Model: Beckhoff EL4114 (Terminal) / ES4114 (Pluggable Version)
• Output Channels: 4 x 0…20 mA
• Resolution: 16-bit precision (including sign)
• Output Accuracy: < 0.1 % relative to full-scale
• Conversion Time: ~ 290 μs
• Load Capacity: < 350 Ω (Short-circuit proof)
• Synchronization: Distributed Clocks (Precision << 1 μs)
• Power Requirements: 24 V DC (15 mA typical load + current consumption)
• System Bus: E-bus (160 mA consumption)
• Ingress Rating: IP20, suitable for control cabinet mounting

Advanced Diagnostics & Features

• Watchdog Functionality: Parameterizable safety state behavior ensures predictable outputs during network disconnection or CPU faults.
• User Synchronization: Advanced clocking modes allow for precise alignment with distributed motor controllers and motion axes.
• Status Indication: Front-facing LED array enables rapid identification of communication and channel signal states.
• Robust Design: Certified for high-vibration and shock environments (EN 60068 standards), ensuring reliability in mobile or high-speed machinery.

Global PLC Spare HUB's Insight

The EL4114 is a staple in high-performance motion and process systems. At Global PLC Spare HUB, we often recommend this module for applications demanding fast, repeatable analog control—such as proportional valve actuation, speed reference signals for VFDs, or precise heater control in injection molding. Its sub-microsecond distributed clock precision makes it a superior choice for jitter-sensitive control loops. If you require validated performance, consider the EL4114-0020 variant, which includes a factory calibration certificate for ISO-compliant installations.

Logistics & Quality Assurance

• Logistics: Secure, expedited shipping via FedEx, UPS, or DHL.
• Dispatch: Rapid processing within 24-48 hours.
• Warranty: Industry-leading 12-month quality guarantee.
• Availability: EL4114 and ES4114 versions are regularly stocked for immediate integration.

Pro-Tips & Selection FAQ

What is the main difference between EL4114 and EL4114-0020?
The core functionality is identical; however, the EL4114-0020 includes an official factory calibration certificate, making it mandatory for industries with strict regulatory or quality traceability requirements.

Why is Distributed Clock precision important for my analog output?
If you are driving a process where phase alignment is critical—like multi-axis synchronous movement—Distributed Clocks ensure all output channels update at the exact same time, preventing control lag.

Can I use this module for 4-20mA devices?
While the terminal outputs 0-20 mA, you must verify if your device requires a "live zero" (4 mA). If the device is strictly 4-20mA, you will need to scale your PLC software logic accordingly, as this module can drive down to 0 mA.

What happens if the load resistance exceeds 350 Ω?
Exceeding the load limit will cause the output stage to clip or fail to maintain the required current loop, potentially leading to inaccurate signals. Always verify your device impedance prior to commissioning.

Which wiring method should I choose?
If your cabinet space is limited and you perform frequent maintenance, choose the ES-series (ES4114) for its pluggable terminal blocks, which allow you to change the module without re-wiring individual conductors.
