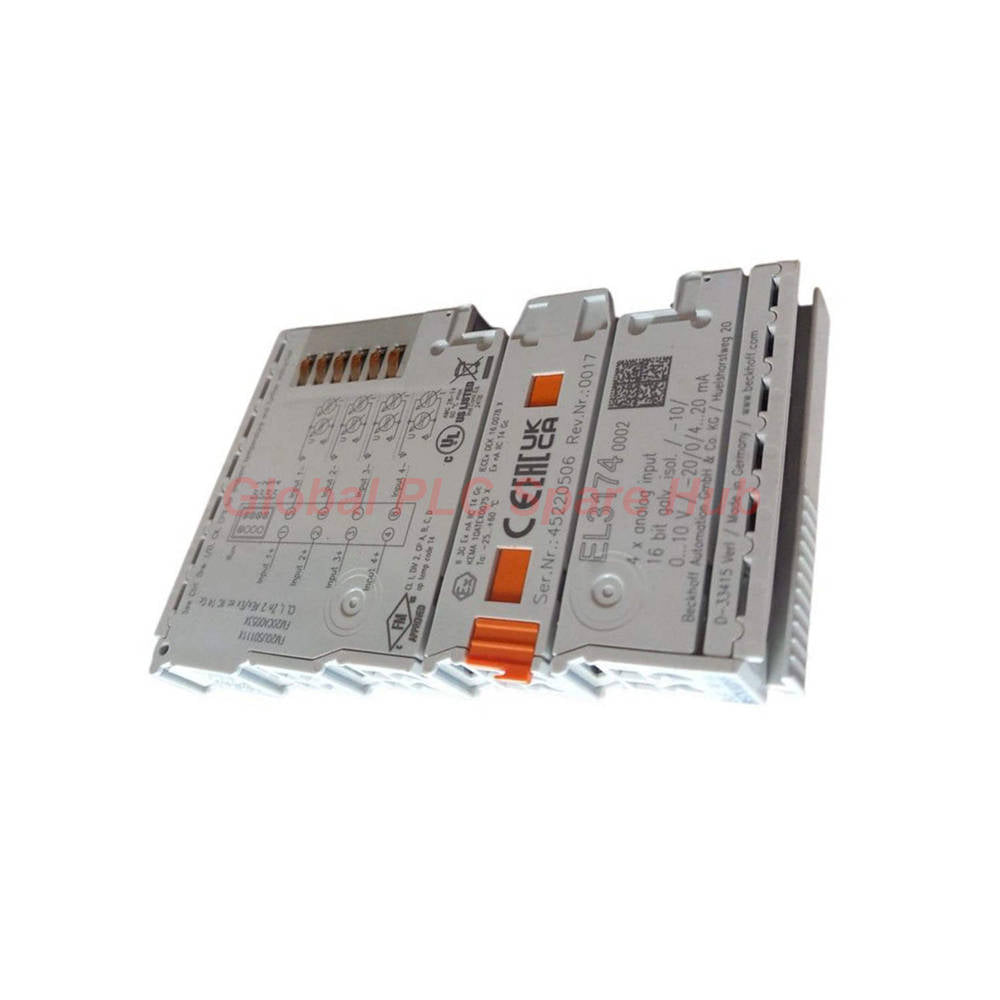

EL3174 Beckhoff Multi-Function Analog Input Terminal: 4-Channel 16-Bit

High-Density Signal Processing

The EL3174 is a high-density, 4-channel multi-function analog input terminal built for complex automation environments. Each channel allows for individual parameterization, supporting voltage ranges of ±10 V and current loops of ±20 mA. Engineered with a technical measuring range reaching 107% of nominal values, this module provides the headroom required for accurate limit-range diagnostics and compliance with NAMUR NE43 standards.

Technical Performance Metrics

• Brand/Model: Beckhoff EL3174 Multi-Function Terminal
• Channel Config: 4 channels, individually software-selectable (U/I)
• Signal Modes: ±10 V (Differential) / ±20 mA (Single-ended)
• Resolution: 16-bit (with sign bit)
• Conversion Speed: 150 μs minimum conversion time
• Accuracy: < ±0.3 % relative to full-scale
• Synchronization: Integrated Distributed Clocks (<< 1 μs precision)
• Input Impedance: > 200 kΩ (Voltage) | 85 Ω (Current)
• Protection: 500 V E-bus isolation; IP20 rating
• Certifications: CE, UL, ATEX, IECEx, cFMus (Div 2)

Advanced Diagnostics & Operational Control

• NAMUR NE43 Compliance: Supports standard diagnostic signaling for fault identification in the limit range.
• Signal Conditioning: Onboard activatable FIR/IIR filters suppress electrical noise for clean, high-fidelity data acquisition.
• Status Monitoring: High-density (HD) housing design includes dedicated LEDs for rapid field-side troubleshooting.
• Flexible Process Imaging: Selectable standard or compact process image modes allow for bandwidth optimization in large-scale EtherCAT systems.

Global PLC Spare HUB's Insight

The EL3174 is our go-to solution for modernizing mixed-signal control cabinets. At Global PLC Spare HUB, we find this module indispensable for R&D test benches, multi-stage pressure monitoring, and complex robotic process control. Because the terminal handles both voltage and current modes per-channel, it acts as a "universal interface" that significantly reduces your spare parts inventory. For engineers balancing multiple sensor types within a single rack, the EL3174 offers unmatched modularity and high-speed deterministic response times.

Logistics & Quality Commitment

• Fast Dispatch: Orders processed and shipped within 24-48 hours.
• Global Transit: Reliable delivery via FedEx, UPS, or DHL.
• Warranty Assurance: Every unit is backed by a comprehensive 12-month quality guarantee.
• Support: Factory-new, reliable hardware suitable for mission-critical industrial tasks.

Expert Purchasing Guide & FAQ

Why does my EL3174 require separate wiring for voltage and current?
To maintain signal integrity and meet the electrical isolation specifications, voltage and current signals are routed through distinct hardware pins; ensure you consult the connection diagram to prevent signal overlapping.

How can I use the ExtendedRange feature?
The ExtendedRange feature is enabled via the CoE parameters in TwinCAT. It allows you to process values up to 107% of the nominal range, which is critical for monitoring sensors that may spike outside standard operating parameters.

Can I use this for non-linear sensors?
The EL3174 provides highly linear conversion. If your sensor has a non-linear characteristic, perform the scaling within the PLC software application rather than at the terminal level.

What is the primary advantage of the 150 μs conversion time?
The rapid 150 μs cycle time makes this terminal ideal for high-speed dynamic applications like transient pressure detection or fast-moving conveyor monitoring where slower modules might miss critical data points.

Which conductors are compatible with the direct plug-in technology?
The terminal supports solid conductors directly via the push-in mechanism, while fine-stranded wires require spring actuation using a small flat-head screwdriver; verify wire sizes (0.08–1.5 mm²) to ensure proper contact pressure.
