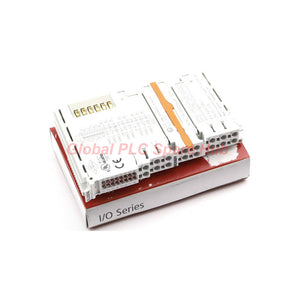

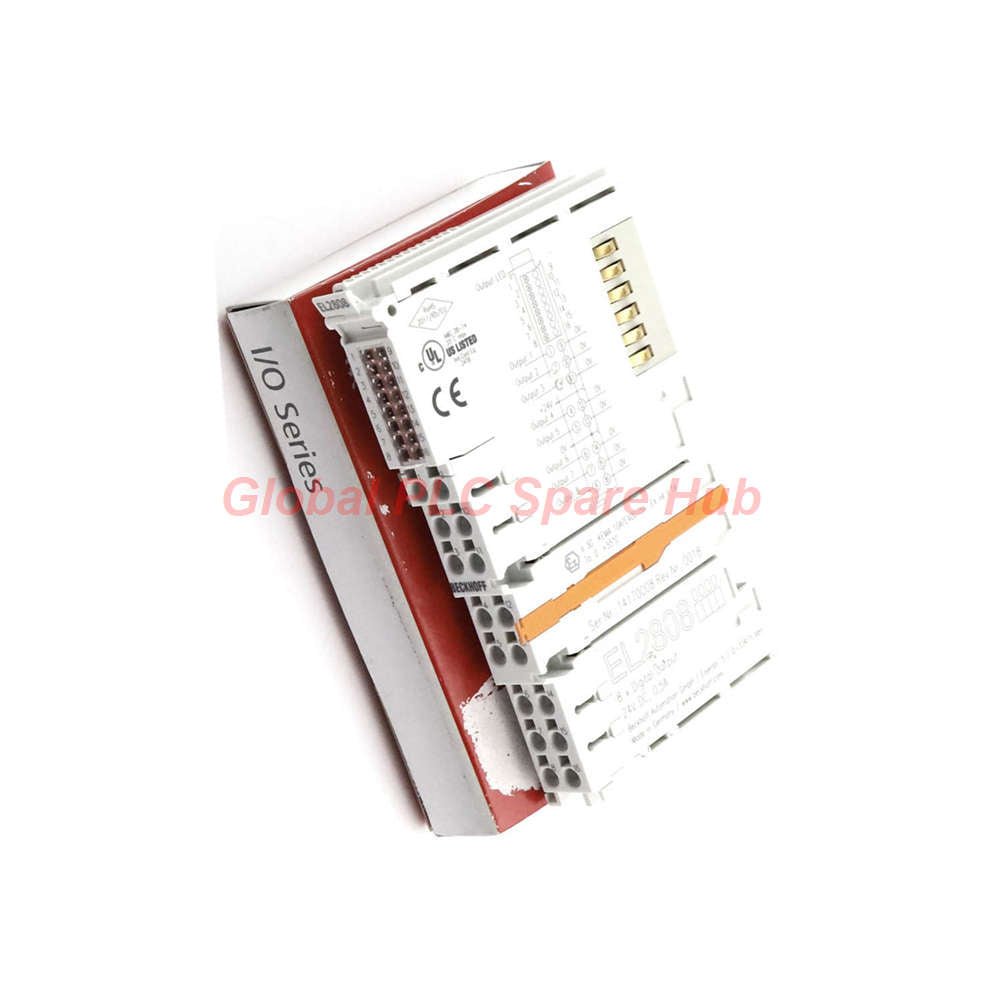

EL2808 Beckhoff EtherCAT Terminal | 8-Channel Digital Output Module

Engineering Overview: EL2808 High-Density Output Terminal

The EL2808 is a sophisticated 8-channel digital output terminal engineered for the high-performance Beckhoff EtherCAT ecosystem. Built in a space-saving 12 mm High-Density (HD) housing, this module allows for 16 connection points, doubling the integration density of standard terminals. It provides robust 24V DC signal switching to industrial actuators, ensuring complete electrical isolation between the process level and the automation controller.

Technical Performance Specs

• Model Identification: EL2808
• Signal Type: 8-channel digital output (24V DC)
• Current Rating: 0.5A per channel (short-circuit proof)
• Connection: 2-wire direct plug-in technology
• Housing Design: HD (High-Density) 12 mm width
• Switching Latency: TON 60 µs / TOFF 300 µs
• Protection Class: IP20 (CE, UL, ATEX, IECEx certified)
• Operating Temp: -25°C to +60°C
• Mounting: 35 mm DIN rail (EN 60715)

Global PLC Spare HUB Insight

According to Global PLC Spare HUB technical assessments, the EL2808 is optimized for high-density applications such as automated assembly robots and packaging machinery. Its internal circuitry handles inductive loads with a breaking energy rating below 150 mJ, making it significantly more reliable than generic relay-based output modules in high-cycle-rate environments. We recommend this for systems where DIN rail space is limited and reliable load switching is a mandatory design requirement.

Diagnostic and Operational Capabilities

• Circuit Security: Integrated overload, short-circuit, and reverse polarity protection for every channel.
• Visual Diagnostics: High-visibility LED indicators provide real-time status feedback for all 8 channels.
• Load Versatility: Capable of driving ohmic, inductive, and lamp loads without additional suppression components.
• Installation Efficiency: Tool-free wiring for solid conductors (up to 1.5 mm²) significantly reduces commissioning time.

Logistics and Warranty Guarantee

• Expedited Shipping: Secure global delivery via FedEx, UPS, and DHL.
• Rapid Fulfillment: Orders processed and shipped within 24-48 hours.
• Quality Assurance: All units are protected by a comprehensive 12-month performance warranty.

Expert FAQ and Selection Guide

Q: Can the EL2808 drive high-current solenoid valves directly?
A: Each channel is rated for 0.5A. Ensure your solenoid’s peak inrush current does not trigger the short-circuit protection (typically < 2A) during activation.

Q: What is the benefit of the 'High-Density' (HD) housing on the EL2808?
A: The EL2808 delivers 16 connection points within a 12mm width, allowing you to maximize I/O density in compact control cabinets where panel space is at a premium.

Q: Does this module require special EtherCAT addressing during setup?
A: No, this is a plug-and-play terminal. The EtherCAT master automatically recognizes the EL2808 during the initial bus scan.

Q: Selection Guide: How do I choose between the EL2808 and the EL2809?
A: Select the EL2808 when you require the 24V power contact feed to be routed through the terminal; refer to documentation if your specific field load requires external power distribution.

Q: How should I troubleshoot a channel that fails to activate?
A: First, check the status LED. If it remains off despite a high signal, verify that the 24V supply to the power contacts is stable and that no short-circuit condition exists on the field wiring.
