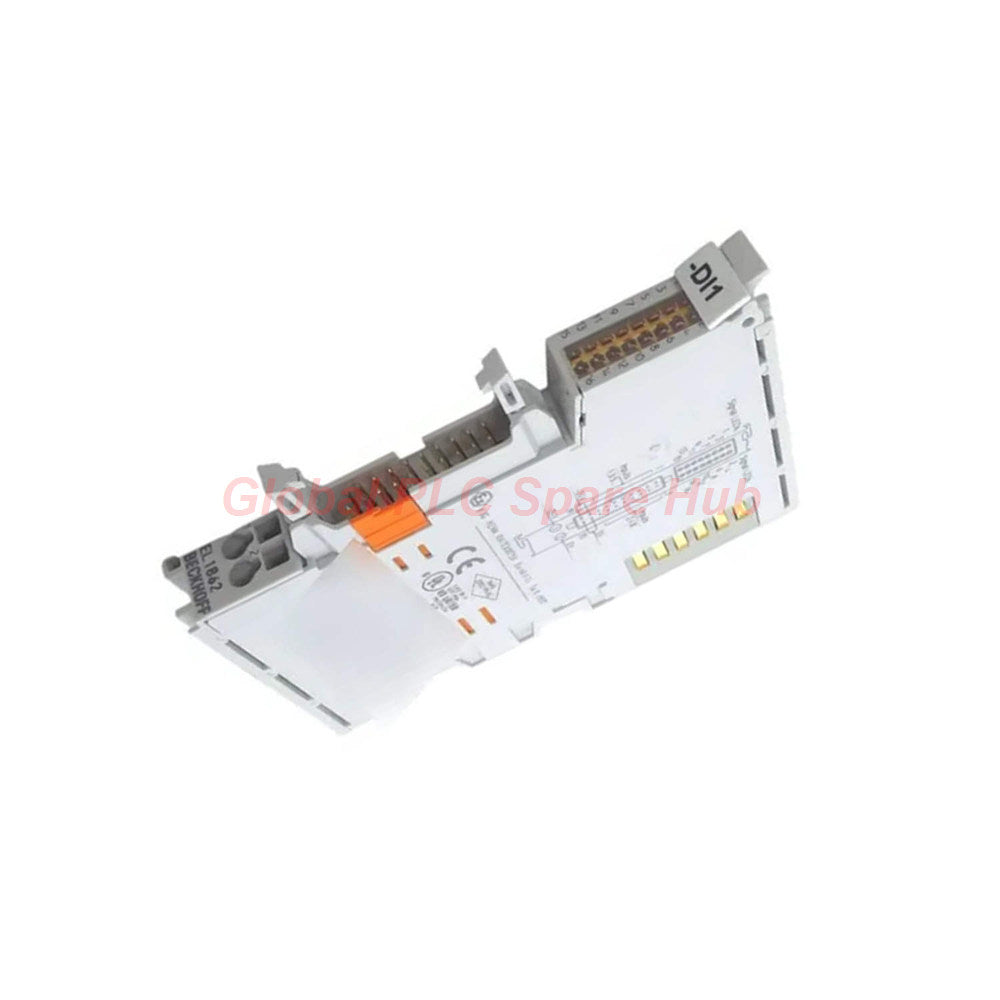

EL1862 Beckhoff EtherCAT Terminal: 16-Channel Flat-Ribbon Input Module
Manufacturer: Beckhoff
Product No.: EL1862
Condition： In stock
Product Type: EtherCAT Terminal
Product Origin: USA
Payment: T/T, Western Union
Weight: 90g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Precision Engineering Overview
The EL1862 is a high-speed EtherCAT terminal engineered for high-density signal acquisition. By utilizing a 20-pin flat-ribbon interface, it drastically reduces wiring time and complexity in multi-channel systems. This module provides reliable, electrically isolated processing for 16 digital 24V DC inputs, meeting the stringent timing requirements of modern industrial automation.
Technical Specifications
- Brand: Beckhoff
- Model: EL1862
- Communication Interface: EtherCAT (E-bus)
- Channel Capacity: 16 digital inputs
- Connection Interface: 20-pin flat-ribbon cable (insulation displacement)
- Signal Compatibility: EN 61131-2 Type 1/3 (11 to 30 V DC)
- Input Debouncing: 3.0 ms internal filter for stable switching
- Electrical Isolation: 500 V (E-bus to field potential)
- E-bus Power: 100 mA typical current consumption
- Environmental Rating: IP20 (0°C to +55°C operation)
- Form Factor: Compact 12 mm housing (EL-12-FRC)
Operational Diagnostics and Reliability
- Real-time Status: High-visibility LED indicators provide instant channel-level verification.
- Signal Filtering: The 3 ms filter hardware suppresses transient noise common in ribbon-cable environments.
- Noise Immunity: Compliance with EN 61000-6-2/4 ensures robust performance in high-EMI industrial zones.
- Structural Integrity: Secure locking mechanism for 35 mm DIN rail mounting prevents vibration-induced signal loss.
Global PLC Spare HUB Insight
Engineers at Global PLC Spare HUB highlight the EL1862 as the premier choice for centralized control cabinets.
- Suitable Equipment: Large-scale robotic controllers, automated sorting machines, and high-density relay interfaces.
- Application Fit: Specifically optimized for scenarios where rapid, mass-termination of sensors via ribbon cabling is required, such as internal cabinet patch panels.
Logistics and Commitment
- Warranty: 12-month comprehensive quality guarantee.
- Shipping Partners: Reliable door-to-door delivery via FedEx, UPS, and DHL.
- Dispatch: Rapid order fulfillment within 24-48 hours.
Technical Frequently Asked Questions (FAQ)
Why is a flat-ribbon cable preferred for the EL1862 over individual wiring?
It allows for IDC (Insulation Displacement Contact) termination, which eliminates the need for manual wire stripping and reduces installation time by up to 70%.
Can the EL1862 handle ground-switching applications?
Yes, this specific series is available in ground-switching variants, providing flexibility for different sensor circuit designs.
What is the maximum current capacity per pin?
The module supports up to 1 A per connection pin, ensuring compatibility with a wide range of peripheral sensors.
How should I manage cable length to prevent signal degradation?
Ensure your ribbon cable length remains within the EMC compliance limits for your specific cabinet environment, ideally under 3 meters for best signal integrity.
Which wire gauge is required for optimal contact?
The terminal is designed specifically for AWG 28 flat-ribbon cables with a 1.27 mm pitch to ensure a gas-tight IDC connection.
