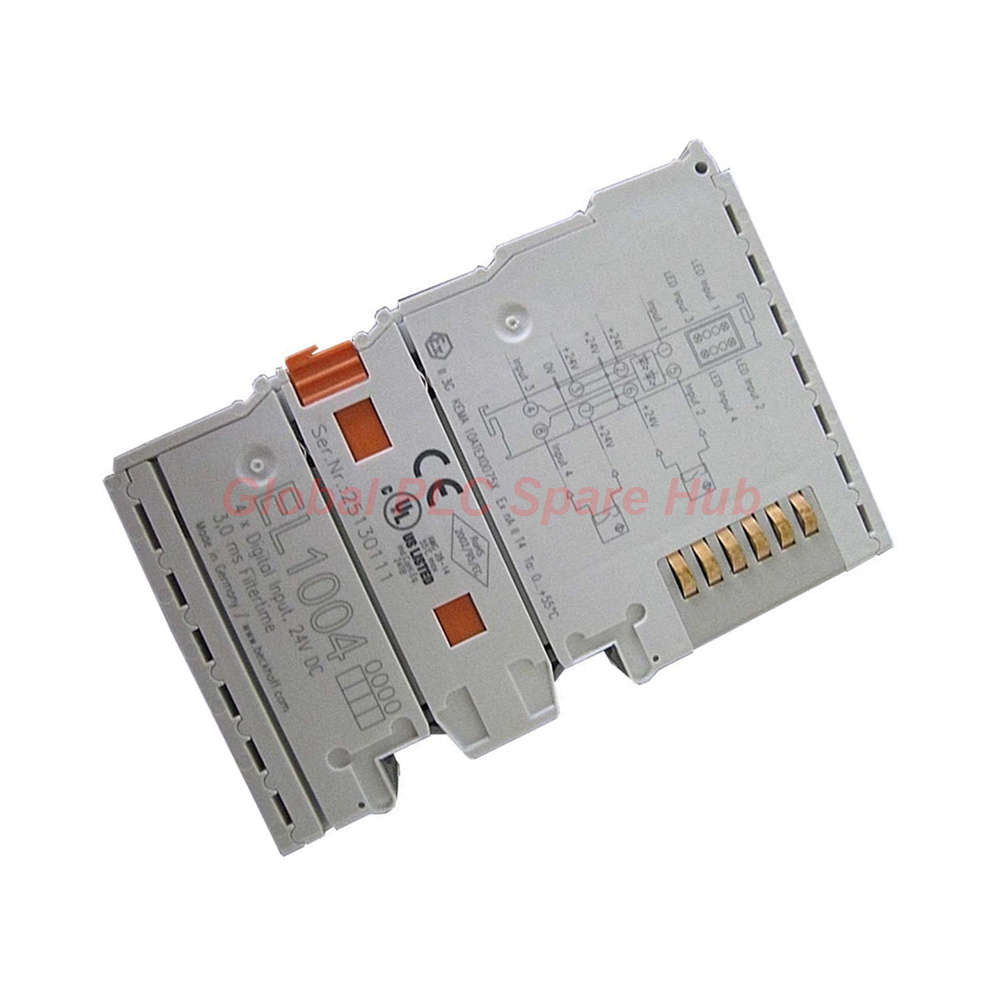

EL1004-0020 Beckhoff EtherCAT Input Terminal | 4-Channel 2500V Isolated Module

Product Overview

The EL1004-0020 is a high-reliability EtherCAT digital input terminal engineered for precision signal acquisition in electrically sensitive environments. Distinguished by its 2500V functional isolation between the E-bus and field potential, this terminal provides superior protection for downstream automation hardware against voltage spikes. Featuring four channels with 3ms hardware-level input filtering, the EL1004-0020 ensures clean binary signal transmission from 24V DC field sensors, effectively eliminating noise and contact bounce.

Engineering Specifications

• Brand: Beckhoff
• Model: EL1004-0020
• Series: EtherCAT Digital Input
• Channels: 4-channel input (2-wire connection)
• Nominal Voltage: 24V DC (-15% / +20%)
• Input Type: Type 1/3 (EN 61131-2)
• Input Filter: Fixed 3.0 ms
• Isolation Rating: 2500V DC (E-bus to field)
• Current Consumption: E-bus: 90mA / Power contacts: 2mA + load
• Connectivity: Spring-actuation (0.08–2.5 mm²)
• Operating Temperature: 0°C to +55°C
• Compliance: CE, UL

Global PLC Spare HUB Insight

The EL1004-0020 serves as a critical safety barrier in industrial applications where high-voltage field equipment interacts with low-voltage control logic. Global PLC Spare HUB recommends this terminal for sensitive sensor clusters where electrical interference (EMI) is prevalent. Its ability to provide 2500V isolation in such a compact 12mm footprint makes it indispensable for field-bus protection strategies in heavy-duty machinery.

Application Scenarios

• High-Voltage Field Protection: Environments where field sensors may encounter localized electrical interference.
• Precision Sensor Interfacing: Ideal for 2-wire proximity switches requiring consistent signal stabilization.
• Compact Control Panels: Designed for high-density I/O clusters with limited DIN rail space.
• Legacy System Integration: Effective for upgrading existing systems where isolation is a top priority.

Logistics and Warranty

• Shipping: Expedited global delivery via FedEx, UPS, or DHL.
• Lead Time: Dispatched within 24–48 hours of order.
• Warranty: 12-month full performance replacement guarantee.

Professional Technical FAQ

What is the primary technical advantage of the 2500V isolation?
The 2500V isolation acts as a functional barrier, protecting the E-bus controller circuitry from surge-related damage originating from the field-side 24V power supply.

Can I connect 4-wire sensors to this 2-wire terminal?
Yes, by correctly jumpering the power contact common and signal ground appropriately to utilize the terminal’s integrated +24V connection points.

How can I diagnose channel input issues?
The front-facing LEDs offer immediate visual status. If an LED is off during active sensor states, use a multimeter to verify voltage at the terminal block; if voltage is present but the LED is dark, the channel may require maintenance.

Why prefer isolated terminals in high-interference zones?
Near large AC motors or converters, isolated terminals like the EL1004-0020 prevent ground loops and "ghosting" signals that can disrupt EtherCAT network stability.

Selection Guide: Wiring for long cable runs?
For long runs, utilize shielded, fine-stranded conductors with appropriate ferrules to maximize contact surface area; this reduces impedance and preserves the integrity of the 2500V isolation threshold.
