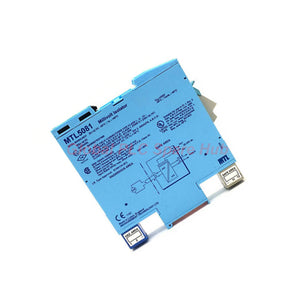

Eaton MTL5581 MTL5500 Thermocouple Isolator Module

Product Overview

Eaton MTL5581 belongs to the MTL5500 Series signal conditioning platform.

This module isolates millivolt and thermocouple signals in hazardous industrial environments.

The device supports accurate low-level temperature signal transmission.

It delivers stable isolation between field instruments and control systems.

MTL5581 suits process automation, chemical plants, and energy facilities.

The compact DIN rail design saves cabinet installation space.

The module maintains high signal integrity under electrical noise conditions.

It supports safe operation in IECEx and ATEX hazardous areas.

Core Features

• Single-channel millivolt and thermocouple isolation
• High linearity and repeatability performance
• Fast 150μs response capability
• Excellent temperature drift stability
• DIN rail compact installation format
• Wide 20-35V DC operating supply
• Built-in LED power indication
• Configurable upscale or downscale burnout protection
• Designed for hazardous industrial environments

Technical Specifications

• Brand: Eaton
• Series: MTL5500 Series
• Model: MTL5581
• Product Type: Millivolt/Thermocouple Isolator
• Signal Type: Temperature input signals
• Input Type: Any DC millivolt source
• Measurement Range: 0mV to ±50mV
• Overrange Capability: ±55mV
• Frequency Response: DC to 4kHz
• Transfer Accuracy: <0.05% of reading or ±5μV
• Linearity: High precision repeatability performance
• Sensitivity: Optimized for low-level signal conditioning
• Resolution Stability: Low-noise signal isolation architecture
• Temperature Drift: <2μV/°C
• Response Time: 150μs typical
• Load Resistance: 60Ω
• Maximum Load Resistance: 600Ω
• Power Supply: 20-35V DC
• Current Consumption: 30mA
• Power Dissipation: 0.7W typical at 24V
• Isolation Voltage: 250V RMS galvanic isolation
• Anti-Interference Capability: EMC compliant to EN61326
• Switching Frequency: DC to 4kHz
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +80°C
• Humidity Range: 5% to 95% RH
• Mounting Method: 35mm T-section DIN rail
• Electrical Connection: Crimp ferrules
• Terminal Capacity: Up to 2.5mm² conductors
• Dimensions: 109.8 × 118.8 × 15.8 mm
• Weight: 150g
• LED Indicator: Green power LED

Installation Guidelines

• Install the module on a standard 35mm DIN rail.
• Use shielded signal wiring in high-noise environments.
• Separate signal cables from power cables.
• Verify correct polarity before power connection.
• Ensure stable DC power between 20V and 35V.
• Allow ventilation space inside the control cabinet.
• Check hazardous area compliance before commissioning.

Commissioning and Maintenance Convenience

• The compact structure simplifies cabinet integration.
• LED indication speeds up power status verification.
• Burnout switch configuration supports fast field adjustment.
• Low power consumption reduces thermal stress.
• The module requires minimal routine maintenance.
• DIN rail mounting accelerates replacement procedures.
• Stable calibration characteristics improve long-term reliability.

Compatibility Information

• Compatible with PLC and DCS automation systems.
• Supports low-level millivolt signal transmitters.
• Suitable for thermocouple interface applications.
• Works with industrial process monitoring systems.
• Integrates with hazardous area instrumentation loops.
• Supports standard industrial DIN rail cabinets.

Diagnostic and Protection Functions

• Early burnout detection improves process safety.
• Selectable upscale or downscale safety drive modes.
• Galvanic isolation reduces ground loop interference.
• EMC compliance enhances electrical noise immunity.
• Fast response supports dynamic signal monitoring.

Typical Application Scenarios

• Chemical processing temperature monitoring
• Oil and gas hazardous area instrumentation
• Power plant signal isolation systems
• Industrial furnace temperature measurement
• Pharmaceutical process automation
• Water treatment monitoring systems
• Steel and metallurgy thermal control systems
• Factory PLC analog signal isolation

Certification and Compliance

• IECEx Certified
• ATEX Certified
• Zone 0 hazardous area approval
• EMC compliant to EN61326
• IEC standard compliance

Packaging List

• 1 × Eaton MTL5581 isolator module
• 1 × Product documentation
• 1 × Quality inspection documentation

Shipping and Warranty

• 12-month warranty support
• 24-48 hours fast shipment
• Shipping available through FedEx, UPS, and DHL
• Professional export packaging protection
• Technical support available before and after delivery

Global PLC Spare HUB's Insight

MTL5581 performs well in low-level signal isolation applications.

The module provides stable thermocouple signal transmission under electrical interference conditions.

Engineers prefer this model for hazardous process automation projects.

The compact structure improves cabinet density efficiency.

The fast response characteristic supports dynamic industrial measurements.

The device fits modern PLC, DCS, and SCADA architectures.

It suits process skids, burner systems, and industrial thermal monitoring equipment.

FAQ

What signal types does the MTL5581 support?

The module supports DC millivolt and thermocouple input signals.

Can the module operate in hazardous locations?

Yes. It supports IECEx and ATEX Zone 0 hazardous environments.

Which systems work with the MTL5581?

The module integrates with PLC, DCS, and SCADA platforms.

Does the module require regular calibration?

The stable drift performance minimizes frequent recalibration requirements.

How can engineers reduce signal interference?

Use shielded wiring and separate signal cables from power cables.

What causes unstable temperature readings?

Poor grounding and cable routing often create unstable measurements.

Is DIN rail installation supported?

Yes. The module supports standard 35mm DIN rail mounting.

How should users select a compatible isolator?

Check signal range, hazardous approvals, response speed, and PLC compatibility.

Why choose the MTL5500 Series?

The series combines compact size, high accuracy, and strong EMC protection.

Which industries commonly use this module?

Chemical, energy, oil and gas, pharmaceutical, and manufacturing industries use it widely.
