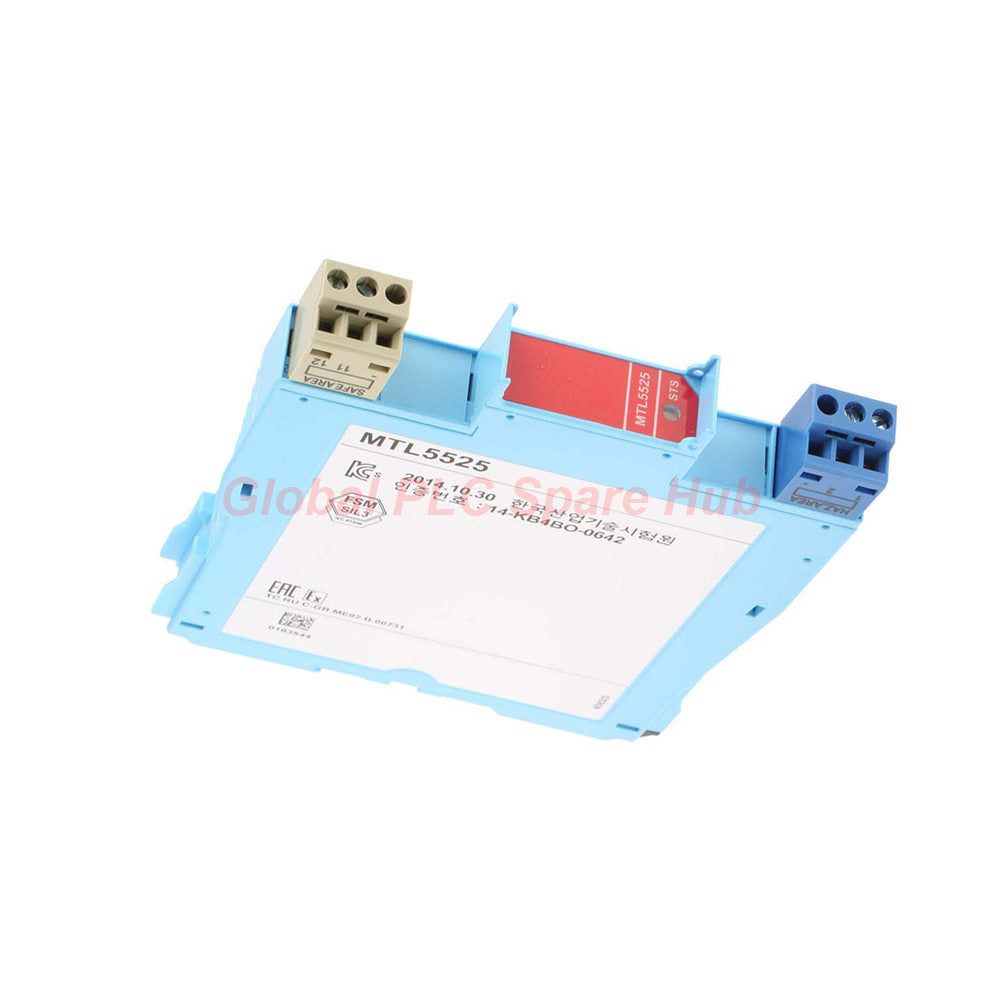

Eaton MTL5525 MTL5500 Solenoid Alarm Driver Module SIL3

Manufacturer: MTL
Product No.: MTL5525
Condition： In stock
Product Type: Alarm Driver Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview

Eaton Crouse-Hinds MTL5500 Series delivers reliable intrinsic safety interface solutions for hazardous environments.

MTL5525 is a single-channel solenoid and alarm driver for industrial automation systems.

The module supports hazardous area installations requiring stable digital output control.

It provides galvanic isolation between safe-area circuits and field devices.

The compact DIN rail design simplifies cabinet integration.

The unit supports low-power solenoid valves and alarm devices.

MTL5525 operates reliably in Zone 0 hazardous locations.

The module meets IECEx and ATEX safety requirements.

It supports SIL2 and SIL3 safety applications according to IEC61508.

Global PLC Spare HUB's Insight

MTL5500 Series modules suit engineers requiring stable intrinsic safety barriers.

The design focuses on signal integrity and operational reliability.

The module performs consistently in demanding industrial environments.

Its compact width improves cabinet space utilization.

The low ripple output supports sensitive field instruments.

The fast response improves alarm and actuator reaction timing.

Maintenance teams benefit from clear LED diagnostics.

The module integrates smoothly with DCS and PLC platforms.

It fits oil and gas, chemical, marine, and process automation systems.

Key Features

Brand: Eaton Crouse-Hinds
Series: MTL5500 Series
Model: MTL5525
Single-channel digital output driver
Intrinsic safety support for hazardous areas
Galvanic isolation up to 250V rms
Low power consumption design
DIN rail mounting compatibility
Fast output response within 100ms
Integrated LED power and status indication
Supports solenoid valves and alarm devices
Stable low-ripple output performance
SIL2 and SIL3 functional safety capability

Technical Specifications

Brand: Eaton Crouse-Hinds
Series: MTL5500 Series
Model Number: MTL5525
Product Type: Solenoid/Alarm Driver
Signal Type: Digital Output
Channels: 1 Channel
Operating Voltage: 20-35 VDC
Current Consumption: 100mA at 24VDC
Minimum Output Voltage: 7.8V at 48mA
Maximum Output Voltage: 24V from 300Ω
Current Limit: 48mA minimum
Power Dissipation: 1.3W typical
Worst-Case Power Dissipation: 1.9W
Response Time: Within 100ms
Ripple Performance: Less than 0.5% peak-to-peak
Isolation Voltage: 250V rms
Frequency Response: Optimized for industrial switching applications
Sensitivity: Stable low-power switching operation
Linearity: Stable output under varying load conditions
Resolution Capability: Accurate digital switching performance
EMC Protection: EN61326 compliant
Interference Resistance: High EMC immunity for industrial environments
Mounting Method: 35mm T-section DIN Rail
Connection Type: Crimp Ferrules
Terminal Capacity: Up to 2.5mm² conductors
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 80°C
Humidity Range: 5-95% RH
Dimensions: 109.8 × 118.8 × 15.8 mm
Weight: 150g
Hazardous Area Rating: Zone 0

Installation Guidelines

Mount the module on a standard 35mm DIN rail.
Ensure proper grounding before power connection.
Use recommended crimp ferrules for wiring stability.
Maintain adequate cabinet ventilation.
Avoid installation near strong electromagnetic sources.
Verify voltage compatibility before startup.
Follow hazardous area installation regulations.

Commissioning and Maintenance

LED indicators simplify power and status monitoring.
The compact design improves maintenance accessibility.
Quick terminal connections reduce installation time.
Stable isolation improves long-term operational reliability.
Low heat dissipation supports continuous operation.
Routine inspection requires minimal downtime.

Compatibility Information

Compatible with major PLC and DCS platforms.
Supports industrial automation control systems.
Suitable for intrinsic safety applications.
Works with low-power solenoid valves.
Supports alarm annunciation systems.
Integrates with process control cabinets.

Typical Application Scenarios

Oil and gas processing facilities
Chemical production plants
Marine automation systems
Power generation environments
Hazardous process control systems
Refinery automation applications
Emergency shutdown systems
Industrial alarm management systems

Diagnostic Capability

Green LED indicates power condition.
Yellow LED shows operational output status.
Fast response improves fault detection timing.
Isolation protection reduces signal interference risks.
Stable ripple control improves output consistency.

Certifications and Compliance

IECEx Certified
ATEX Certified
IEC61508 SIL2 Certified
IEC61508 SIL3 Certified
EN61326 EMC Compliance
Suitable for Zone 0 hazardous areas

Packaging List

1 × MTL5525 Solenoid/Alarm Driver
Product documentation
Protective industrial packaging

Shipping Information

24-48 hours fast dispatch
Worldwide shipping support
FedEx international delivery available
UPS global logistics service available
DHL express shipping available
Professional industrial protective packaging

Warranty Terms

12-month warranty support
Technical assistance available during warranty period
Professional after-sales support for industrial applications

FAQ

What devices work with MTL5525?

The module supports low-power solenoid valves and industrial alarm devices.

Can this module operate in hazardous environments?

Yes. The module supports Zone 0 hazardous area applications.

Does the module support functional safety systems?

Yes. It supports SIL2 and SIL3 safety requirements.

Which control systems support this module?

The module integrates with many PLC and DCS platforms.

How can engineers reduce installation noise interference?

Separate signal wiring from high-power cables during installation.

Why is galvanic isolation important?

Isolation protects field devices from electrical interference and faults.

What installation method improves long-term reliability?

Maintain proper ventilation and stable cabinet grounding conditions.

How do engineers select the correct intrinsic safety driver?

Check hazardous area classification, voltage requirements, and load compatibility.

What industries commonly use MTL5500 Series?

Oil, gas, chemical, marine, and process automation industries widely use this series.
