Eaton MTL5511 Switch/Proximity Interface | SIL3 Digital Safety Barrier

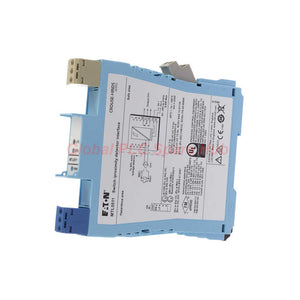

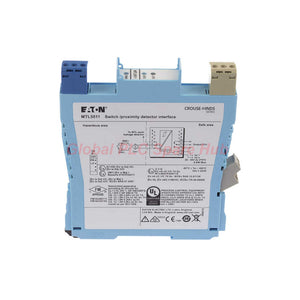

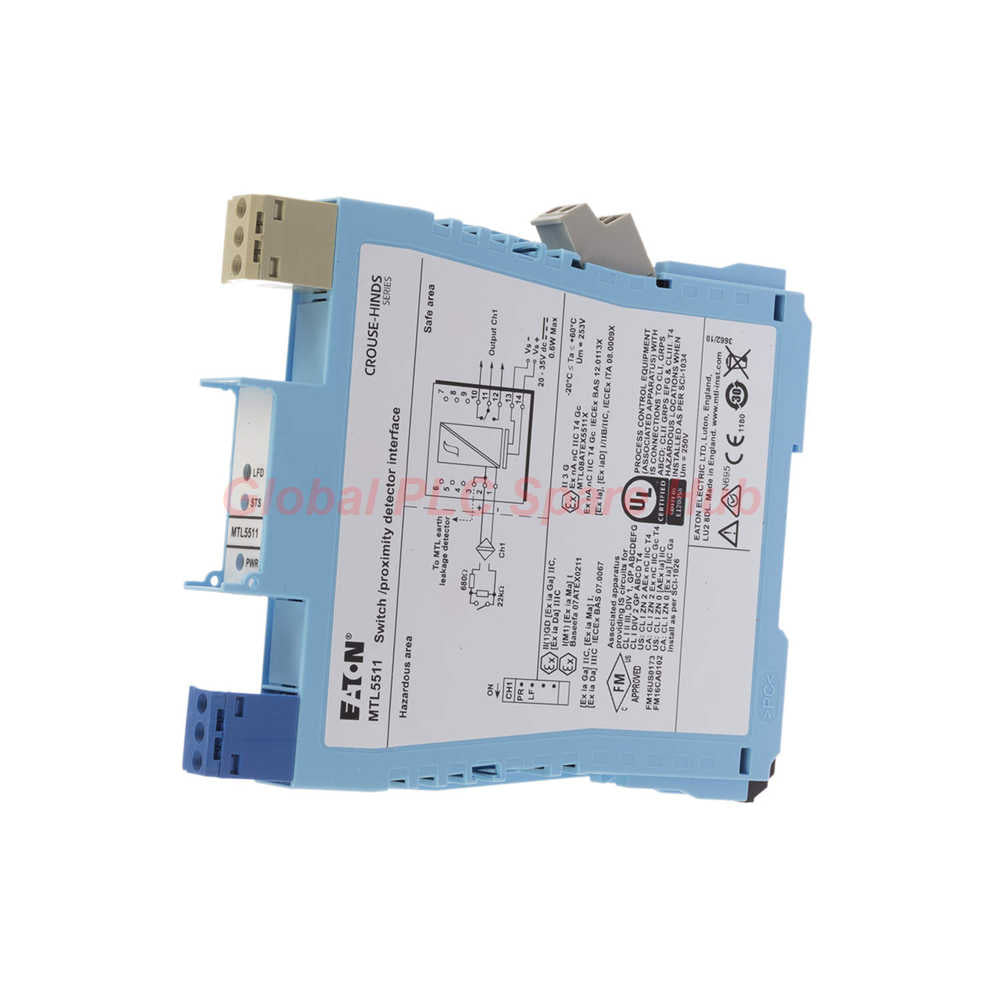

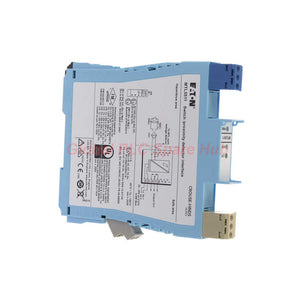

Introduction: Eaton MTL5511 Digital Isolator

The MTL5511 serves as a critical link in industrial safety chains. Engineered by Eaton Crouse-Hinds, this MTL5500 series isolator provides a single-channel, galvanic-isolated digital input for field-mounted switches or proximity detectors. It is specifically designed to transfer signals from hazardous areas to control systems while ensuring intrinsic safety integrity up to SIL3.

Technical Engineering Data

• Manufacturer: Eaton Crouse-Hinds
• Model: MTL5511 Switch/Proximity Detector Interface
• Series: MTL5500
• Operating Voltage: 20-35 Vdc
• Power Efficiency: 0.6W low-power dissipation at 24V
• Sensor Excitation: 7-9 Vdc from a 1kΩ source
• Switching Logic: Open if input < 1.2mA; Closed if input > 2.1mA
• Relay Contact Rating: 35V, 2A, 100VA (Zone 2 rated)
• Operational Speed: 10ms maximum response time
• Safety Rating: SIL2 and SIL3 compliant per IEC61508
• Environmental Range: -20°C to +60°C operating temperature

Installation & System Maintenance

• Mounting: Standard T-section 35mm DIN rail for high-density panel integration.
• Wiring: Utilizes crimp ferrules; accommodates conductors up to 2.5mm².
• LFD Configuration: User-selectable Line Fault Detection via lateral switches.
• Status Monitoring: Triple-LED array providing immediate visual diagnostics.
• Visual Indicators: Green (Power healthy), Yellow (Output state energized), Red (Line Fault Detection active).

Diagnostic Capabilities & Field Reliability

The MTL5511 features sophisticated on-board diagnostics that monitor for open or short-circuit conditions in the field wiring. By enabling the LFD function, the module provides a dedicated red LED indicator, allowing maintenance personnel to isolate wiring faults without checking individual field connections. This proactive approach significantly reduces mean time to repair (MTTR) during shutdown sequences.

Global PLC Spare HUB’s Insight

From an engineering perspective, the MTL5511 excels in high-availability loops where spurious trips are costly. We recommend this unit for primary emergency shutdown (ESD) systems and process alarm monitoring. Its low current draw makes it ideal for large-scale cabinets where thermal management and heat dissipation are critical factors.

Typical Applications

• Oil and gas burner management systems.
• Hazardous zone proximity sensor arrays in refineries.
• Emergency shutdown valve position feedback.
• Chemical pipeline leak detection monitoring.

Logistics & Quality Assurance

• Shipping: We provide rapid global logistics via FedEx, UPS, and DHL.
• Lead Time: Orders are processed and dispatched within 24-48 hours.
• Warranty: This product is backed by a 12-month full replacement warranty.

Professional FAQ

How should I troubleshoot a red LFD light on the MTL5511?
If the red LED illuminates, check the field wiring for a break or a short circuit. Ensure the field device resistance matches the requirements for the selected LFD settings.

Is the MTL5511 suitable for non-hazardous area applications?
Yes, it is an excellent choice for non-hazardous environments requiring high-reliability galvanic isolation to protect PLC input cards from voltage spikes.

What is the impact of the 10ms response time?
This response time is optimized for process control stability; it is sufficient for standard proximity switches in critical safety loops.

Can I use this module for high-current loads directly?
No, use an interposing relay if you need to drive larger solenoids or motor starters to protect the internal relay of the interface.

What is the benefit of the FSM assessment?
The FSM assessment confirms that the MTL5511 meets rigorous lifecycle requirements for safety-instrumented systems.
