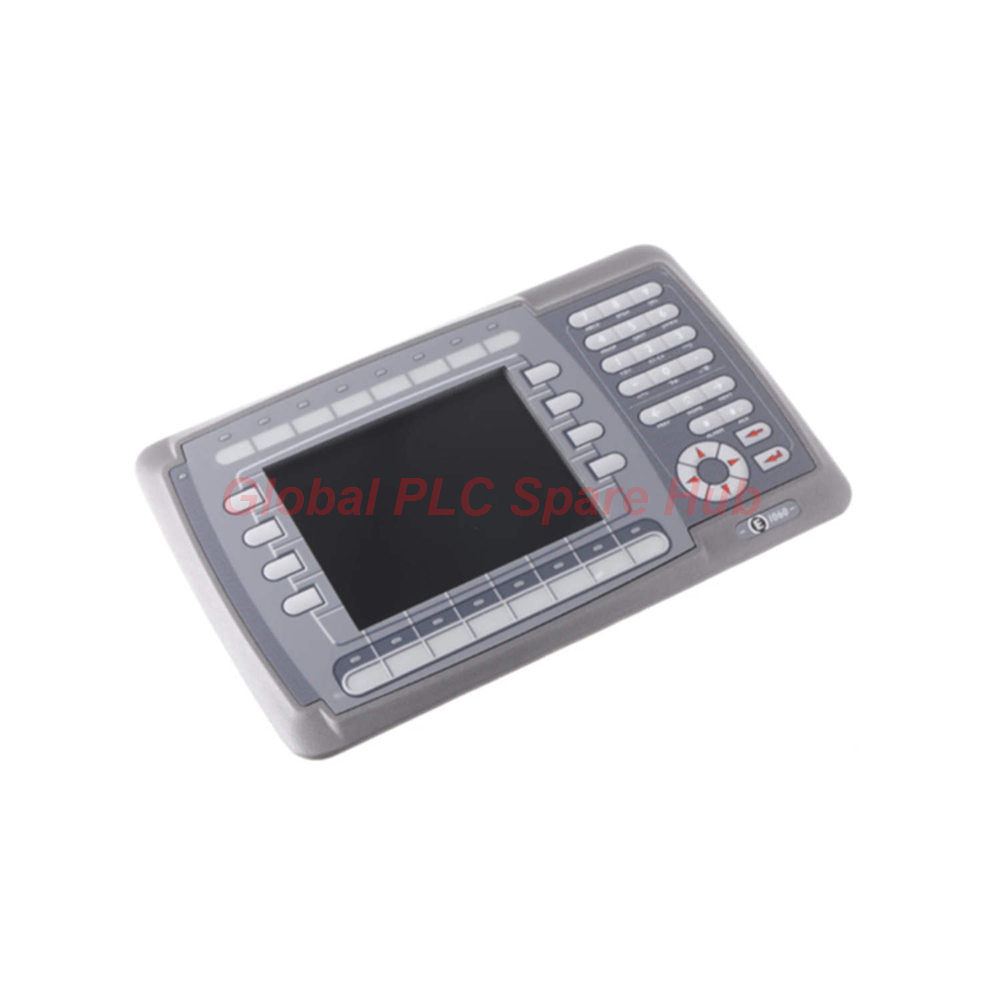

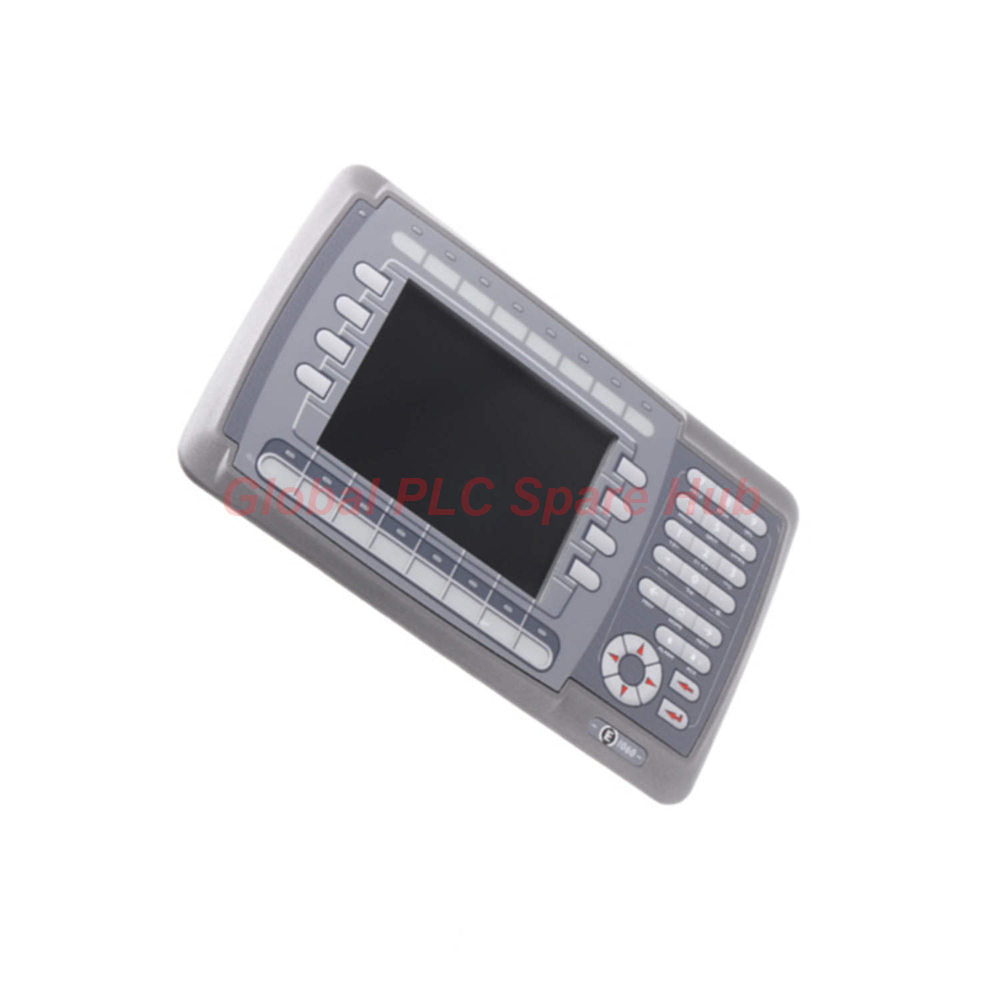

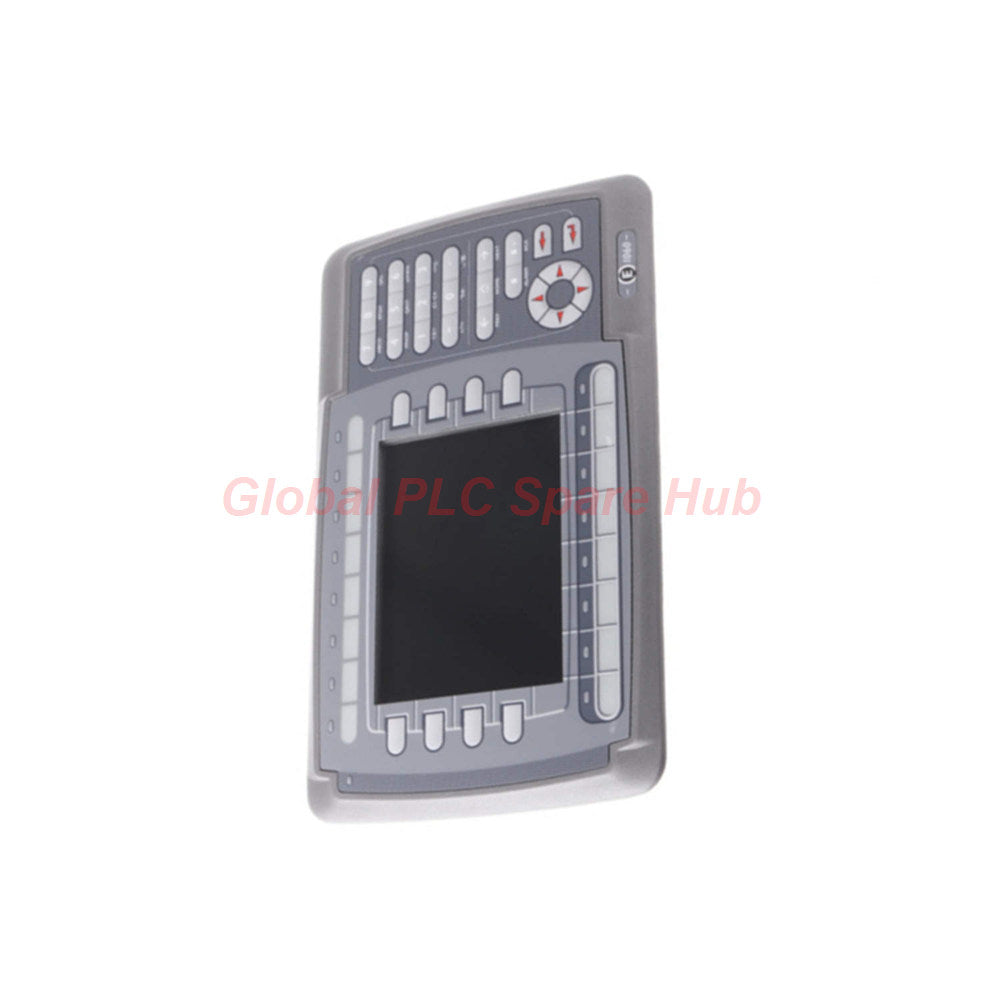

E1060 HMI Mitsubishi Electric E1000 Operator Panel - Brand New

Global PLC Spare HUB's Insight

• The E1060 acts as a robust bridge for the Mitsubishi Electric E1000 ecosystem.
• It leverages the Intel XScale architecture to handle data-intensive graphic objects without latency.
• Unlike entry-level panels, the E1060 provides deep integration for multi-vendor environments.
• Onboard MPI and Modbus TCP stacks allow for versatile industrial network connectivity.


Product Introduction

• The E1060 Mitsubishi Electric interface delivers premium visualization via a 5.7-inch color LCD.
• It is engineered specifically for high-speed data hub tasks in modern industrial automation plants.

• This module ensures clear visibility of critical process data in demanding operational environments.

Technical Specifications

• Brand: Mitsubishi Electric
• Model Number: E1060
• Series: E1000 Series HMI
• Processor: High-performance Intel XScale architecture
• Display Size: 5.7-inch LCD Full Color screen
• Resolution: 320 x 240 pixels (QVGA) for precise data rendering
• Onboard Memory: 64 MB Flash dedicated to complex project storage
• Communication Interfaces: Integrated Ethernet (10/100), USB, and MPI ports
• Serial Connectivity: Multi-standard RS232, RS422, and RS485 interfaces
• Power Requirements: 24 V DC nominal input voltage
• Protection Class: IP65 rated front panel for wash-down resistance
• Temperature Range: Operational stability from 0°C to +50°C
• Dimensions: Compact 275 x 168 x 63.5 mm industrial footprint

Advanced Diagnostic Capabilities

• The E1060 features an integrated system menu for real-time hardware health checks.
• Maintenance personnel can perform loopback tests on serial ports directly from the boot screen.
• Verify Ethernet link integrity and protocol handshaking without external diagnostic tools.
• The panel supports remote VNC access for troubleshooting HMI screens from a central office.

Target Equipment and Application Scenarios

• CNC Machining Centers: Providing real-time tool path visualization and offset adjustments.
• Packaging Lines: Managing high-speed synchronization data via the E1060 Ethernet port.
• Water Treatment Facilities: Monitoring chemical dosing levels through corrosion-resistant interface hardware.
• Automotive Assembly: Interfacing with multiple PLC brands through built-in MPI and Modbus drivers.

Shipping and Warranty Logistics

• Dispatch Window: All orders are processed and shipped within 24-48 hours.
• Global Express: Reliable doorstep delivery via FedEx, UPS, and DHL.
• Warranty Policy: Includes a comprehensive 12-month technical warranty for all hardware.
• Packaging Quality: Industrial-grade anti-static protection to ensure zero-damage arrival.

Professional FAQ and Selection Guide

• How does the Intel XScale processor impact the performance of the E1060?
• The architecture allows for faster screen transitions and simultaneous handling of multiple driver protocols.
• Can the E1060 communicate with non-Mitsubishi PLCs?
• Yes, the E1060 includes native drivers for Siemens MPI, Rockwell, and Schneider devices.
• What is the primary selection criteria for upgrading to this model?
• Ensure your project fits within the 64 MB memory limit and verify the 275mm width cutout dimensions.
• Is the backlight replaceable on this specific HMI?
• The E1060 uses a long-life backlight; we recommend using the dimming feature to extend its lifespan.
• How does the IP65 rating benefit food processing applications?
• The front face is fully sealed against low-pressure water jets, making it ideal for hygiene-sensitive splash zones.
