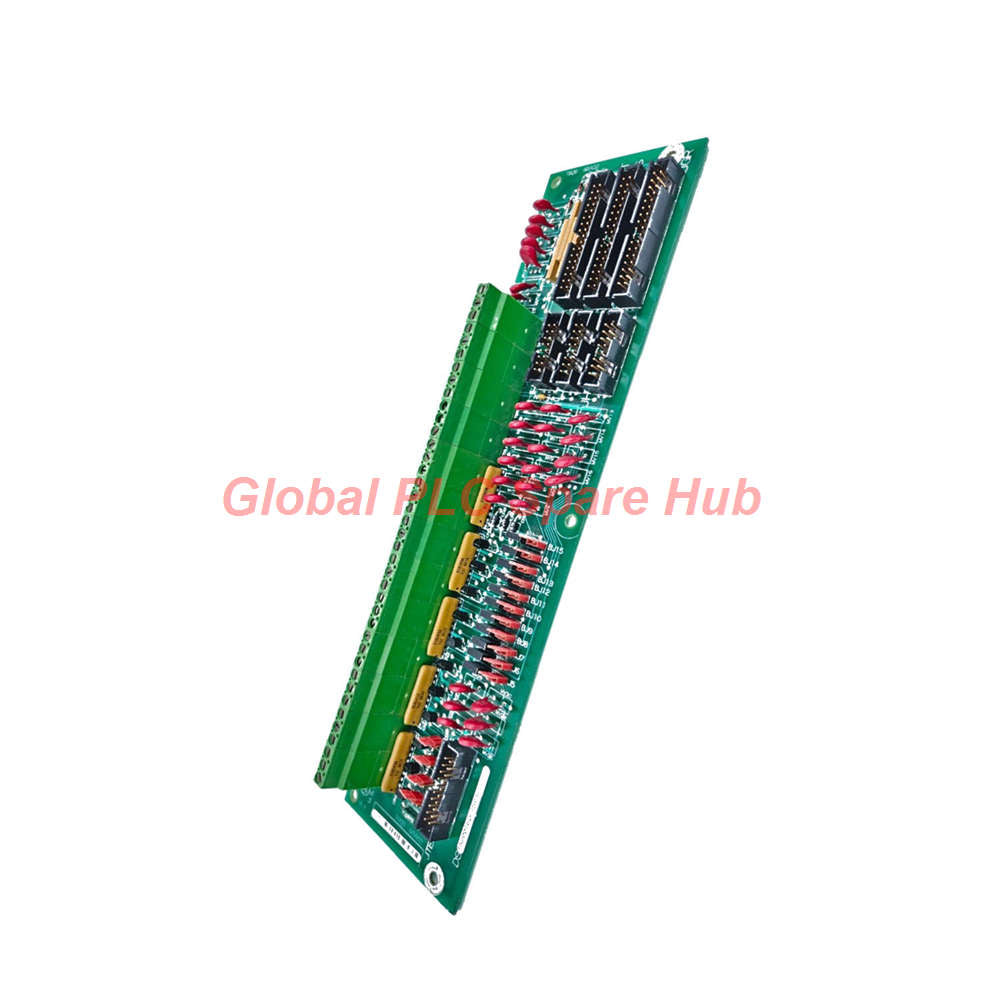

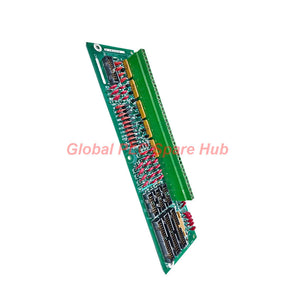

DS200TBQBG1ACB GE Mark V Termination Board | RST Analog Input Module

Technical Essence

The DS200TBQBG1ACB functions as a high-density RST Analog Termination Board within the General Electric Mark V control architecture. Engineered for R2 and R3 core integration, this board acts as a centralized nexus for critical transducer data, facilitating complex signal conditioning for industrial turbine management. Its architecture features advanced jumper-selectable configurations for burden resistance and pressure transducer scaling, providing engineers with granular control over input parameters.

Engineering Specifications

• Manufacturer: General Electric
• Series: Mark V Speedtronic
• Component Type: RST Analog Termination Board
• Model ID: DS200TBQBG1ACB
• Connectivity: 2 Terminal Blocks (TB1, TB2) with 154 total signal terminals.
• Configuration: 15 field-configurable Berg-type jumpers (BJ1–BJ15).
• I/O Interface: 3 x 34-pin connectors and 3 x 16-pin connectors for core-to-core communication.
• Coating: Standard industrial PCB protective coating.

Diagnostic & Operational Capability

• Signal Acquisition: Native support for multi-faceted inputs including vibration sensors, analog current/voltage, and pulse rate frequency monitoring.
• System Synchronization: Direct interfacing with TCQA and TCQC modules ensures low-latency data transmission across R-core environments.
• Predictive Diagnostics: Centralized processing of compressor stall detection and vibration profiles enables early-stage anomaly detection, effectively minimizing unplanned downtime.
• Operational Flexibility: Configurable jumpers (BJ1-BJ4 for pressure transducers; BJ5-BJ7 for burden resistors; BJ8-BJ15 for analog logic) allow the board to adapt to various turbine configurations.

Installation & Maintenance Best Practices

• Tagging Protocol: Utilize masking tape or permanent wire markers to label all 154 signal wires by TB ID (e.g., TB1-66) before board extraction.
• Termination: Ensure all copper conductors are fully seated within the screw-clamp terminals to maintain signal impedance consistency.
• Jumper Configuration: Verify jumper positions (BJ tags) against the site-specific wiring schematic before final power-up to prevent input misconfiguration.
• Core Placement: This board is designated for Position 7 in R2/R3 cores; ensure strict alignment with TCQA/TCQC ribbon cables.

Logistics & Support

• Warranty: All units are backed by a comprehensive 12-month performance warranty.
• Shipping: Expedited worldwide logistics via FedEx, UPS, and DHL.
• Lead Time: Optimized dispatch within 24-48 hours.

Global PLC Spare HUB's Insight

The DS200TBQBG1ACB is a sophisticated evolution of the base TBQB board. Its revision history demonstrates significant refinement in signal stability and jumper-based logic. We classify this as a "mission-critical" component for aging Mark V systems where precision in vibration and stall detection is paramount for asset life extension.

Expert FAQs

What is the best way to verify if a jumper setting is correct for a pressure transducer?
Refer to the factory-printed BJ tag on the board. BJ1 through BJ4 are specifically for transducer fan-out; if your reading is drifting, check these jumpers for proper seating or oxidation.

How does the board handle signal noise from high-vibration environments?
The board utilizes its specific pin-out and trace architecture to ground high-frequency noise. Ensure the cabinet ground strap is firmly secured to the chassis, as floating grounds are the primary cause of signal jitter.

Can I replace a legacy DS200TBQBG1 with the DS200TBQBG1ACB?
Yes, the DS200TBQBG1ACB is the highly-revised successor. However, ensure you replicate the jumper configuration of the old board exactly, as the internal resistor burden settings may differ.

What are the signs of terminal block fatigue on the TB1/TB2 connectors?
Watch for "thermal cycling," where the plastic surrounding the screw terminals becomes brittle or discolored. If screws fail to hold torque, it is time for a replacement to prevent intermittent contact failure.

When selecting a spare, what is the most important factor?
Always match the full part number and revision. While they look identical, the internal resistor logic for analog inputs is dictated by the PCB revision suffix; mismatched versions can trigger false software alarms in the Mark V controller.

Typical Application Scenarios

• Power Generation: Steam and Gas turbine control loop feedback.
• Industrial Drives: Precision motor synchronization and load management.
• Wind Energy: Turbine blade vibration monitoring and stall protection.
• Automated Drive Assemblies: Centralized analog signal aggregation for multi-core control systems.
