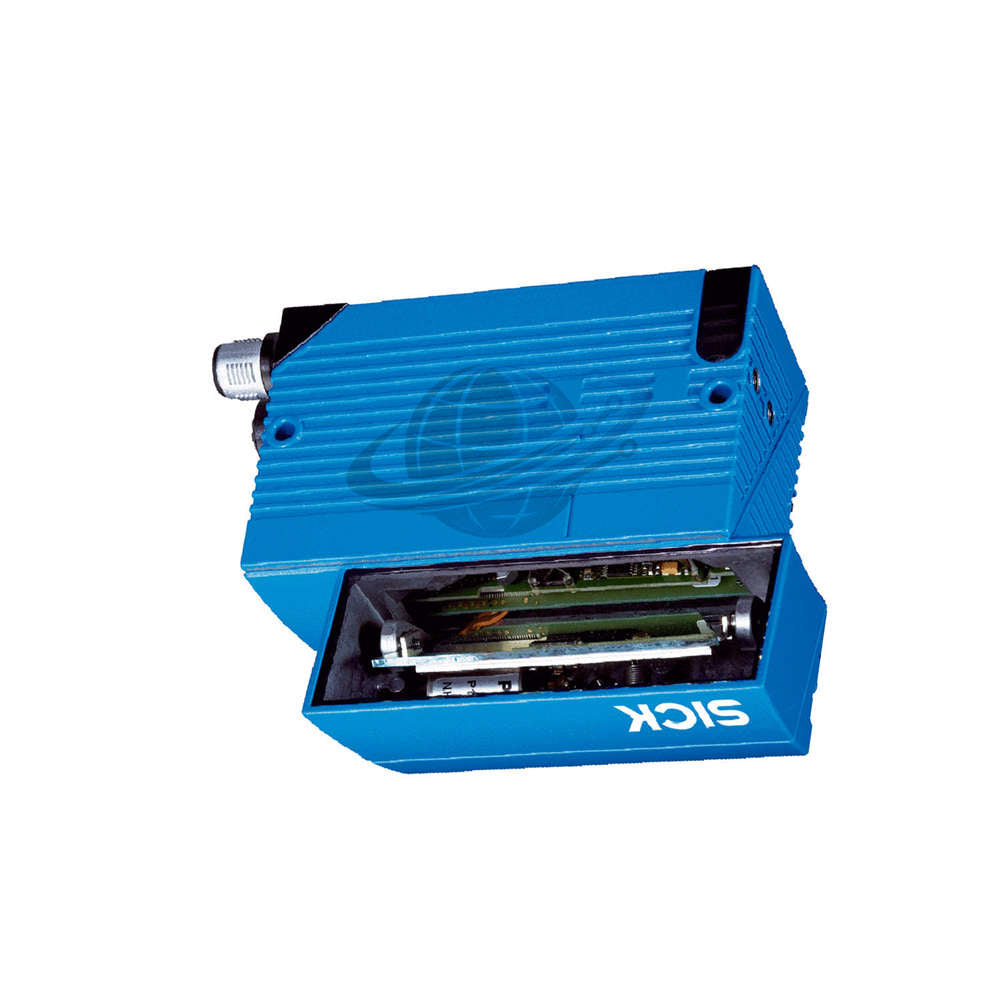

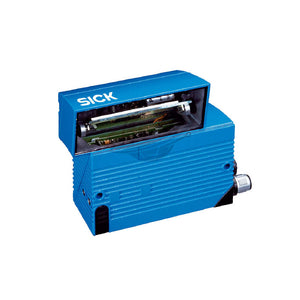

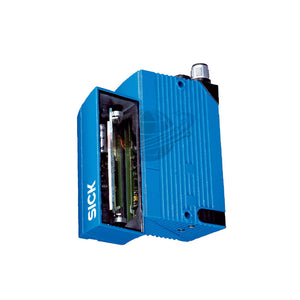

CLV650-6120 SICK Fixed Scanner Auto Focus Oscillating Mirror

Product Introduction

• The CLV650-6120 is a high-performance fixed-mount barcode scanner from the SICK CLV650 series.
• Engineered for demanding industrial logistics, this CLV650-6120 unit features an advanced oscillating mirror and real-time auto-focus.
• It excels in reading 1D codes at varying distances without the need for manual lens adjustment.
• The integrated Ethernet interface ensures high-speed data transmission for mission-critical automated sorting systems.
• Designed with a robust aluminum die-cast housing, the CLV650-6120 offers long-term reliability in complex material handling environments.

Technical Specifications

• Brand: SICK
• Model: CLV650-6120
• Series: CLV650 Standard Density
• Scanning System: Oscillating mirror with variable amplitude (-20° to 20°).
• Optical Focus: Dynamic Auto Focus functionality for instant depth adjustment.
• Reading Distance: Versatile range extending from 125 mm to 1,570 mm.
• Scanning Frequency: High-speed industrial capability between 600 Hz and 1,000 Hz.
• Code Resolution: Precision detection for barcodes from 0.25 mm to 1 mm.
• Data Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, and Serial (RS-232/422/485).
• Environmental Tolerance: IP65 enclosure rating; shock and vibration resistant per EN 60068 standards.
• Light Source: Visible red light (658 nm), Laser Class 2 compliance.

Global PLC Spare HUB's Insight

• The CLV650-6120 stands out in the CLV650 lineup due to its proprietary SMART600 decoder technology.
• This allows the scanner to reconstruct and read damaged, tilted, or partially obscured barcodes effectively.
• The oscillating mirror eliminates the mechanical need for multiple scanners at different mounting heights.
• Engineers prefer the CLV650-6120 for its seamless integration with SICK MSC800 controllers or ControlLogix systems.
• The unit is an ideal solution for distribution centers requiring zero-error sortation under high throughput.

Diagnostic & Monitoring Capabilities

• Visual Feedback: A 10-segment LED bar graph displays real-time reading rate percentages for alignment optimization.
• System Status: 6 dedicated diagnostic LEDs indicate Power, Result, Laser, Data, CAN, and Link status.
• Acoustic Alerts: An integrated beeper provides immediate audible confirmation of successful reads or error states.
• Software Diagnostics: Full support for SOPAS ET allows for remote configuration and performance analysis.

Ideal Device Compatibility & Applications

• Conveyor Systems: High-speed parcel sortation and multi-face pallet identification.
• Automated Warehousing: Tote tracking on high-speed shuttle systems and stacker cranes.
• Industrial Robotics: Real-time part tracking for robotic pick-and-place or assembly cells.
• Controller Compatibility: Fully compatible with Siemens SIMATIC, Allen-Bradley, and SICK Connection Modules (CDB620/CDM420).

Logistics & Warranty

• Dispatch Time: Reliable worldwide shipping initiated within 24-48 hours.
• Express Couriers: Professional global delivery handled via FedEx, UPS, and DHL.
• Warranty: Includes a comprehensive 12-month warranty on all new components.
• Shipping Security: Products are secured in anti-static, shock-absorbent industrial packaging for safe transit.

Professional Selection Guide & FAQ

• Question: How does the oscillating mirror in the CLV650-6120 improve read rates?
• Answer: The mirror allows the CLV650-6120 to sweep the laser beam across a larger area. This is essential for detecting codes that are not centered on a conveyor, creating a wider "reading curtain" for the system.

• Question: What is the benefit of Auto Focus over Fixed Focus models?
• Answer: Auto-focus allows the CLV650-6120 to adjust the focal point millisecond-by-millisecond. This prevents "out-of-focus" errors when packages of different sizes follow each other on the same line.

• Question: Can I perform a device replacement without a PC?
• Answer: Yes. By utilizing the optional CMC600 parameter memory module in your connection box, all configuration data for the CLV650-6120 is saved. You can simply swap the hardware for instant "plug-and-play" operation.

• Question: What are the primary considerations for Standard Density version selection?
• Answer: Selection depends on your minimum barcode cell size. The CLV650-6120 Standard Density is optimized for resolutions between 0.25mm and 1.0mm. For ultra-fine high-density codes, contact us for specific lens variants.

• Question: How does high-intensity ambient lighting affect performance?
• Answer: The CLV650-6120 has high immunity up to 2,000 lx. From an engineering standpoint, ensure that bright overhead LED shop lights are not reflected directly into the scanner’s glass window to maintain the required contrast (PCS ≥ 60%).
