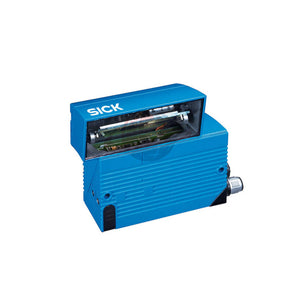

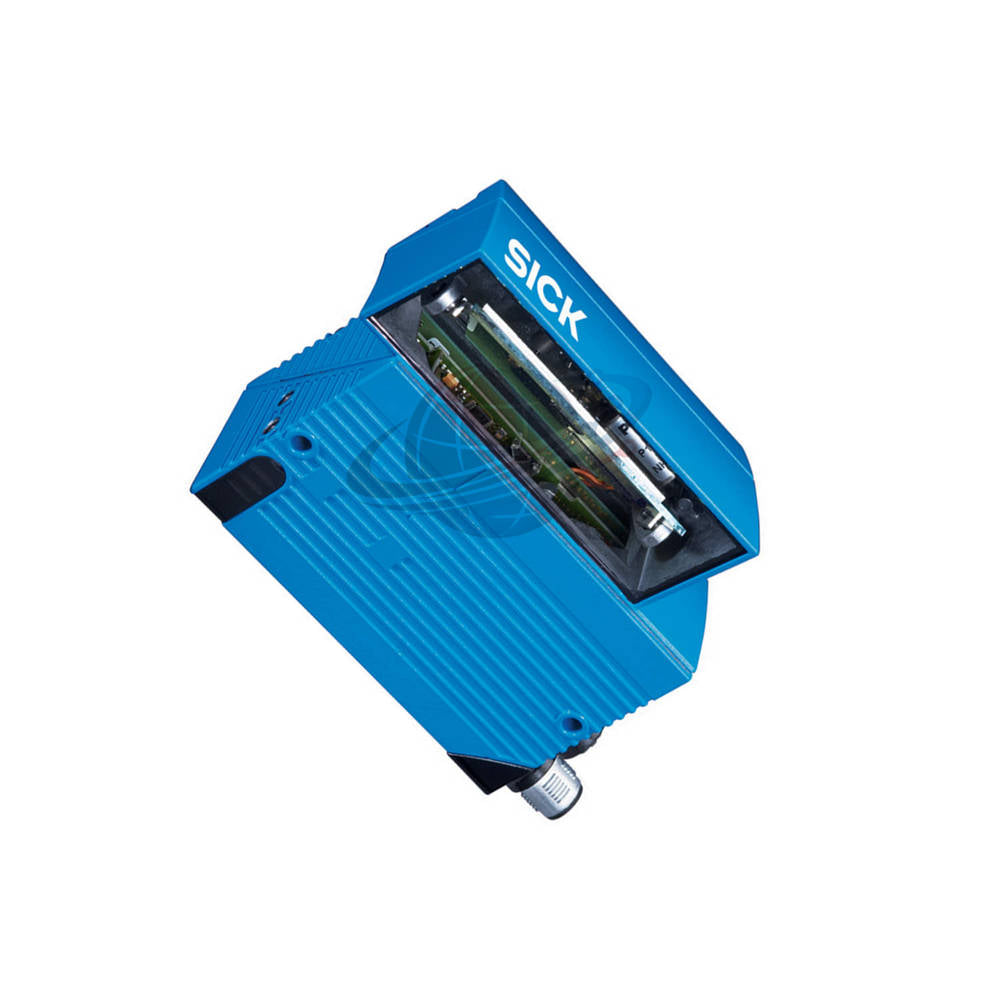

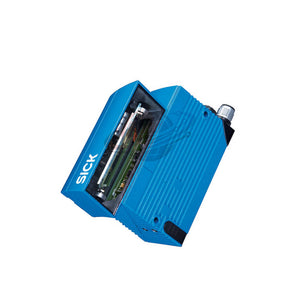

CLV650-6000 SICK Fixed Mount Barcode Scanner CLV65x Auto Focus New

Product Overview

• The CLV650-6000 is a high-performance fixed-mount barcode scanner designed for complex logistical tasks.
• As a key component of the CLV65x series, it features a real-time auto-focus system for dynamic depth of field.
• The integrated oscillating mirror allows the CLV650-6000 to cover large reading areas with a single device.
• Engineers utilize this line scanner for its 1,000 Hz scanning frequency and superior ambient light immunity.
• This CLV650-6000 model ensures reliable 1D code capture even on high-speed conveyor systems.

Technical Specifications

• Brand: SICK
• Model: CLV650-6000
• Series: CLV65x Standard Density
• Focus System: Intelligent Auto-focus mechanism for variable distances.
• Scanning Frequency: Adjustable from 600 Hz to 1,000 Hz.
• Reading Distance: 125 mm to 1,570 mm (application dependent).
• Code Resolution: 0.25 mm to 1.0 mm (10 mil to 40 mil).
• Aperture Angle: Up to 50 degrees for wide-field scanning.
• Communication Interfaces: RS-232, RS-422, RS-485, CAN, and CANopen.
• Fieldbus Support: Optional PROFINET and EtherCAT via external CDF600 modules.
• Environmental Rating: IP65 (EN 60529) with a glass front screen for durability.
• Temperature Range: Operating 0 °C to +40 °C; Storage –20 °C to +70 °C.

Industrial Applications

• High-speed automated sorting in logistics and distribution centers.
• Component identification and tracking in automotive assembly lines.
• Multi-code reading on secondary packaging and palletizing stations.
• Omni-directional reading arrays for large-scale material handling.

Diagnostic Capabilities

• Visual Indicators: 10-LED bar graph for immediate read-rate percentage feedback.
• System Status: 6 dedicated LEDs for Power, Result, Laser, Data, CAN, and Link status.
• Software Diagnostics: Detailed error analysis and event logging via SOPAS ET.
• Acoustic Feedback: Configurable beeper for audible "Good Read" or "No Read" verification.

Global PLC Spare HUB's Insight

• The CLV650-6000 is a versatile workhorse for B2B industrial automation e-commerce solutions.
• It excels in environments where package heights vary significantly, thanks to its rapid auto-focus response.
• We recommend pairing the CLV650-6000 with a CMC600 parameter memory module to ensure zero-downtime maintenance.
• Its aluminum die-cast housing provides the thermal stability required for 24/7 continuous operation.

Logistics and Warranty

• Shipping Carriers: Global express delivery via FedEx, UPS, and DHL.
• Dispatch Time: Reliable 24-48 hour shipping window from stock.
• Warranty: 12-month comprehensive industrial warranty.
• Condition: Factory New in original SICK packaging.
• Package List: 1x CLV650-6000 scanner with 0.9m D-Sub cable.

Frequently Asked Questions (FAQ)

• Question: How does the oscillating mirror improve reading performance?
• Answer: It moves the laser beam vertically, allowing the CLV650-6000 to find codes that are not aligned with the center of the scanner.
• Question: Can the CLV650-6000 read 2D codes like QR or Data Matrix?
• Answer: No, this model is a dedicated 1D laser scanner; for 2D codes, the Lector series is recommended.
• Question: What is the benefit of the SMART decoder in this series?
• Answer: It enables the CLV650-6000 to reconstruct and read barcodes that are partially damaged or dirty.
• Question: Is a MicroSD card required for operation?
• Answer: No, but using one allows for easy cloning of settings to a replacement CLV650-6000 without a PC.
• Selection Guide: Why choose the CLV650-6000 over fixed-focus models?
• Answer: Choose this auto-focus model if your production line handles multiple product sizes, as it eliminates the need for mechanical adjustment.
