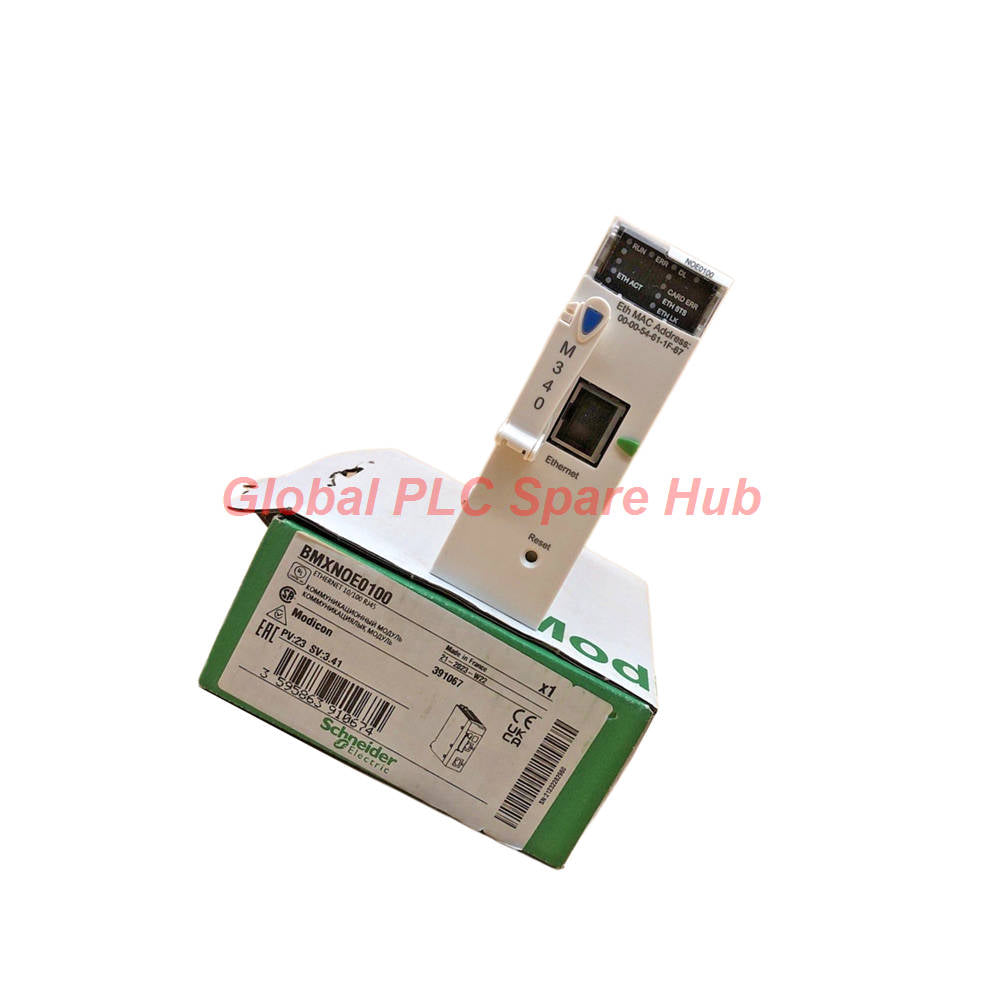

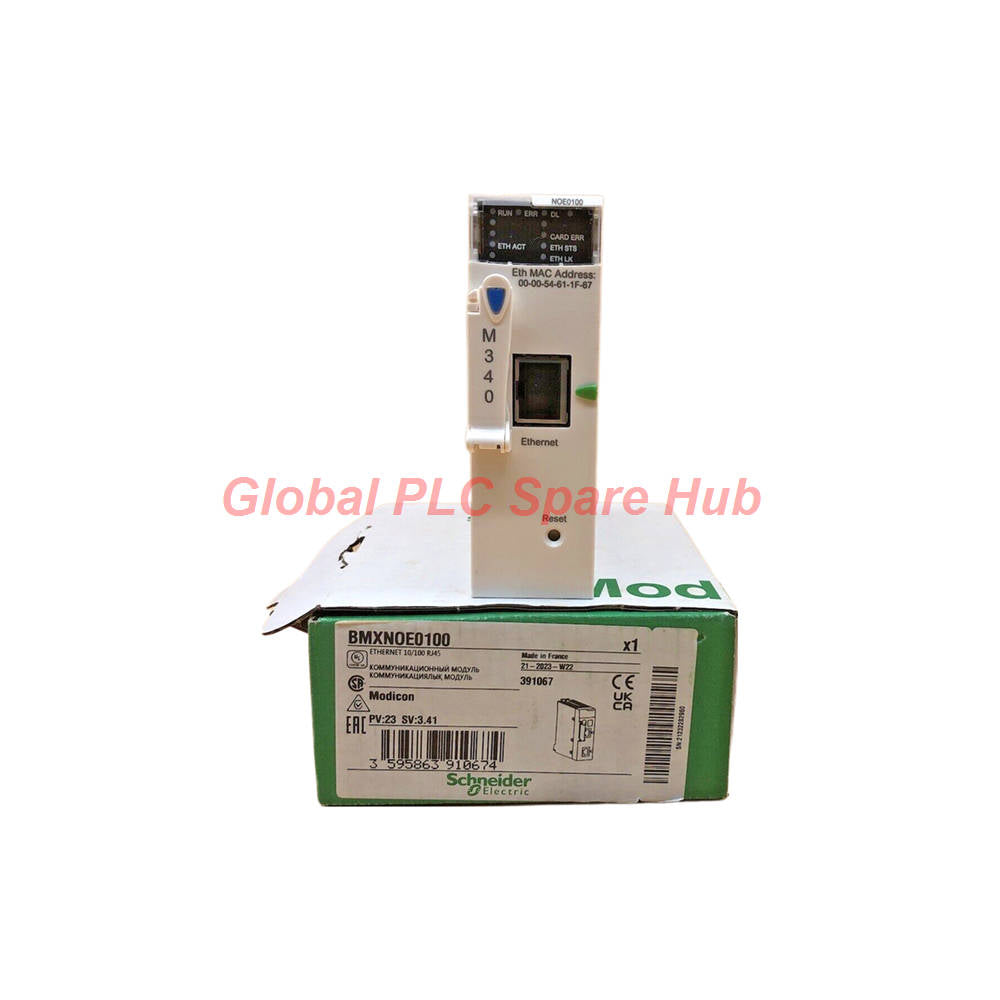

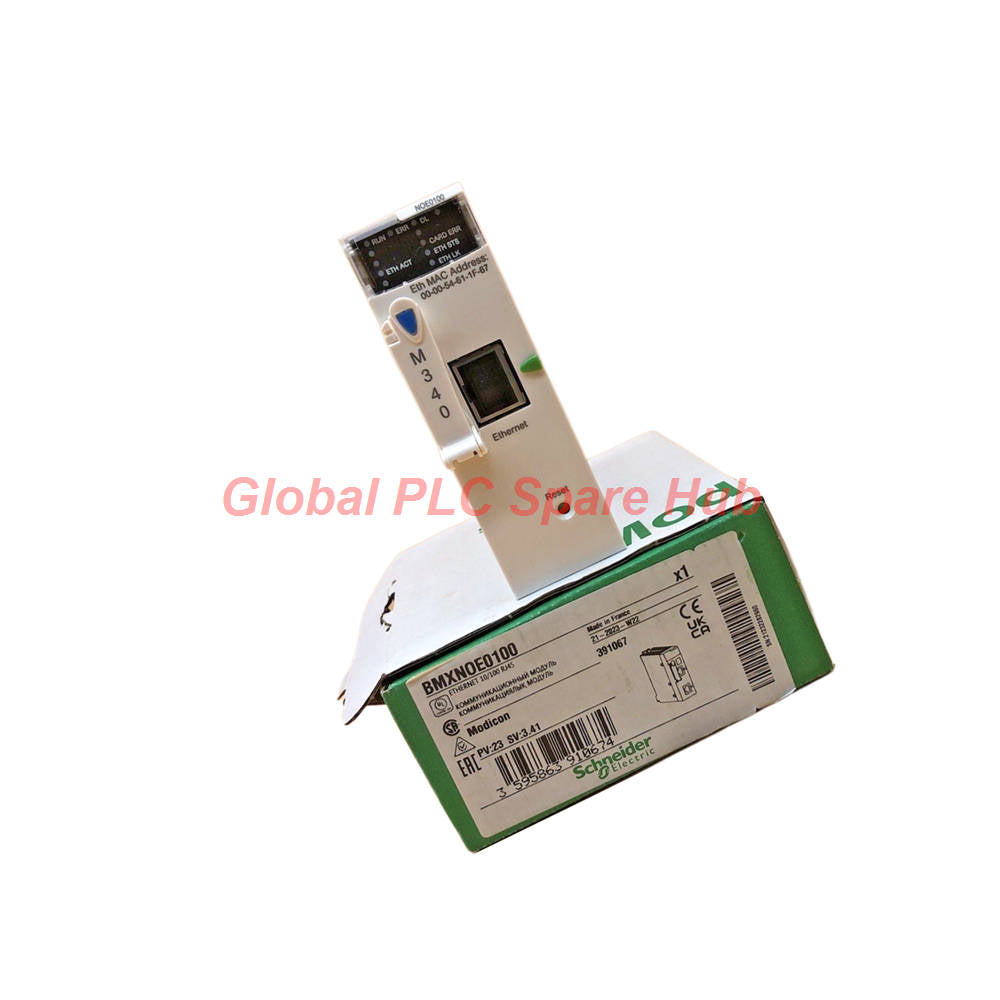

The BMXNOE0100 functions as an advanced TCP/IP Ethernet network module engineered exclusively for the Modicon M340 automation architecture. Industrial facilities leverage this Transparent Ready communication processor to establish high-speed data exchanges across complex factory floors. Powered by a reliable RJ45 10/100 Mbit/s interface, the BMXNOE0100 processes high-volume industrial telemetry while maintaining deterministic packet delivery for distributed control configurations.

Comprehensive Technical Specifications Matrix

• Manufacturer Brand: Schneider Electric
• Module Part Number: BMXNOE0100
• Platform Series: Modicon M340 Automation Platform
• Component Classification: TCP/IP Ethernet Network Communication Module
• Physical Layer Interface: 1 twisted pair RJ45 supporting 10BASE-T/100BASE-TX transmission rates
• Integrated Services: Bandwidth Management, Data Editor, FDR Server, Rack Viewer, SNMP Network Manager, Global Data, I/O Scanning, Modbus TCP Messaging, Configurable Web Server
• Supplied Memory Media: Removable Flash Card (BMXRWSC016M) dedicated to application programming
• Electrical Power Characteristics: Powered via internal rack power supply; current consumption rated at 90 mA at 24 V DC
• Thermal & Environmental Range: Operational ambient temperatures from 0 to 60 degrees Celsius; relative humidity handling from 10 to 95 percent non-condensing
• Physical Enclosure Protection: IP20 rating with TC protective coating treatment
• Directive Compliance: 2014/35/EU Low Voltage Directive and 2014/30/EU Electromagnetic Compatibility Directive

Deployment and Installation Guidelines

1. Power down the M340 backplane rack entirely prior to mounting or extracting the BMXNOE0100 module to prevent internal bus corruption.
2. Align the module housing parallel to the designated slot guides on the M340 mounting rack.
3. Push the BMXNOE0100 firmly straight back until the locking mechanism latches securely onto the chassis rail.
4. Insert the pre-configured BMXRWSC016M flash card into the designated card slot before initialization.
5. Connect shielded Category 5e RJ45 cabling directly to the port, ensuring cable separation from high-voltage power conduits to minimize electromagnetic noise interference.

Commissioning, Diagnostics & Status Signaling

Maintenance engineers evaluate real-time system health instantly via the front-panel LED matrix on the BMXNOE0100. A green RUN light verifies processor execution, while ETH ACT tracks live packet transmission. Network anomalies trigger the red ETH STS or CARD ERR indicators. The integrated cold-start RESET button allows operators to force a hardware reboot safely during commissioning phases without pulling the module from the rack.

Compatible Industrial Equipment & Target Applications

• Discrete Manufacturing Lines: Interfacing high-speed PLC nodes with supervisory SCADA workstations for real-time production tracking.
• Water Treatment Facilities: Connecting remote terminal units across extended plant perimeters via Modbus TCP messaging.
• Material Handling Systems: Synchronizing distributed sorting drives and conveyor sub-controllers through robust I/O scanning protocols.

Global PLC Spare HUB's Insight & Field Experience

During network expansion projects, field technicians frequently encounter communication bottlenecks caused by unoptimized packet traffic or mismatched duplex settings on unmanaged switches. When deploying the BMXNOE0100 within legacy M340 backplanes, Global PLC Spare HUB recommends locking switch port speeds to 100 Mbps full-duplex rather than relying on auto-negotiation, which effectively eliminates intermittent packet drops during heavy rack scanning cycles.

Order Fulfillment, Logistics & Warranty Terms

• Dispatch Window: Expedited dispatch within 24 to 48 hours following order confirmation.
• Global Shipping Partners: Secure international logistics executed via FedEx, UPS, and DHL.
• Packaging Specifications: Single unit PCE box weighing 235 grams with dimensions 5.10 x 11.00 x 11.50 cm; bulk S02 carton packaging available for multi-unit orders.
• Warranty Protection: Backed by an extensive 12-month operational warranty covering structural integrity and functional reliability.

Why Buy From Global PLC Spare HUB?

• 20+ years industrial automation spare parts experience
• Global shipment support
• 24-48小时发货
• 12-month warranty
• Technical verification before shipment
• Support for obsolete control systems

Frequently Asked Questions

What triggers the CARD ERR red LED on the BMXNOE0100 module?

This indicator lights up when the internal memory card is unreadable, improperly seated, or when a checksum mismatch occurs during application data loading.

Can the BMXNOE0100 support web-based remote monitoring configurations?

Yes, the module features a configurable embedded web server that lets engineers monitor rack data and module status directly through standard browser interfaces.

How should I handle firmware upgrades on an installed BMXNOE0100 unit?

Firmware updates are managed through the system programming software by downloading the updated binary package directly to the supplied flash card.

What is the primary role of the FDR server feature on this network module?

The Faulty Device Replacement server automatically stores configuration parameters, allowing seamless parameter restoration if hardware replacement becomes necessary.

How do I select the correct replacement flash card if the original is damaged?

Ensure you source the exact specified model BMXRWSC016M flash card to guarantee structural compatibility and proper memory allocation with the M340 processor architecture.
