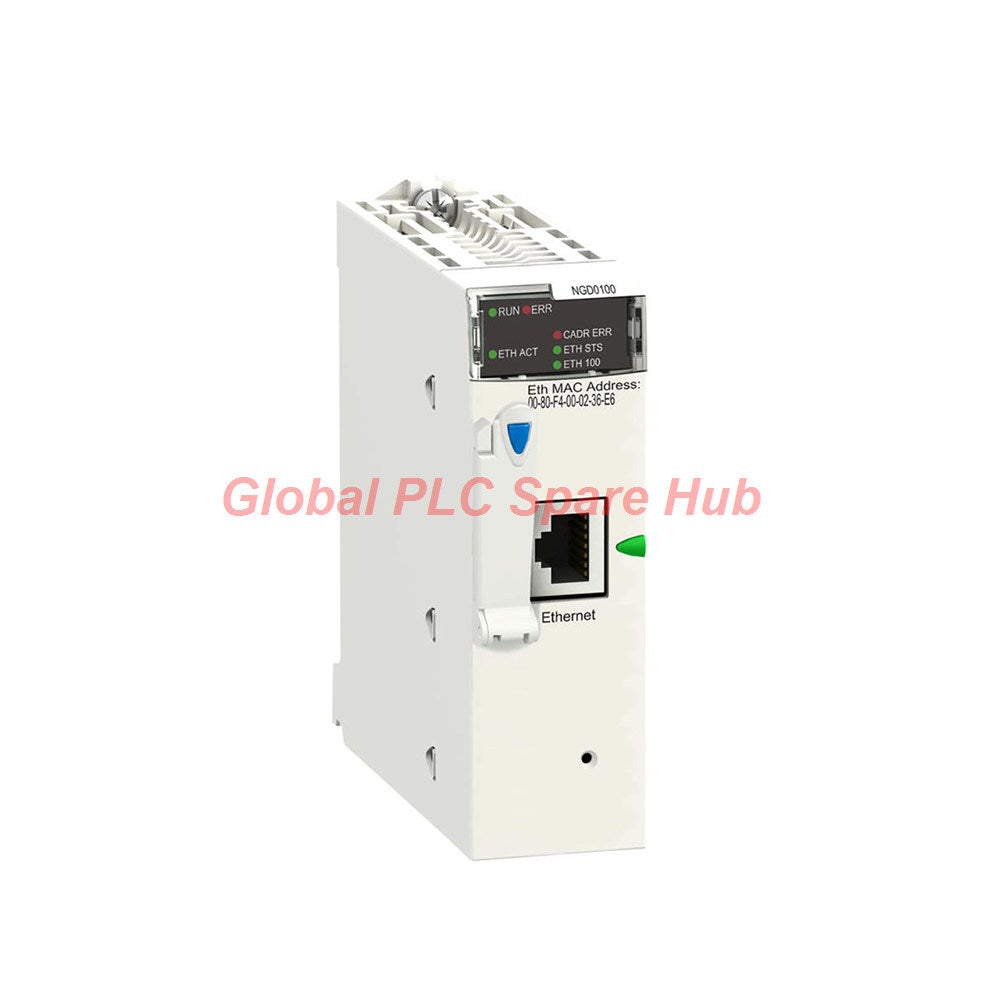

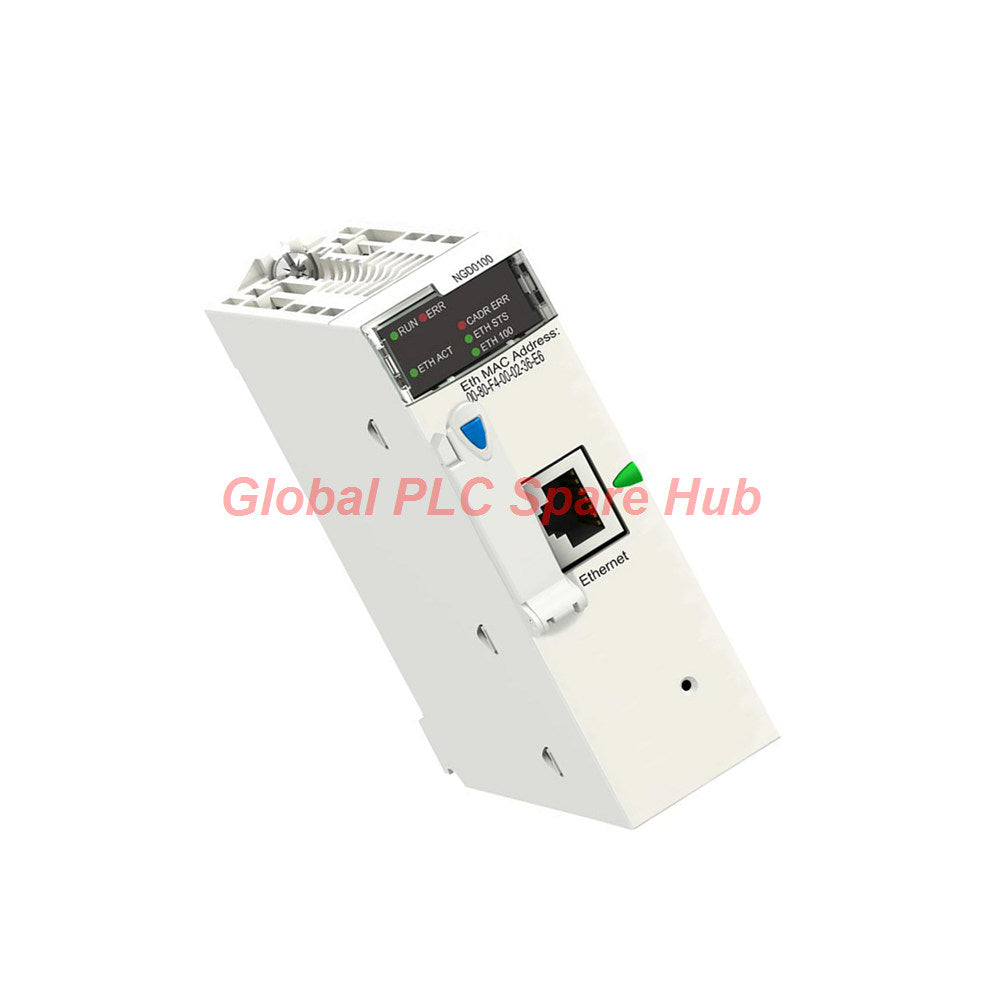

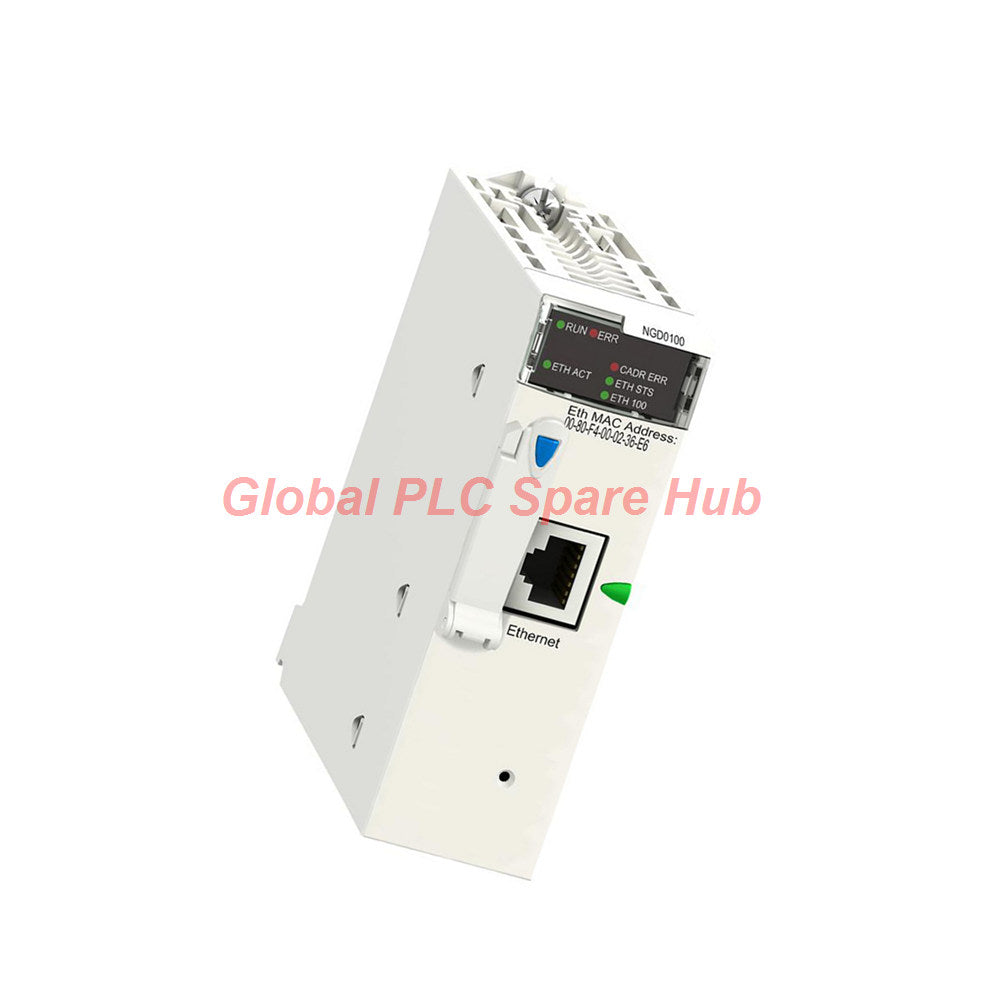

BMXNGD0100 Schneider Modicon M580 Ethernet Communication Module

BMXNGD0100 Schneider Modicon M580 Ethernet Communication Module

Manufacturer: Schneider Electric
Product No.: BMXNGD0100
Condition： In stock
Product Type: Communication Module
Product Origin: FR
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

BMXNGD0100 Schneider Modicon M580 Communication Module Overview

Global PLC Spare HUB's Insight: The BMXNGD0100 Modicon M580 Ethernet TCP/IP network module enables advanced data exchange across complex industrial control architectures. This BMXNGD0100 unit leverages the Global Data service framework to synchronize multi-controller parameters efficiently. Schneider Electric engineered this BMXNGD0100 module to manage high-speed messaging in demanding plant floor environments. Global PLC Spare HUB Review: System integrators rely on this Modicon M580 interface card for seamless deterministic network integration and reliable diagnostics.

Core Technical Specifications

Parameter Category	Engineering Data
Brand	Schneider Electric
Model	BMXNGD0100
Series	Modicon M580
Module Type	Ethernet TCP/IP network module
Communication Services	Global Data, Modbus TCP messaging
Port Specification	Ethernet RJ45 10/100 Mbit/s (1 twisted pair)
Memory System	Supplied Flash memory card (BMXRWSC016M)
Power Supply	Internal power supply via rack
Current Consumption	90 mA at 24 V DC
Operating Temperature	32 to 140 °F (0 to 60 °C)
Relative Humidity	10 to 95% without condensation
Protection Rating	IP20
Net Weight	0.4 lb (0.2 kg)

Engineering Deployment & Installation Guidelines

Insert the BMXNGD0100 card firmly into designated M580 backplane slots while rack power remains isolated.
Connect shielded twisted-pair Ethernet cables directly to the RJ45 port to mitigate electromagnetic interference.
Utilize the supplied BMXRWSC016M Flash memory card for secure project configuration backups.
Perform a cold restart using the integrated reset push-button after updating network parameters.

Diagnostic Capabilities & Status Monitoring

Monitor the green RUN LED to confirm normal processor execution states.
Check the green ETH ACT indicator for active data traffic transmission across the Ethernet network.
Evaluate the green ETH STS light to verify overall network health and link integrity.
Detect high-speed network performance via the red ETH 100 data rate indicator.
Identify memory card errors instantly through the dedicated red CARD ERR status lamp.
Locate system-level faults immediately using the prominent red ERR front-panel LED.

System Compatibility & Target Applications

Designed for native integration within Modicon M580 PAC racks.
Optimized for distributed control networks utilizing Global Data exchange protocols.
Deployed extensively in municipal water treatment facilities for inter-station synchronization.
Applied in continuous manufacturing plants requiring synchronized multi-PLC communication.

Why Buy From Global PLC Spare HUB?

20+ years industrial automation spare parts experience
Global shipment support
Fast 24-48 hour dispatch via FedEx, UPS, and DHL
Comprehensive 12-month operational warranty
Rigorous technical verification before shipment
Specialized support for legacy and current control systems

Comprehensive Professional FAQ

Q: What steps should I take if the CARD ERR red LED illuminates on the BMXNGD0100 module?
A: Verify that the supplied BMXRWSC016M Flash memory card is seated properly in its slot. Re-format or replace the card if persistent read errors occur during startup.

Q: How does the Global Data service function on this Modicon M580 network module?
A: It allows cyclic data exchange between multiple processors across Ethernet without explicit messaging code, reducing program overhead.

Q: Can I hot-swap the BMXNGD0100 card while the rack is powered on?
A: No. Always de-energize the backplane power supply before extracting or inserting communication modules to prevent bus error faults.

Q: What purchase considerations apply when upgrading older Quantum setups to M580 architecture using this module?
A: Evaluate network topology bandwidth limits, verify cable shielding integrity, and ensure your EcoStruxure Control Expert project file is mapped correctly for Global Data variables.

Q: How do I handle unexpected link drops on the RJ45 port?
A: Inspect the physical cable termination, ensure industrial-grade STP cabling is used, and check switch port settings for auto-negotiation mismatches.
