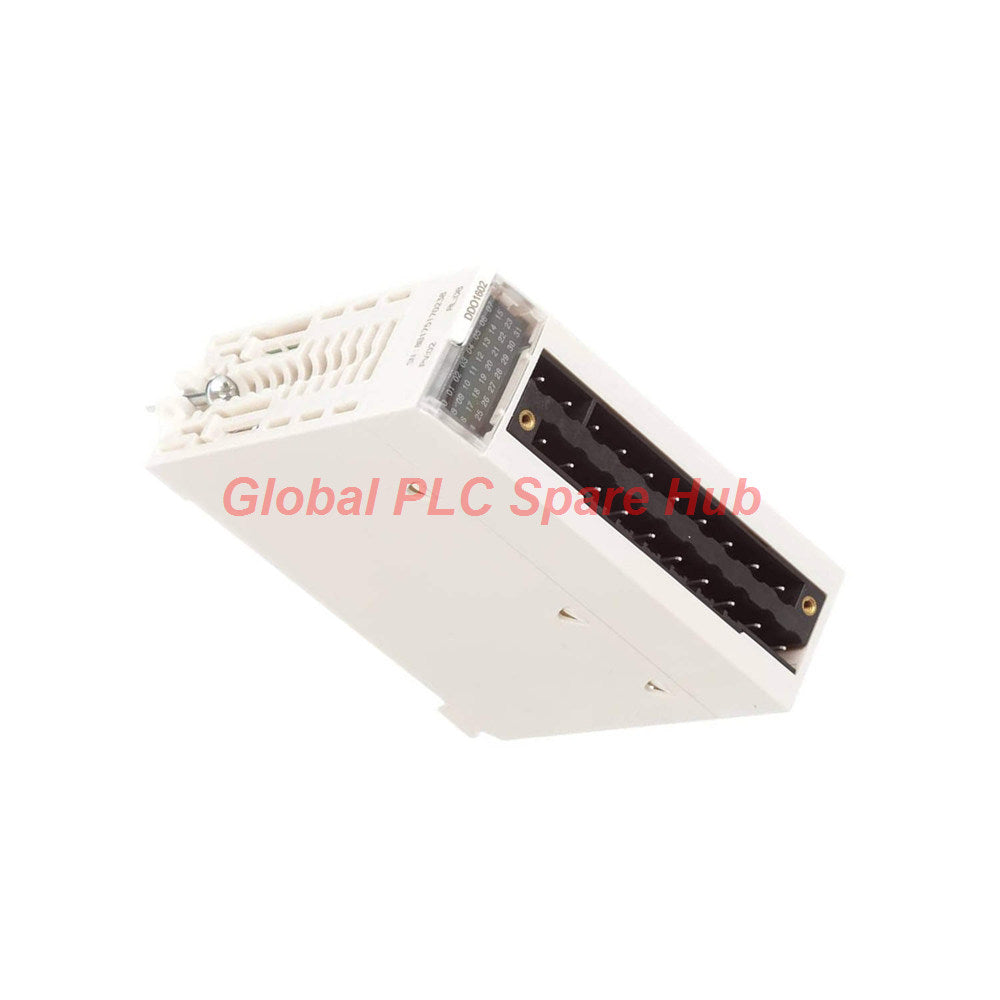

BMXDDO1602 Schneider Electric Modicon X80 16-Point Discrete Output Module

Product Overview

The Schneider Electric Modicon X80 BMXDDO1602 is a high-performance discrete output module. It provides 16 solid-state output channels for complex industrial control tasks. This module ensures precise 24V DC signal management for your automation architecture. It integrates seamlessly into your existing Modicon X80 rack systems.

Technical Specifications

• Brand: Schneider Electric
• Model: BMXDDO1602
• Series: Modicon X80
• Output Type: 16-point discrete solid-state outputs
• Output Voltage: 24 V DC (19–30 V range)
• Output Current: 0.5 A per channel, 10 A max per module
• Switching Frequency: 0.5/LI² Hz
• Response Time: 1.2 ms
• Voltage Drop: < 1.2 V at state 1
• Operating Temperature: 0 to 60 °C
• Storage Temperature: -40 to 85 °C
• Environmental Protection: IP20 rating
• Vibration/Shock Resistance: 3 gn / 30 gn
• Insulation Resistance: > 10 MOhm at 500 V DC

Installation and Maintenance

• The BMXDDO1602 mounts directly into standard Modicon X80 backplanes.
• Connect wires using standard terminal blocks for secure signal transmission.
• The module features front-facing LED indicators for rapid status checks.
• Replace units easily without disrupting the entire control network.
• Routine inspection of terminals ensures consistent, reliable connectivity.

Compatibility and Diagnostics

• Compatible with Modicon M340 and M580 platforms.
• Built-in electronic circuit breaker protects against output overloads.
• Transil diodes provide robust output overvoltage protection.
• The BMXDDO1602 detects preactuator faults for proactive maintenance.
• Reverse polarity protection prevents damage from incorrect wiring.

Compliance, Shipping, and Warranty

• Certified under 2014/35/EU and 2014/30/EU directives.
• Meets strict IEC 61131-2 industrial standards.
• We provide a comprehensive 12-month warranty on this module.
• Shipping options include FedEx, UPS, and DHL.
• Orders are processed and shipped within 24–48 hours.

Typical Application Scenarios

• Ideal for high-speed automated packaging machinery.
• Perfect for material handling and conveyor control systems.
• Suitable for complex process control in chemical or water treatment plants.
• Reliable for power distribution and energy management monitoring.

Global PLC Spare HUB Insight

The BMXDDO1602 is a cornerstone for engineers requiring high channel density and built-in protection. At Global PLC Spare HUB, we recommend this for legacy system expansions or new, robust automation builds. Its diagnostic LEDs save significant troubleshooting time during downtime.

Frequently Asked Questions

Can I parallel the outputs on this module?
Yes, you can parallel a maximum of two outputs to increase current capacity.

What is the purpose of the red module error LED?
The red ERR LED indicates internal module failures or communication faults with the processor.

How do I identify a preactuator fault?
The module monitors voltage thresholds; a fault triggers when voltage drops below 14 V DC.

Are there specific requirements for external protection?
Yes, a 2 A external fuse is required to protect against short circuits.

Selection Guide

• Verify your power supply voltage is within the 19–30 V DC range.
• Calculate your total current draw to stay below the 10 A module limit.
• Ensure the environmental conditions remain between 0 and 60 °C.
• Check your rack space to ensure the module fits your current Modicon X80 configuration.
