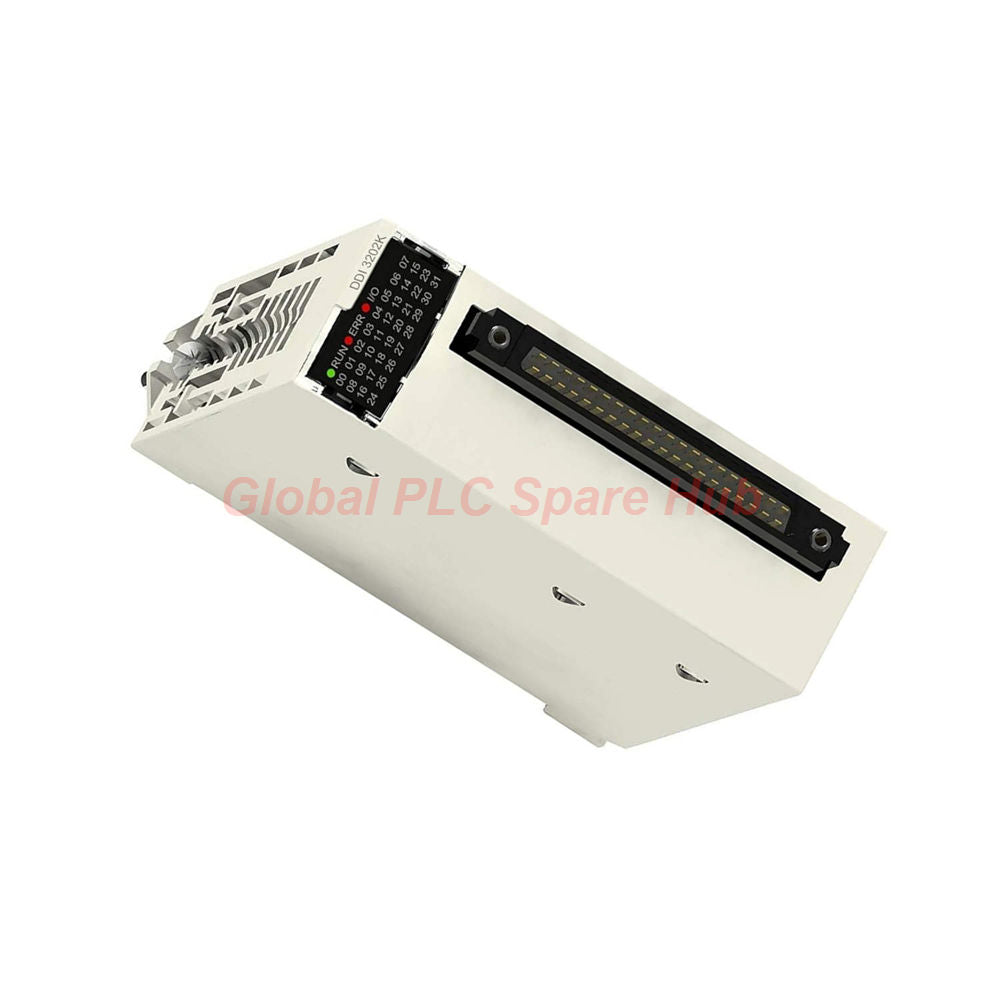

BMXDDI3202K High-Density Modicon X80 Digital Input Module

Technical Engineering Overview

The BMXDDI3202K is a precision-engineered 32-channel discrete input module belonging to the Modicon X80 I/O platform. Designed for high-density signal acquisition, this module supports 24V DC positive logic (sink) configurations. It provides robust electrical isolation between channels and the backplane, ensuring signal integrity in complex electromagnetic environments.

Core Specifications

• Model: BMXDDI3202K
• Series: Modicon X80
• Input Capacity: 32 Isolated Channels
• Voltage Input: 24V DC (Positive Logic/Sink)
• Response Speed: 4ms (Typical) to 7ms (Maximum)
• Input Impedance: 9600 Ohm
• Power Dissipation: 3.9 W
• Operating Temp: 0°C to 60°C
• Certification Compliance: CE, UKCA, CULus, RCM, EAC

Advanced Diagnostic & Reliability Features

• Live Monitoring: Dedicated per-channel LED indicators for real-time status validation.
• Health Diagnostics: Integrated RUN, ERR, and I/O status LEDs for rapid troubleshooting.
• Fail-Safe Design: Supports hot-swapping to minimize system downtime during maintenance.
• Durability: Engineered for extreme conditions with 30 gn shock resistance and a calculated MTBF of 905,000 hours.
• Sensor Monitoring: Automatic detection threshold; triggers fault below 14V DC and confirms healthy status above 18V DC.

Global PLC Spare HUB's Insight

The BMXDDI3202K is a hallmark of the Modicon X80 ecosystem. Our technical team recommends this module for high-uptime environments such as petrochemical processing and automated conveyor systems. It offers a superior balance of input density and electrical isolation. We advise using this for applications where space is limited but I/O count requirements remain high.

Logistics & Quality Commitment

• Logistics: Global transit via FedEx, UPS, and DHL with 24–48 hour dispatch cycles.
• Assurance: All units are supported by a 12-month quality warranty to ensure seamless industrial operation.

Professional FAQ & Selection Guide

What is the main advantage of the 2- or 3-wire wiring mode on this module?
It provides flexibility for connecting various field sensors directly to the terminal block without needing external distribution blocks.

How does the module handle sensor supply voltage fluctuations?
The module includes built-in voltage detection; it reliably registers inputs even when the supply fluctuates within the 19–30V DC range.

Can I replace this module while the system is powered on?
Yes, the BMXDDI3202K fully supports hot-swapping, allowing for maintenance without stopping the controller CPU.

Selection Guide: Before ordering, ensure your current backplane power supply can accommodate the 160mA consumption at 3.3V DC to prevent power-budget errors.

Expert Advice: Always verify that your application environment does not exceed the 2000m altitude limit; otherwise, apply the required derating factors to the operational temperature range.

Deployment Checklist

• Confirm PLC backplane compatibility with Modicon X80 series modules.
• Ensure the positive logic (sink) configuration matches your field sensor output type.
• Verify the cabinet depth (3.4 in) is sufficient for the module's physical dimensions.
