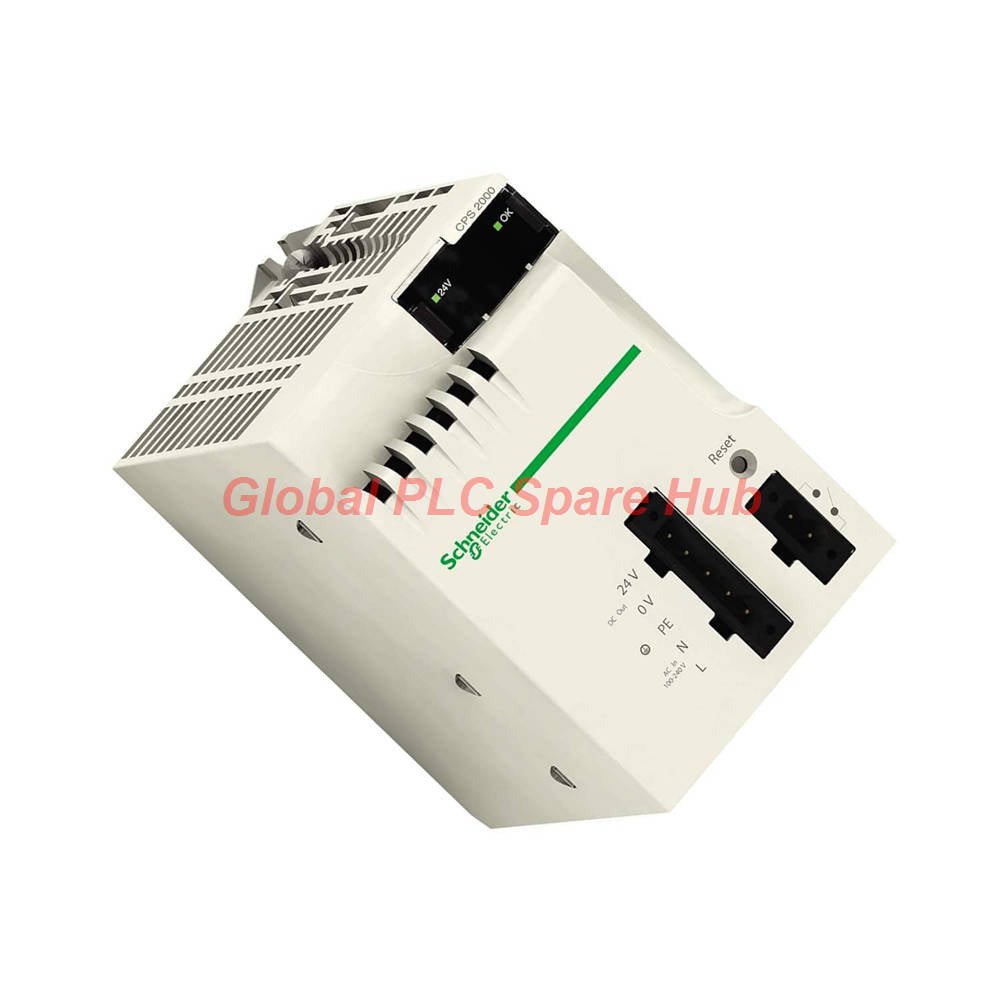

BMXCPS2000 Schneider Electric Modicon X80 Power Supply Module

Engineering Overview: Schneider Electric BMXCPS2000 Power Solution

The BMXCPS2000 serves as a dedicated AC-to-DC power conversion unit within the Modicon X80 platform. Designed for high-reliability industrial infrastructure, this BMXCPS2000 module provides precise secondary voltages required for processor logic, I/O modules, and field-side sensors. It features a ruggedized architecture suitable for high-vibration and harsh electrical environments.

Technical Performance Specifications

• Brand/Series: Schneider Electric / Modicon X80
• Part Number: BMXCPS2000
• Primary Input: 100-240V AC (range 85-264V), 47-63 Hz
• Total Power Output: 20W distributed across three rails
• Rail Outputs: 3.3V DC (2.5A Logic); 24V DC (0.7A I/O & Processor); 24V DC (0.45A Sensor)
• Dielectric Integrity: 1500V (Primary to logic/I/O), 2300V (Primary to sensor)
• Thermal/Altitude Rating: 0 to 60°C operational range; full power up to 2000m altitude
• Environmental Hardening: IP20, 3 gn vibration rating, treated for tropical climates (TC)

Advanced Diagnostics and Maintenance

• Operational Monitoring: Integrated LED array provides real-time status for Rack Voltage (OK) and Sensor Voltage.
• Fault Management: Features automatic protection against short-circuits, overvoltage, and secondary side overloads.
• Cold Start Control: Dedicated front-mounted RESET push-button allows for efficient system-level cold restarts without cycling primary power.
• Alarm Relay: Dedicated 2-pin connector allows direct integration into facility-wide SCADA or alarming systems for rapid fault detection.

Global PLC Spare HUB's Insight

The BMXCPS2000 is the backbone of robust automation architectures. We frequently specify this unit for Modicon M580 and M340 systems where power quality is paramount. It is exceptionally resilient during grid instability due to its 1ms micro-break immunity.

• Suitable Equipment: Modicon M580 CPUs, X80 remote I/O drops, and high-density signal modules.
• Applications: Water treatment facilities, maritime control systems, and automated material handling lines.

Logistics and Quality Assurance

• Shipping: Professional, secure packaging via FedEx, UPS, and DHL.
• Lead Time: Expedited dispatch within 24-48 hours.
• Warranty: All units include a 12-month comprehensive warranty covering mechanical and electronic performance.

Technical FAQ & Selection Guidance

• What is the impact of exceeding 2000m altitude on this module?
  Above 2000m, air density reduces cooling efficiency. You must apply a derating factor to the total output power to prevent thermal shutdown.
• Why does the system include an alarm relay?
  The alarm relay acts as a health monitor. It triggers if the supply module detects a secondary voltage failure or internal fault, allowing PLC logic to initiate a safe shutdown.
• How do I distinguish between a logic supply fault and a sensor supply fault?
  Observe the front-panel LEDs. The 'rack voltage' LED indicates the status of logic power, while the 'sensor voltage' LED is specific to the 24V field supply rail.
• Can this module be used with BMEXBP backplanes?
  No. The BMXCPS2000 is incompatible with BMEXBP series backplanes; ensure your chassis is compatible with Modicon X80 standard backplanes.
• Selection Guide: What determines the need for an external fuse?
  The primary circuit has an internal fuse. However, always install a fast-acting external circuit breaker per local electrical codes to protect the wiring and comply with the 2014/35/EU Low Voltage Directive.
