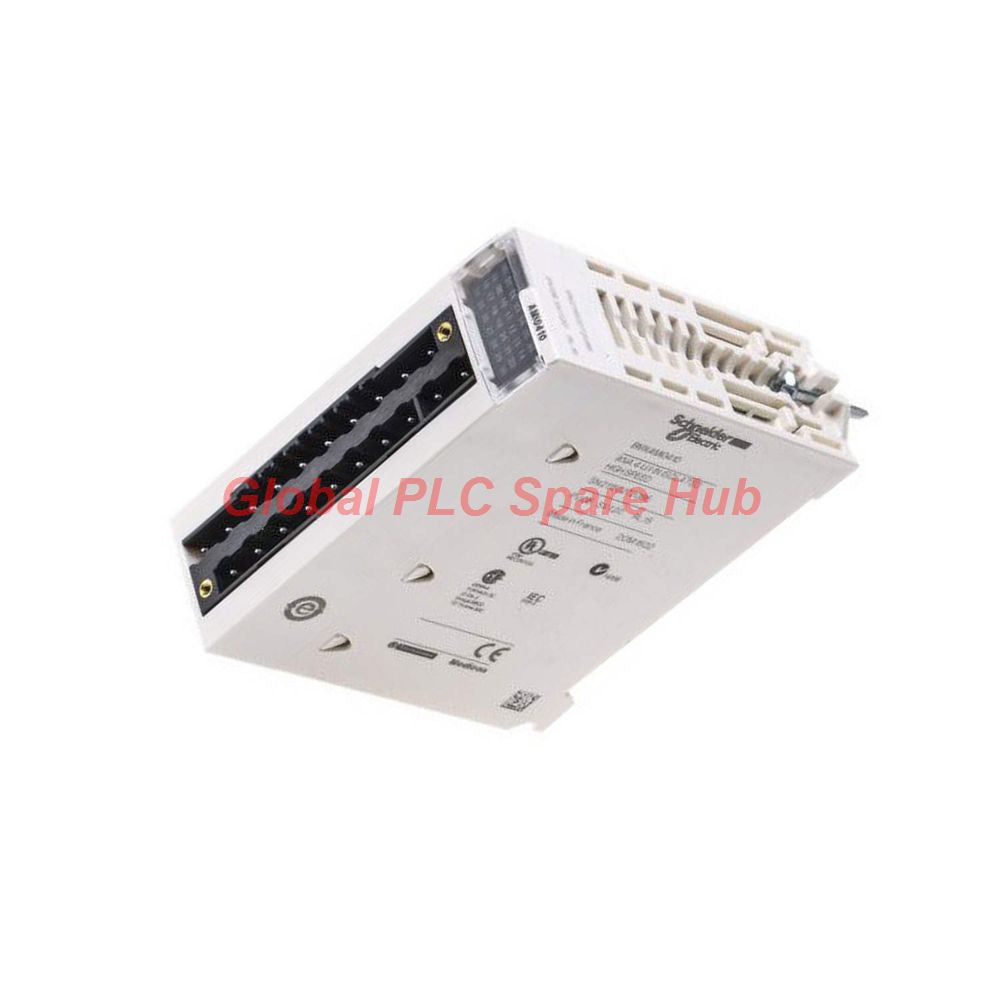

BMXAMI0410 M340 Analog Input Module | 16-Bit Resolution

Product Overview

The BMXAMI0410 is a premier high-speed analog input module engineered for the Modicon X80 platform. Designed for demanding M340 applications, this unit delivers precise data acquisition across four isolated channels. It supports a wide range of high-level signals, including ±10V and ±20mA, while maintaining exceptional signal integrity through advanced first-order digital filtering and internal auto-calibration.

Technical Performance Metrics

• Brand: Schneider Electric
• Series: Modicon X80 / M340
• Model: BMXAMI0410
• Input Capacity: 4 isolated analog channels
• Resolution: 16-bit (24-bit conversion)
• Measurement Ranges: ±10V, ±5V, 0-10V, 0-5V, 1-5V; ±20mA, 0-20mA, 4-20mA
• Accuracy: 0.075% of full scale at 25°C for voltage; 0.15% for current
• Read Cycle Time: Fast mode 1ms (per channel) to 5ms (full cycle)
• Input Impedance: 10 MOhm
• Common Mode Rejection: 120 dB
• Temperature Drift: 15 ppm/°C (Voltage), 30 ppm/°C (Current)

Diagnostics and Operational Reliability

• Integrated Diagnostics: Dedicated red ERR/IO LED per channel and module status LEDs for instant fault identification.
• Environmental Robustness: Operating range 0°C to 60°C; supports altitudes up to 5000m (with derating).
• Protection: IP20 enclosure with TC protective treatment for harsh industrial conditions.
• Maintenance: Internal recalibration mechanisms ensure long-term stability without manual intervention.

Global PLC Spare HUB's Insight

The BMXAMI0410 stands out for its high-speed performance in time-critical control loops. Unlike standard modules, its 1ms fast-read cycle is essential for dynamic processes like turbine balancing or high-speed motion feedback. When integrated into an M340 rack, it offers a superior signal-to-noise ratio, minimizing the need for external signal conditioning. It is the preferred choice for engineers building reliable, high-density data acquisition nodes.

Ideal Applications

• Closed-loop motion control systems.
• Petrochemical and energy monitoring stations.
• High-speed manufacturing assembly lines.
• Marine instrumentation and naval automation.

Shipping and Warranty

• Logistics: Secure worldwide shipping via FedEx, UPS, and DHL.
• Dispatch: Guaranteed processing and dispatch within 24-48 hours.
• Warranty: 12-month comprehensive manufacturer warranty.

Frequently Asked Questions

How does the module handle signal overloads?
The BMXAMI0410 features robust input protection, tolerating up to ±30V on voltage inputs and ±90mA on current inputs, safeguarding the circuit during wiring faults.

Does this module require external resistors for current measurements?
No, it features integrated 250 Ohm resistors. You can configure the module directly via software for 4-20mA or 0-20mA ranges, simplifying your wiring.

What is the benefit of the 120 dB common mode rejection ratio?
This high CMRR ensures the module effectively ignores electrical noise and ground loops common in industrial plants, providing stable readings in electromagnetically noisy environments.

Can I mix voltage and current signals on the same module?
Yes, each of the four channels can be independently configured in the software to handle different voltage or current ranges, offering maximum flexibility.

Selection Advice: When should I choose the fast-read cycle?
Use the 1ms fast-read cycle if your application involves high-frequency dynamic feedback (e.g., pressure pulses). For standard process monitoring (temperature), the 5ms cycle is recommended to preserve CPU overhead.
