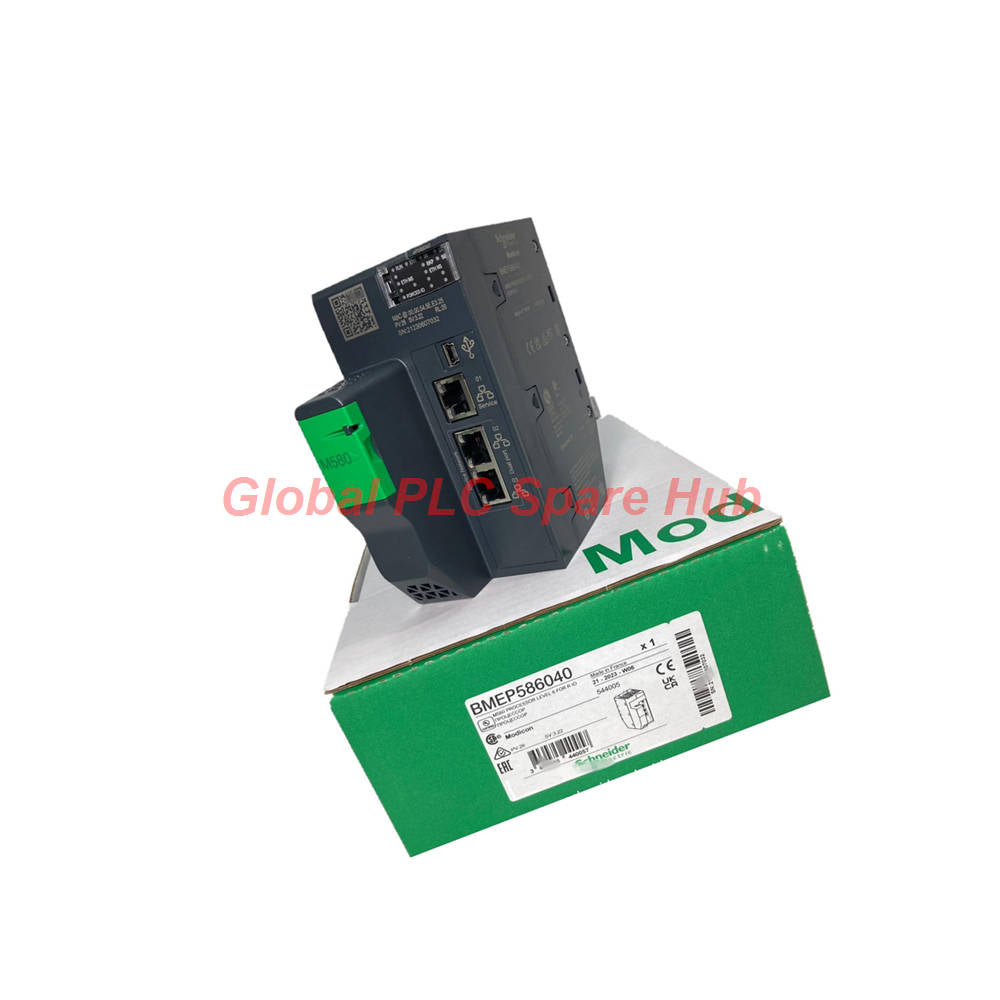

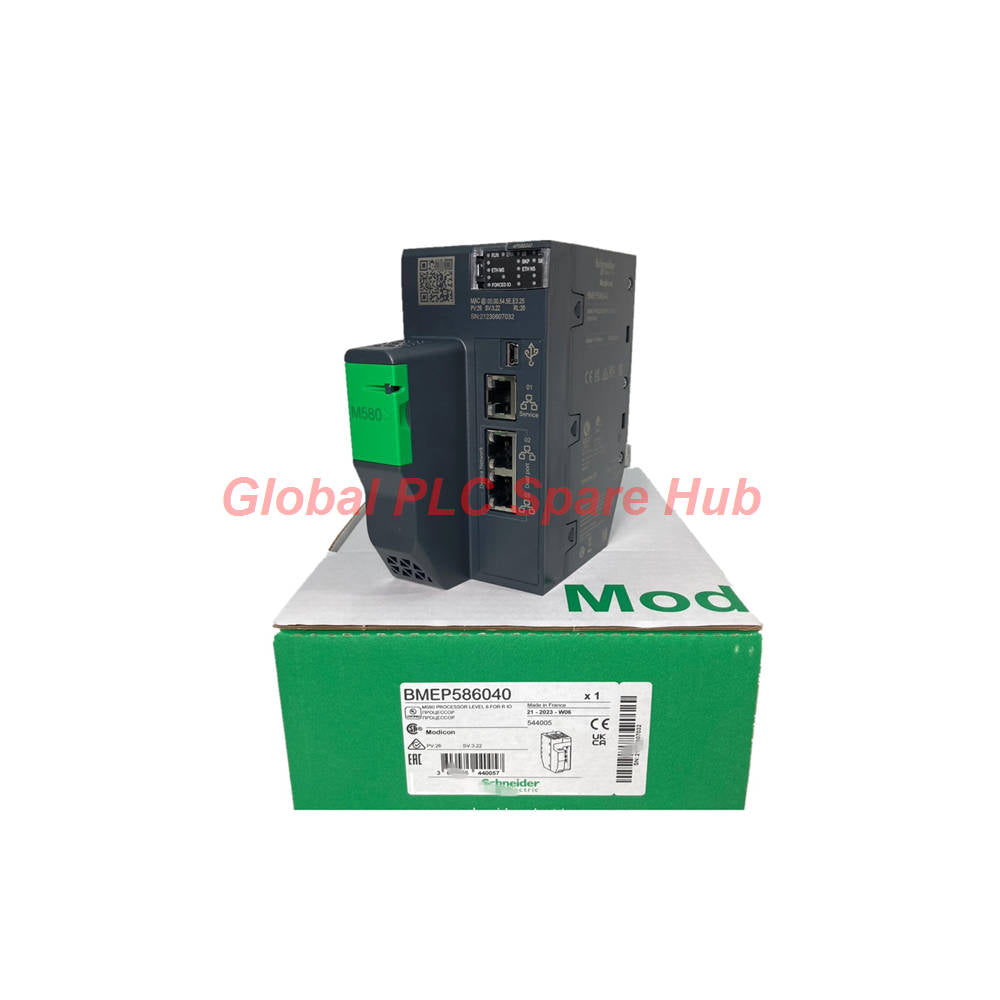

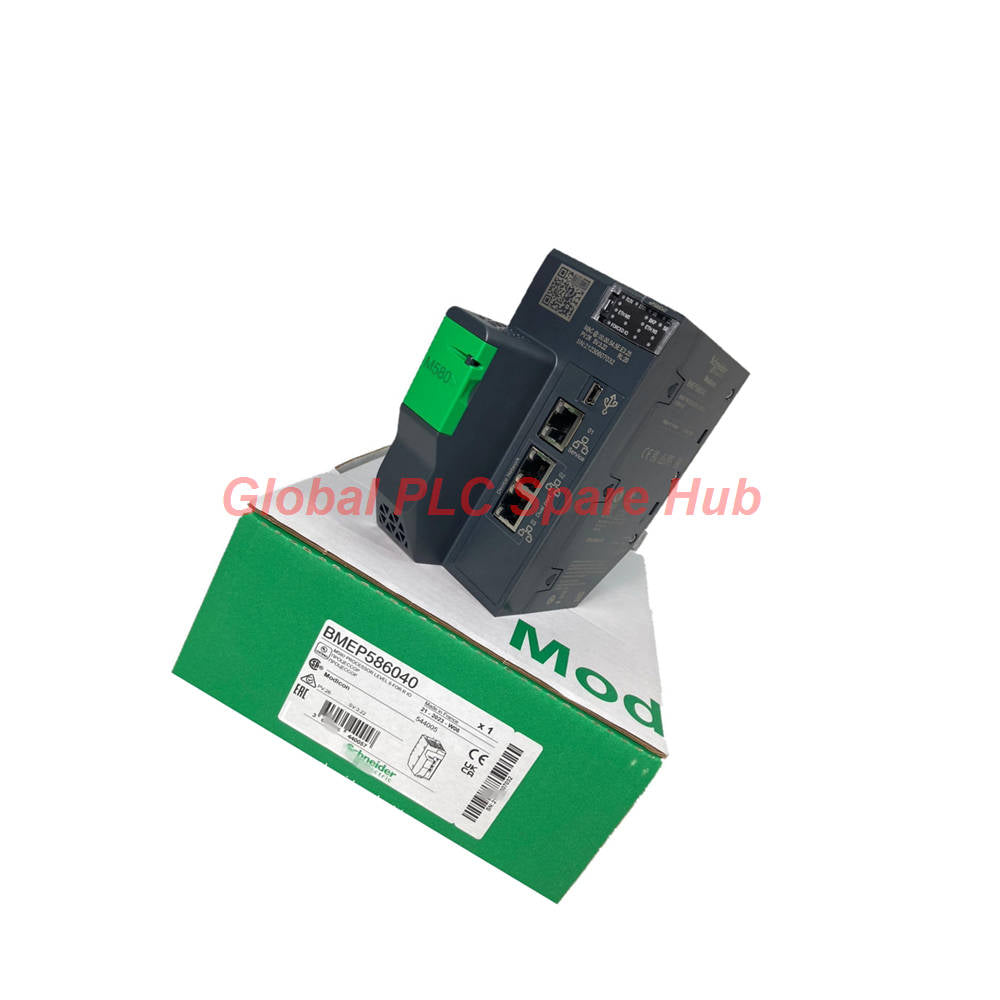

BMEP586040 Schneider Modicon M580 Processor PLC CPU Module

Schneider Electric BMEP586040 Product Overview

The BMEP586040 is a high-performance standalone processor module designed for the Schneider Electric Modicon M580 ePAC series. Built with 64 MB of integrated application RAM and cybersecure Ethernet backplane architecture, the BMEP586040 controls up to 61 distributed Ethernet devices and handles up to 31 remote I/O drops spanning both Modicon X80 and Quantum platforms. Engineered for intensive process automation, this controller executes complex Boolean and floating-point logic at speeds up to 50 Kinst/ms while complying with TAA (Trade Agreements Act) specifications.

Technical Specifications & Operational Boundaries

• Brand: Schneider Electric
• Model Number: BMEP586040
• Product Series: Modicon M580 Automation Platform
• Device Classification: Standalone Programmable Automation Controller (ePAC)
• Execution Speed: 40 Kinst/ms (65% Boolean + 35% fixed arithmetic); 50 Kinst/ms (100% Boolean)
• Integrated Memory: 64 MB program and data RAM; 10 kB system RAM; 4 GB expandable flash storage
• Local I/O Capacity: 8 local racks; 6,144 discrete channels; 1,536 analog channels; 216 application-specific channels
• Remote & Distributed Architecture: Up to 31 RIO drops; 64 distributed equipment devices
• Embedded Interfaces: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, USB type Mini-B
• Communication Expansion: Up to 6 Ethernet communication modules; up to 16 AS-Interface modules
• Cybersecurity Safeguards: Achilles certified, embedded firewall, firmware signature verification, IPSec, Syslog, HTTPS, port hardening
• Internal Current Draw: 300 mA at 24 V DC (supplied via backplane)
• Operating Environment: 32 to 140 °F (0 to 60 °C); 5% to 95% relative humidity (non-condensing at 55 °C)
• Vibration & Shock Tolerances: 3 gn vibration resistance; 30 gn shock resistance; IP20 protection rating
• Standards Compliance: IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, Class I Div 2 Hazardous Locations, CE, UL, CSA, RCM, EAC, Merchant Navy

Onboard Diagnostics & Status Indication

The BMEP586040 processor integrates eight front-facing LED indicators that offer field engineers instant hardware status without connecting programming tools:

• RUN (Green): Blinks during initial booting; solid green when logic execution is active.
• ERR (Red): Illuminates upon detecting internal processor errors or system-level hardware failures.
• I/O (Red): Signals an active communication fault or mismatch on connected local or remote I/O modules.
• DL (Green): Flashes dynamically while a program download or firmware updates are in progress.
• BACKUP (Red): Flags memory integrity errors or flash card synchronization failures.
• ETH MS (Green/Red): Displays Ethernet service port configuration status and IP address state.
• ETH NS (Green/Red): Shows active physical link status and communication activity across network interfaces.
• FORCED IO (Green): Indicates that forced I/O memory states are active within control logic.

Target System Architecture & Field Applications

Due to its high channel density and native dual-stack Ethernet capabilities, the BMEP586040 processor is optimal for large-scale industrial architectures:

• Hybrid Process Control: Water treatment facilities utilizing distributed pumping stations and HART instrument telemetry.
• High-Speed Infrastructure: Power distribution systems using time-stamped sequence-of-events logging via IEC 61850 protocol standards.
• Legacy Migration Projects: Phased upgrades transitioning legacy Quantum I/O networks to modern X80 Ethernet backplane hardware.
• Material Handling & Motion: Multi-axis positioning systems using SSI encoder modules and high-speed counter channels.

Global PLC Spare HUB Review & Field Engineering Insight

Our control engineers evaluated the BMEP586040 in a retrofit project replacing older Quantum CPUs. The primary engineering challenge was integrating 20 legacy Quantum S908 remote I/O drops alongside new Ethernet-based X80 drops. The BMEP586040 handled the dual-network topology without add-on coprocessors. Task execution timing remained stable under heavy network traffic, and cybersecurity port hardening prevented unauthorized broadcast sweeps during site commissioning.

Logistics, Warranty & Dispatch Services

To support critical maintenance schedules and minimize downtime, we maintain strict fulfillment standards for every BMEP586040 shipment:

• Dispatch Lead Time: Expedited warehouse processing guarantees shipment within 24 to 48 hours of order clearance.
• Global Express Courier Support: Direct air freight transit via FedEx, UPS, and DHL.
• Protective Packaging: Shipped in original factory-sealed packaging (Package weight: 30.86 oz / 875 g; dimensions: 9.84 x 6.89 x 3.54 in).
• 12-Month Coverage: Backed by a full 12-month functional warranty against hardware performance defects.

Why Buy From Global PLC Spare HUB?

• 20+ Years Experience: Decades of specialized technical expertise in industrial automation spare parts.
• Global Delivery Network: Fast, dependable international shipping coverage across all industrial sectors.
• 24-48 Hour Dispatch: Rapid order fulfillment protocols to keep emergency repairs moving.
• 12-Month Warranty Protection: Complete coverage ensuring product reliability and operational peace of mind.
• Pre-Shipment Technical Verification: Every unit undergoes engineering bench testing and visual verification before dispatch.
• Obsolete System Support: Specialized sourcing and migration guidance for active, legacy, and hard-to-find control hardware.

Frequently Asked Questions & Selection Guidance

What is the primary difference between a standalone and a redundant M580 processor?

Standalone processors like this model handle single-CPU rack topologies without native hot-standby (HSBY) synchronization ports. For redundant architectures requiring seamless failover, select an M580 CPU with dedicated HSBY sync hardware.

Can I reuse existing Quantum I/O modules when upgrading to this CPU?

Yes. This processor supports Quantum remote I/O drops using 140CRA31200 Ethernet drop adapters, allowing engineers to retain existing Quantum I/O wiring while updating the main CPU to the M580 platform.

How does the CPU handle program backup during power loss?

The unit uses internal non-volatile memory to retain application logic. You can install an optional SD memory card in the front slot to store data logs, user documentation, and complete project backup files without external batteries.

What software environment is required to configure this module?

You must use Schneider Electric EcoStruxure Control Expert (formerly Unity Pro). Ensure your software version includes hardware catalog updates for the specific firmware version of your processor.

How do I mitigate network congestion on the embedded device network ports?

Segregate your field network by connecting local HMI and SCADA traffic to the dedicated service port while routing deterministic RIO and DIO traffic through the main device network ports.
