Engineering Overview: BK9050 Compact Ethernet Coupler

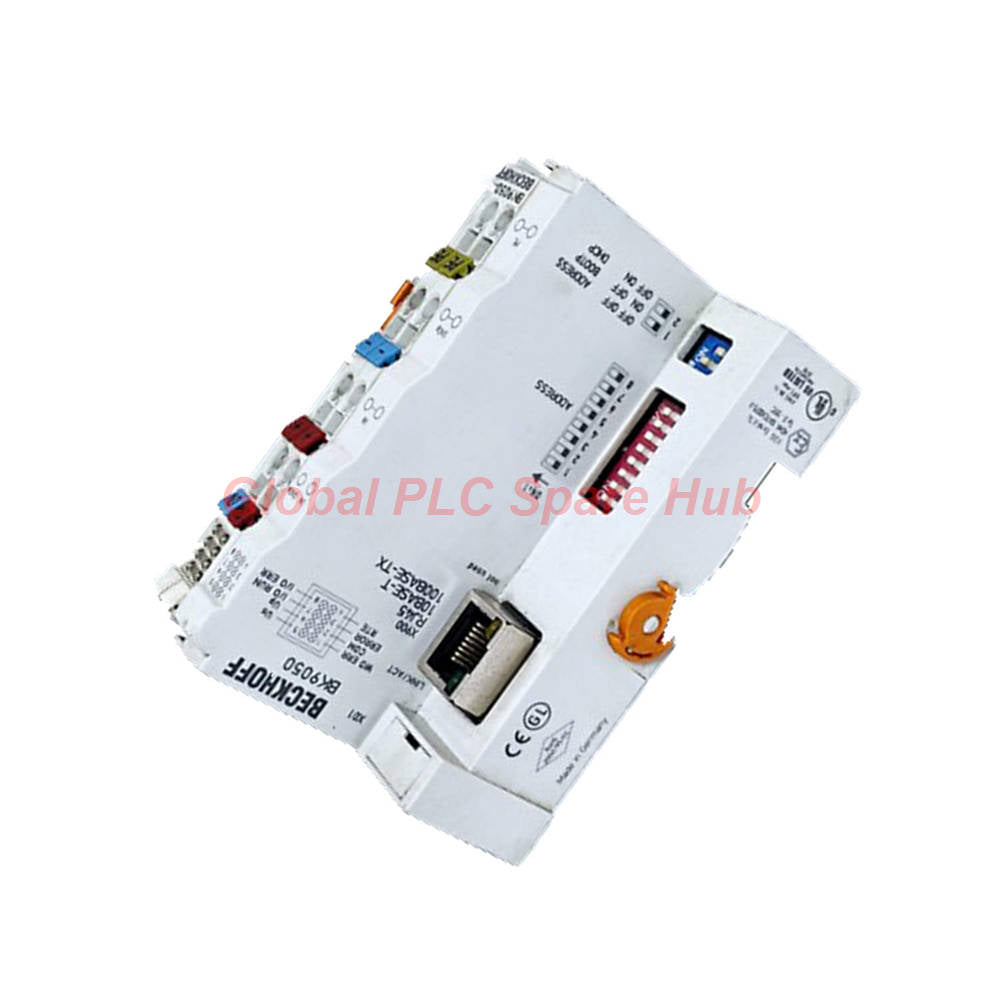

The BK9050 is a high-density Ethernet TCP/IP Bus Coupler designed for modular signal acquisition in compact automation footprints. As a core component of the Beckhoff distributed I/O system, it bridges standard Ethernet networks with modular K-bus terminal blocks. The BK9050 enables seamless integration of up to 64 local terminals (expandable to 255), offering versatile connectivity for both digital and analog peripheral signals.

Technical Performance Specs

• Model Identification: BK9050
• Interface Protocol: TwinCAT ADS, Modbus TCP, Beckhoff Real-time Ethernet
• Transmission Speed: 10/100 Mbaud (Automatic detection)
• Bus Interface: 1 x RJ45 Ethernet port
• Terminal Capacity: 64 standard (Up to 255 via K-bus extension)
• I/O Signal Range: 1,020 digital inputs/outputs; 128 analog inputs/outputs
• Supply Voltage: 24 V DC (-15 %/+20 %)
• Environmental Rating: IP 20; Operating range 0°C to +55°C
• Vibration Resistance: Conforms to EN 60068-2-6/27 standards

Global PLC Spare HUB Insight

According to Global PLC Spare HUB technical evaluations, the BK9050 is an ideal solution for retrofitting decentralized machine control systems. Its support for Open Modbus TCP makes it highly compatible with third-party controllers beyond the standard Beckhoff ecosystem. We recommend this coupler for high-speed material handling and automated packaging lines where space-saving Ethernet connectivity is paramount.

Diagnostic and Operational Capabilities

• Automated Mapping: Real-time recognition of connected terminals with automatic process image assignment.
• Address Flexibility: Supports manual DIP switch configuration or dynamic allocation via DHCP servers.
• System Reliability: Integrated electrical isolation (500V) between power contacts, supply voltage, and the fieldbus interface.
• Protection Standards: Robust immunity against high-frequency interference, adhering to EN 61000-6-2/6-4 electromagnetic compatibility norms.

Logistics and Warranty Guarantee

• Global Logistics: Fast dispatch via FedEx, UPS, and DHL.
• Fulfillment Efficiency: Orders processed within 24-48 hours.
• Reliability Promise: Full 12-month quality assurance warranty included on all units.

Expert FAQ and Selection Guide

Q: How do I manage the IP address configuration if a DHCP server is unavailable?
A: The BK9050 features physical DIP switches on the housing. You can manually assign the IP address offset, which is highly effective for isolated machine-to-machine networks.

Q: What is the primary difference between the BK9050 and the BC9050 controller?
A: The BK9050 is a pure Bus Coupler for remote I/O, while the BC9050 series contains an integrated programmable controller for decentralized local logic execution.

Q: Can I mix analog and digital terminals on the same K-bus extension?
A: Yes, the coupler automatically detects the terminal type and maps inputs/outputs to the process image regardless of the signal mix.

Q: What indicates a communication fault on the Ethernet RJ45 link?
A: Monitor the onboard status LEDs. Persistent connection drops often point to exceeding the 100-meter distance limit between the switch and the coupler; ensure standard Cat5 cabling is shielded for EMI-heavy environments.

Q: Selection Guide: How do I determine if I need a K-bus extension?
A: You need an extension if your station exceeds 64 terminals. Note that total I/O capacity is still limited by the overall controller cycle time and fieldbus byte limits (512 bytes input/output).
