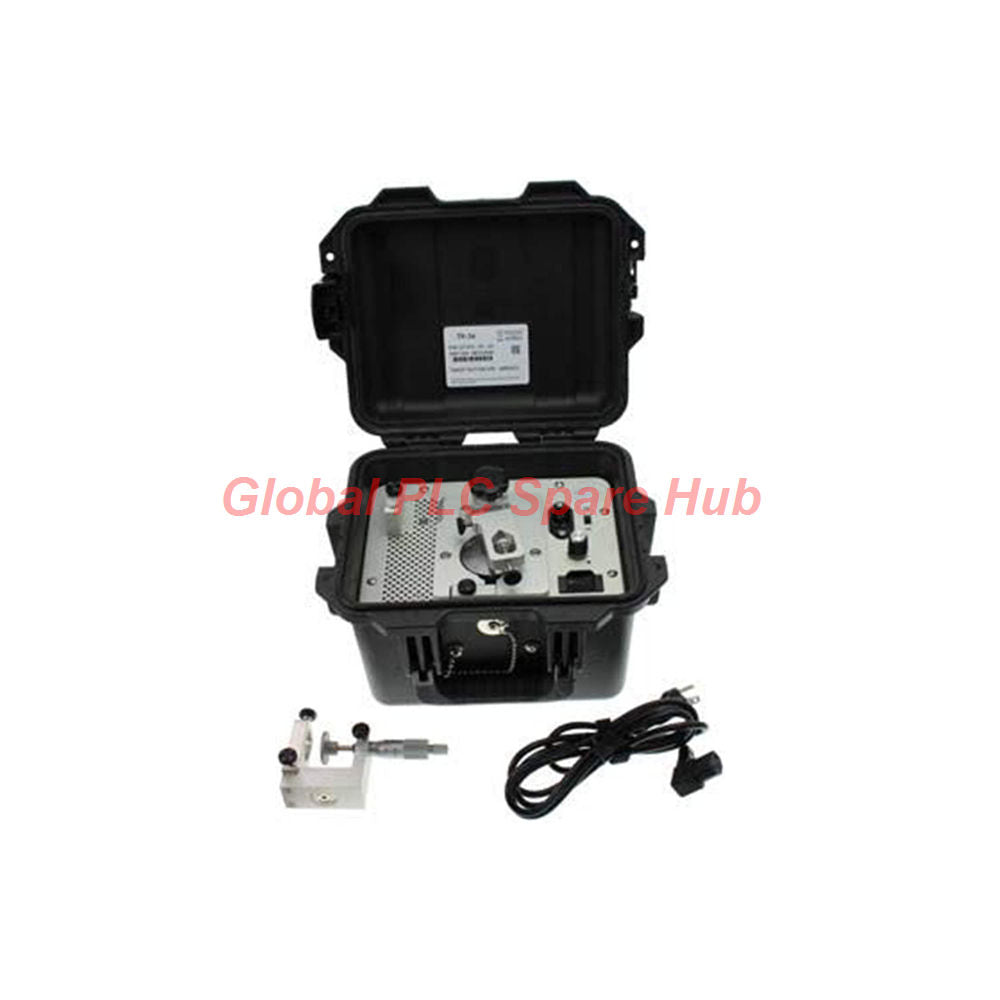

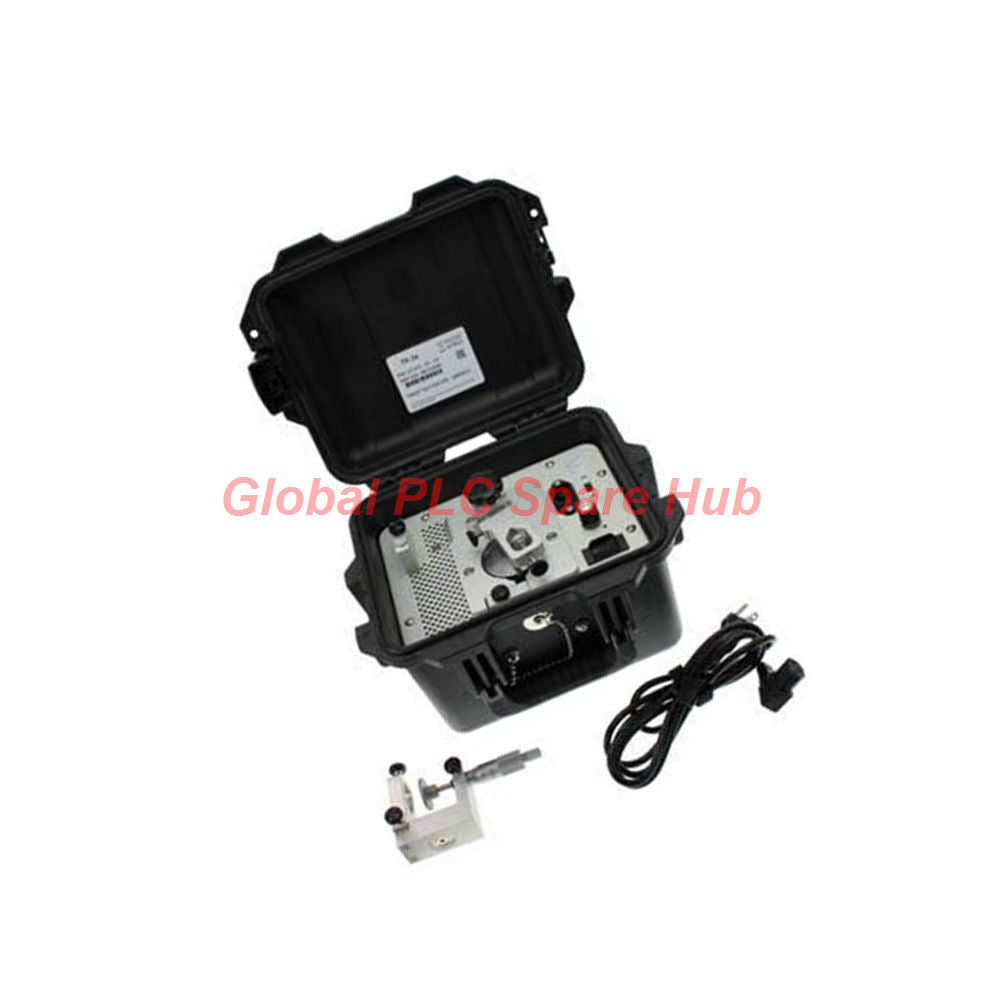

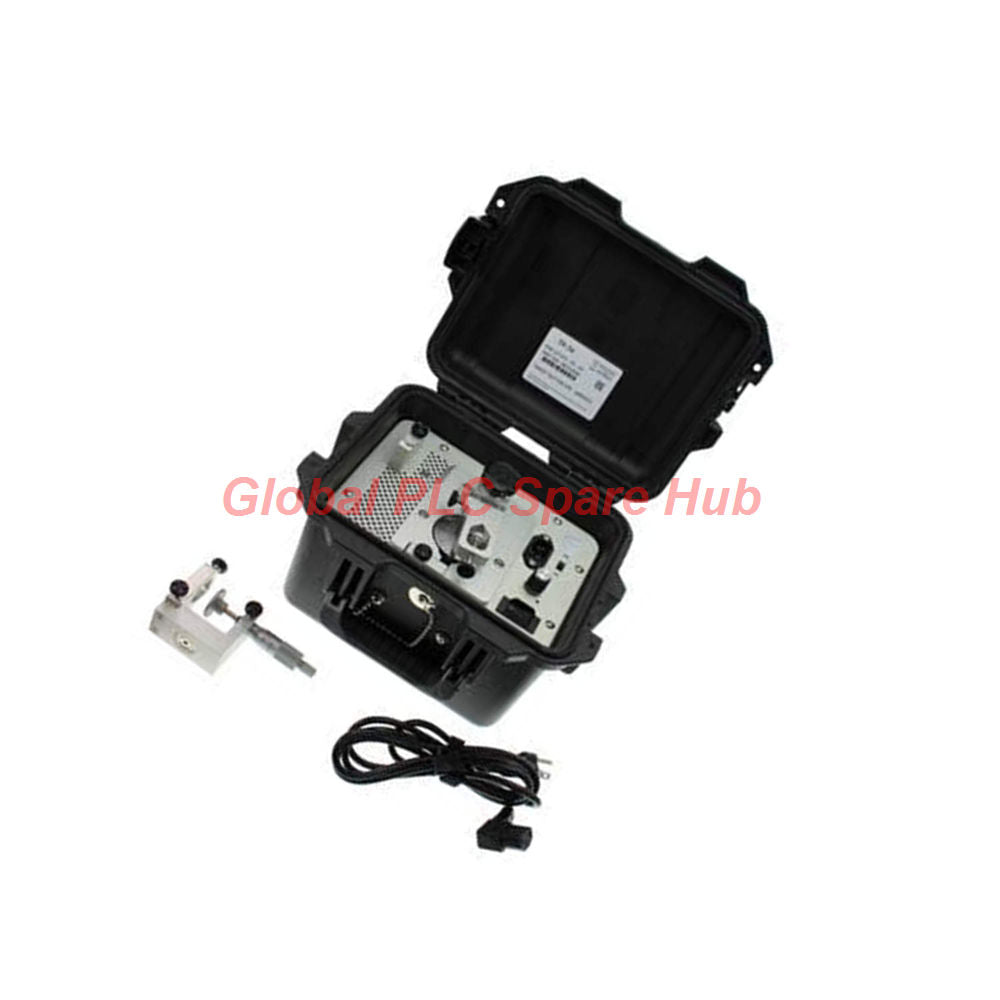

Bently Nevada TK-3e Proximity Test Kit 177313-02-02-00 New

177313-02-02-00 Bently Nevada TK3 Proximity System Test Kit Electric Driven

Global PLC Spare HUB's Insight: Calibrating machinery protection systems requires absolute precision in both vibration and position simulation. The 177313-02-02-00 engineered by Bently Nevada within the TK-3e Series provides field instrumentation technicians with a reliable, motor-driven test rig. Instrument engineers utilize the 177313-02-02-00 to verify transducer linearity, check monitor trip settings, and ensure overall measurement loop accuracy without requiring complex laboratory setups.

Configuration Breakdown & Suffix Architecture

177313 Test Kit Model Architecture
    ├── Base Platform: 177313 (Electric Driven TK-3e Proximity System Test Kit)
    ├── Scale Option Suffix: -02 (Metric scale calibration units)
    ├── Power Cord Suffix: -02 (European power cord configuration)
    └── Agency Approval Suffix: -00 (Standard commercial baseline without special hazardous listing)

Technical Specifications Matrix

Field Operation and Calibration Setup

1. Connect the European power cord of the 177313-02-02-00 to a stable 95-125 Vac or 190-250 Vac power source.
2. Mount the proximity probe into the universal probe holder, which accommodates probe diameters from 5 mm to 19 mm.
3. Utilize the removable spindle micrometer assembly with a digital voltmeter to check probe gap voltage and static position calibration.
4. Engage the motor-driven wobble plate to simulate dynamic mechanical vibration ranging from 50 to 254 μm peak-to-peak.
5. Compare the monitor readout against the calculated DC voltage output to verify system accuracy without needing an oscilloscope.

Maintenance, Calibration Verification, and Compatibility

Routine maintenance of the 177313-02-02-00 involves keeping the AISI 4140 alloy steel target button clean from oil debris and inspecting the micrometer threads for smooth travel. Calibration verification should be performed annually using certified multimeters. The 177313-02-02-00 is fully compatible with standard Bently Nevada 3300 and 7200 series proximity transducer systems and monitor racks.

Certifications and Regulatory Compliance

• Electromagnetic Compatibility: Conforms to EMC Directive 2014/30/EU, EN 61000-6-2 immunity, and EN 61000-6-4 emissions standards.
• Electrical Safety: Meets LVD Directive 2014/35/EU and EN 61010-1 requirements.
• Regulatory Standards: Complies with FCC Part 15 subpart B Class A rules for industrial operational environments.
• Environmental Compliance: Manufactured in accordance with RoHS Directive 2011/65/EU restrictions.

Shipping, Logistics, and Warranty Terms

Global PLC Spare HUB dispatches the 177313-02-02-00 within 24-48 hours. Secure global delivery is managed through trusted logistics carriers including FedEx, UPS, and DHL. Every test kit undergoes strict pre-shipment technical verification and includes a comprehensive 12-month warranty.

### Target Equipment and Application Scenarios

• Target Equipment: Bently Nevada 3500 and 3300 series machinery protection monitors.
• Application 1: Calibrating radial vibration monitoring channels on critical steam turbines.
• Application 2: Verifying axial position and thrust wear monitor setups on centrifugal compressors.
• Diagnostic Capability: Detects signal degradation, power supply ripple, and calibration drift in installed proximity transducer loops before false machine trips occur.

Frequently Asked Questions

What is the primary function of the spindle micrometer assembly on the 177313-02-02-00?

It allows technicians to move a target plate in precise 0 to 25.4 mm increments to verify static gap voltage output from Proximitor sensors.

Can this test kit simulate mechanical vibration without an external oscilloscope?

Yes. Technicians use a standard digital voltmeter to measure peak-to-peak DC voltage outputs corresponding to the wobble plate motion.

What probe diameters fit into the universal probe holder of this test kit?

The universal mount accommodates industrial proximity probes ranging from 5 mm up to 19 mm (0.197 in to 0.75 in) in diameter.

How should field technicians clean the AISI 4140 target button between tests?

Use a lint-free wipe with approved electrical contact cleaner to remove grease without scratching the precision steel surface.

Why is metric scale selection important when ordering this specific part number?

The -02 suffix ensures all micrometer travel distances align directly with metric engineering documentation used in regional plants.

Expert Buying Guide

Investing in a portable calibration standard like the 177313-02-02-00 eliminates guesswork during scheduled plant turnarounds. Ensure your facility electrical supply matches the European power cord configuration before deployment. Global PLC Spare HUB recommends verifying probe tip diameters in advance to optimize test rig setup efficiency.

Why Buy From Global PLC Spare HUB?

• 20+ years industrial automation spare parts experience
• Global shipment support via FedEx, UPS, and DHL
• 24-48 Hours shipping
• 12-month warranty
• Technical verification before shipment
• Support for obsolete control systems
