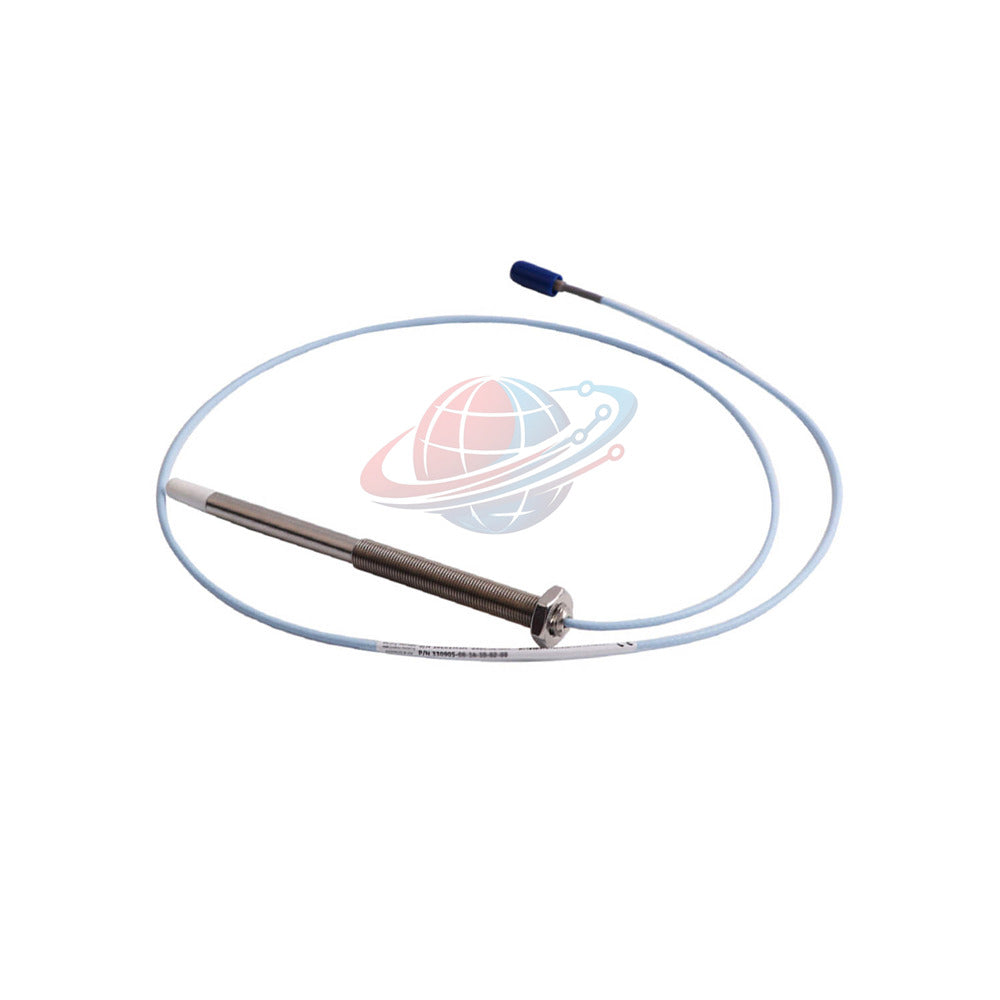

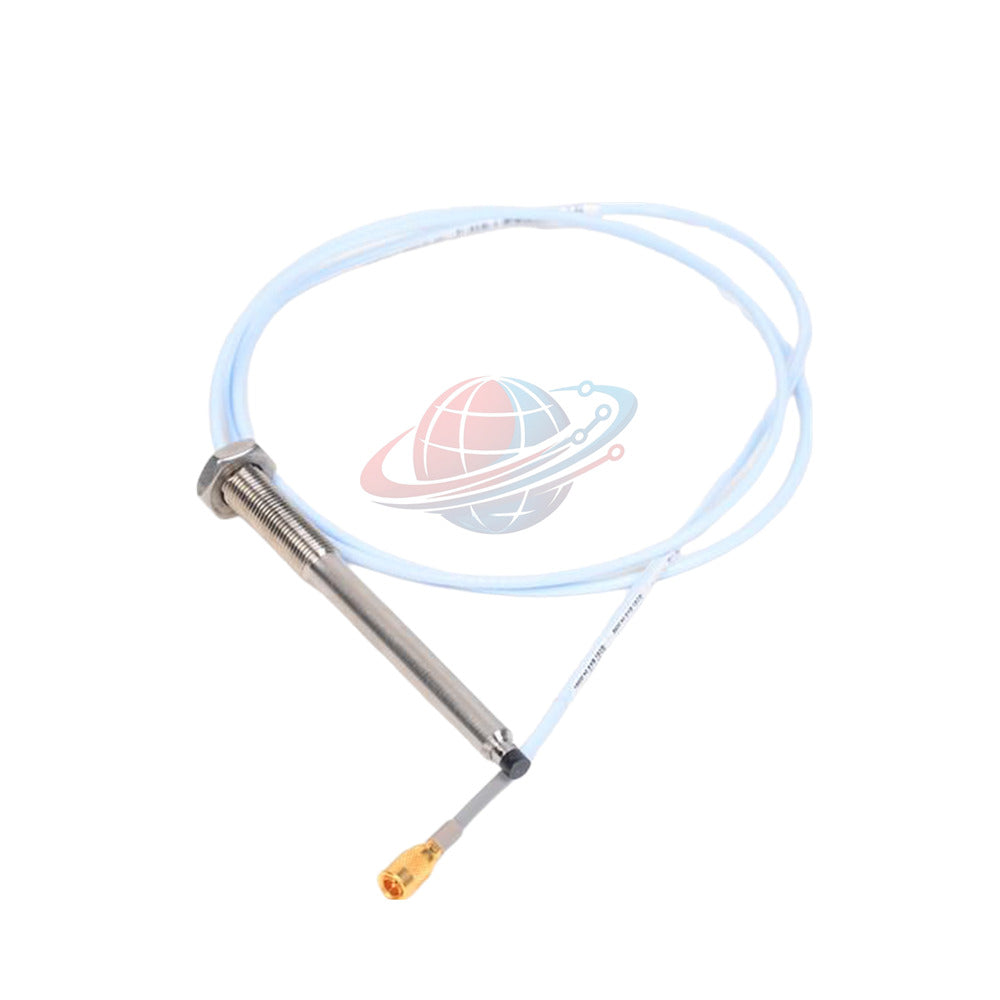

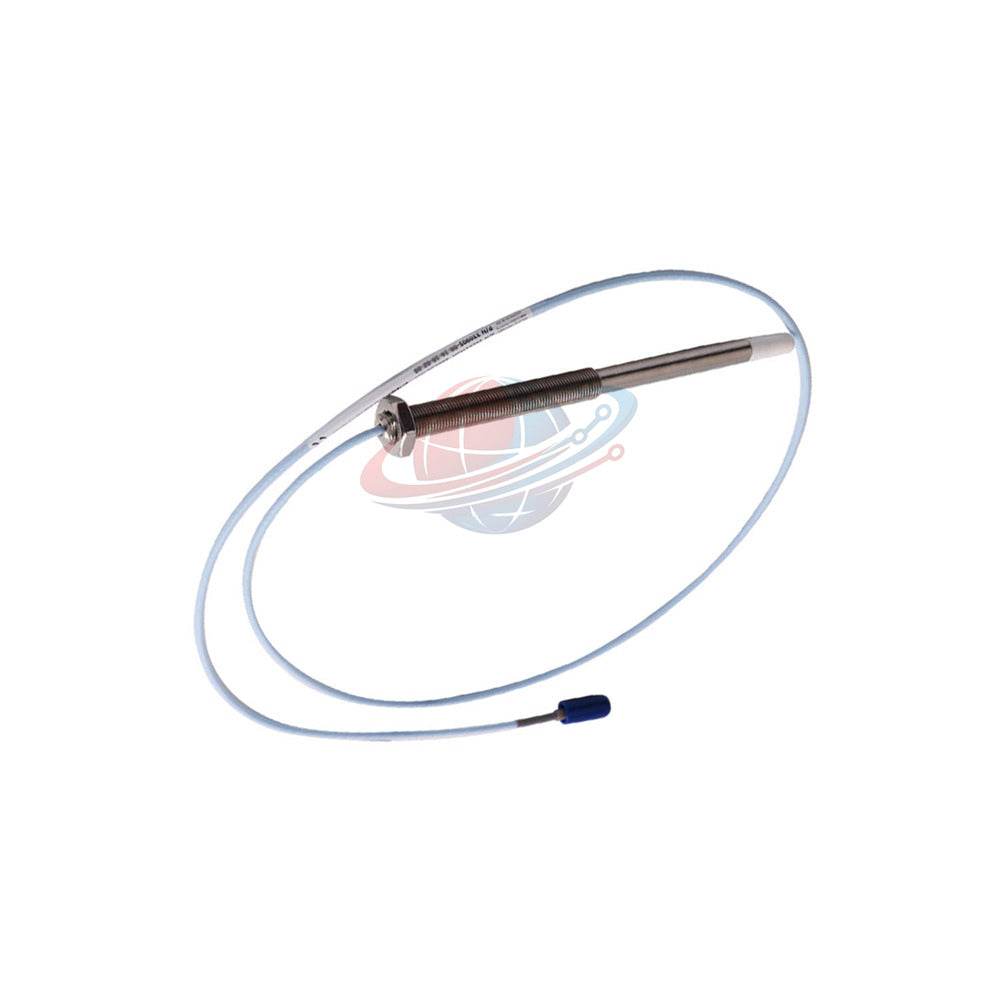

Bently Nevada 330905-00-18-05-02-00 3300 NSv Proximity Sensor

Bently Nevada 330905-00-18-05-02-00 3300 NSv Proximity Sensor

Manufacturer: Bently Nevada
Product No.: 330905-00-18-05-02-00
Condition： In stock
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview

Global PLC Spare HUB's Insight

Welcome to Global PLC Spare HUB's technical overview for the Bently Nevada 3300 NSv Series proximity probe, part number 330905-00-18-05-02-00. Engineers deploy this precision transducer in demanding turbomachinery environments to monitor radial vibration and axial position. The 330905-00-18-05-02-00 model features an M10X1 thread profile without armor, paired with a 0.5-meter integral cable and a ClickLoc miniature coaxial connector.

Our technical team verifies every unit before shipment to ensure optimal signal integrity. Industrial facilities rely on this hardware for continuous machinery protection. The 3300 NSv architecture delivers superior side-view characteristics compared to legacy 3000-series probes. Enhanced chemical resistance protects the probe tip in complex process compressor applications.

Technical Specifications

Parameter	Specification Details
Manufacturer	Bently Nevada
Model / Series	3300 NSv
Part Number	330905-00-18-05-02-00
Linear Measurement Range	1.5 mm (60 mils), spanning from 0.25 mm to 1.75 mm
Incremental Scale Factor	7.87 V/mm (200 mV/mil)
Frequency Response	0 to 10 kHz (+0, -3 dB typical)
Linearity / DSL	Less than ±0.06 mm (±2.3 mils)
Operating Temperature	-52°C to +177°C (-62°F to +351°F)
Probe Tip Material	Polyphenylene sulfide (PPS)
Case Material	AISI 304 stainless steel
Agency Approvals	Not required for this specific configuration

Installation and Setup Guide

Mount the 330905-00-18-05-02-00 probe using finger-tight torque initially.
Apply a maximum torque of 0.56 N·m during final mechanical securing.
Maintain the recommended gap setting of 1.0 mm (40 mils) from the target surface.
Use three-conductor shielded triad field wiring for optimal noise rejection.
Limit total field wiring length between the Proximitor Sensor and monitor to 305 meters.
Ensure a minimum flat target diameter of 13 mm for accurate scale factor execution.

Maintenance and Calibration Support

Inspect the Viton O-ring seal routinely to maintain differential pressure ratings.
Verify dc resistance across the center conductor to outer conductor reads 4.0 ± 0.5 ohms.
Check extension cable capacitance against standard 69.9 pF/m thresholds during routine audits.
Store spare units within -52°C to +177°C temperature boundaries.

System Compatibility

Fully compatible with the 3300 NSv Proximitor Sensor and matching extension cables.
Mechanically interchangeable with legacy 3300 RAM proximity probe hardware.
Superior gapping performance outclasses older 190-series probes at identical target distances.

Packaging and Delivery Terms

Condition: New & Original in Factory Packing
Dispatch Window: 24 to 48 hours from order confirmation
Freight Carriers: FedEx, UPS, DHL for express global delivery
Factory Warranty: 12 Months coverage

Typical Applications and Diagnostic Capabilities

Continuous vibration monitoring on high-speed industrial compressors.
Accurate shaft axial position measurement in steam and gas turbines.
Early detection of rotor unbalance, misalignment, and mechanical looseness.
Signal processing for condition monitoring systems in petrochemical plants.

Frequently Asked Questions

Question:
Can I install this probe on shafts smaller than 13 mm in diameter?

Answer:
Smaller shafts alter the scale factor. Reduce the probe-to-target gap to limit scale factor variations.

Question:
What causes signal rolloff at high frequencies?

Answer:
Excessive field wiring lengths beyond 305 meters degrade high-frequency response. Keep cable runs within recommended limits.

Question:
Are these units pressure tested before delivery?

Answer:
Probes do not undergo factory pressure testing standard. Contact our custom design department for specific pressure seal verification.
