Bently Nevada 330881-16-04-132-03-02 PROXPAC XL Vibration Transducer

Engineering Overview

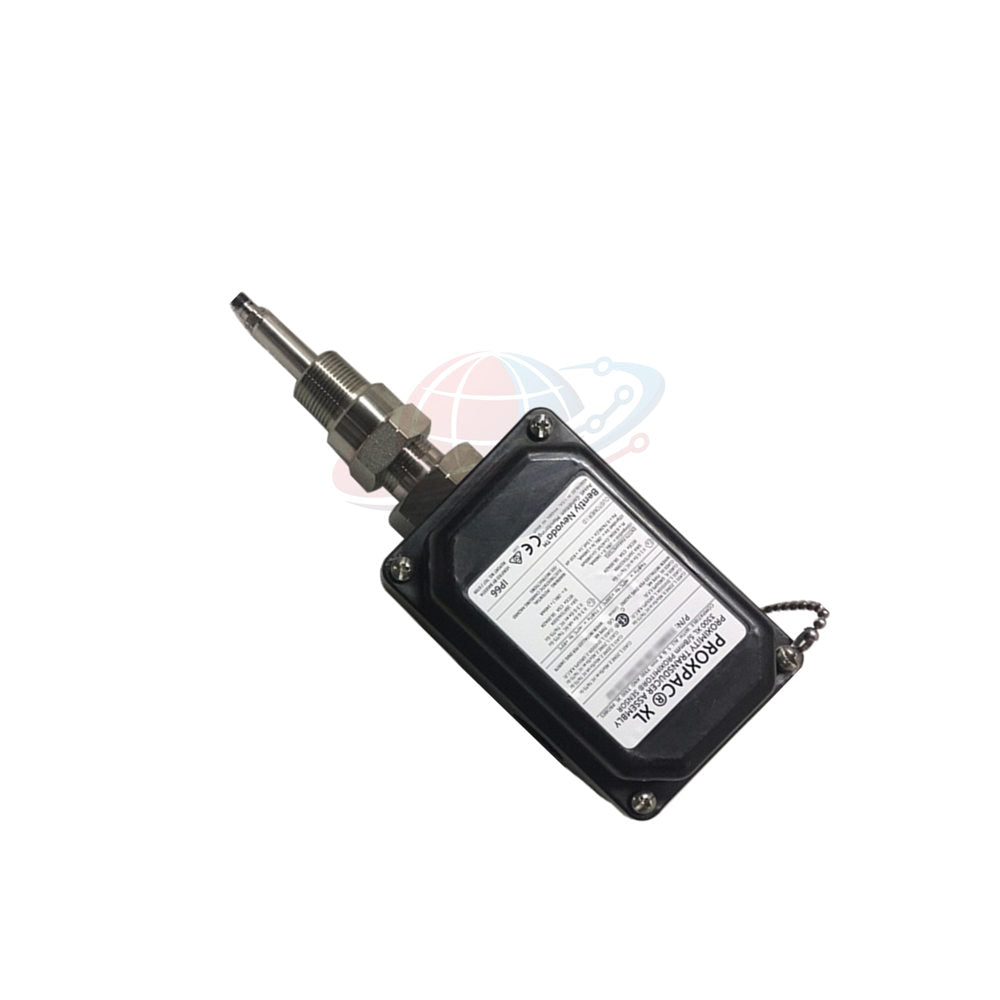

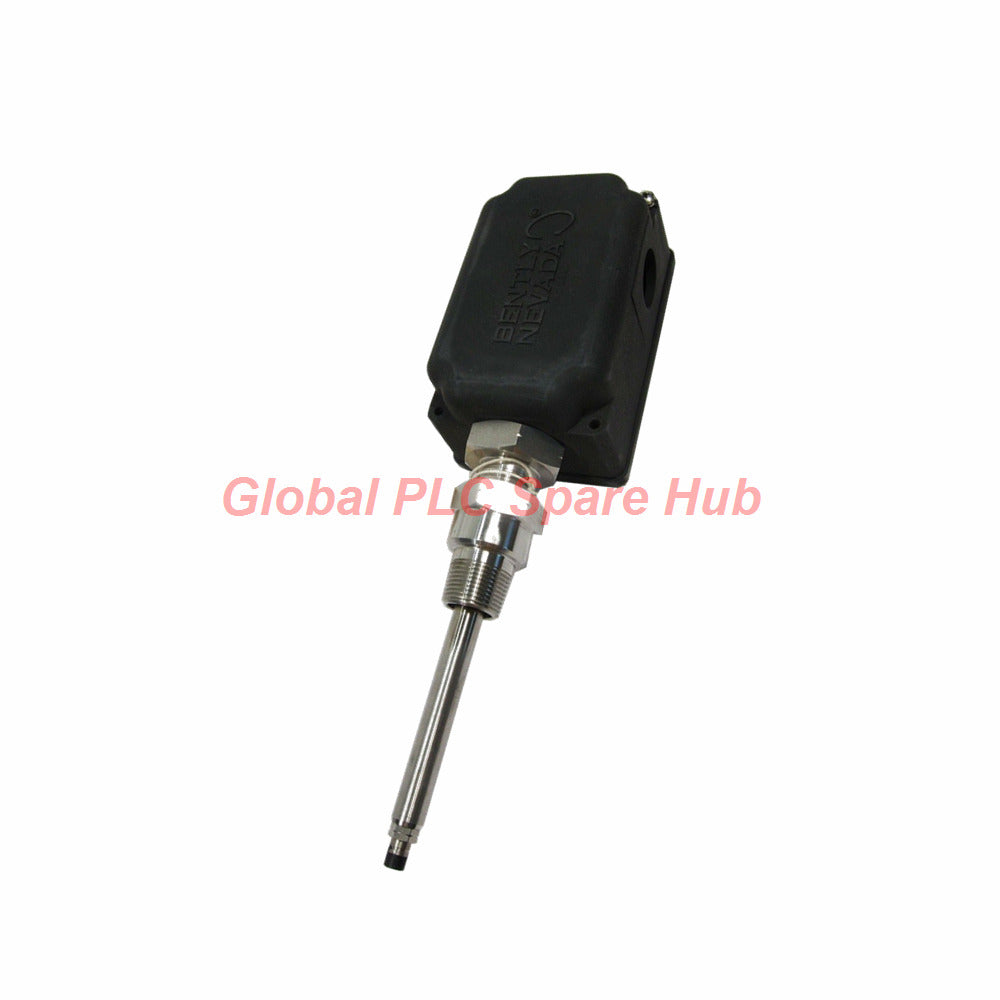

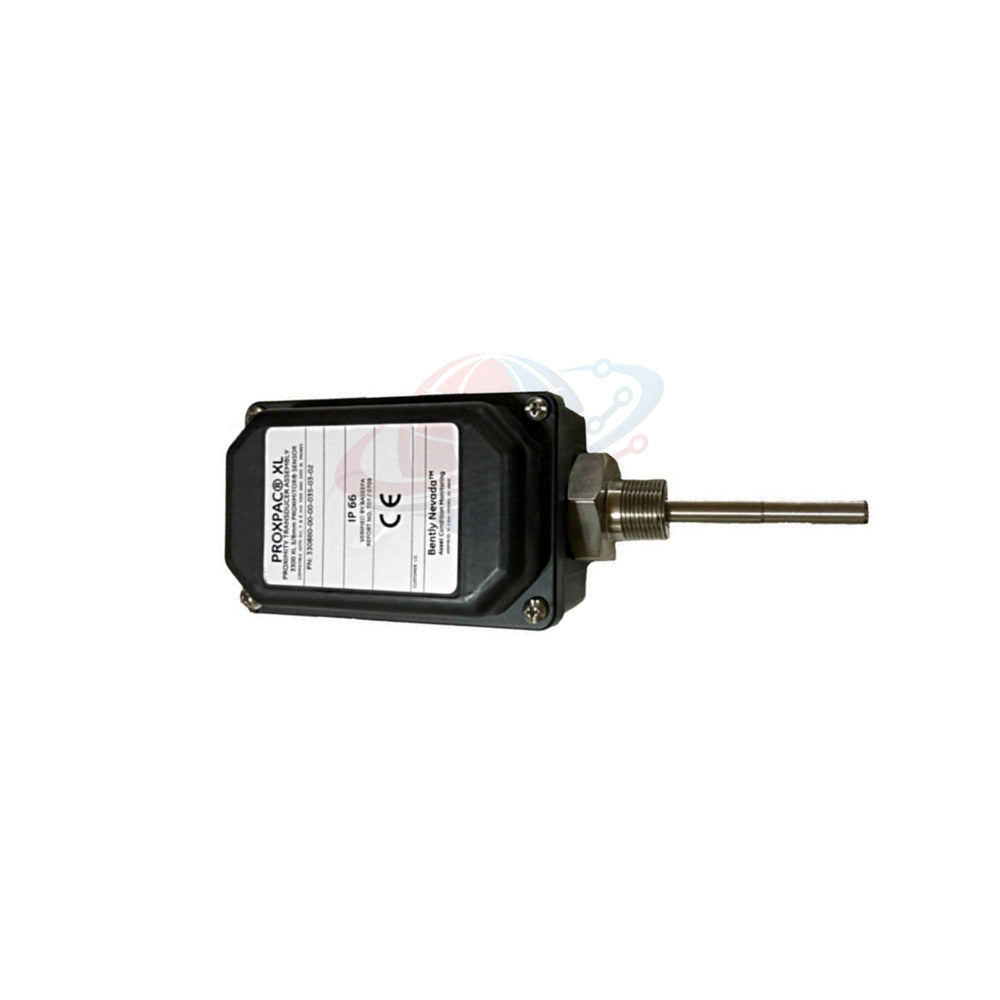

The Bently Nevada 330881-16-04-132-03-02 is a fully integrated PROXPAC XL proximity transducer system. By combining the 3300 XL 8mm probe and the Proximitor sensor within a single ruggedized, glass-reinforced polyphenylene sulfide (PPS) housing, it eliminates the need for separate sensor mounting. This design significantly reduces installation complexity while providing superior mechanical protection (IP66) for critical vibration monitoring in rotating assets.

Global PLC Spare HUB’s Insight

The PROXPAC XL series is the professional choice for environments where external sensor housing is exposed to harsh elements. Our engineering team values this model for its 40mm standoff and 132mm penetration depth, which offers excellent clearance for complex mechanical assemblies. The unit’s ClickLoc connector and triaxial cabling ensure minimal signal degradation, making it highly reliable for long-distance field wiring up to 305 meters.

Configuration Breakdown

• Probe/Approval (16): 3300 XL 8mm probe, No approvals
• Standoff (04): 40 mm Standoff Adapter
• Penetration (132): 132 mm Probe Penetration
• Fittings (03): One M20 fitting, two plugs
• Mounting Thread (02): 3/4-14 NPT

Selection Comparison

• 330881-16-04-132-03-02: Long-penetration (132mm) model with 3/4-14 NPT threading. Ideal for thick-walled machine casings requiring extensive reach.
• 330881-16-00-175-00-02: Zero-standoff variant with a deeper 175mm penetration. Best suited for applications where the sensor head must be positioned deep within the machinery without an intermediate standoff adapter.

Application and Diagnostic Capability

The system provides a linear output of 7.87 V/mm, allowing for precise gap monitoring. Technicians can perform rapid diagnostics by probing the DC gap voltage at the monitor. The housing is impact-certified (4J/7J), ensuring that even under severe mechanical stress, the internal sensor remains protected.

Logistics and Quality Assurance

• Shipping: Priority 24-48 hour dispatch via FedEx, UPS, and DHL.
• Warranty: 12-month performance warranty included.

Professional FAQ

Why is the recommended gap setting 1.27 mm?
This ensures the sensor operates in the middle of its 2.0 mm linear range, preventing saturation during high-amplitude shaft vibrations.

Can this unit operate in extremely hot environments?
The probe is rated up to 177°C. However, the pressure seal may fail if the temperature drops below -34°C, so insulating the housing is recommended for cold climates.

How do I interpret the housing impact ratings?
The 4-Joule and 7-Joule certifications mean the enclosure can survive accidental strikes from heavy tools without compromising the electrical integrity of the internal Proximitor sensor.

Is triaxial cable necessary for all installations?
Yes, Bently Nevada recommends 3-conductor shielded triax to ensure the frequency response remains flat up to 10 kHz, particularly over long runs.
