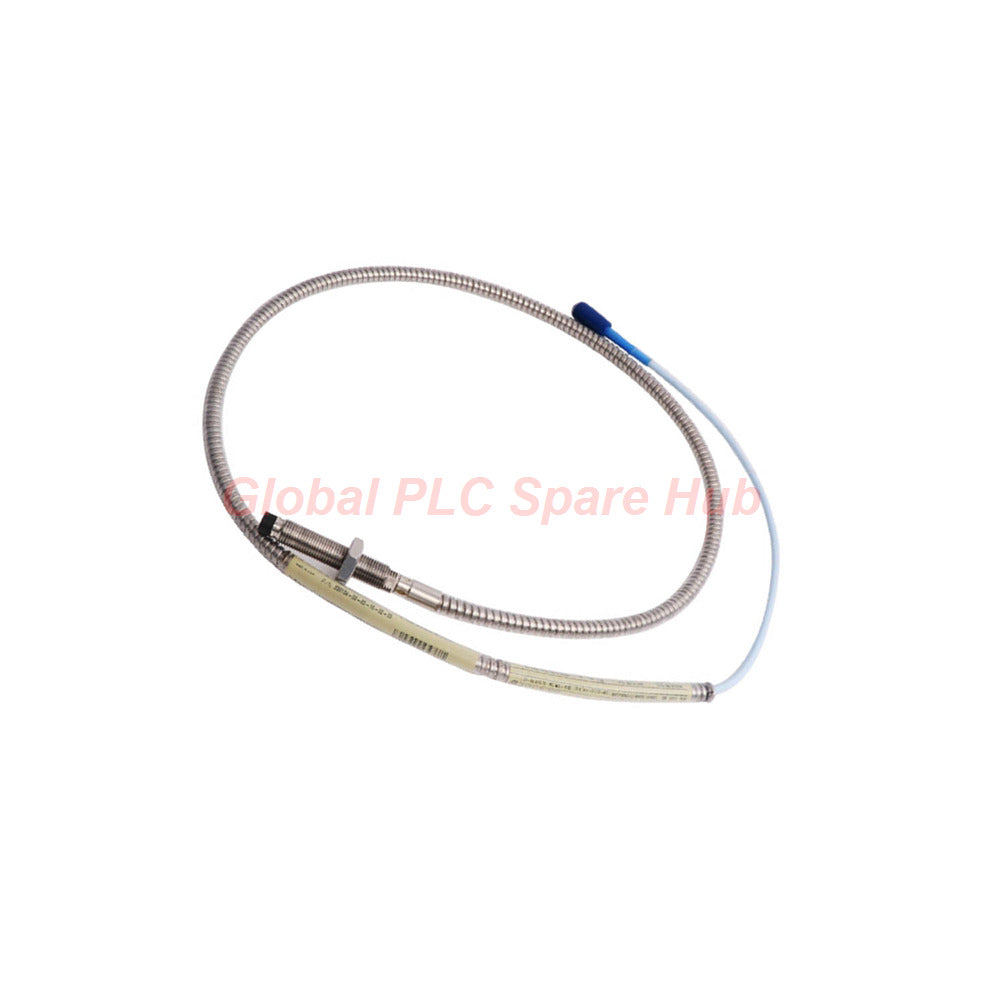

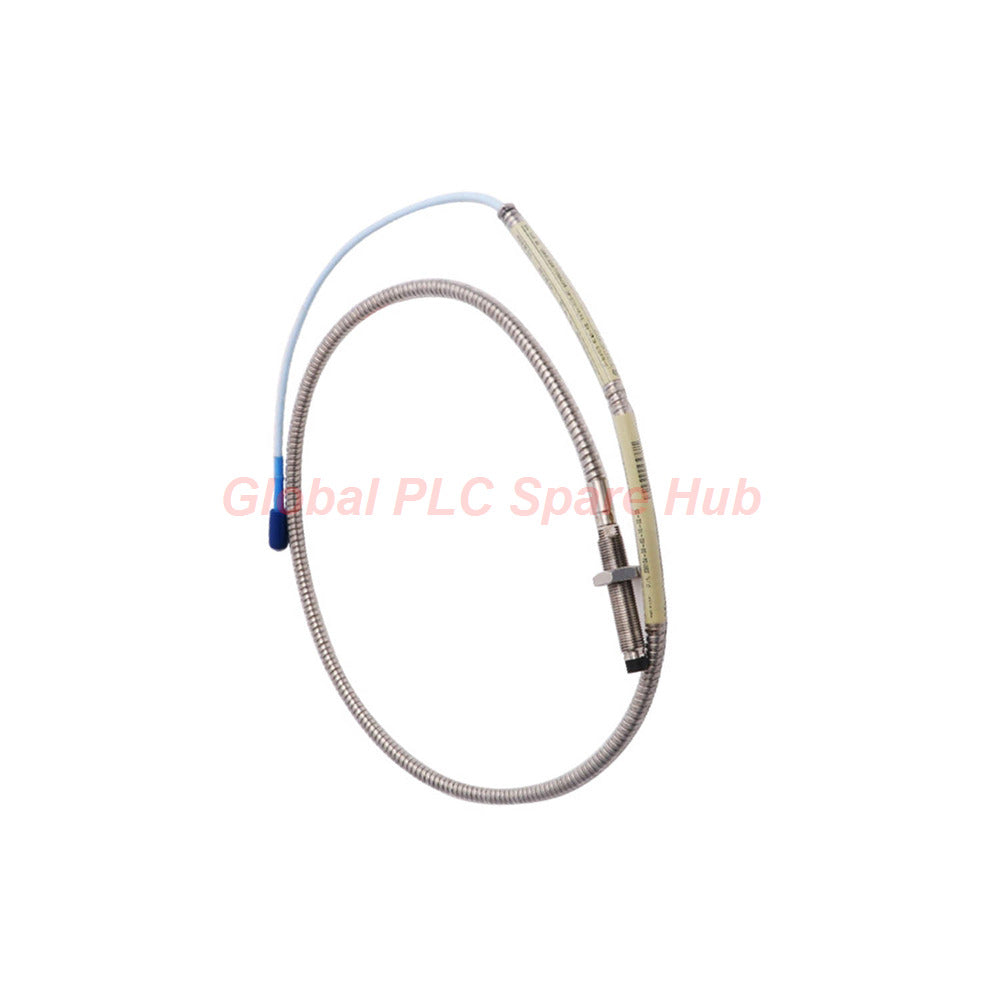

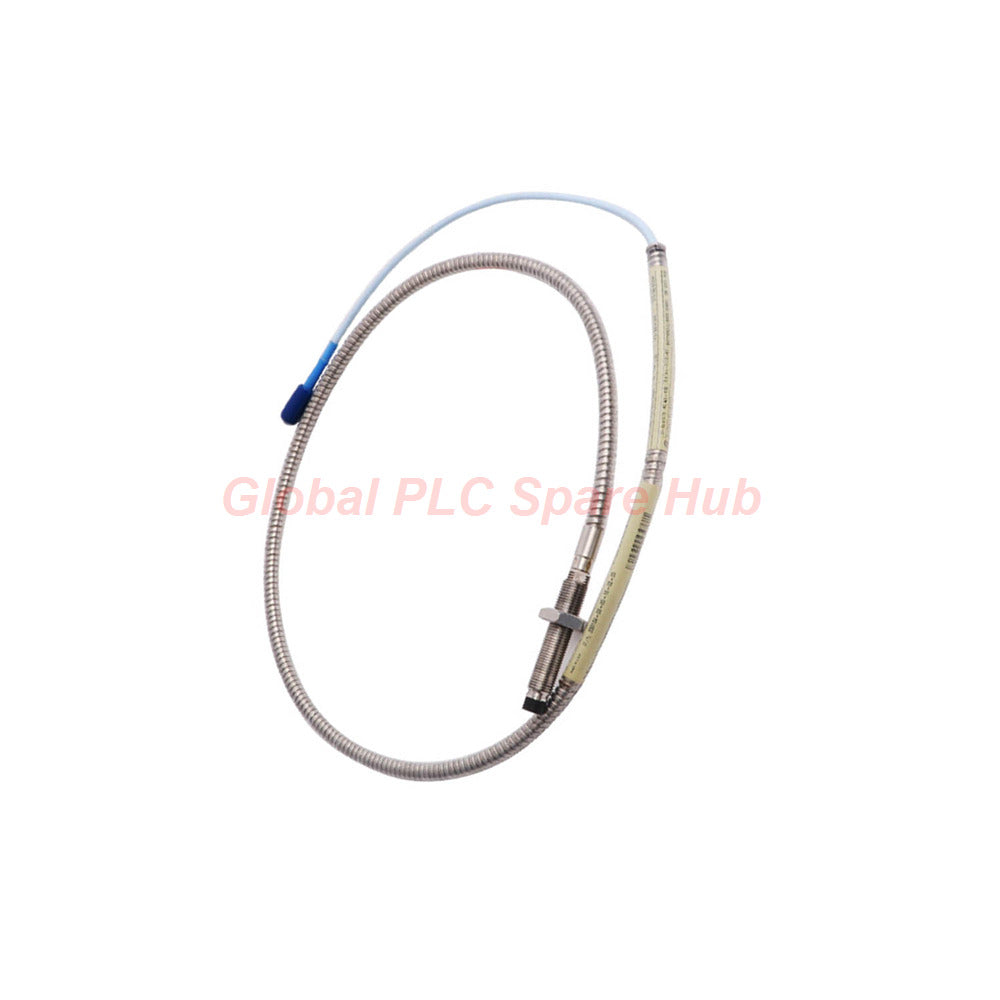

Bently Nevada 330104-00-08-50-01-CN 3300 XL 8mm Proximity Probe Module

Product Introduction

Welcome to the Global PLC Spare HUB Review for the Bently Nevada 330104-00-08-50-01-CN 3300 XL 8 mm Proximity Probe. This industrial vibration monitoring component delivers high precision for critical rotating machinery. Engineers use this 3300 XL Series transducer system to measure vibration and position in extreme industrial environments. The 330104-00-08-50-01-CN utilizes advanced eddy current technology to track dynamic shaft motion. Global PLC Spare HUB's Insight highlights that reliable mechanical protection prevents catastrophic turbine and compressor failures.

Technical Specifications

We categorize the technical parameters using the MECE principle to ensure complete and non-overlapping coverage:

• Brand: Bently Nevada
• Model: 330104-00-08-50-01-CN
• Series: 3300 XL Series
• Measurement Range: Linear range of 2.0 mm, designed for probe gapping at 1.27 mm.
• Sensitivity: 7.87 V/mm nominal output change relative to target distance.
• Linearity: Highly linear output across the entire 2.0 mm measurement range using an AISI 4140 steel target.
• Electrical Characteristics: Requires -17.5 Vdc to -26 Vdc power supply, 12 mA maximum consumption, with 50 ohms output resistance.
• Temperature Range: Probe operating range spans from -55 degrees Celsius to +232 degrees Celsius depending on the temperature classification.
• Environmental Tolerance: Features Polyphenylene sulfide probe tips and AISI 303 or 304 stainless steel cases to withstand harsh conditions.
• Interference Resistance: Armored cable design protects signal integrity against severe electromagnetic interference.

Installation Guidelines

• Mount the 330104-00-08-50-01-CN securely using the M10 x 1 thread into the machinery housing.
• Maintain proper probe gapping at 1.27 mm to ensure optimal linear output voltage.
• Connect the miniature coaxial ClickLoc connector firmly to the compatible 5-meter Proximitor sensor.
• Route the armored cable away from high-voltage power lines to minimize electrical noise.
• Verify power supply voltage falls between -17.5 Vdc and -26 Vdc prior to system startup.

Commissioning and Maintenance Convenience

• The ClickLoc connector design allows fast and secure cable connections without specialized tools.
• Technicians verify system health quickly by checking the -24 Vdc nominal input and output resistance.
• Routine maintenance requires simple visual inspections of the stainless steel case and Viton O-ring seals.
• Standardized electrical parameters minimize calibration time during initial hardware setup.

Compatibility & Integration

• Fully compatible with standard 5-meter 3300 XL 8 mm Proximitor sensors.
• Integrates seamlessly into existing machinery protection racks and monitoring software.
• Requires matching extension cables designed exclusively for 3300 XL Series components.

Certification Information

• Country Specific Approval designated by the CN suffix option.
• Certified for hazardous locations when installed with intrinsically safe zener barriers or galvanic isolators.
• Complies with Class I, Zone 0 AEx/Ex ia IIC approvals and Division 2 nonincendive ratings.

Package Contents & Warranty

• One Bently Nevada 330104-00-08-50-01-CN 3300 XL 8 mm Proximity Probe with armor and 5.0-meter cable.
• Standard connector protector and installation hardware.
• Backed by a comprehensive 12-month warranty from the date of purchase.

Shipping and Logistics

• Fast dispatch within 24-48 hours for in-stock inventory.
• Reliable global delivery handled via FedEx, UPS, and DHL.
• Secure industrial packaging protects sensitive components during transit.

Typical Applications and Diagnostic Capability

• Application 1: Radial vibration and thrust position monitoring on large steam and gas turbines.
• Application 2: Shaft relative vibration tracking inside centrifugal compressors and industrial pumps.
• Diagnostic Capability: Detects rotor imbalance, shaft misalignment, bearing wear, and oil whirl before mechanical failure occurs.

Frequently Asked Questions (FAQ)

Can I use a 5-meter probe with a 9-meter Proximitor sensor?

No, the 330104-00-08-50-01-CN is specifically designed for use with a 5-meter Proximitor sensor only to maintain calibration accuracy.

What causes a reduced linear range during operation?

Operating the system with a power supply voltage more positive than -23.5 Vdc can result in a reduced linear range.

How do I troubleshoot erratic vibration readings on the 330104-00-08-50-01-CN?

Check the probe gap setting, verify secure ClickLoc connector seating, and inspect the armored cable for physical damage or grounding faults.

Why does the 3300 XL Series require an AISI 4140 steel target?

System accuracy and interchangeability specifications rely on the magnetic and electrical properties of the standard AISI 4140 target material.

What is the best practice for replacing a damaged 330104-00-08-50-01-CN probe in the field?

Always replace the probe, extension cable, and Proximitor sensor as a matched calibrated set if high-precision diagnostic tracking is required.
