Bently Nevada 330101-00-36-05-02-00 3300 XL 8mm Probe | Vibration Sensor

Product Overview

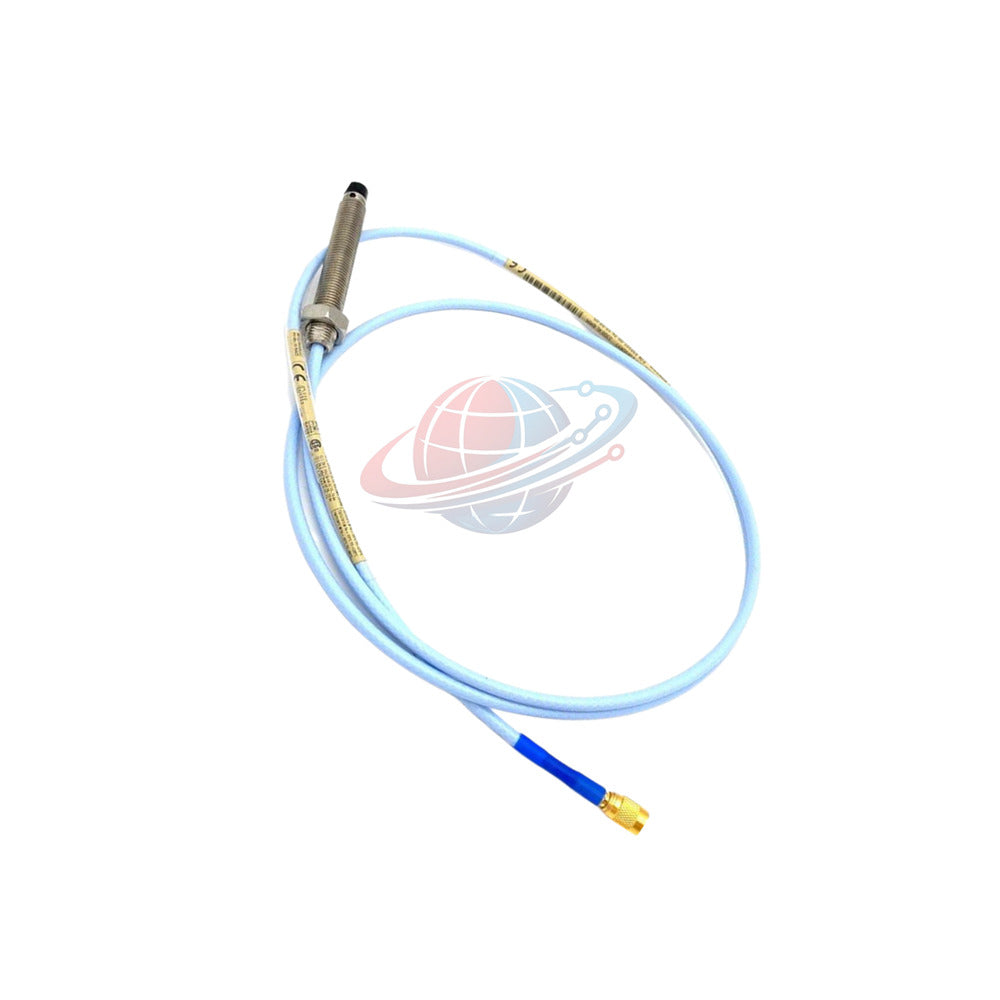

Bently Nevada 330101-00-36-05-02-00 belongs to the 3300 XL 8 mm Proximity Probe Series. This probe supports accurate shaft vibration and position monitoring in rotating machinery applications.

The probe uses a rugged stainless-steel body and PPS probe tip. It delivers stable performance in demanding industrial environments.

The patented TipLoc and CableLoc technologies improve cable retention and probe durability. Engineers often select this model for turbines, compressors, pumps, and critical rotating equipment.

• Brand: Bently Nevada
• Series: 3300 XL 8 mm
• Model: 330101-00-36-05-02-00
• Product Type: Proximity Probe
• Thread Type: 3/8-24 UNF
• Cable Armor: Without Armor
• Origin: Made in U.S.A.

Configuration Breakdown

• 330101
  • 3300 XL 8 mm Probe
• 00
  • 0.0 inch unthreaded length
• 36
  • 3.6 inch overall case length
• 05
  • 0.5 meter total length
• 02
  • Miniature coaxial ClickLoc connector
  • Standard cable type
• 00
  • No additional approvals required

Technical Specifications

• Brand: Bently Nevada
• Series: 3300 XL 8 mm Series
• Model: 330101-00-36-05-02-00
• Measurement Range: 0.25 mm to 2.3 mm linear range
• Recommended Gap: -9 Vdc at approximately 1.27 mm
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Linearity: Less than ±0.025 mm deviation
• Probe Resistance: 7.45 ± 0.50 Ω
• Extension Cable Capacitance: 69.9 pF/m typical
• Frequency Response: Supports high-frequency vibration monitoring
• Resolution Capability: Suitable for micron-level shaft movement detection
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 stainless steel
• Operating Temperature: -52°C to +177°C
• Extended Temperature Option: Up to +218°C probe tip
• Humidity Resistance: IEC 68 2 3 compliant at 93% humidity
• Pressure Sealing: Viton O-ring sealed construction
• Cable Pull Strength: 330 N retention strength
• EMI Resistance: Shielded triad wiring recommended
• Maximum Field Wiring Distance: 305 meters
• Weight: 323 g/m

3300 XL Series Technical Insight

3300 XL 8 mm probes provide stronger mechanical protection than smaller probe designs.

The larger body diameter improves resistance against vibration, cable stress, and installation damage.

TipLoc molding technology strengthens the probe tip bond. CableLoc technology improves cable retention during long-term operation.

The optional FluidLoc cable design reduces oil migration risks inside machinery housings.

The series supports stable monitoring performance in turbines, compressors, generators, pumps, and high-speed rotating systems.

Installation Guidelines

• Verify probe thread compatibility before installation
• Maintain the recommended probe target gap
• Use shielded triad cable for field wiring
• Avoid sharp cable bending during routing
• Keep wiring away from high-voltage power cables
• Confirm stable grounding before commissioning
• Check connector locking after installation
• Protect the probe from direct mechanical impact

Commissioning and Maintenance Advantages

• Fast gap adjustment simplifies startup
• ClickLoc connector speeds cable replacement
• Stable sensitivity reduces recalibration frequency
• Long cable support improves cabinet flexibility
• Rugged housing lowers maintenance risk
• Supports predictive maintenance programs
• Compatible with continuous vibration diagnostics

Compatibility Information

330101-00-36-05-02-00 works with Bently Nevada 3300 XL Proximitor systems and compatible monitoring modules.

• Compatible with 3300 XL Proximitor Sensors
• Suitable for 5-meter and 9-meter systems
• Supports radial vibration monitoring
• Supports shaft position monitoring
• Suitable for turbine protection systems
• Integrates with rotating machinery monitoring platforms

Typical Applications

• Steam turbines
• Gas turbines
• Industrial compressors
• High-speed pumps
• Generators
• Fans and blowers
• Motor shaft vibration analysis
• Critical rotating equipment protection

Diagnostic Capabilities

• Detects shaft displacement changes
• Monitors radial vibration trends
• Supports early bearing fault detection
• Identifies misalignment conditions
• Detects imbalance conditions
• Supports predictive maintenance analysis
• Improves machine reliability planning

Selection Comparison and Engineering Advice

Alternative model reference:

330101-00-10-10-12-05

• 330101-00-36-05-02-00
  • Shorter total cable length
  • Suitable for compact installations
  • Standard ClickLoc connector design
  • Good for cabinet proximity installations
• 330101-00-10-10-12-05
  • Longer configuration options available
  • Suitable for extended routing conditions
  • Useful for large turbine housings
  • Better for long-distance cable management

Engineering Recommendation:

Select shorter probes for compact machinery layouts. Choose longer configurations when routing space becomes limited.

Global PLC Spare HUB's Insight

Bently Nevada 3300 XL 8 mm Series remains a preferred solution for industrial vibration monitoring.

Engineers value the series for stable sensitivity, rugged construction, and long operational life.

The probe performs well in continuous-duty rotating equipment environments. It suits both OEM machinery builders and maintenance upgrade projects.

This model fits applications requiring reliable shaft vibration diagnostics with minimal maintenance interruptions.

Certification and Compliance

• IEC humidity testing reference compliance
• Industrial-grade stainless steel construction
• Designed for industrial machinery monitoring
• Supports long-term industrial operation

Packing List

• 1 × 330101-00-36-05-02-00 Probe
• 1 × Protective packaging set
• 1 × Product inspection label

Shipping Information

• Fast delivery available worldwide
• FedEx international shipping supported
• UPS international shipping supported
• DHL international shipping supported
• Typical dispatch time: 24–48 hours
• Professional export packaging provided

Warranty Terms

• 12-month warranty included
• Technical support available during warranty period
• Professional packing before shipment
• Functional inspection completed before dispatch

FAQ

• What equipment uses the 3300 XL 8 mm probe?

  The probe supports turbines, compressors, pumps, generators, and other rotating machinery.

• Why do engineers prefer 8 mm probes?

  The larger probe body improves mechanical strength and installation durability.

• What happens if the probe gap becomes incorrect?

  Incorrect gap settings may reduce measurement accuracy and vibration reliability.

• Can this probe operate in humid environments?

  Yes. The probe passed long-duration IEC humidity testing conditions.

• How should field wiring be installed?

  Use shielded triad cable and separate signal wiring from power cables.

• What is the benefit of the ClickLoc connector?

  The connector improves cable security and simplifies maintenance replacement.

• How can users improve long-term reliability?

  Maintain stable grounding and avoid excessive cable bending during installation.

• Which configuration suits compact machinery?

  Shorter cable configurations work better in limited installation spaces.

• Can this model support predictive maintenance systems?

  Yes. The probe supports continuous vibration trend monitoring and fault diagnostics.
