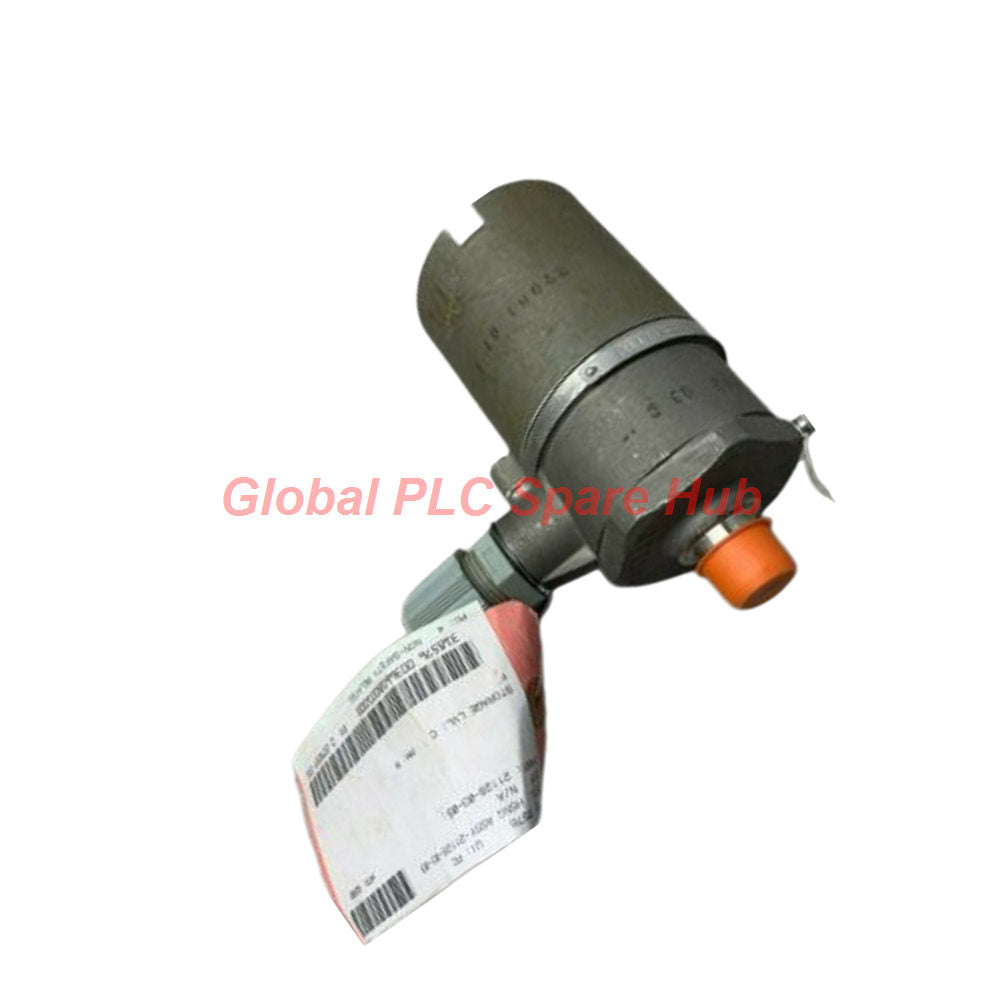

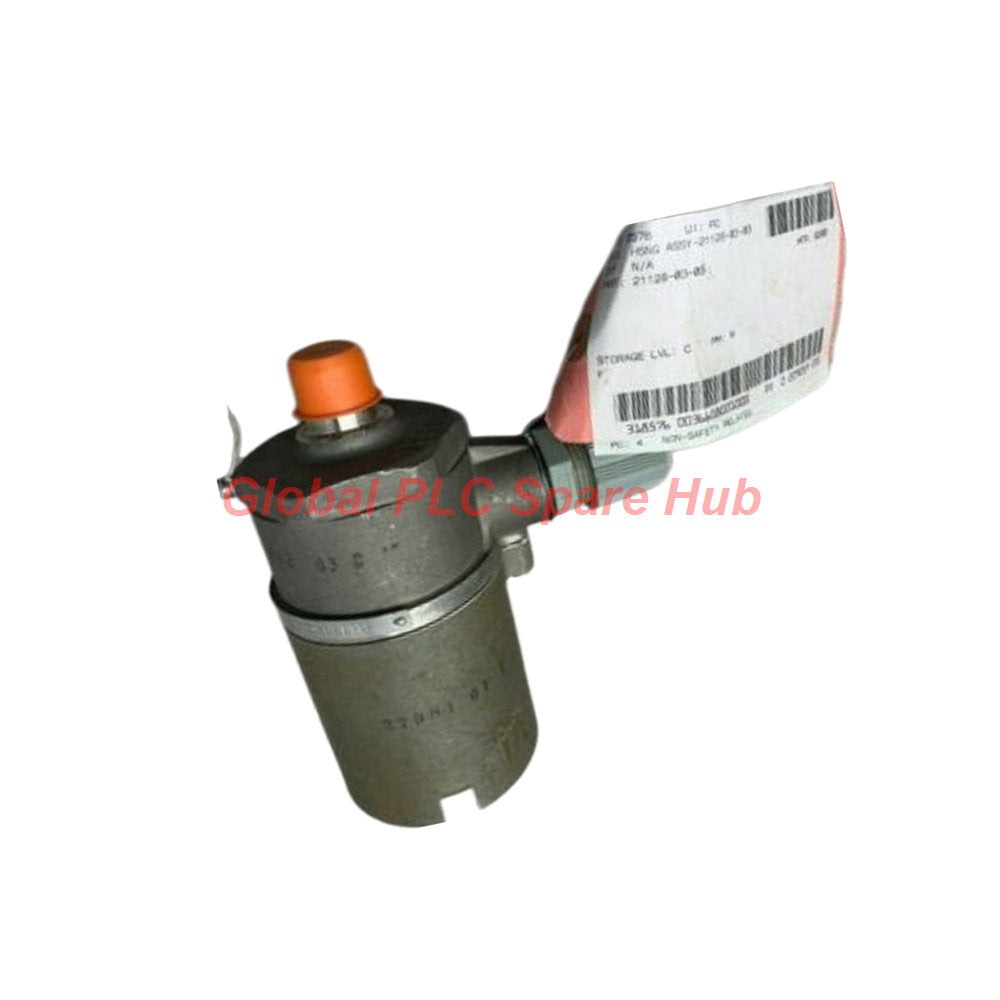

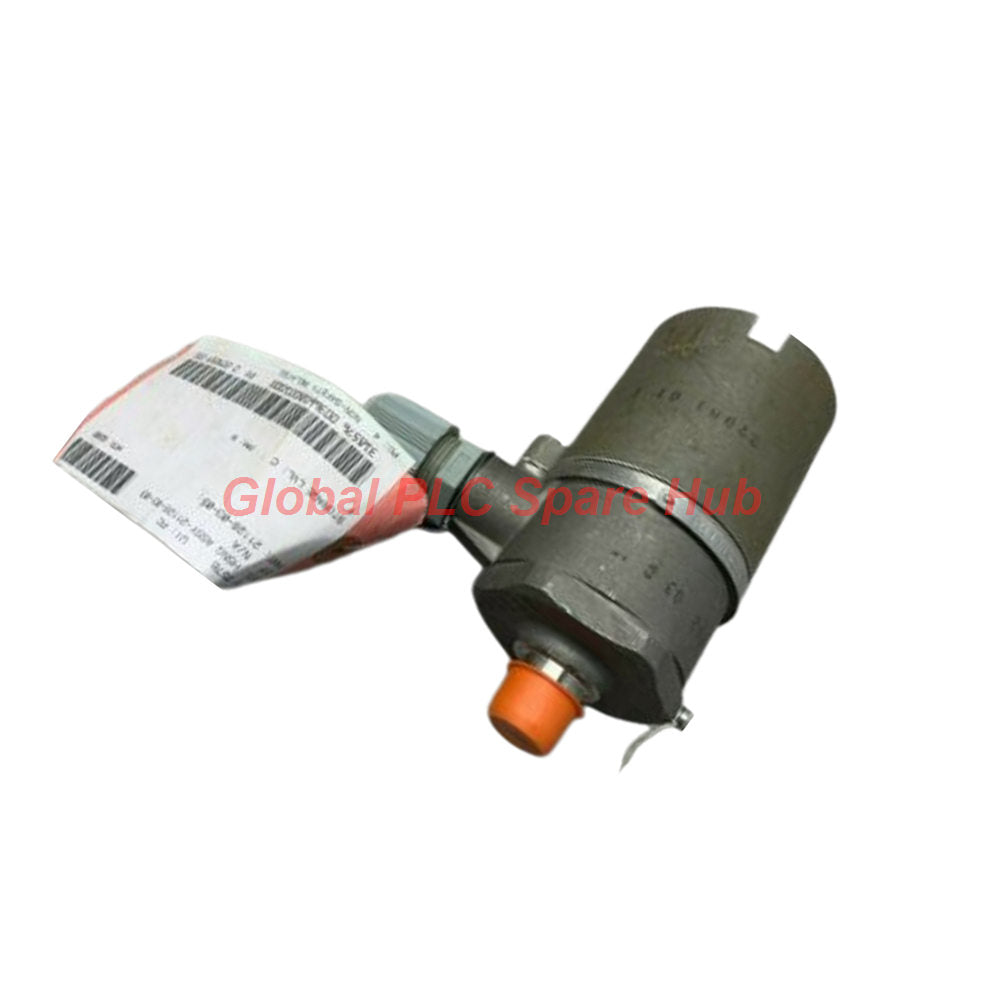

Bently Nevada 21128-02-01 Velocity Transducer Housing

Bently Nevada 21128-02-01 MOD 148264-02 Product Overview

The Bently Nevada 21128-02-01 MOD 148264-02 is a premium velocity transducer housing. It shields delicate industrial sensors from harsh environmental damage.

This rugged housing withstands high-pressure water jets and highly corrosive atmospheres. It features a heavy-duty 303 stainless steel body.

The assembly meets NEMA 4X and IP65 requirements when you install it correctly. It excels in non-hazardous industrial process areas.

The integrated Neoprene O-ring blocks moisture infiltration during operation. This protection preserves critical signal transmission path integrity.

Global PLC Spare HUB's Insight

The Bently Nevada 21128 series provides reliable environmental isolation for vibration monitoring systems. Mechanical maintenance teams choose this housing for critical plant assets.

It acts as a physical shield for delicate seismic and velocity sensors. The 303 stainless steel structure absorbs high mechanical impacts.

This protection helps prevent sensor calibration shift from structural knocks. It reduces unplanned downtime in power generation and processing plants.

The modular cap design allows field upgrades for tall-profile sensor models. This housing simplifies sensor changeouts during scheduled maintenance windows.

Technical Specifications

Target Equipment Compatibility

The Bently Nevada 21128 housing safely hosts several specialized vibration sensors:

• Velomitor CT Velocity Transducer (requires the optional tall cap configuration)
• 9200 Seismoprobe Velocity Transducer (requires the tall cap when using an isolated base)
• 74712 Seismoprobe Velocity Transducer (requires the tall cap when using an isolated base)
• Standard low-profile Bently Nevada velocity and accelerometers with 1/2-in 20 UNF mounting threads

Typical Applications and Diagnostic Capabilities

• Cooling Tower Fans: Protects sensors against constant water spray and dense humidity.
• Hydroelectric Turbines: Shields critical monitoring points from high moisture and leakage risks.
• Pulp and Paper Mills: Guards transducers against caustic chemical washdown procedures.
• Predictive Maintenance: Enables clean, noise-free diagnostic signals for early bearing wear detection.
• Structural Vibration Analysis: Secures seismic transducers during long-term machine foundation monitoring.

Installation and Mounting Guidelines

• Clean the machine mounting surface to ensure complete metal-to-metal contact.
• Apply thread sealant to the 3/4-in NPT mounting threads before installation.
• Torque the housing securely to prevent loosening from machine vibration.
• Verify the internal 1/2-in 20 UNF thread is clear of debris.
• Thread the target velocity sensor into the base and tighten to specification.
• Inspect the Neoprene O-ring for proper seating before tightening the housing cap.

Commissioning & Maintenance

• Check the O-ring integrity during scheduled annual sensor calibration cycles.
• Replace damaged O-rings immediately to preserve the IP65 rating.
• Keep the 1/2-in NPT cable conduit connection tight to prevent water entry.
• Wipe the stainless steel housing exterior with mild solvents during routine cleanings.
• Verify the cable connection remains dry and free of corrosion.

Shipping, Packaging & Warranty Terms

• Package Contents: 1 x Bently Nevada 21128-02-01 Housing with Neoprene O-ring, 1 x 1/2-in NPT plug.
• Warranty Coverage: Full 12-Month Quality Guarantee against material and manufacturing defects.
• Shipping Carrier Options: Reliable express delivery via FedEx, UPS, or DHL.
• Dispatch Window: Packaged and shipped within 24 to 48 hours of order confirmation.

Buying Guide & Selection Criteria

• Hazardous vs. Non-Hazardous: Use 21128 for safe areas. Select CA21128 for Class I/II/III Div 1 explosion-proof areas.
• Cap Height Choice: Order the tall cap if installing a Velomitor CT.
• Base Isolation Check: Order the tall cap if using an isolated base with a 9200 or 74712 Seismoprobe.
• Thread Standard: Verify your machinery accepts 3/4-in NPT outer threads before finalizing.

Frequently Asked Questions (FAQ)

Q: Can I use this housing in Class I, Division 1 hazardous areas?

A: No. The standard 21128 is for non-hazardous locations. You must buy the certified CA21128 version for explosion-proof applications.

Q: Which cable do I need to connect my Velomitor inside this housing to a monitor?

A: You must use the Bently Nevada cable part number 89477-AA for proper connections.

Q: Does the housing come with the internal velocity sensor pre-installed?

A: No. The housing ships without a velocity sensor. You must order the sensor separately and install it.

Q: Can this housing be submerged underwater?

A: No. The housing is highly water-resistant and corrosion-resistant. However, it is not rated for continuous submersion.
