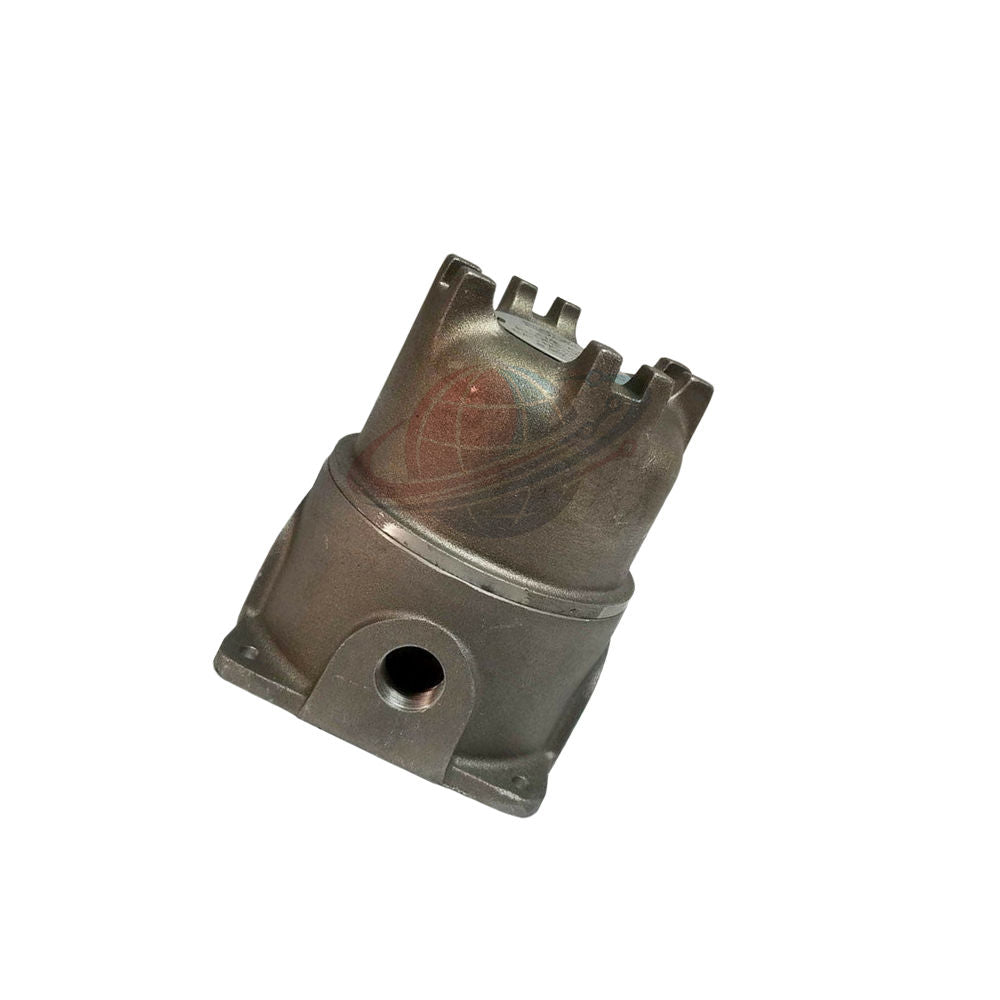

Bently Nevada 21022-30-10-017-03 Dual Axial Position Housing Assembly

Product Overview – Bently Nevada 21022-30-10-017-03

Bently Nevada 21022-30-10-017-03 is a dual axial probe housing assembly designed for precise thrust position monitoring in rotating machinery.

This assembly integrates two 3300 XL 11 mm proximity probes inside a durable external enclosure.

The housing protects probes, extension cables, and connectors from harsh industrial environments.

It supports reliable axial displacement monitoring near thrust bearing locations.

The enclosure design follows API 670 requirements for axial thrust position transducer housings.

Engineers can access probe adjustments externally without opening the machine casing.

The removable enclosure cover simplifies gap setting and routine inspection procedures.

Global PLC Spare HUB's Insight

21022 Series housings provide stable and repeatable axial position measurements for critical turbomachinery.

The external mounting structure improves maintenance efficiency during plant shutdowns.

The aluminum alloy enclosure resists corrosion and industrial contamination.

Dual probe architecture supports redundant monitoring strategies in critical assets.

This assembly performs well in steam turbines, compressors, pumps, and generators.

Industrial maintenance teams value the fast probe access and reliable cable protection.

Key Features

• Dual axial monitoring configuration
• Integrated 3300 XL 11 mm probes
• API 670 compliant housing structure
• External probe adjustment capability
• High mechanical durability
• Corrosion-resistant aluminum alloy enclosure
• 304 stainless steel sleeves
• Designed for demanding rotating equipment
• Supports accurate shaft thrust movement detection
• Protects probe wiring from dust and liquids

Technical Specifications

• Brand: Bently Nevada
• Model: 21022-30-10-017-03
• Series: 21022 Dual Axial Probe Housing Assembly
• Product Type: Dual Axial Probe Housing Assembly
• Country of Origin: Made in U.S.A.
• Probe Type: 3300 XL 11 mm proximity probe
• Probe Configuration: Dual probe arrangement
• Probe Cable Length: 1.0 metre (39 in)
• Probe Penetration: 1.7 in
• Housing Material: Aluminum alloy, sand cast, copper-free
• Sleeve Material: 304 stainless steel
• Weight: 3.6 kg (8 lb)
• Mounting Method: External machine case mounting
• Thread Type: Dual 3/4-14 NPT threaded holes
• Environmental Protection: Resistant to dust and liquid splashing
• Measurement Capability: Axial shaft thrust position monitoring
• Frequency Response: Optimized for dynamic shaft movement monitoring
• Sensitivity: Compatible with 3300 XL transducer system sensitivity standards
• Linearity: High linear response within calibrated probe range
• Resolution: Supports micron-level shaft displacement detection
• Temperature Resistance: Suitable for industrial operating environments
• EMI Resistance: Industrial-grade shielding against electromagnetic interference
• Mechanical Durability: High vibration resistance structure
• Compliance: API 670 Standard

Configuration Breakdown

• 30 = 3300 XL 11 mm probe, multiple approvals
• 10 = 1.0 metre probe cable length
• 017 = 1.7 in probe penetration
• 03 = Cable seal grip fitting kit with NPT reducers

Fittings Kit Details

• Two cable seal grips included
• Supports cable sizes from 1/8-in to 3/8-in
• Includes two 3/4-14 to 1/2-14 NPT reducers
• Fittings ship separately inside the kit package
• Factory shipment does not include pre-installed fittings

Installation Guidelines

• Install the housing near the machine thrust bearing location
• Use four standard machine screws for enclosure mounting
• Align probes carefully with the shaft observation surface
• Maintain correct probe target gap during setup
• Use proper cable routing to reduce electrical noise
• Verify NPT thread sealing before commissioning
• Inspect probe penetration depth before startup

Commissioning and Maintenance Advantages

• External adjustment reduces maintenance downtime
• Removable cover simplifies probe calibration
• Fast access improves inspection efficiency
• Robust enclosure minimizes environmental contamination
• Probe replacement procedures remain straightforward
• Supports predictive maintenance strategies

Compatibility Information

• Compatible with Bently Nevada 3300 XL monitoring systems
• Supports axial thrust monitoring applications
• Suitable for turbine monitoring systems
• Works with rotating machinery protection platforms
• Integrates with industrial vibration monitoring systems

Typical Applications

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Industrial pumps
• Generators
• Process plant rotating equipment
• Petrochemical machinery protection systems
• Power generation monitoring systems

Diagnostic Capabilities

• Detects axial shaft displacement changes
• Supports early thrust bearing fault detection
• Helps prevent rotor contact damage
• Improves rotating equipment reliability
• Supports trend analysis and predictive diagnostics
• Enhances machinery protection system accuracy

Packaging List

• 1 × 21022-30-10-017-03 housing assembly
• 2 × 3300 XL 11 mm probes
• 1 × Fittings kit
• 1 × Protective enclosure cover
• 1 × Factory inspection documentation

Shipping Information

• 24-48 hours fast dispatch available
• Worldwide shipping support
• Courier options include FedEx, UPS, and DHL
• Protective industrial export packaging
• Tracking number provided after shipment

Warranty Terms

• 12-month warranty included
• Technical support available during warranty period
• Functional testing completed before shipment
• Industrial packaging ensures transport safety

FAQ

What equipment commonly uses the 21022-30-10-017-03 assembly?

This assembly commonly protects turbines, compressors, generators, and large industrial pumps.

Why does dual probe monitoring improve reliability?

Dual probes provide redundant axial position measurements for critical machinery protection.

Can engineers adjust probes without machine disassembly?

Yes. The external enclosure design allows convenient external probe adjustment.

What environmental conditions can this housing tolerate?

The enclosure resists dust, splashing liquids, and industrial contamination.

Does this assembly support API 670 requirements?

Yes. The housing design follows API 670 axial position monitoring standards.

What installation mistake should engineers avoid?

Incorrect probe gap settings can reduce monitoring accuracy and stability.

How can users improve signal reliability?

Use proper cable grounding and separate signal cables from power wiring.

What should buyers confirm before ordering?

Verify probe cable length, penetration depth, and fitting compatibility.

Which monitoring systems support this assembly?

Bently Nevada 3300 XL vibration and position monitoring systems support this model.

Why choose the 21022 Series for thrust monitoring?

The series combines durable protection, precise monitoring, and maintenance convenience.
