Bently Nevada 21000-28-05-20-066-04-02 Proximity Probe Housing

Robust Protection: 21000-28-05-20-066-04-02 Housing Assembly

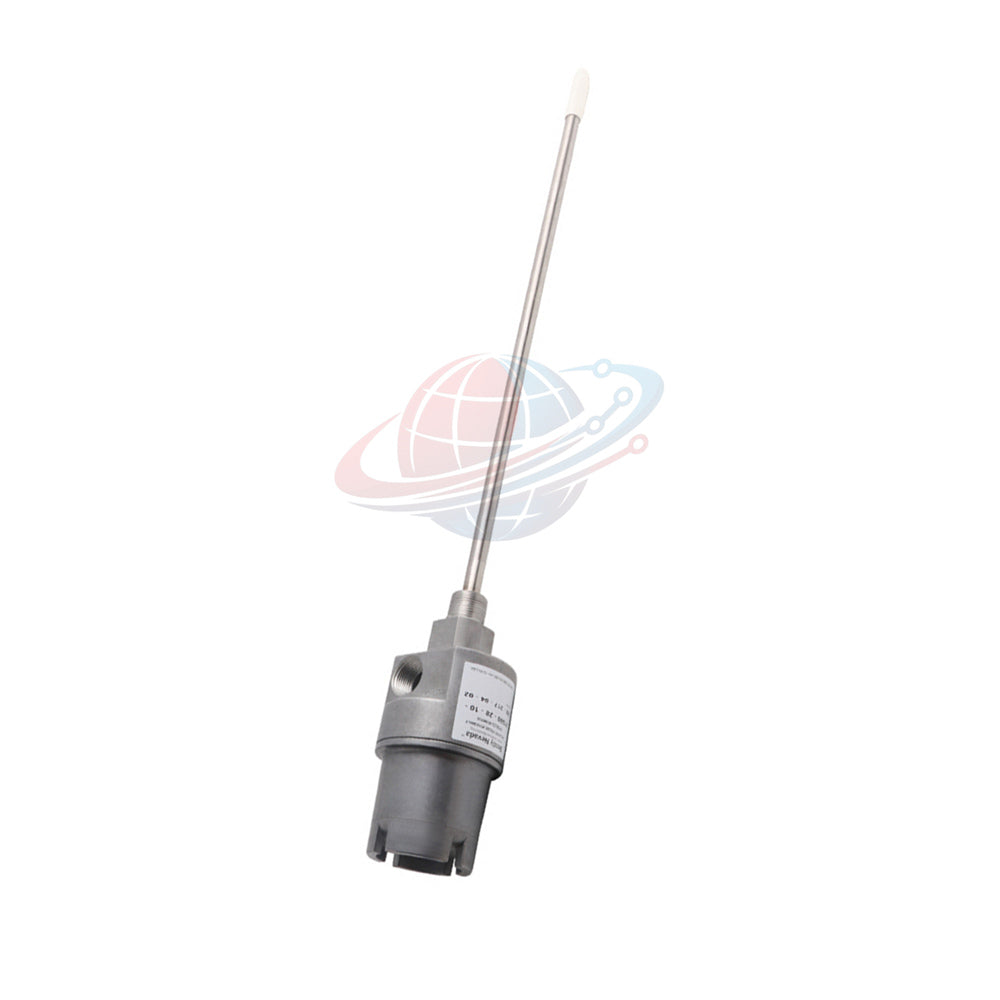

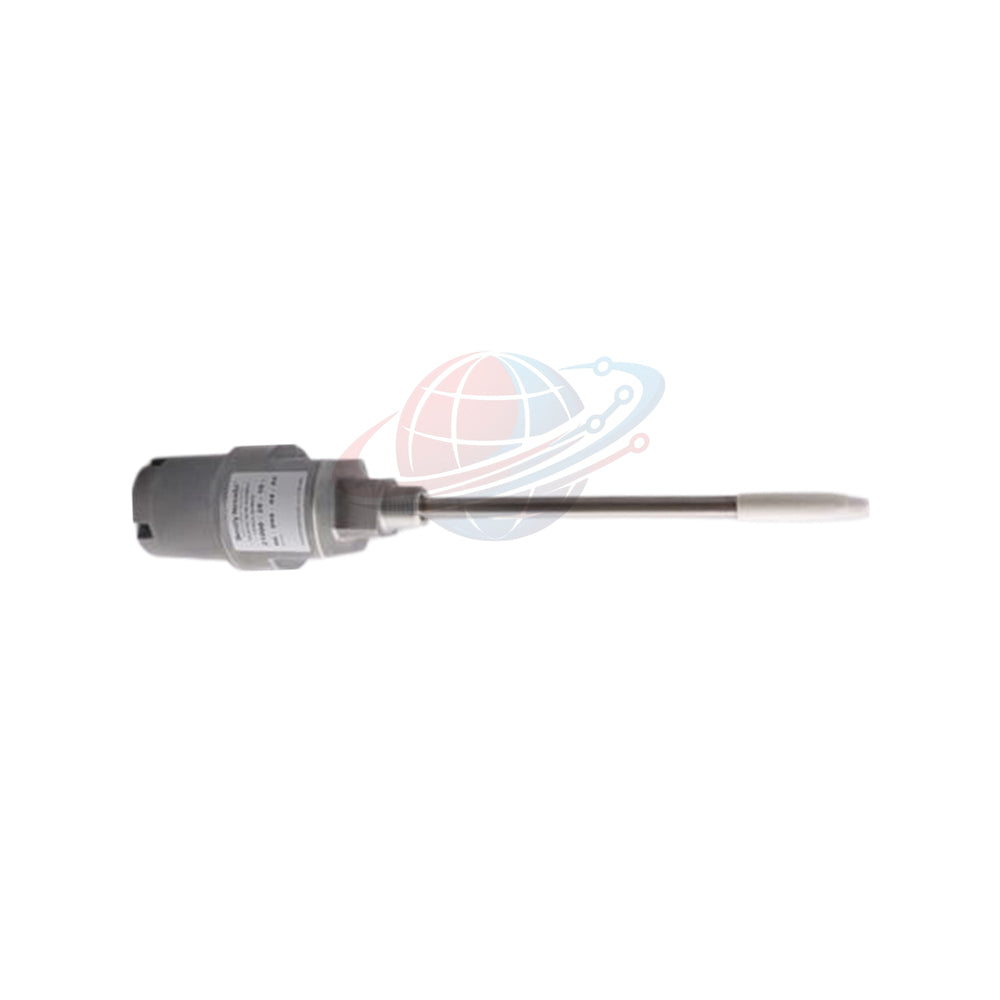

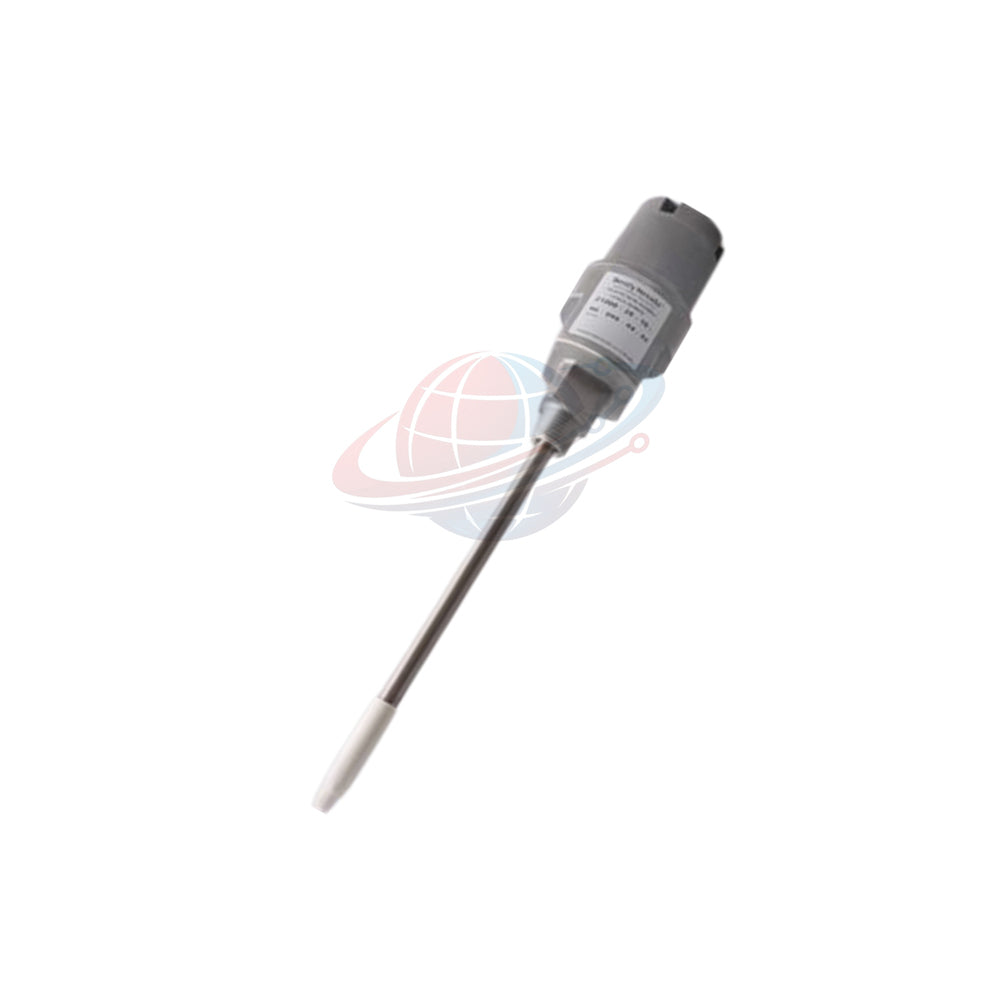

The 21000-28-05-20-066-04-02 is a premium Proximity Probe Housing Assembly by Bently Nevada. Specifically engineered to meet API 670 standards, this aluminum body assembly provides an explosion-proof, Type 4 certified enclosure for critical vibration monitoring sensors in hazardous industrial zones.

Configuration Breakdown

• Model: 21000 Proximity Probe Housing Assembly
• Suffix Selection:
  • 28: 3300 XL 8 mm probe integration
  • 05: 0.5 m (20 in) probe cable length
  • 20: 2-inch standoff adapter
  • 066: 6.6-inch probe penetration
  • 04: Single 3/4-14 NPT conduit plug
  • 02: 3/4-14 NPT mounting thread

Technical Specifications

• Material: Aluminum body with 304 stainless steel sleeve
• Compliance: API 670, RoHS 2011/65/EU
• Hazardous Rating: CSA Class I, Div 1 & 2 (Groups C, D)
• Temperature Class: T5 (-50°C to +40°C) / T4 (-50°C to +80°C)
• Total Weight: ~1.1 kg (2.4 lb)

Selection Comparison & Technical Advice

When selecting your assembly, consider the penetration and standoff requirements of your specific machine case. Compare your needs against this similar configuration: 21000-28-05-15-028-04-02.

Technical Suggestion: The -066 penetration depth on this unit offers significantly more reach than the -028 model. Ensure your probe gap is calibrated to 1.27 mm (50 mils) during installation to maintain optimal signal linearity within the housing.

Global PLC Spare HUB's Insight

This housing is vital for sites operating under stringent safety protocols. The 21000 series is the industry benchmark for externally mounted proximity systems. For ease of maintenance, we recommend pre-inspecting the O-ring seals before final torque-down to ensure the CSA Type 4 ingress protection remains intact throughout the device's service life.

Logistics & Warranty

• Dispatch: Processed and shipped within 24-48 hours.
• Shipping: Global delivery via FedEx, UPS, or DHL.
• Warranty: 12-month factory warranty included.

Professional Frequently Asked Questions

Q: Why choose the Aluminum body over the Stainless Steel (24701) version?
A: The aluminum housing offers excellent weight reduction and cost-efficiency while maintaining high-grade explosion-proof ratings for standard petrochemical environments.

Q: Is this unit compatible with non-hazardous applications?
A: Yes. While it is CSA certified for hazardous areas, it is fully backward compatible with non-hazardous installations requiring API 670 mounting standards.

Q: How do I handle probe penetration adjustments if the 6.6-inch depth is incorrect?
A: Probe penetration is fixed at the factory based on your suffix code. Do not attempt to modify the probe sleeve length in the field, as this will void your hazardous area certification.

Q: Can I use this with non-Bently probes?
A: We strongly advise against mixing components. The system accuracy, particularly in API 670 compliant machinery, relies on the matched impedance of Bently Nevada probes and housings.

Q: What is the benefit of the NPT plug included in this configuration?
A: The NPT plug seals unused conduit ports, which is a mandatory safety requirement for maintaining the explosion-proof integrity of Class I, Division 1 enclosures.
