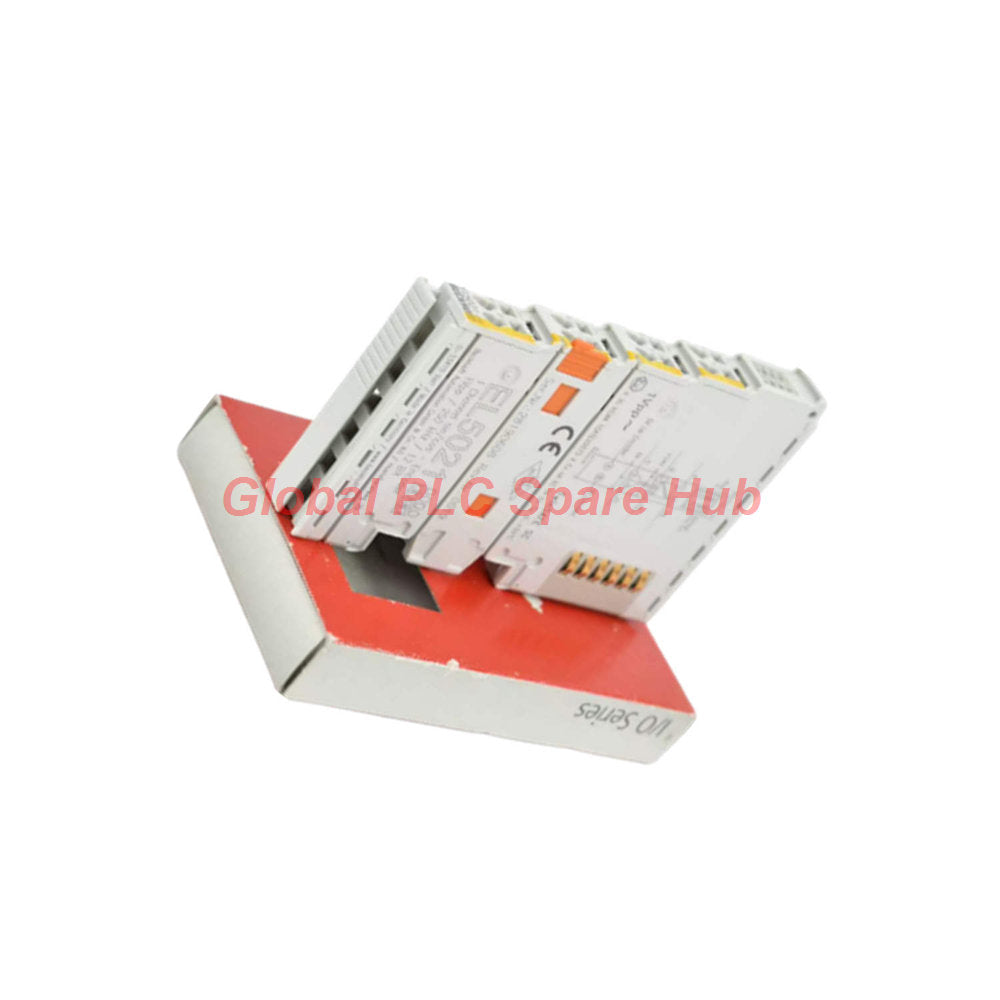

Beckhoff EL5021/ES5021 Series: 1 Vpp Encoder Module for Motion Control

Product Overview

The EL5021 and ES5021 are high-performance EtherCAT terminals designed by Beckhoff for precise motion control applications. These modules facilitate the direct connection of measuring probes or encoders featuring sinusoidal 1 Vpp differential voltage outputs. By utilizing advanced interpolation, the module converts analog input signals into accurate 32-bit count values. With support for input frequencies up to 250 kHz and high-precision EtherCAT Distributed Clocks (DC), these terminals ensure reliable and synchronized data acquisition across complex automation networks.

Technical Specifications

• Model Variants: EL5021 (Standard terminal), ES5021 (Pluggable wiring terminal).
• Technology: Single-channel SinCos encoder interface for 1 Vpp differential signals.
• Encoder Connection: 1 x A, B, C differential inputs (A, A-inv, B, B-inv, C, C-inv).
• Resolution: Max 13-bit, providing up to 8192 steps per period.
• Counter Depth: Max 24-bit (adjustable).
• Max Input Frequency: 250 kHz at 10-bit resolution.
• Encoder Supply: Integrated 5 V DC, max 0.5 A output (derived from 24 V DC power contacts).
• Diagnostics: Real-time detection of amplitude and frequency signal errors.
• Special Features: Latch, Reset, counter direction switching, and integrated frequency measurement.
• Electrical Isolation: 500 V between E-bus and field potential.
• Protection Class: IP20, suitable for 35 mm DIN rail mounting.

Global PLC Spare HUB Insight

The EL5021 series is an essential component for engineers requiring robust, high-resolution position feedback in digital EtherCAT architectures. These terminals excel in demanding environments such as CNC machine tools, high-speed packaging machinery, and sophisticated robotic positioning systems. Our engineering assessment highlights the module's diagnostic capabilities—specifically its ability to identify signal amplitude and frequency anomalies instantly—as a key factor in minimizing maintenance downtime. This terminal is the ideal choice for retrofitting analog encoder feedback into modern, high-speed industrial control loops, ensuring seamless integration and superior motion precision.
