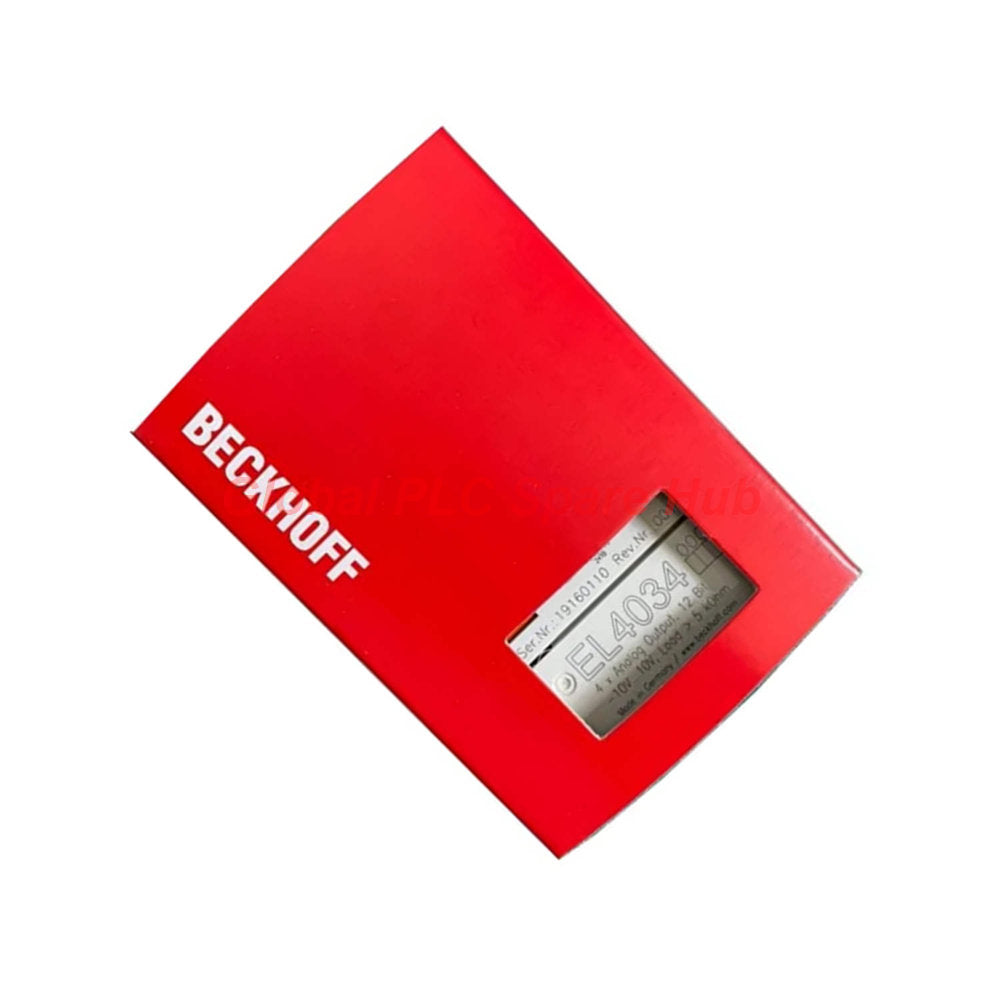

Precision Control: EL4034 EtherCAT Analog Output Terminal

The EL4034 is a high-performance 4-channel analog output terminal from Beckhoff Automation. Designed for the EtherCAT industrial Ethernet system, this module converts digital data into precise ±10 V signals with 12-bit resolution, ensuring optimal control for actuators, valves, and drive systems in demanding automated environments.

Technical Specifications & Performance

• Model: EL4034 (EtherCAT Terminal)
• Number of Outputs: 4 Channels
• Signal Range: -10 V to +10 V
• Resolution: 12-bit (4 x 16-bit in process image)
• Conversion Time: ~250 µs
• Load Impedance: > 5 kΩ (short-circuit proof)
• Isolation: 500 V (E-bus/signal voltage)
• Operating Temp: -25°C to +60°C
• Environment: IP20, EN 61000-6-2/6-4 EMC compliance

Diagnostic & Operational Capabilities

The EL4034 excels in high-speed applications using Distributed Clocks (DC) with jitter precision < 1 µs. It includes a user-activated watchdog function, allowing for safe-state ramp-up or custom output holding values during network interruptions. Integrated LEDs provide immediate visual feedback on the signal state of each of the four channels.

Recommended Applications

• Proportional valve control in hydraulic systems.
• Variable speed drive (VSD) setpoint references.
• Precision positioning systems requiring high-speed synchronization.
• General industrial automation process level signaling.

Global PLC Spare HUB's Insight

In our technical assessment, the EL4034 is the industry workhorse for analog voltage control. Its common ground architecture makes it straightforward for wiring; however, ensure your cable shielding is properly tied to the ground potential to avoid ground loops in noisy environments. The ability to use Distributed Clocks makes it superior for applications where motion and output synchronization are critical.

Logistics & Quality Commitment

• Dispatch: Orders processed and shipped within 24-48 hours.
• Logistics: Secure international shipping via FedEx, UPS, or DHL.
• Warranty: This EL4034 unit includes a 12-month quality assurance warranty.

Professional Frequently Asked Questions

Q: Can I use the EL4034 for current-based control instead of voltage?
A: No. The EL4034 is strictly a voltage-output module. If your application requires 0-20mA or 4-20mA, you should select the EL41xx series instead.

Q: What is the primary benefit of the pluggable ES4034 variant?
A: The ES4034 includes pluggable wiring, which significantly reduces downtime during hardware replacement or maintenance cycles compared to the fixed-wiring EL4034.

Q: How do I manage output values when the EtherCAT connection is lost?
A: You can configure the optional watchdog feature to define specific output behaviors, such as holding the last state, resetting to zero, or executing a ramp to a safe value.

Q: Is external power required for this terminal?
A: Yes, the output stages require a 24V DC supply via the power contacts to drive the output voltages accurately.

Q: How should I choose between the EL4034 and high-resolution alternatives?
A: Select the EL4034 for standard 12-bit precision applications. If your process requires finer granularity, look at 16-bit variants to eliminate quantization steps in sensitive analog feedback loops.
