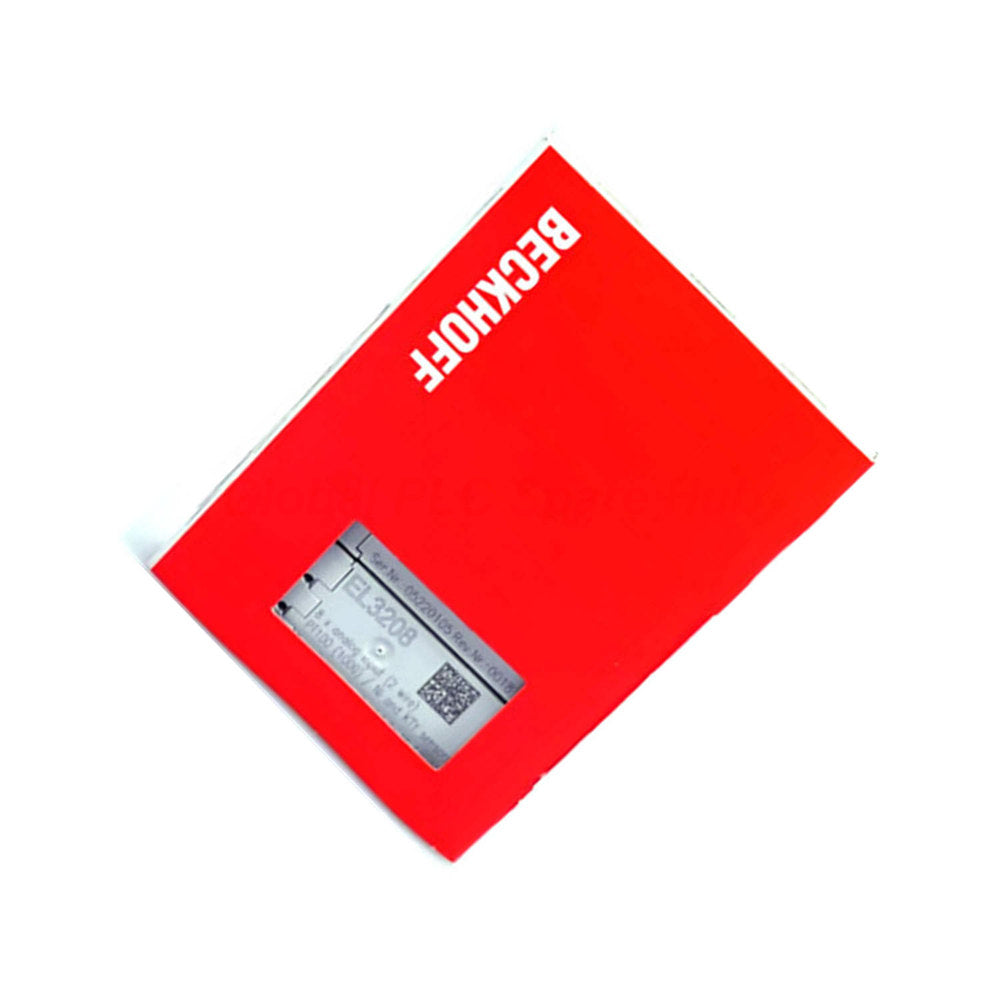

Beckhoff EL3208 EtherCAT Terminal 8-Input RTD Signal Converter

Engineering Overview

The Beckhoff EL3208 is a specialized 8-channel analog input terminal engineered for high-density temperature data acquisition. Designed for the EtherCAT ecosystem, this unit consolidates thermal monitoring into a compact 12 mm module. It supports direct processing of resistance-based sensors, including PT100, PT1000, and NI types. By integrating signal conversion internally, the Beckhoff EL3208 minimizes host controller load and optimizes real-time feedback loops.

Technical Data Specifications

• Brand & Model: Beckhoff EL3208
• Series: EtherCAT High-Density (HD) Input Terminal
• Channel Count: 8 single-ended inputs
• Sensor Compatibility: Pt100/200/500/1000, Ni100/120/1000, KTY, and Ohmic (10 Ω–4 kΩ)
• Conversion Speed: 170 ms (default), configurable from 3 ms to 1600 ms
• Resolution: 0.1 °C per digit (16-bit)
• Accuracy: < ±0.5 °C for Pt sensors
• Measurement Range: -200 °C to +850 °C (Pt); -60 °C to +250 °C (Ni)
• Filtering: Integrated digital filter for signal noise suppression
• Environmental: IP20 rated, -25 °C to +60 °C operation

Global PLC Spare HUB Insight

The Beckhoff EL3208 is a critical component for large-scale thermal management. Our engineers note that its strength lies in the ultra-compact footprint, allowing for 8-point sensing where panel space is at a premium. This terminal is ideal for multi-zone heating control, HVAC monitoring, and high-precision laboratory test benches where channel density and signal stability are mandatory.

Reliability and Logistics

• Quality Guarantee: Comprehensive 12-month warranty included.
• Shipping Partners: Global distribution via FedEx, UPS, and DHL.
• Lead Time: Rapid fulfillment; dispatch within 24–48 hours.
• Support: Technical documentation and robust packaging ensure transit integrity.

Operational Diagnostics

The terminal provides comprehensive diagnostic feedback directly via the EtherCAT process image. System status is visually confirmed by onboard LEDs, allowing technicians to identify sensor breakages, short circuits, or out-of-range values instantly. The integrated limit value monitoring allows for programmable setpoints, enabling the system to trigger safety interrupts before thermal thresholds are exceeded.

Expert FAQ & Selection Guide

• How does the EL3208 handle resistance calibration over long 2-wire cable runs?
• The terminal is designed for 2-wire connectivity. To ensure maximum accuracy over long distances, we recommend using shielded, low-resistance cabling and adjusting the offset calibration in the software to compensate for cable resistance.
• Can I mix different sensor types on the same EL3208 module?
• Yes. The 8 channels are independently configurable, allowing you to mix PT100, PT1000, or resistive inputs within a single terminal depending on your specific machine requirements.
• What is the practical impact of the configurable conversion time?
• Lowering the conversion time to 3 ms is ideal for fast-moving thermal transients, though it may introduce signal noise. For stable, high-precision climate control, we recommend keeping the default 170 ms or higher for improved noise rejection.
• When should I choose the EL3208 over a standard 4-channel input terminal?
• Select the EL3208 when you need to optimize DIN rail density. It effectively replaces multiple standard modules, significantly reducing overall cabinet footprint and EtherCAT node count.
• What troubleshooting steps should I take if a channel returns a constant maximum value?
• This typically indicates a sensor open-circuit error. Check the terminal wiring terminals for loose connections and verify that the specific channel type in the TwinCAT configuration matches the physical sensor connected.
